Cutting Quality and the Load Capacity of Boom Structures

Cutting is where the manufacture of a crane boom begins. Before bending, riveting, or welding, the plate is sized and shaped at this stage, and the work done here largely determines how smoothly every operation that follows proceeds. Laser cutting, the method most widely used for this purpose, is usually assessed by the precision of the cut itself. Its influence, however, extends further: the dimensions and edge condition it produces continue to affect the structural performance of the finished boom.

A boom meets its design specification only when the steel is adequate and the parts are cut and assembled correctly. When plate dimensions deviate even slightly, the bend line shifts and the holes and edges of adjoining plates fail to align. Shop personnel commonly respond by adjusting during welding or grinding parts to make them fit. These measures bring the joint together and improve its appearance, but they do not remove the underlying cause. Uneven weld gaps or parts forced into position alter the way stress distributes through the structure, and such changes tend to surface as problems only later in service. Because much of this work is concealed by paint after grinding, the condition of a boom's outer surface provides little indication of its actual soundness.

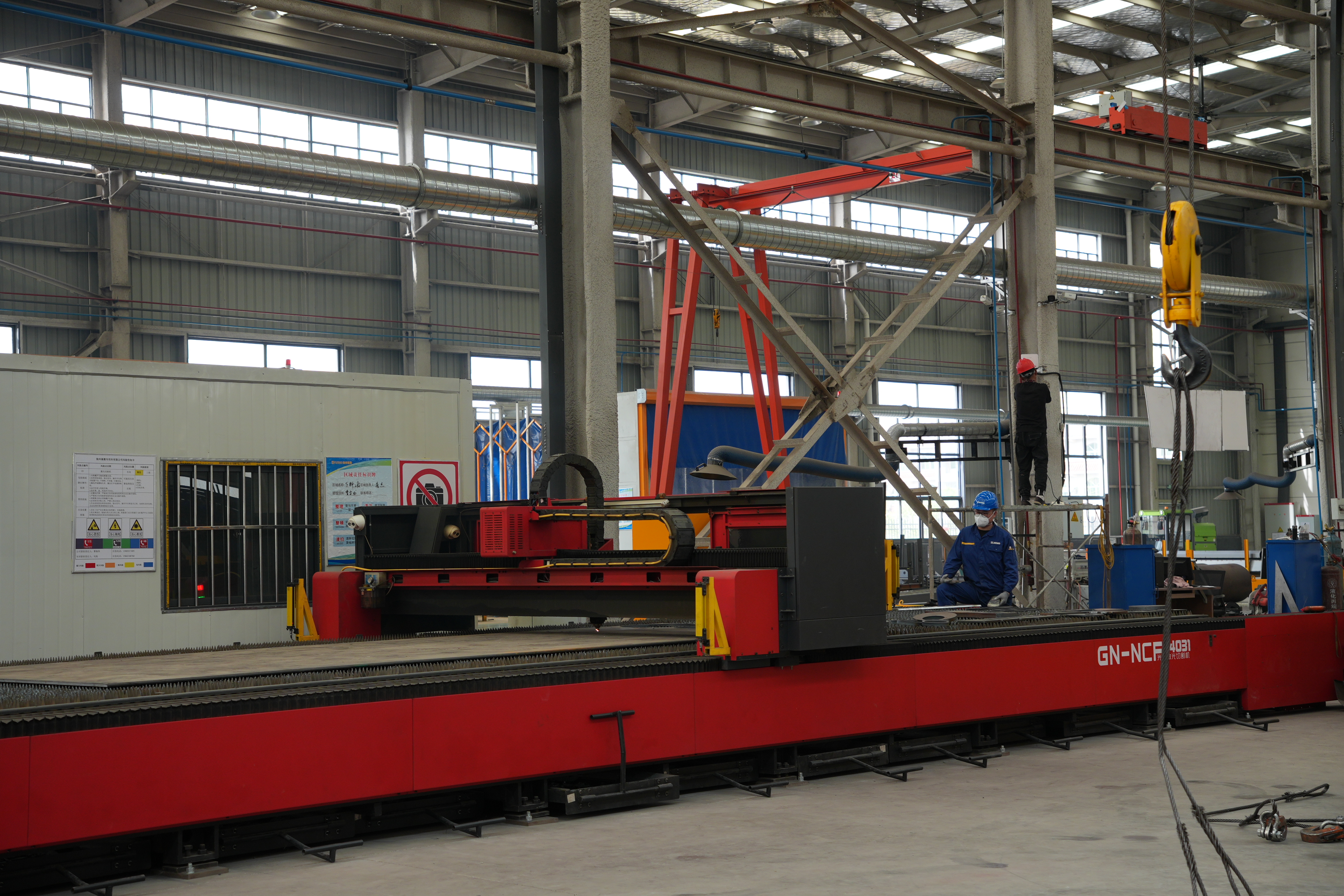

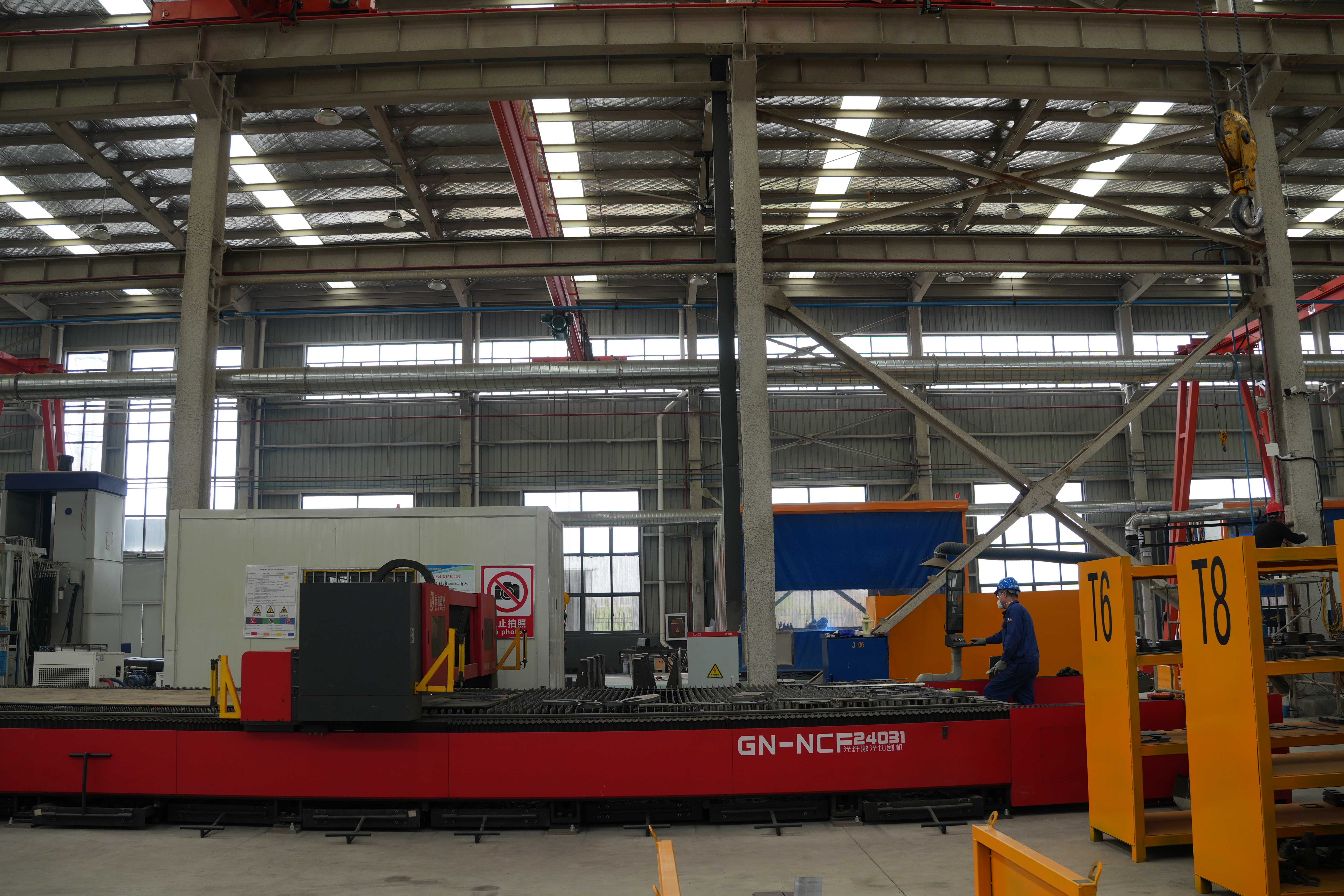

The principal advantage of laser cutting lies in dimensional control. With the machine in good condition, suitable process parameters, and acceptable plate quality, it produces a narrower kerf and a more accurate contour than conventional cutting methods, and parts remain consistent from one batch to the next. On a truck-mounted boom, the fit between components is a matter of primary importance. Stable part dimensions allow bending and assembly to proceed according to the drawing, keep weld gaps within a manageable range, and reduce the time spent on rework. This benefit does not end at the cutter; parts that fit correctly also make welding, surface treatment, and final inspection easier to carry out.

The heat-affected zone along the cut edge is a second factor that deserves attention. Laser cutting delivers a concentrated heat input over a short interval, so the HAZ generally remains confined to a small area. The actual result, however, depends on the steel grade, plate thickness, laser power, feed rate, and assist gas. Thermal distortion and microstructural changes cannot be entirely excluded, particularly on thicker or higher-strength plate.

This consideration is most significant for telescopic booms built from high-strength steel. The boom is subjected to bending and shear loads during operation, and its capacity is determined not only by the plate's yield strength but also by the section geometry, the design, the weld quality, and the local stress condition. Incorrect cutting parameters can produce hardening or micro-cracks at the cut edge, which then complicate the subsequent welding process. Laser cutting therefore contributes not merely by blanking parts at a higher rate; applied with proper process control, it also maintains the uniformity of cut quality, preventing variation at the cutter from affecting downstream operations and the reliability of the final structure.

There are also production and cost considerations. CNC programming enables cutting paths to be arranged according to each part's drawing, which reduces setup time when the product changes over. Optimized nesting allows more parts to be laid out on a single plate and lowers the amount of scrap. This flexibility suits products such as truck-mounted booms, which are manufactured in a wide range of specifications and irregular order volumes. In comparison with methods that rely on dedicated tooling, laser cutting offers greater adaptability for multi-variety, low-volume production and shortens the time required for part preparation.

Not every part, of course, can move directly from the cutter to the bending operation. Components subject to strict dimensional tolerances, particular edge requirements, or specified surface quality still require inspection and, in some cases, manual finishing. The objective is to balance machining precision and material yield against the actual needs of each part, and only under this condition does the case for laser cutting on grounds of efficiency and cost become fully valid.

The connection between blanking quality and lifting safety becomes apparent when the completed crane enters service. The operator selects the working radius and rated load from the manufacturer's load chart. These figures are derived from a specific set of design conditions, manufacturing requirements, and engineering validation; they do not imply that the boom is capable of the same load under all circumstances. If deviations in cutting affect the structural dimensions, the welds, or the local stress, the boom as manufactured may not behave in the manner the design anticipated. This is the reason manufacturing must include dimensional inspection, weld quality control, and structural testing, and why strict control of the cutting process, although necessary, cannot serve as a substitute for complete inspection and validation.

The choice of a cutting method also involves balancing equipment capability against cost. Laser cutting provides high precision and a high degree of automation, but on thicker plate it becomes necessary to consider cutting speed, machine power, cut quality, and assist-gas consumption together. For structures made of medium and thick plate, the appropriate parameters are determined by the actual thickness, the behavior of the material, and the production volume, rather than by assuming that a more advanced machine is automatically preferable. For telescopic truck crane booms, where dimensional accuracy is a firm requirement, laser cutting supplies a stable basis for forming and assembly, and this constitutes a substantial advantage.

The demands placed on cutting differ among types of booms. A telescopic boom consists of several sections nested one within another, and the clearances between them must be correct if extension and retraction are to operate smoothly; deviations in plate dimensions or flatness are felt immediately in this respect. Folding and articulated booms are joined at multiple points, so the plate profiles, hole positions, and bend angles must all be consistent. When they are not, parts fail to match during assembly, the workload of adjustment increases, and the assembly may acquire additional stress.

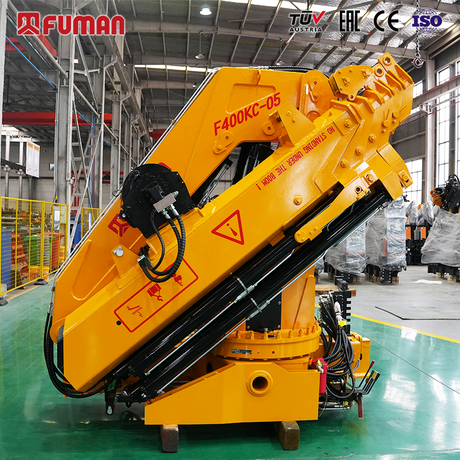

Knuckle boom cranes, ship telescopic booms, and marine knuckle booms differ in structure, in the environment in which they operate, and in the manner in which sections are connected, but all of them require strict control over component dimensions and assembly fit. When a large number of parts must be assembled in a complicated relationship, an error at any point makes every subsequent step more difficult. The boom of a grab machine is subjected to repeated loads and impacts in service, so control of cut-edge defects and weld-zone quality is critical. Forest cranes operate on uneven ground under load conditions that vary constantly; dimensional consistency and cut-edge quality at the blanking stage are therefore the foundation on which subsequent manufacturing and inspection depend.

Blanking is readily overlooked in comparison with welding or final assembly, yet it determines the dimensional accuracy and quality stability that run through the entire process of building a boom. The value of laser cutting does not lie chiefly in higher cutting speed or reduced material waste; it lies in providing bending, fit-up, welding, and inspection with a stable and repeatable starting point.

For this advantage to be realized in the product, a manufacturer must establish a system for managing cutting parameters in relation to material grade, thickness, and the application of each part, and must carry out first-article inspection, dimensional spot checks, and cut-edge quality assessment as a matter of routine. It is only when equipment capability, process specifications, and quality control work together that deviations cease to accumulate across operations, rework and quality risk are reduced, and the boom delivered corresponds to the design and reliably attains its rated load.
