What Are Knuckle Boom Cranes And How Do They Work?

In industries such as construction, logistics, and transportation, cranes play a vital role in lifting and moving heavy loads. Among the various types of cranes, knuckle boom cranes stand out due to their exceptional versatility, compact design, and ease of use. These cranes have gained widespread popularity because of their ability to work in tight spaces and handle a wide range of lifting tasks.

In this article, we will explore what knuckle boom cranes are, how they function, and why they are a preferred choice for many heavy-lifting tasks. We will delve into their structure, components, advantages, and applications, offering a comprehensive guide for those considering investing in this type of crane.

What is a Knuckle Boom Crane?

A knuckle boom crane, also known as an articulated crane or a articulating crane, is a type of crane with a unique design that allows the boom (or arm) to bend or "fold" in multiple places. This feature gives the crane greater flexibility in positioning, allowing it to extend and retract with a range of motion that is not possible with conventional cranes.

The name "knuckle boom" comes from the way the crane’s boom is designed: it resembles the knuckles of a hand, allowing the boom to bend at one or more pivot points, similar to how your fingers bend at the joints. This design allows the crane to fold into a compact form, which makes it highly maneuverable and ideal for use in tight or confined spaces.

Knuckle boom cranes are typically mounted on trucks or trailers, although stationary models are also available for permanent installation in specific locations, such as docks or warehouses. They can be operated via hydraulics, which allows for smooth movement and precise control of the crane's functions.

How Do Knuckle Boom Cranes Work?

Knuckle boom cranes operate using a series of hydraulic cylinders that control the movement of the crane's boom. The boom itself consists of multiple segments, including the base section and one or more extending or folding sections that allow for increased reach and versatility.

1. Hydraulic System

The heart of the knuckle boom crane’s operation is its hydraulic system. The hydraulics allow the crane to lift heavy loads with minimal effort, using pressurized fluid to control the movement of the boom and the load. The hydraulic cylinders are responsible for the boom's extension and retraction, as well as the tilting and swiveling motions that give the crane its remarkable flexibility.

2. Articulating Boom

Unlike traditional cranes, which feature a straight boom, knuckle boom cranes have an articulating (or “bending”) boom that allows for more complex lifting angles. The boom can be folded back, extending the reach of the crane and allowing it to operate in narrow or constrained spaces. This feature makes knuckle boom cranes especially useful for tasks like unloading cargo in tight areas, reaching over obstacles, or performing lifts at awkward angles.

3. Rotation and Reach

Another key feature of knuckle boom cranes is their ability to rotate 360 degrees. This allows operators to maneuver the crane into almost any position to access difficult-to-reach areas. Combined with the extendable boom, this full rotation enables the crane to reach high elevations or positions that would otherwise require multiple setups or larger cranes.

Key Components of a Knuckle Boom Crane

To understand how knuckle boom cranes work, it's important to be familiar with their main components. Here are the key parts of a knuckle boom crane:

1. Boom

The boom is the main lifting arm of the crane, and it is made up of several sections. It is hydraulically operated and can extend or fold to adjust the crane's reach and height.

2. Hydraulic Cylinders

Hydraulic cylinders are responsible for the movement of the boom. These cylinders provide the force needed to extend, retract, or angle the boom, and they are powered by hydraulic fluid.

3. Base Frame

The base frame is the foundation of the crane and is mounted on a truck, trailer, or stationary platform. It supports the entire crane and houses the hydraulic system and control mechanisms.

4. Control System

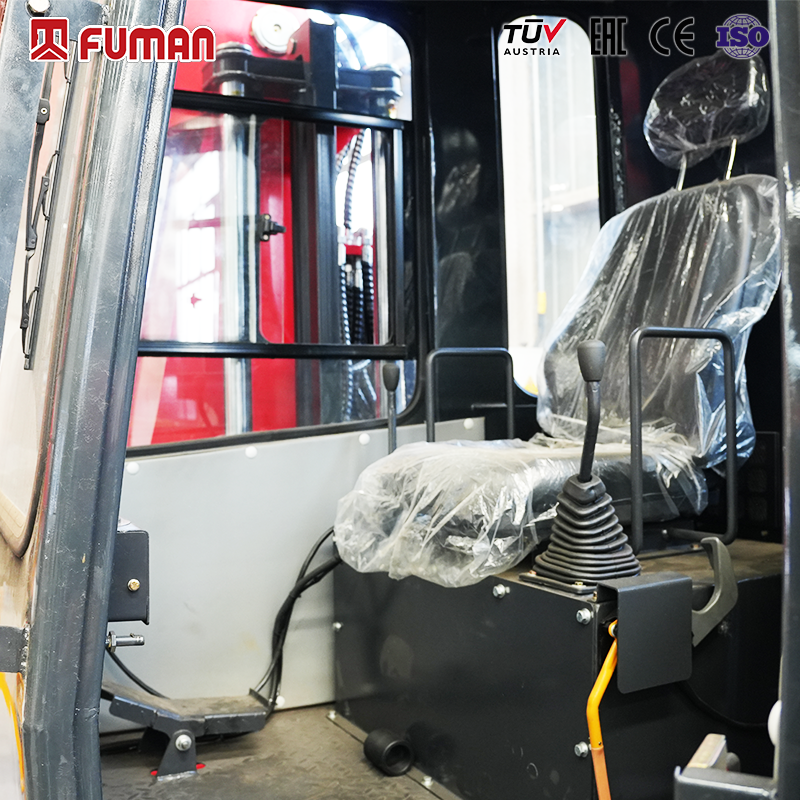

The control system allows the operator to direct the crane's movements. This can be done using a remote control or a manual control panel, depending on the model. The control system includes levers or buttons that operate the hydraulic cylinders, enabling the crane to move the boom, lift, and rotate the load.

5. Stabilizers

To ensure the crane remains stable during operation, most knuckle boom cranes are equipped with stabilizers. These are extendable legs that provide additional support, particularly when the crane is lifting heavy loads.

Advantages of Knuckle Boom Cranes

Knuckle boom cranes have several advantages that make them ideal for a wide range of applications. Here are some key benefits:

1. Compact Design

One of the most significant benefits of knuckle boom cranes is their compact design. The articulating boom allows the crane to fold down into a small, manageable size, making it easier to transport and store. This is particularly useful in industries where space is limited, such as urban construction sites, docks, and warehouses.

2. High Maneuverability

Knuckle boom cranes are highly maneuverable and can operate in tight spaces where traditional cranes might struggle. The ability to rotate 360 degrees and extend the boom gives operators greater flexibility in positioning and lifting materials in confined or complex environments.

3. Versatility

Knuckle boom cranes are versatile and can be used in a wide range of industries and applications. They are commonly used in construction, logistics, maritime operations, and forestry due to their ability to lift, load, unload, and move heavy materials with ease. Whether you're lifting large equipment, loading trucks, or moving materials in tight areas, a knuckle boom crane can get the job done efficiently.

4. Precision and Control

The hydraulic system used in knuckle boom cranes provides smooth, precise control over the crane's movements. This is essential when working with delicate materials or performing tasks that require a high level of accuracy, such as lifting cargo in a warehouse or placing equipment on a construction site.

5. Safe and Easy Operation

Knuckle boom cranes are equipped with safety features such as overload protection, stabilizers, and user-friendly controls, making them easier and safer to operate. With proper training, operators can use the crane efficiently and safely, minimizing the risk of accidents.

Applications of Knuckle Boom Cranes

Knuckle boom cranes are widely used across various industries. Some of their common applications include:

• Construction Sites: Knuckle boom cranes are used for lifting heavy materials, placing steel beams, and unloading equipment in tight spaces.

• Maritime and Port Operations: These cranes are commonly found on ships, docks, and ports, where they are used to unload containers, cargo, and heavy equipment.

• Logistics and Warehousing: Knuckle boom cranes are ideal for moving large pallets, loading and unloading trucks, and organizing materials in warehouses.

• Forestry and Landscaping: In the forestry industry, knuckle boom cranes are used to load logs, move heavy equipment, and assist in landscaping tasks.

• Roadside Assistance: Knuckle boom cranes are often mounted on tow trucks to provide vehicle recovery and lifting services.

Conclusion

Knuckle boom cranes are highly versatile and efficient machines that play a vital role in various industries, including construction, logistics, maritime, and more. Their unique articulating design allows them to operate in tight spaces, reach high places, and handle a wide range of heavy lifting tasks. With their compact size, flexibility, and ease of use, knuckle boom cranes provide a valuable solution for businesses that require reliable lifting and moving capabilities.
