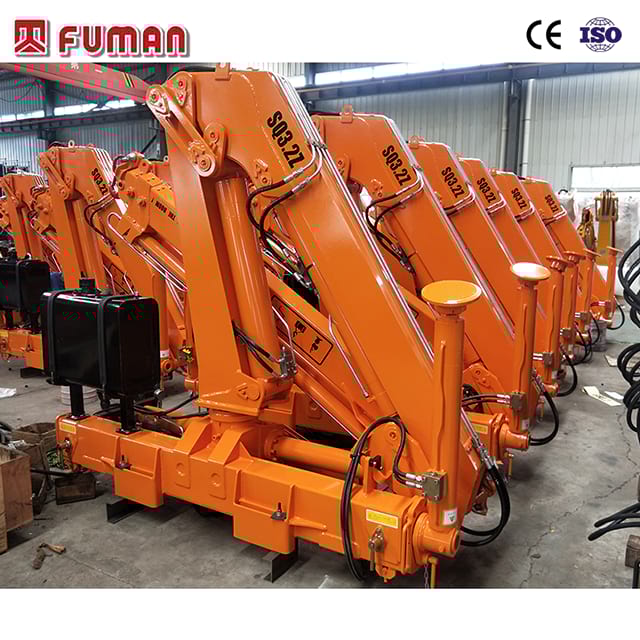

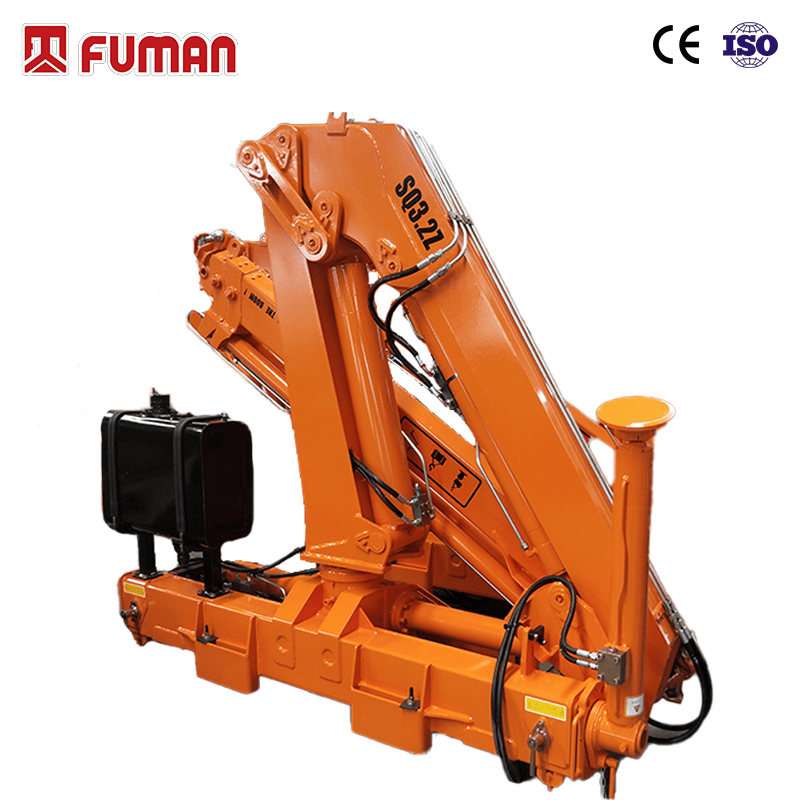

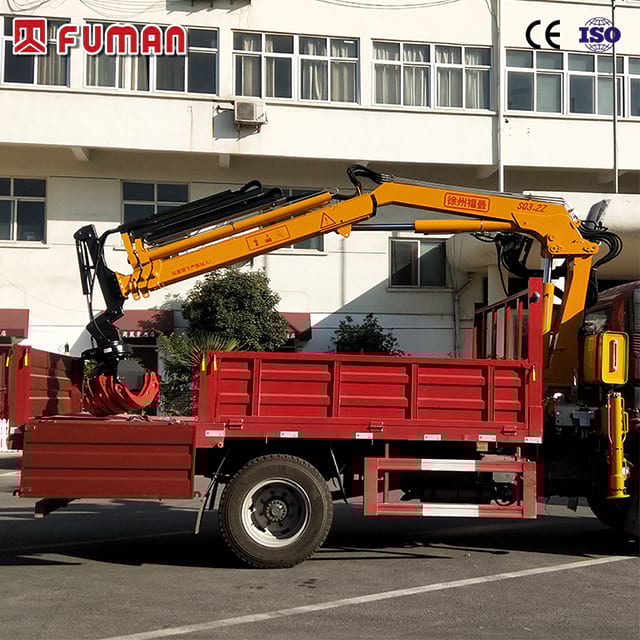

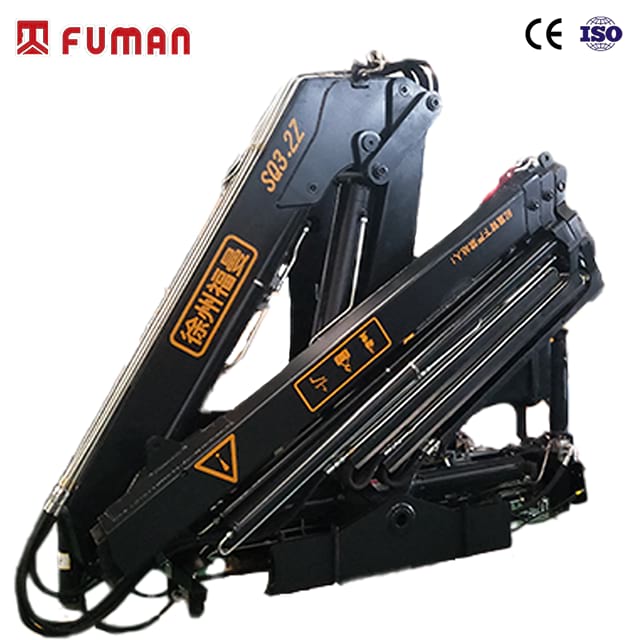

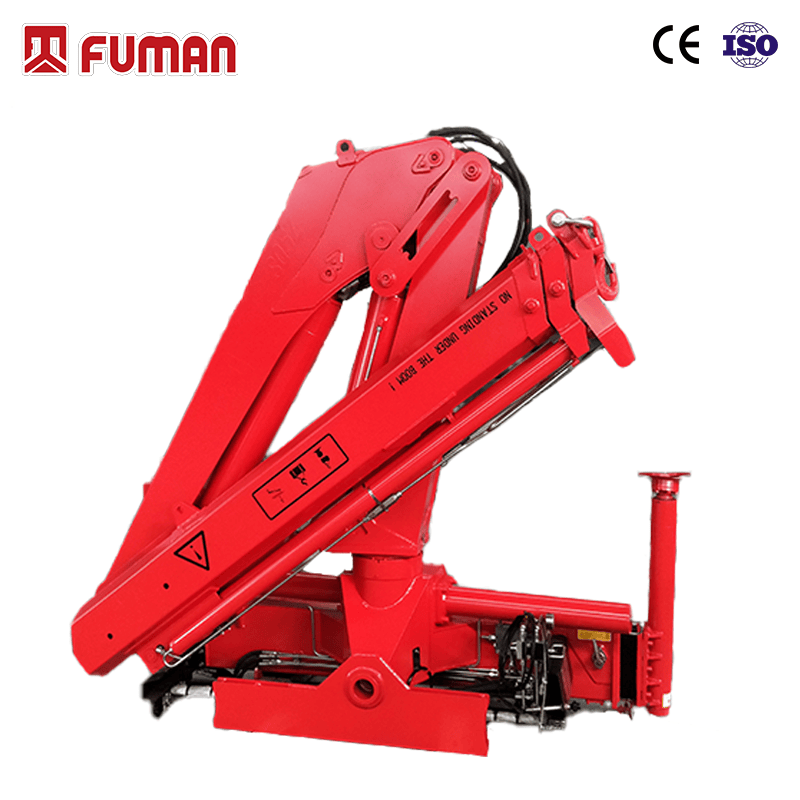

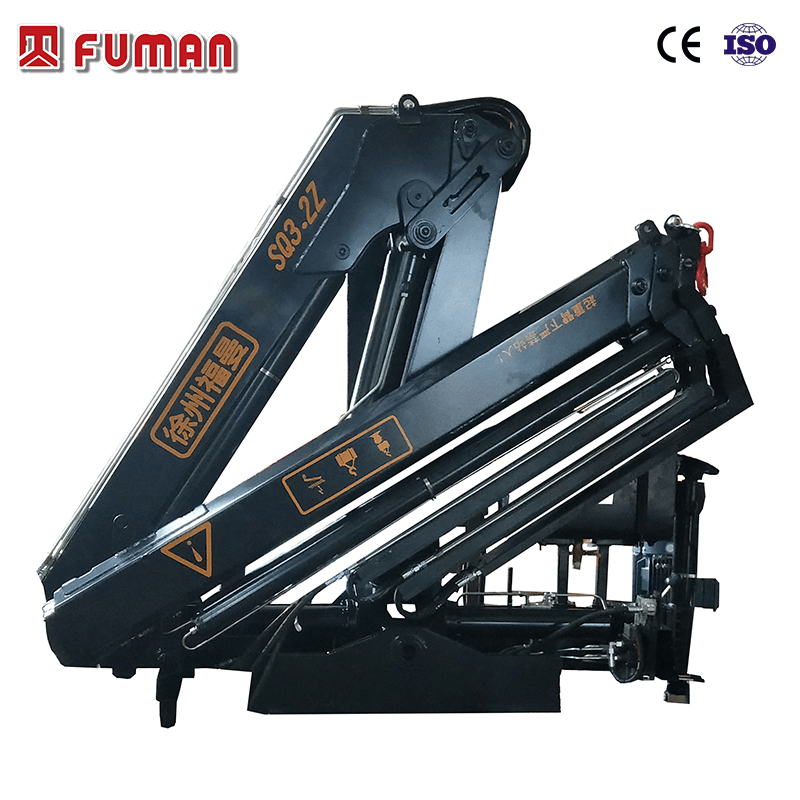

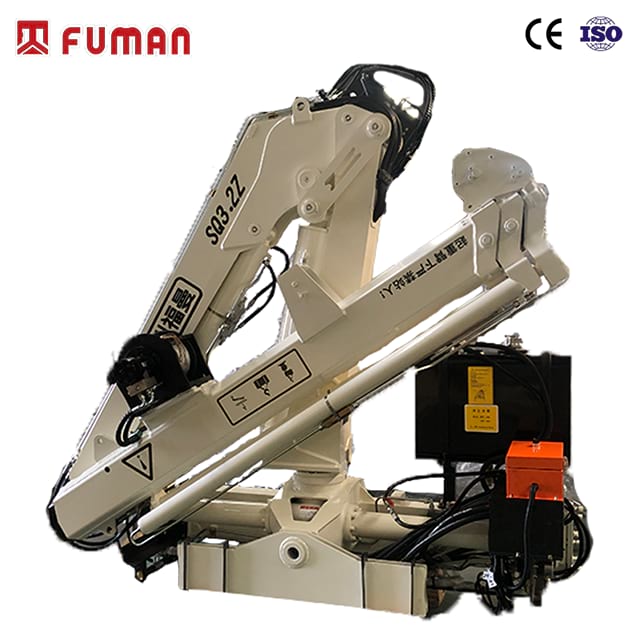

The FUMAN 3.2 Ton Truck Mounted Knuckle Boom Crane is a mid-range mobile solution designed for versatile lifting in urban and industrial environments. With a 3.2-ton lifting capacity and a knuckle boom design, this crane balances power, maneuverability, and precision, making it ideal for medium-duty tasks such as commercial construction, warehouse logistics, and utility maintenance. Its compact truck integration and flexible articulation enable efficient operation in tight spaces, while robust safety features ensure compliance with international standards.
Articulated Knuckle Boom Design:
3-section knuckle boom with 360° continuous rotation and multi-joint articulation, providing a maximum horizontal reach of 12 meters and vertical lift height of 14 meters for access to confined areas.
Folded boom length of 8 meters fits through standard highway tunnels and narrow city streets, enhancing accessibility in urban job sites.
Balanced Truck Chassis Integration:
Mounted on a 4x2 commercial truck chassis with a narrow profile (width: 2.5 meters), offering road speeds up to 90 km/h and easy maneuverability in urban traffic.
Hydraulic outriggers with automatic deployment ensure stable on-site operation, with setup time reduced to under 3 minutes.
Efficient Hydraulic System:
Low-noise, energy-saving pumps reduce fuel consumption by 15% compared to standard models, while delivering smooth and responsive boom movements under medium loads.
High-quality seals and filters protect the hydraulic system from dust and moisture, extending component life in harsh industrial environments.
Dual-Layer Safety Protection:
Overload protection sensors and anti-collision radar automatically adjust boom speed and direction to avoid obstacles or excessive loads.
Mechanical emergency brake and redundant hydraulic valves provide fail-safe protection, complying with ANSI B30.5 and CSA Z150 safety standards.
Operator-Centric Design:
Climate-controlled cabin with adjustable suspension seats, panoramic mirrors, and a 7-inch display for real-time monitoring of load parameters and boom angles.
Optional heated controls and ergonomic joysticks for comfortable operation in extreme temperatures (-20°C to +50°C).

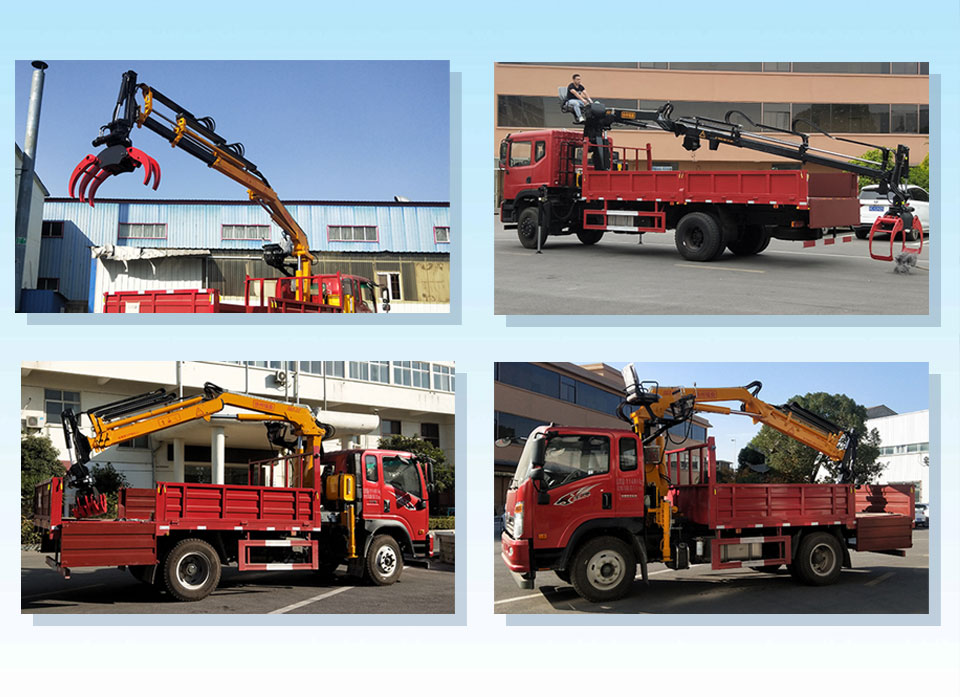

Commercial Construction & Renovation:
Installs precast walls, steel trusses, and rooftop HVAC units in mid-rise buildings, optimizing space usage in dense urban environments.
Facilitates historic building restoration by navigating tight spaces and preserving surrounding structures during material handling.
Industrial Logistics & Warehousing:
Manages medium-weight machinery, pallets, and oversized components in manufacturing facilities, improving material flow between production lines and storage areas.
Efficiently loads/unloads goods in distribution centers with limited dock space, leveraging its compact design and precise load positioning.
Utility & Infrastructure Services:
Positions transformers, switchgear, and communication towers in suburban and rural areas, adapting to varying terrain conditions with its all-terrain capabilities.
Supports railway maintenance by installing trackside signals and equipment, ensuring safety and efficiency in railway environments.
Emergency & Maintenance Tasks:
Deploys quickly for equipment repair in factories with low ceilings or narrow aisles, such as automotive plants and food processing facilities.
Aids in temporary structure setup during disaster relief, moving supplies and debris in challenging conditions.
Q: What is the maximum gradeability of this crane during road transport?
A: The truck chassis can navigate inclines up to 25°, supported by its 4x2 drive system and advanced traction control for safe off-road mobility.
Q: Can the crane be operated remotely for safety in hazardous environments?
A: Yes, a wireless remote control option (50-meter range) is available, allowing operators to manage loads from a safe distance in dusty, wet, or high-noise environments.
Q: How often does the hydraulic oil need to be replaced?
A: Routine maintenance recommends replacing hydraulic oil every 1,000 operating hours or annually, with detailed schedules provided in the user manual to ensure system longevity.
Q: Does this model comply with European emission standards?
A: Yes, it is equipped with Euro VI-compliant engines, minimizing nitrogen oxide (NOx) and particulate matter (PM) emissions to meet strict European environmental regulations.

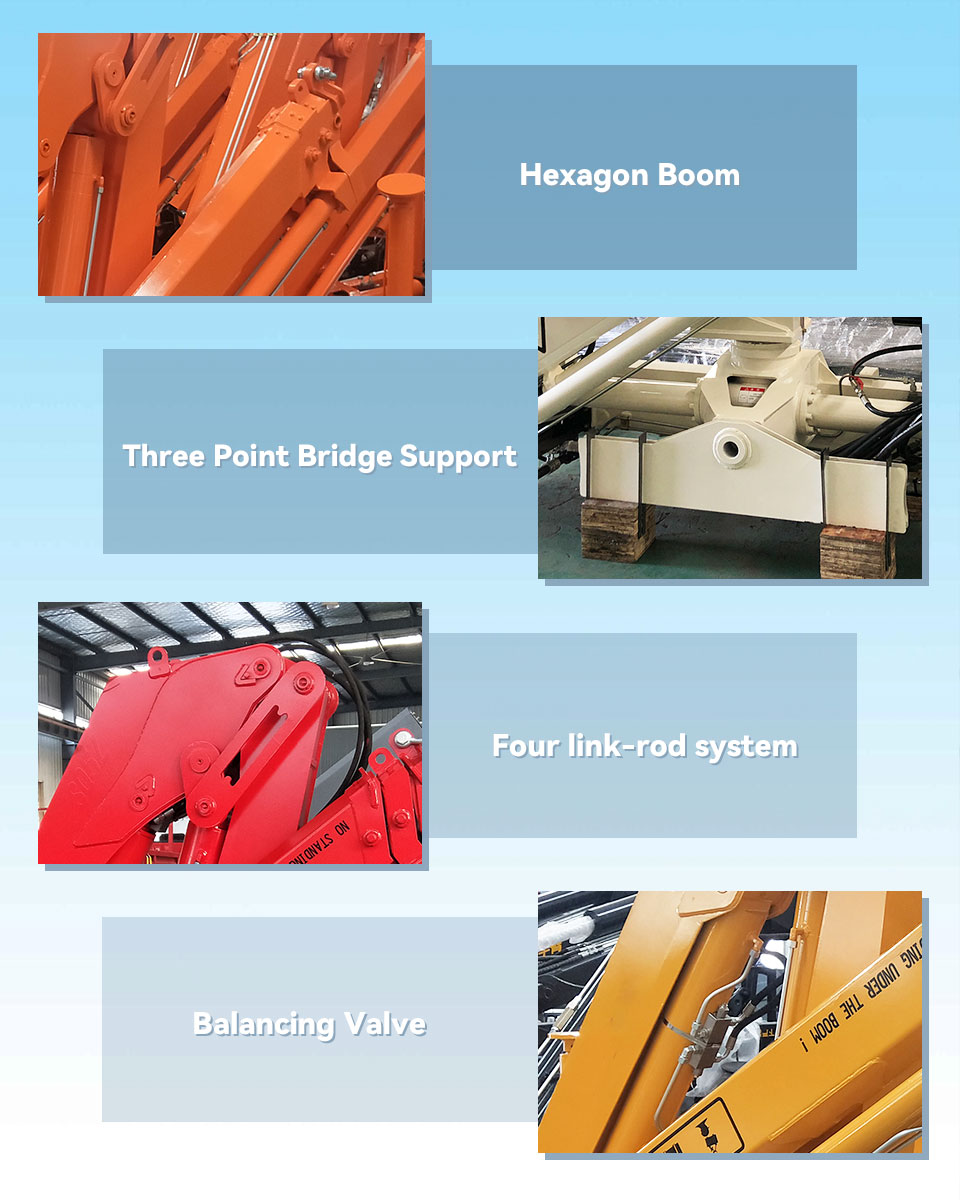

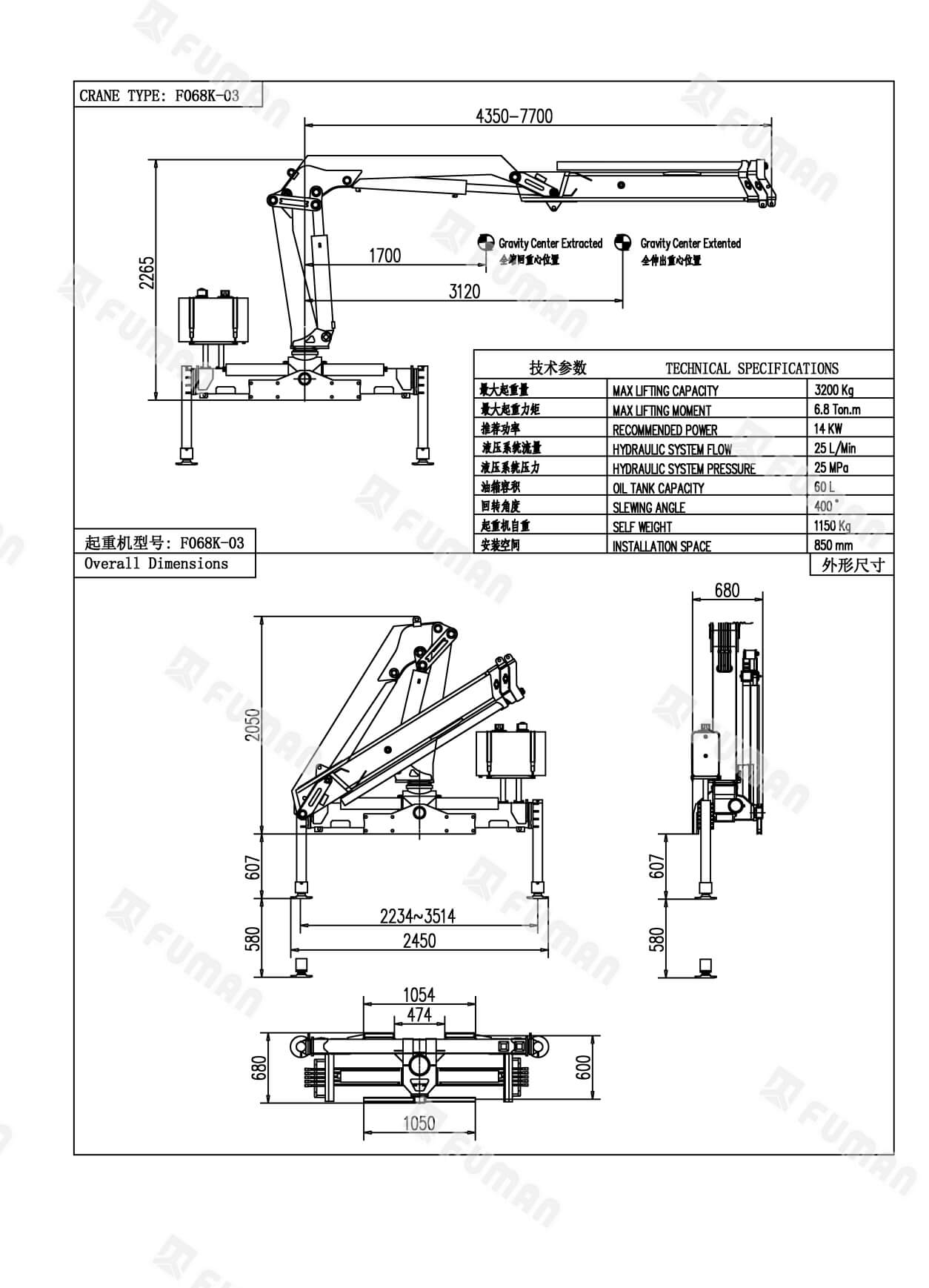

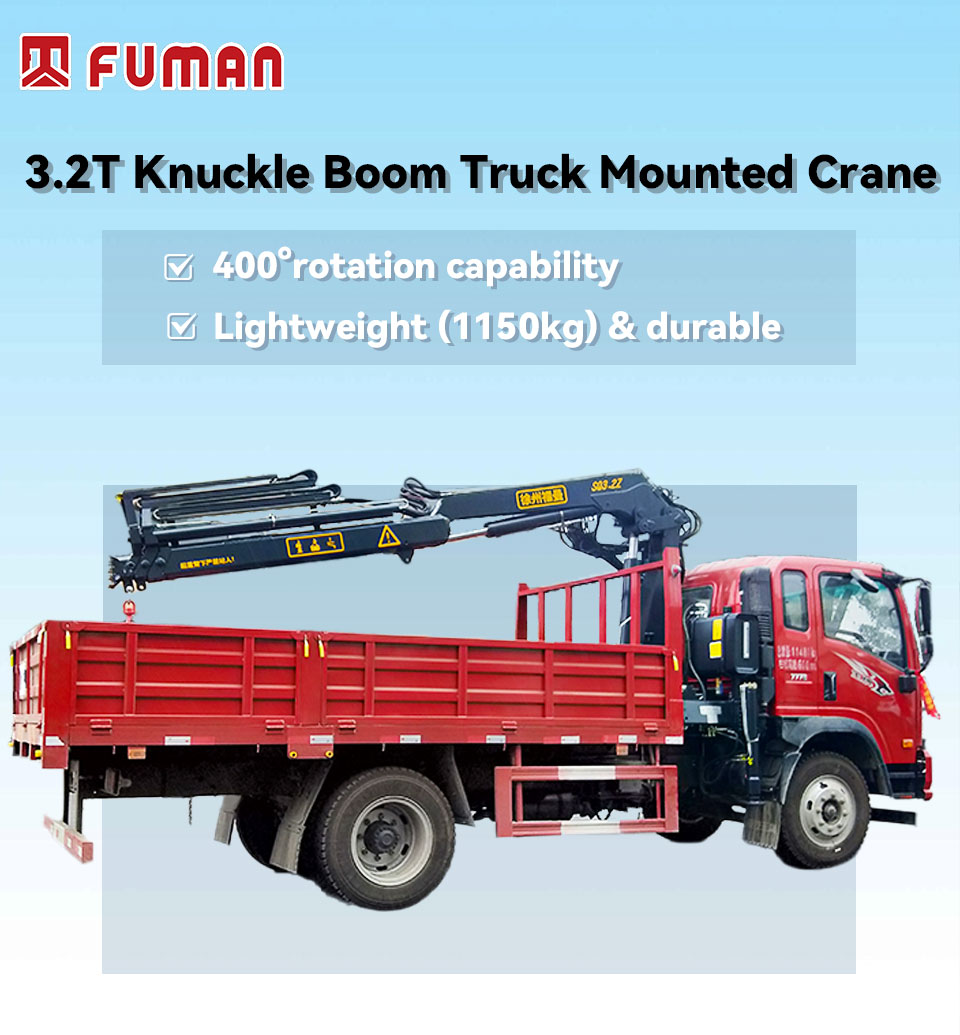

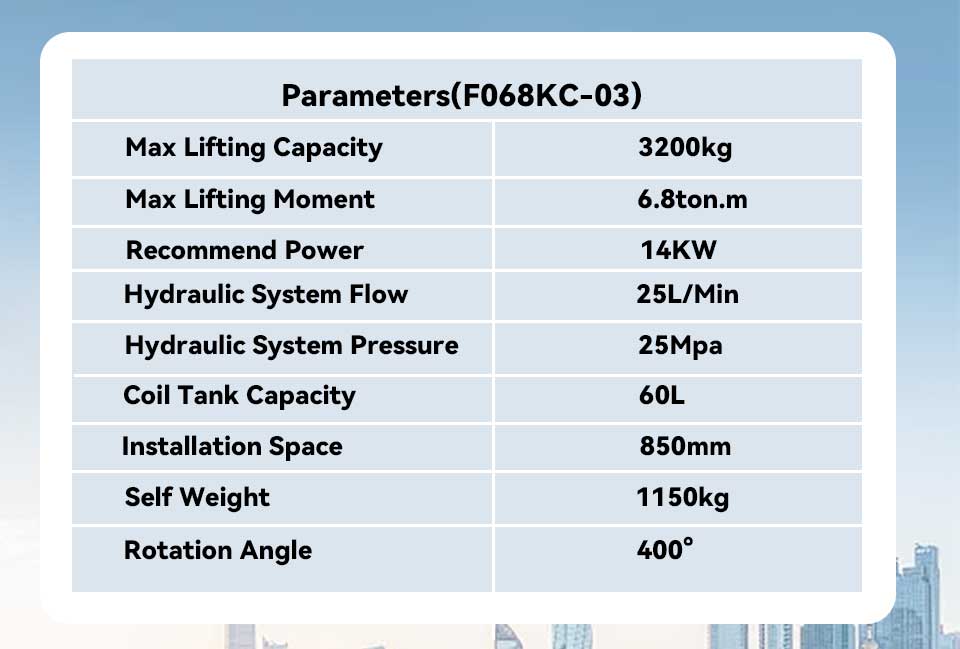

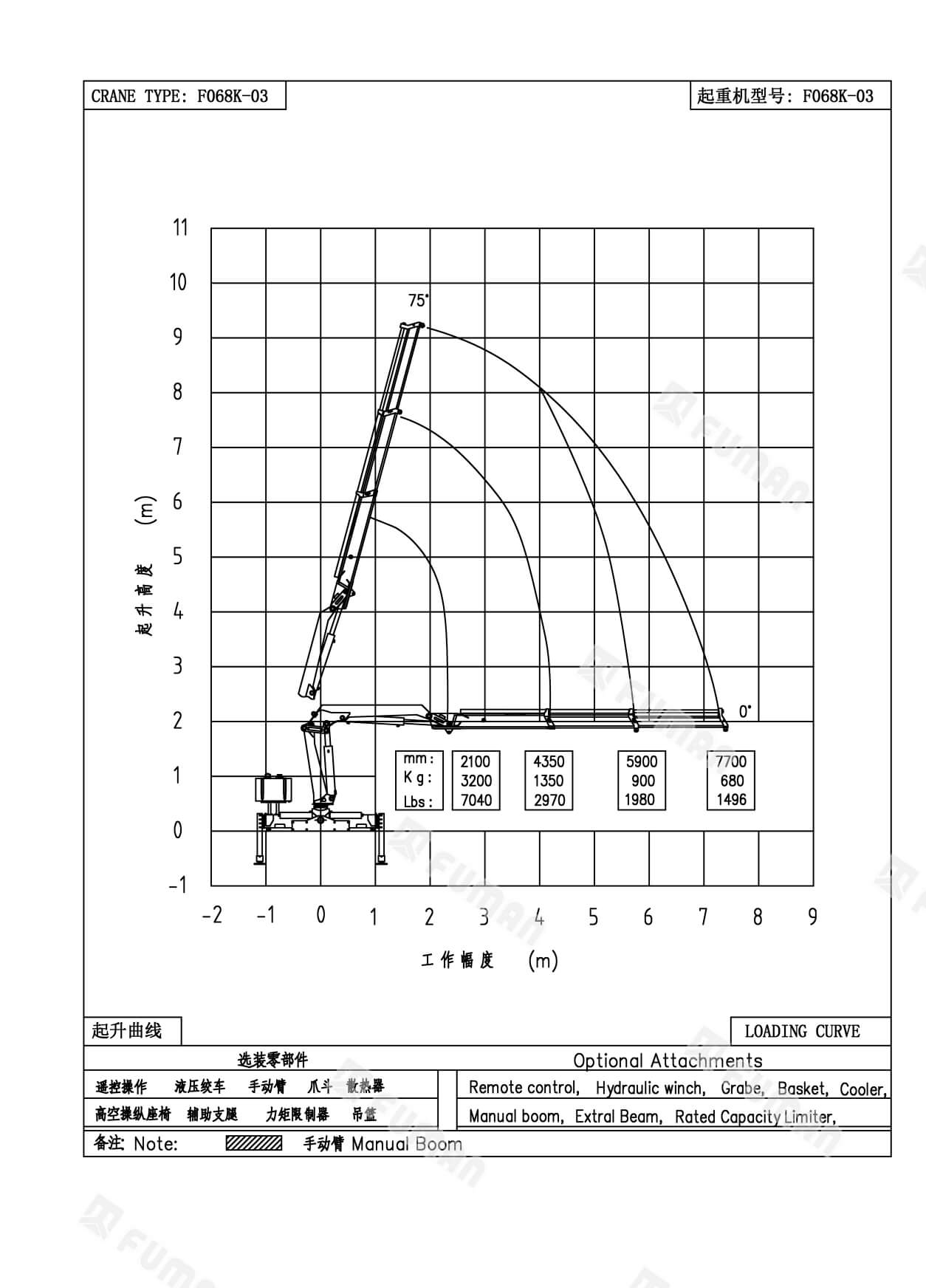

Parameters(F068K-03) | |
Max Lifting Capacity | 3200kg |
Max Lifting Moment | 6.8ton.m |
Recommend Power | 14KW |
Hydraulic System Flow | 25L/Min |
Hydraulic System Pressure | 25Mpa |
Coil Tank Capacity | 60L |
Installation Space | 850mm |
Self Weight | 1150kg |
Slewing Angle | 400° |
Knuckle Boom Crane Operation Guide
1. Pre-Operation Inspection
Verify ground stability, check hydraulic fluid levels, and inspect cables/controls for damage. Ensure safety devices (load limiter, emergency stop) function properly. Confirm load weight matches crane capacity using the rated chart.
2. Setup & Stabilization
Deploy outriggers on solid ground, ensuring the crane remains level. Extend stabilizer pads if on soft terrain. Rotate the cab to position the boom clear of obstacles. Lock wheels and engage parking brakes.
3. Load Handling
Use the joystick to unfold the knuckle boom smoothly. Position hooks vertically above the load’s center of gravity. Lift slowly, maintaining tension on slings. Avoid sudden movements—swing/retract the boom incrementally for precision.
4. Shutdown & Maintenance
Retract the boom fully, secure all components, and park on level ground. Clean debris, lubricate joints weekly, and log hydraulic system pressures. Schedule professional inspections every 500 operating hours.
