What You Need To Know about Crane Boom

Ever wondered how massive ships and offshore platforms get their heavy cargo lifted? The answer lies in marine cranes boom. These essential components play a crucial role in maritime operations, ensuring safe and efficient handling of heavy loads. In this post, you'll learn about the importance of crane booms in marine environments and explore the intricacies of hydraulic marine cranes boom.

Understanding Marine Cranes Boom

Definition and Functionality

A marine crane boom is the long arm attached to a crane used on ships, offshore platforms, or docks. It lifts, moves, and places heavy loads over water or on vessels. The boom extends the crane’s reach, allowing it to handle cargo, equipment, or construction materials in marine environments. Its design must account for harsh conditions like saltwater corrosion, strong winds, and constant motion from waves.

Marine crane booms operate mainly through hydraulic systems. These systems use pressurized fluid to control the boom’s movements—extending, retracting, raising, or lowering it. This hydraulic power offers smooth, precise control, essential for delicate or heavy lifting tasks at sea. The boom’s length and flexibility enable it to reach over obstacles, load cargo holds, or assist in offshore construction.

Key Components of Marine Cranes Boom

A typical marine crane boom includes several critical parts working together:

● Boom Sections: These are the main structural parts, often made from high-strength steel or corrosion-resistant alloys. Sections may be fixed or telescopic, allowing the boom to extend or retract.

● Telescopic Mechanism: This enables the boom to slide out or fold back in, adjusting its length as needed. Hydraulic cylinders usually power this mechanism.

● Pulley Blocks and Wire Ropes: These handle the lifting cables, transmitting force from the crane’s winch to the load.

● Hydraulic Cylinders: These provide the force to move the boom sections and adjust angles.

● Boom Head: The tip of the boom where the hook or lifting device attaches.

● Swivel Joints: Allow the boom to rotate horizontally, increasing its operational range.

● Counterweights: Positioned on the crane base to balance the boom and prevent tipping during lifts.

Together, these components ensure the boom can safely handle heavy loads, maintain stability, and operate efficiently in marine settings.

Role in Maritime Construction and Logistics

Marine crane booms are indispensable in maritime construction and logistics. They assist in building offshore platforms, laying underwater pipelines, and erecting wind turbines at sea. Their ability to reach over water and handle heavy equipment makes them ideal for these complex tasks.

In port operations, marine crane booms load and unload cargo from ships. They handle containers, bulk materials, and heavy machinery, speeding up logistics while reducing manual labor. Their precision reduces risks of damage to goods or vessels.

During offshore drilling or maintenance, these booms lift tools, pipes, and parts from supply vessels to rigs. They must operate reliably despite waves and wind, ensuring safety for crew and equipment.

In summary, marine crane booms enable efficient, safe, and precise handling of heavy loads in challenging maritime environments, supporting construction, logistics, and offshore industries.

Types of Hydraulic Marine Cranes Boom

Hydraulic marine crane booms come in various designs, each suited for specific tasks and environments. Understanding these types helps in selecting the right boom for your marine operation.

Fixed Crane Booms

Fixed crane booms have a set length and do not extend or retract. They are sturdy and designed for heavy-duty lifting tasks where a constant reach is sufficient. These booms are often used in applications requiring high lifting capacity and stability, such as loading heavy cargo on docks or offshore platforms.

Because they lack moving sections, fixed booms are simpler in design, which can reduce maintenance needs. However, their fixed length limits flexibility in reaching different positions. Operators must position the crane carefully to maximize coverage.

Telescopic Crane Booms

Telescopic booms consist of multiple sections that slide out or retract, giving variable length. Hydraulic cylinders power this extension and retraction, allowing the boom to reach over obstacles or adjust reach based on the task.

This flexibility makes telescopic booms popular in marine settings where space is tight or varying reach is needed, such as loading different ship sizes or offshore installations. They provide a balance between reach and compact storage when retracted.

Telescopic booms often feature sophisticated hydraulic control systems for smooth, precise movements. Still, their complexity requires regular maintenance to avoid hydraulic leaks or mechanical jams.

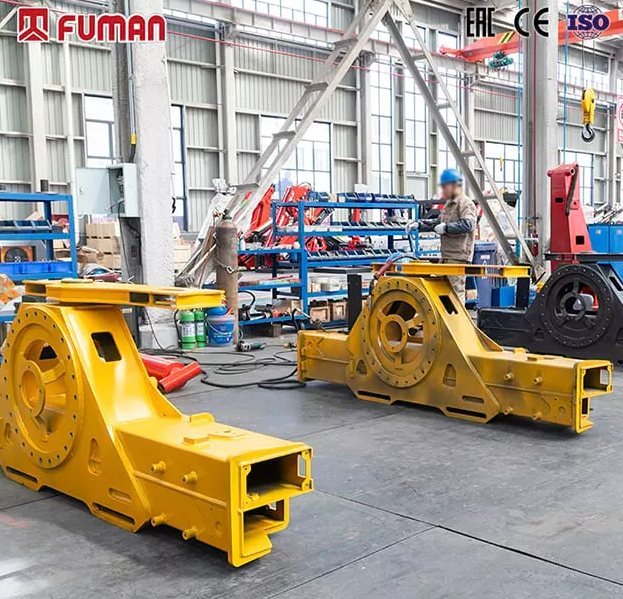

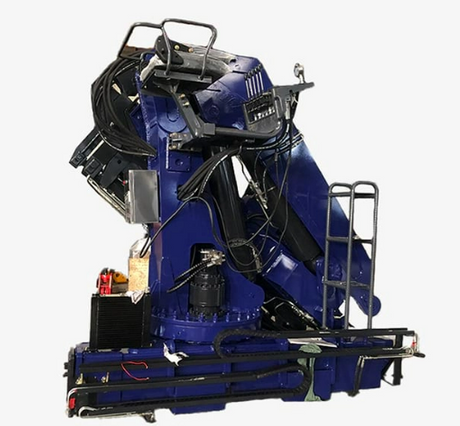

Articulated Crane Booms

Articulated booms have multiple segments connected by joints that can bend independently. This design offers exceptional maneuverability, allowing the boom to reach over obstacles or into confined spaces where fixed or telescopic booms cannot operate effectively.

In marine environments, articulated booms are valuable for tasks like maintenance on ship decks, handling irregular cargo, or working around structures on offshore platforms. Their flexibility helps operators position loads with greater accuracy.

Hydraulics control each joint’s movement, providing smooth articulation. However, the joints and hydraulic lines need frequent inspection to ensure reliability in harsh marine conditions.

How Hydraulic Systems Enhance Crane Booms

Mechanics of Hydraulic Systems in Crane Booms

Hydraulic systems power most modern marine crane booms. They use pressurized fluid to create movement and force. When the operator activates a control valve, hydraulic fluid flows through cylinders. These cylinders extend or retract the boom sections smoothly and precisely. The fluid pressure multiplies force, allowing the boom to lift heavy loads with ease.

Hydraulic pumps generate the pressure, driven by electric motors or diesel engines. Control valves direct fluid flow, while reservoirs store the hydraulic fluid. Seals and hoses keep the system leak-free. Sensors monitor pressure and position to ensure safe, accurate operation.

This system replaces older mechanical or cable-driven methods, offering faster response and finer control. The ability to modulate pressure lets the boom move gently or hold heavy loads steady, essential in marine environments where waves and wind add complexity.

Benefits of Hydraulic Systems for Marine Applications

Hydraulics provide several key advantages for marine crane booms:

● Smooth and Precise Control: Operators can adjust boom position with great accuracy, reducing load sway and increasing safety.

● High Power in Compact Size: Hydraulic components fit into limited crane space but deliver strong lifting force.

● Variable Speed and Force: The system allows slow, careful movements or quick repositioning as needed.

● Load Holding Capability: Hydraulic locks help maintain boom position without continuous power, saving energy.

● Adaptability to Harsh Conditions: Properly sealed hydraulic systems resist saltwater corrosion and contamination.

● Reduced Mechanical Wear: Fewer moving parts compared to gears or cables mean less maintenance and longer service life.

These benefits make hydraulic marine crane booms reliable for offshore platforms, shipyards, and dockside cargo handling.

Common Hydraulic System Issues and Solutions

Despite their advantages, hydraulic systems can face problems. Understanding these helps maintain safe crane operation:

● Hydraulic Fluid Leaks: Leaks reduce pressure and contaminate the environment. Regularly inspect hoses, seals, and fittings. Replace worn parts promptly.

● Air in the System: Air causes spongy controls and erratic movements. Bleed the system during maintenance to remove trapped air.

● Contaminated Fluid: Dirt or water contamination damages pumps and valves. Use high-quality fluid and change it per manufacturer guidelines.

● Overheating: Excess heat degrades fluid and seals. Ensure proper cooling and avoid excessive continuous operation.

● Cylinder Seal Wear: Worn seals cause leaks and loss of force. Inspect seals regularly and replace when needed.

● Pump Failure: Pumps can fail due to wear or contamination. Monitor pump performance and service or replace as required.

Routine maintenance, including fluid checks, filter changes, and system inspections, prevents most issues. Operators should also be trained to recognize early warning signs like sluggish response or unusual noises.

Applications of Hydraulic Marine Cranes Boom

Hydraulic marine cranes boom play a vital role across various industries, especially where heavy lifting and precise load handling are required in challenging marine environments. Their adaptability and power make them indispensable tools in many applications.

Construction and Offshore Operations

In offshore construction, hydraulic marine crane booms are essential for building and maintaining oil rigs, wind farms, and underwater pipelines. They lift heavy materials like steel beams, pipes, and equipment from supply vessels to platforms. The booms' hydraulic systems provide smooth, controlled movements, crucial when working on unstable, moving surfaces like ocean waves.

These cranes also assist in installing subsea structures and performing repairs. Their ability to extend, retract, and articulate allows operators to position loads accurately despite limited space and harsh weather conditions. For example, installing a wind turbine foundation requires precise boom control to place heavy components safely on the seabed.

Industrial and Warehouse Settings

Hydraulic marine crane booms are also used in industrial ports and warehouse docks. They handle loading and unloading of cargo ships, moving containers, bulk materials, and heavy machinery efficiently. The hydraulic feature enables quick adjustments of boom length and angle to access different parts of a vessel or dock.

In warehouses near water, these cranes help transfer goods between ships and storage areas. Their robust design withstands corrosive marine environments, ensuring long service life. For instance, a port handling steel coils benefits from telescopic booms that can reach over containers to position loads safely.

Specialized Maritime Uses

Beyond construction and logistics, hydraulic marine crane booms serve specialized maritime tasks. They are used on research vessels for deploying scientific instruments and handling submersibles. Salvage operations rely on these cranes to lift sunken objects or damaged vessels.

Fishing fleets use smaller hydraulic booms to manage heavy nets and catch. Naval ships employ them for loading supplies and equipment in tight quarters. The boom’s flexibility and precise hydraulic control enable safe operations in confined spaces and rough seas.

Maintenance Tips for Hydraulic Marine Cranes Boom

Regular Inspections and Safety Checks

Routine inspections are vital to keep marine crane booms operating safely and efficiently. Visual checks should be performed before and after each shift to spot any signs of wear, corrosion, or structural damage. Pay close attention to critical areas like boom joints, welds, and hydraulic cylinders. Look for cracks, rust, or deformation that could compromise safety.

Safety checks also include testing the hydraulic system for leaks or unusual noises. Ensure all safety devices, such as overload indicators and emergency stop buttons, are functional. Keeping detailed maintenance logs helps track issues over time and plan proactive repairs. Regular inspections help prevent unexpected failures, reduce downtime, and extend the lifespan of the crane.

Lubrication and Cleaning Protocols

Lubrication is essential for smooth operation and reducing wear on moving parts. Focus on pivot points, hydraulic cylinder pins, and wire ropes. Use high-quality lubricants recommended by the manufacturer. Proper lubrication minimizes friction, prevents rust, and protects against corrosion, especially in saltwater environments.

Cleaning the boom after each use removes dirt, salt, and debris that can accelerate corrosion or cause mechanical issues. Use gentle cleaning agents compatible with the boom’s material. Avoid high-pressure washers directly on hydraulic components to prevent damage. Regular cleaning maintains the integrity of the boom and ensures all parts move freely.

Ensuring Structural Integrity

Structural integrity is crucial for safe crane operation. Regularly inspect welds, joints, and the boom’s overall condition. Look for signs of fatigue, cracks, or deformation, especially after heavy lifts or harsh weather conditions. Any damage or weakening should be addressed immediately by qualified personnel.

Welding repairs must meet safety standards to restore strength. Consider non-destructive testing methods like ultrasonic or magnetic particle testing for critical areas. Additionally, check the condition of cables, pins, and hydraulic seals, replacing worn or damaged parts promptly. Maintaining the structural health of the boom prevents accidents and prolongs operational life.

Safety Considerations for Marine Crane Operations

Load Limits and Overloading Risks

Marine crane booms have specific load limits designed to ensure safe operation. Exceeding these limits risks structural damage, equipment failure, or even catastrophic accidents. Operators must always refer to the crane’s load charts, which consider boom length, angle, and environmental factors like wind and vessel motion.

Overloading can cause the boom to bend, crack, or collapse. Dynamic forces from waves and wind amplify these risks, making it crucial to factor in safety margins. Using load monitoring systems helps prevent overloading by providing real-time feedback. Additionally, ensure the load is properly balanced and secured to avoid sudden shifts during lifts.

Operator Safety Protocols

Safety starts with the operator. Proper training in marine crane operation is essential. Operators should understand the crane’s controls, load charts, and emergency procedures. They must perform pre-operation checks, including inspecting hydraulic systems, cables, and safety devices.

Communication between the operator and deck crew is vital. Use hand signals, radios, or intercoms to coordinate movements precisely. Operators should never leave the controls unattended while a load is suspended. Wearing personal protective equipment (PPE) such as helmets, gloves, and safety boots is mandatory for all personnel involved.

Operators must also be aware of environmental conditions. High winds, rough seas, or poor visibility increase hazards. In such cases, operations should be paused or adjusted to maintain safety.

Emergency Procedures and Precautions

Despite precautions, emergencies can occur. Having clear, practiced emergency procedures minimizes risks. Operators and crew should know how to quickly stop crane movements using emergency stop buttons.

In case of hydraulic failure, operators must lower the load safely or secure it in place. Regular drills help crews respond calmly and efficiently.

Precautions include establishing exclusion zones around the crane to keep personnel clear of load paths. Warning alarms and lights alert nearby workers during crane operation. Maintaining firefighting equipment and spill kits nearby prepares the team for hydraulic fluid leaks or fires.

Documentation of incidents and near-misses supports continuous safety improvements. Regular safety meetings reinforce awareness and update protocols as needed.

Conclusion

Marine crane booms are essential for maritime construction and logistics, offering precise load handling and adaptability in harsh conditions. Future trends in marine crane boom technology include advancements in hydraulic systems for greater efficiency and reliability. As the industry evolves, hydraulic marine cranes will continue to play a pivotal role in offshore operations. Companies like FUMAN provide innovative solutions, ensuring their cranes offer unmatched performance and durability, enhancing safety and efficiency in marine environments.

FAQ

Q: What is a marine crane boom?

A: A marine crane boom is the long arm of a crane used in marine environments to lift and move heavy loads. Hydraulic marine cranes boom systems enhance its functionality by providing precise control.

Q: How does a hydraulic marine crane boom work?

A: Hydraulic marine cranes boom operate using pressurized fluid to extend, retract, raise, or lower the boom. This system ensures smooth and precise handling of loads in maritime settings.

Q: Why are hydraulic marine cranes boom preferred in marine environments?

A: Hydraulic marine cranes boom offer smooth control, high power, and adaptability to harsh conditions, making them ideal for handling heavy loads safely in challenging marine environments.

Q: What are common issues with hydraulic marine cranes boom?

A: Common problems include hydraulic fluid leaks, air in the system, and contaminated fluid. Regular maintenance of hydraulic marine cranes boom systems helps prevent these issues.

Q: How do hydraulic marine cranes boom enhance safety?

A: Hydraulic marine cranes boom provide precise load control, reducing sway and risks of overloading, thus ensuring safe operations in marine environments.
