F500TC-05

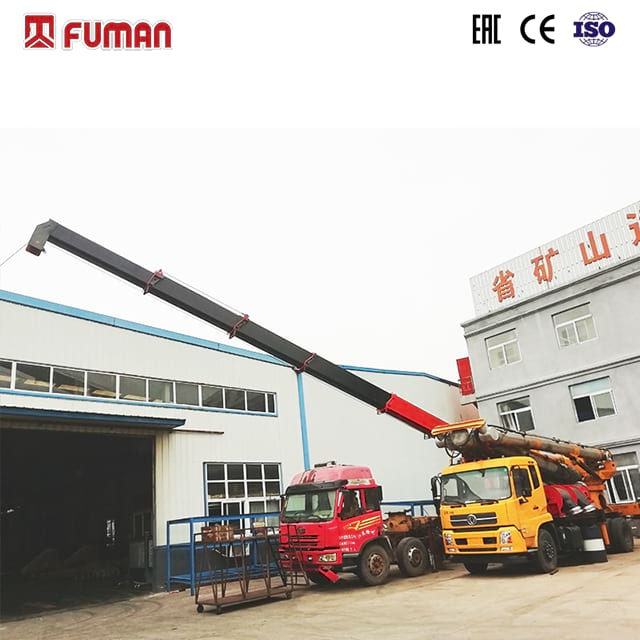

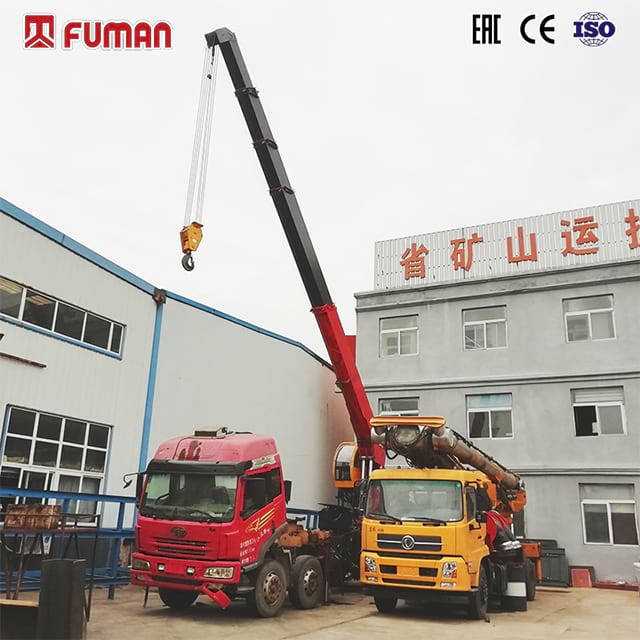

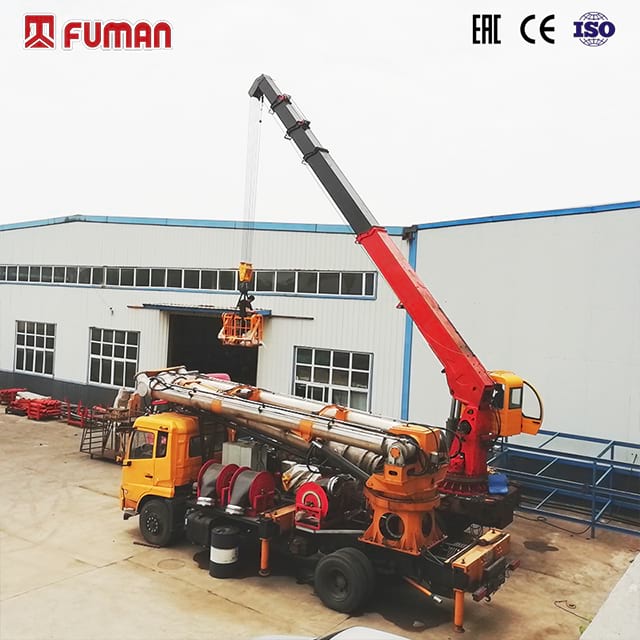

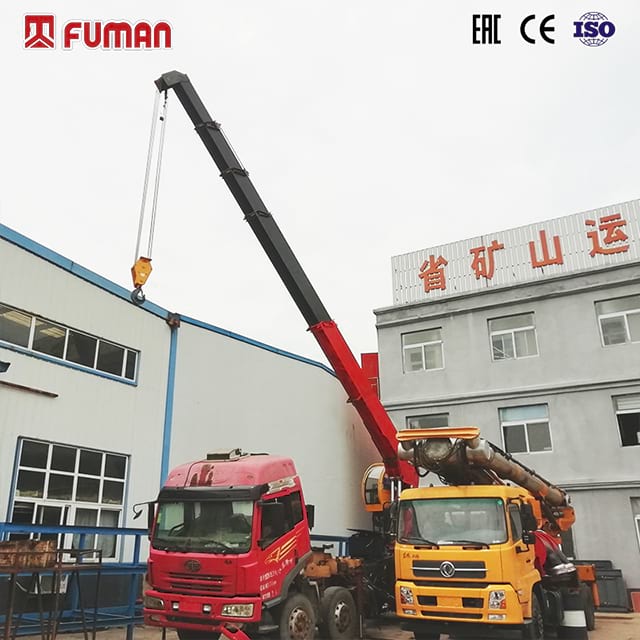

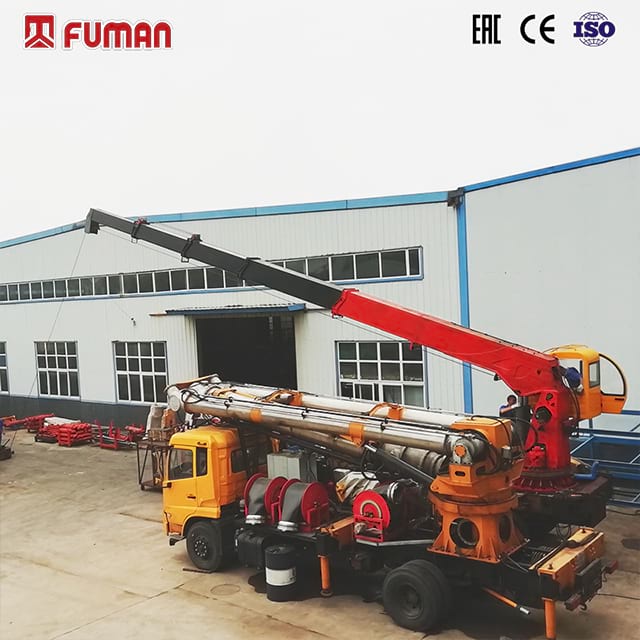

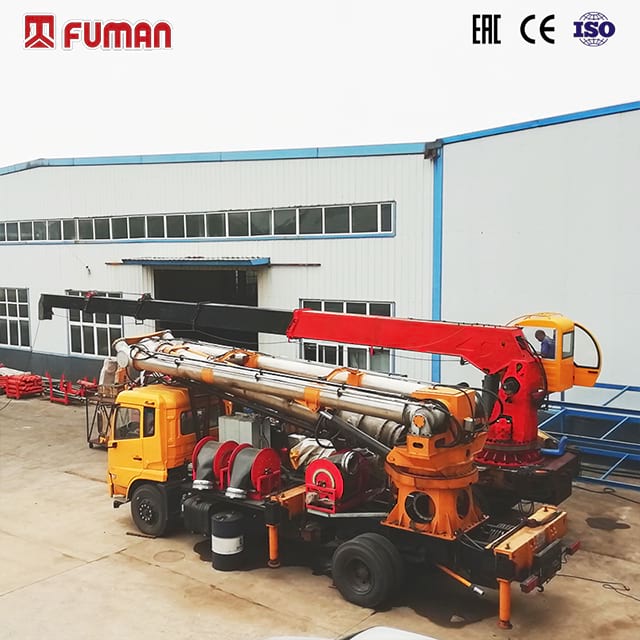

The FUMAN Telescopic Boom Truck Hydraulic Crane is a versatile mobile lifting solution designed for efficient on-road transportation and on-site operation. Combining a hydraulic telescopic boom with a rugged truck chassis, this crane offers adjustable lifting capacities (5-20 tons) and extended reach, making it ideal for construction, infrastructure, and industrial projects requiring mobility and power.
Hydraulic Telescopic Boom: 5-section boom with synchronized extension, achieving a maximum horizontal reach of 20 meters and vertical lift height of 18 meters for versatile job site access.
All-Terrain Chassis: 4x4 drive system with differential lock and high-clearance axles, navigating mud, snow, and uneven terrain while maintaining stable load handling.
Dual-Mode Operation: Quick transition between road transport (speed: 80 km/h) and lifting mode, with automatic outrigger deployment for safe operation in under 2 minutes.
Intelligent Load Monitoring: Real-time display of load weight, boom angle, and stability margins on the operator panel, preventing overloads and ensuring compliance with OSHA standards.
Ergonomic Control Cabin: Climate-controlled cabin with adjustable suspension seats, 360° cameras, and low-vibration joysticks, reducing operator fatigue during long shifts.
Construction Sites: Lifts steel beams, precast concrete, and rooftop equipment in urban high-rise projects, adapting to tight spaces with its compact folded design (length: 12 meters).
Power Transmission: Positions utility towers, transformers, and high-voltage cables in remote areas, leveraging its all-terrain mobility for off-road power grid expansion.
Industrial Logistics: Streamlines warehouse operations by moving heavy machinery and oversized cargo between storage and production facilities with precision.
Event Setup: Safely installs stage rigging, lighting trusses, and large signage for concerts and sports events, ensuring quick setup and teardown.
Engineering Innovation: Patented boom locking mechanism reduces maintenance by 25%, while energy-recovery hydraulics cut operational costs by 18% compared to market standards.
Modular Customization: Tailor boom length, cab configurations, and safety features to project needs, with options for remote control operation and winterization packages.
Global Service Network: 100+ certified service centers worldwide provide 24/7 support, including remote diagnostics and expedited parts delivery.
Environmental Responsibility: Equipped with Euro VI engines and biodegradable hydraulic fluids, minimizing carbon footprint and noise emissions (≤82 dB during operation).

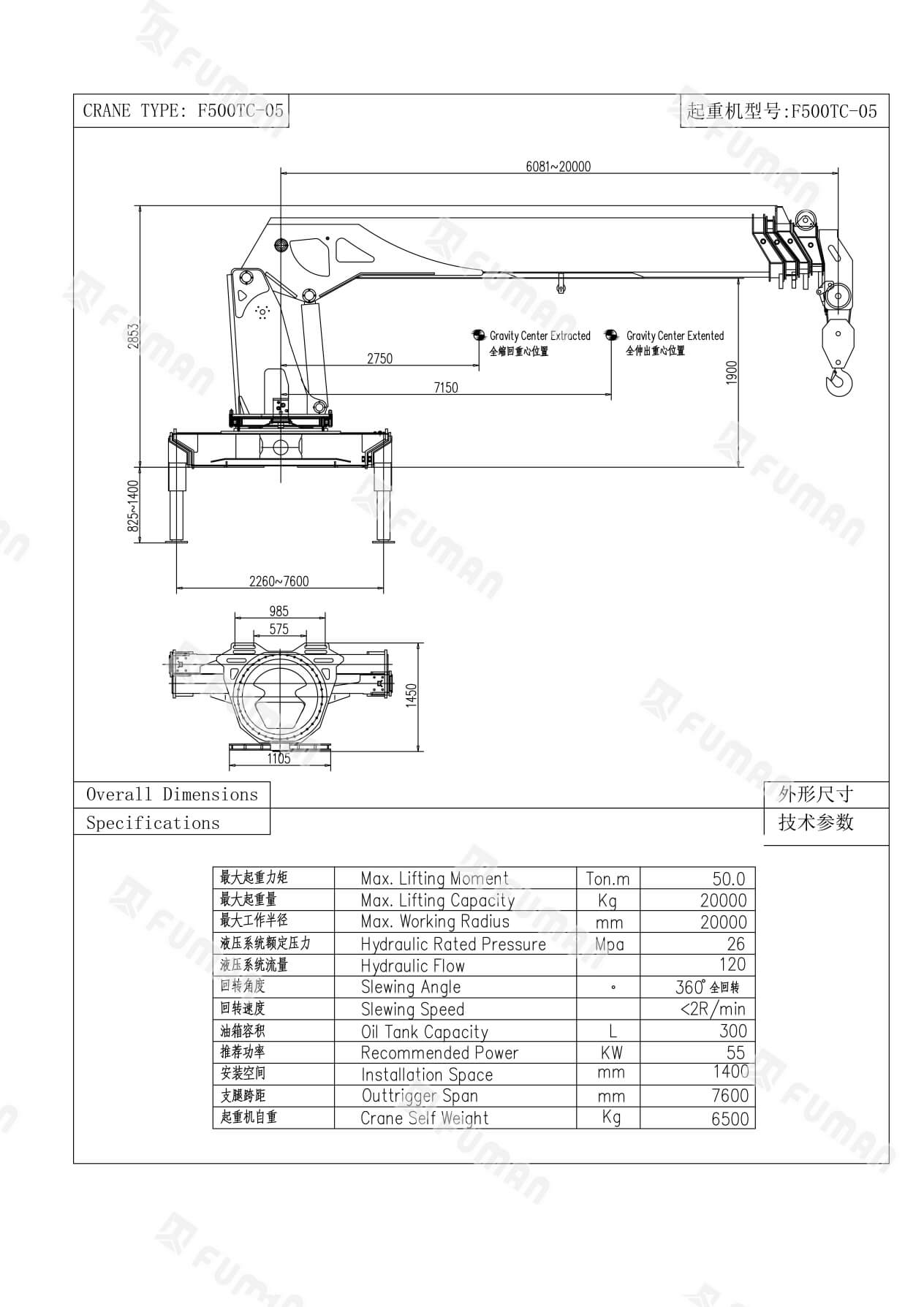

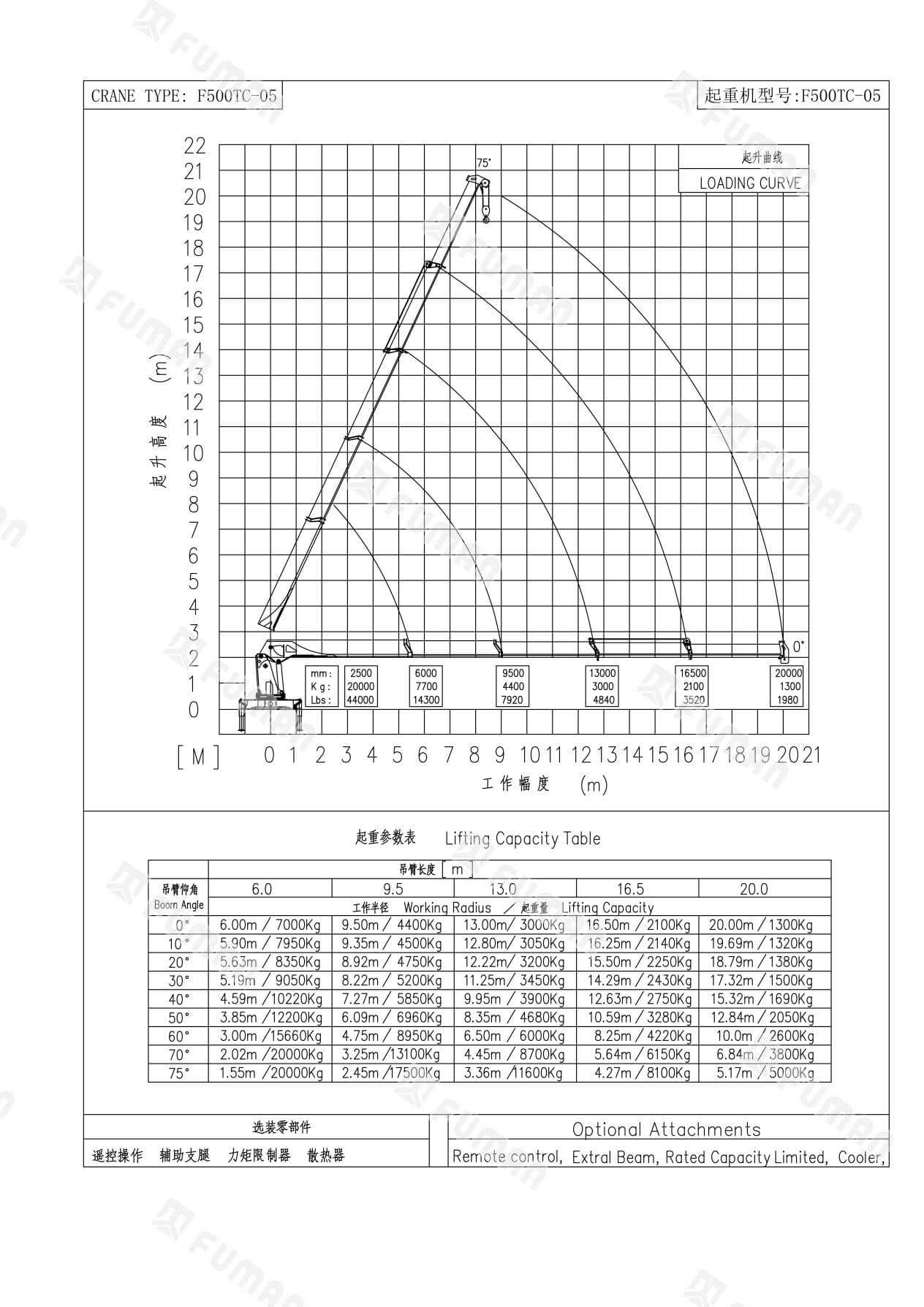

Parameters(F500TC-05) | |
Max Lifting Capacity | 20,000kg |
Max Lifting Moment | 50ton.m |
Recommend Power | 55KW |
Hydraulic System Flow | 120L/Min |
Hydraulic System Pressure | 26Mpa |
Coil Tank Capacity | 300L |
Installation Space | 1400mm |
Self Weight | 6500kg |
Rotation Angle | 360° |
