1 Ton Knuckle Boom Truck Mounted Crane
| Quantity: | |
|---|---|
-
F022KC-03

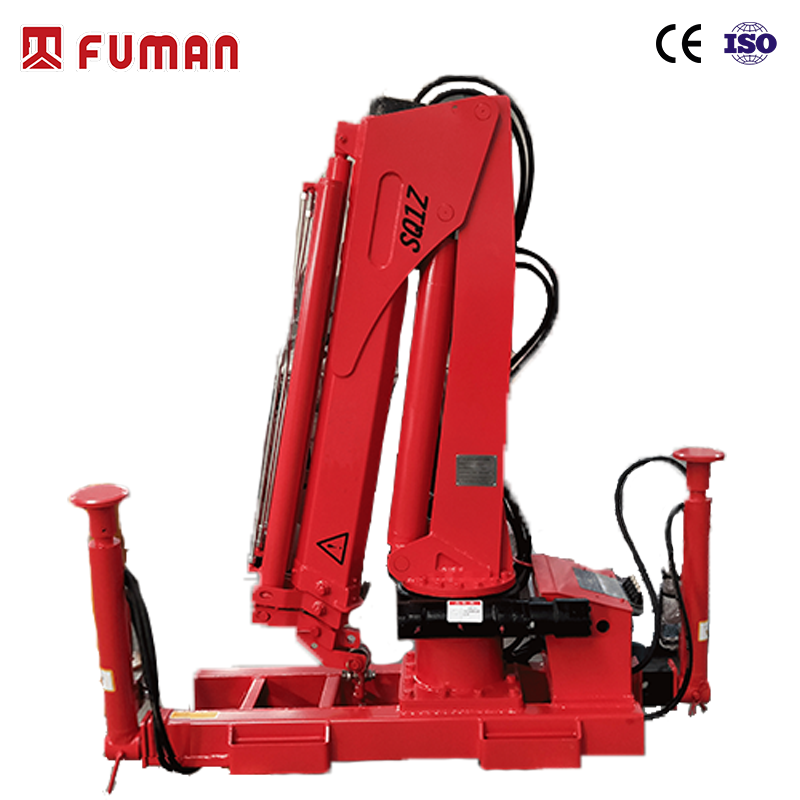

F022KC-03 1-Ton Truck-Mounted Knuckle Boom Crane
In light-duty truck-mounted lifting applications, conventional telescopic boom cranes often have bulky profiles that limit their use in confined spaces; buyers frequently struggle to find compact lifting units that offer sufficient load capacity while fitting within tight installation dimensions. To address this need, the F022KC-03 1-ton knuckle boom crane features an optimized, compact design that ensures stable lifting performance, making it ideal for installation on pickup trucks and light commercial vehicles.

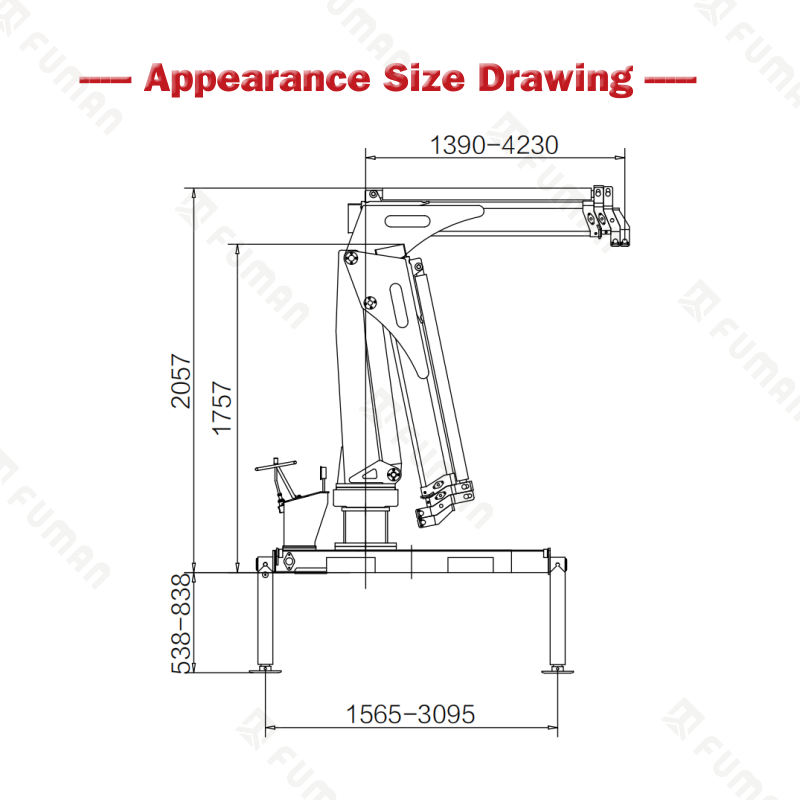

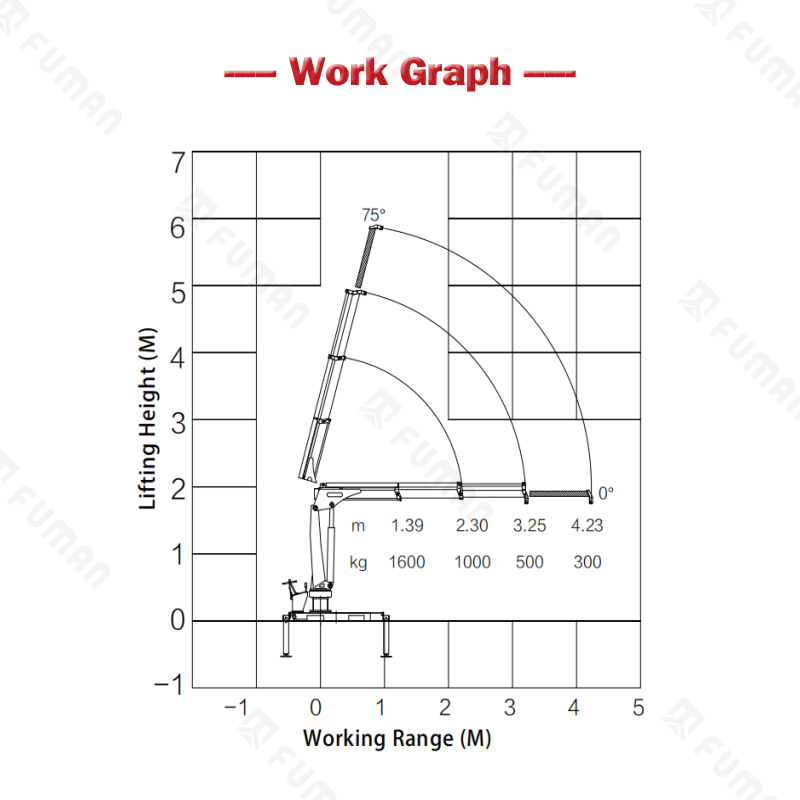

This model boasts a maximum lifting capacity of 1,000 kg and a rated lifting moment of 2.2 ton-meters. It weighs 550 kg, requires an installation footprint of only 500 mm, offers an operating radius of 1,390 mm to 4,230 mm, and features a 330° slewing angle. Key specifications include a hydraulic system working pressure of 18 MPa, a 25L oil tank capacity, and a 7.5 kW power requirement. Optional features include a remote control system, hydraulic winch, grapple, man basket, cooling system, manual extension boom, and load moment limiter. In addition to knuckle boom cranes, our factory offers telescopic boom cranes (ship/marine), marine knuckle boom cranes, grab machines, and forestry cranes (log grapples), catering to diverse applications such as land-based loading/unloading, marine lifting, and timber handling. These products are widely used for material handling, equipment maintenance, and low-altitude aerial work in settings such as farms, processing workshops, and short-haul logistics sites.
Product Features
1. Lightweight structure: Weighs 550kg and requires only 500mm of mounting space; suitable for retrofitting onto light trucks and pickup trucks.
2. 330° rotation range with a maximum working radius of 4.23m; ideal for confined operating areas such as factory grounds and narrow passageways.
3. Comprehensive optional components: Expandable functionality for grabbing and aerial work to meet diverse customization needs.
Usage Tips
1. Fully extend outriggers before operation, verify ground load-bearing capacity, and strictly adhere to rated load parameters; avoid overloading to protect hydraulic components.
2. Clean the unit when not in use and regularly inspect hydraulic lines; protect the oil system from damage caused by extreme heat (direct sunlight) or freezing temperatures.
FAQ
Q1: What are the differences in application scenarios between Knuckle Boom Cranes and Telescopic Boom Cranes?
A1: Knuckle Boom Cranes are more compact when folded, making them suitable for space-constrained sites; Telescopic Boom Cranes offer greater reach with a straight boom, making them preferable for long-distance lifting in open areas.
Q2: What parts require special attention during daily maintenance?
A2: Regularly check hydraulic fluid levels and oil condition, change the oil on schedule, and inspect fittings for leaks; verify the functionality of optional accessories—such as the load moment limiter and remote control—before every operation.
Q3: Can other equipment, such as Ship Telescopic Boom Cranes or Marine Knuckle Boom Cranes, be selected and purchased at the same time?
A3: Yes. In addition to this truck-mounted model, we handle the selection and supply of Ship Telescopic Boom Cranes, Marine Knuckle Boom Cranes, grab machines, and forestry cranes (log loaders), and can provide integrated solution consultations.
Q4: Can this model be used for long-term timber handling if equipped with a grapple?
A4: While a grapple attachment allows for occasional handling of loose materials, a dedicated forestry crane (log loader) is recommended for continuous timber harvesting and handling operations.
