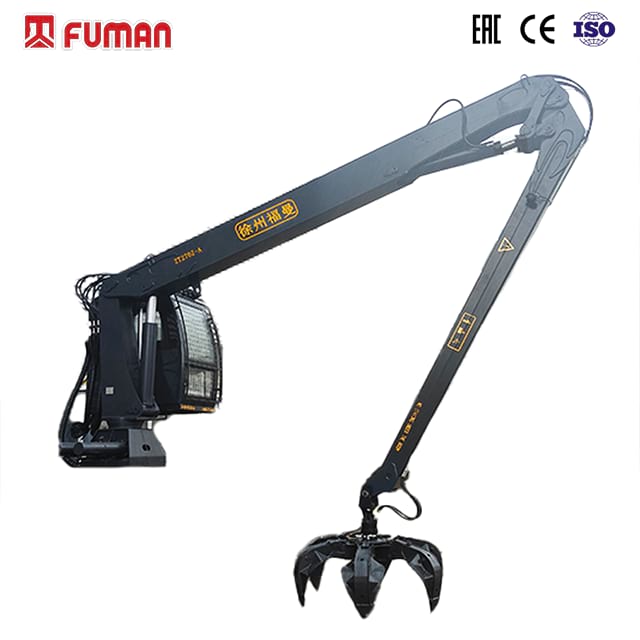

ZT160Z-2A

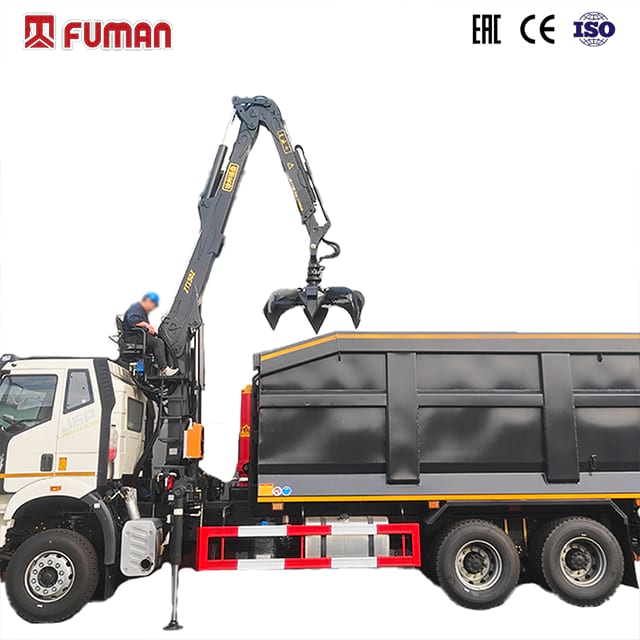

ZT160Z-2A steel grabber is a safe and efficient special loading and unloading vehicle, suitable for resource recycling, steel, waste paper, forestry, hazardous goods and other industries, reducing manpower shortages and loading and unloading intensity, improving the efficiency of loading and unloading vehicles, saving time and manpower, and quickly loading and unloading and transporting. The equipment is powered by diesel or electricity, equipped with an advanced hydraulic system, and equipped with a multi-functional four-petal grab or electromagnetic suction cup to achieve efficient grabbing and transportation of heavy materials such as steel bars, iron blocks, and waste, greatly improving work efficiency and reducing labor costs. The whole machine weighs about 3.2 tons, and the maximum lifting weight is 1.6 tons, which is suitable for small and medium-sized material handling needs.
Product Advantages
1.Compact structure&light weight&reasonable and beautiful design
The ZT160Z-2A steel grab machine adopts load-sensitive multi-way control valve, which can realize multiple actions at the same time compound linkage action, better controllability, more accurate grab, greatly improve loading and unloading efficiency and save costs.
The steel grabbing machine adopts imported inclined shaft plunger oil pump, stable operation, high efficiency and long service life.
Double rack oil cylinder is adopted for rotation of steel grabbing machine,which has large torque, stable rotation, better impact resistance, long service life and more convenient maintenance.

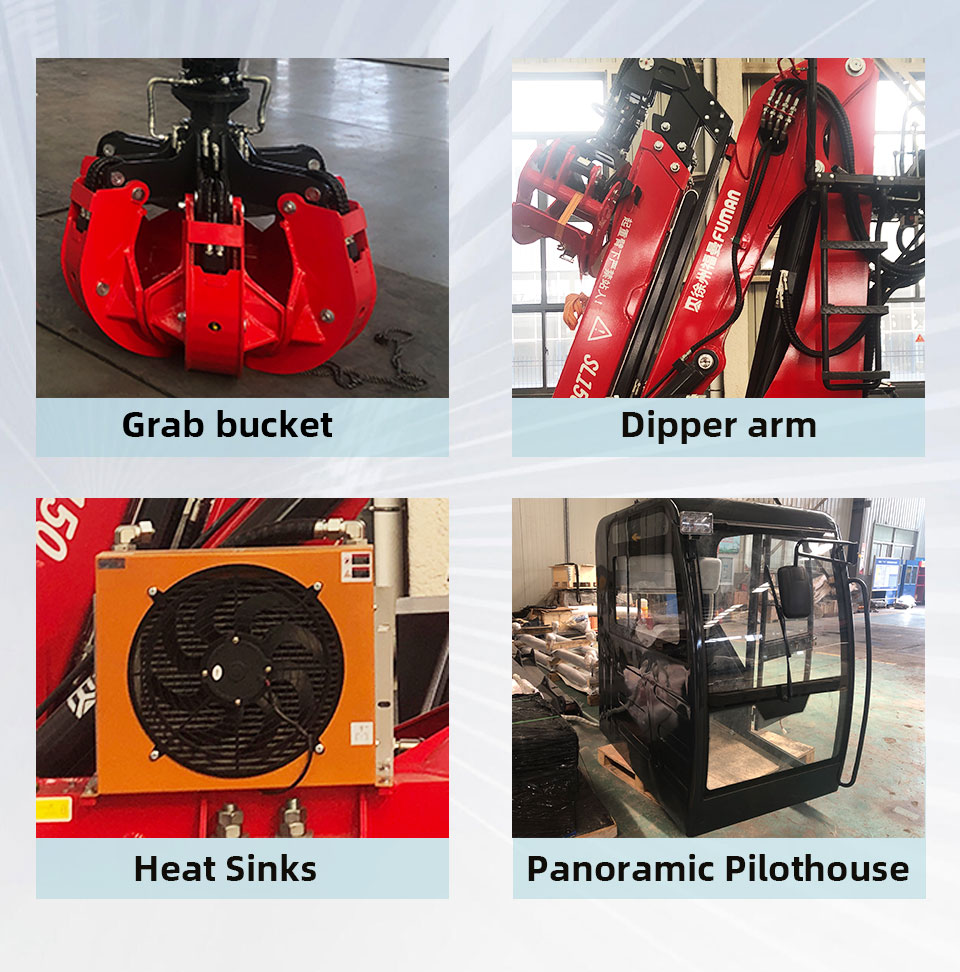

2.Six-petal gripper
The ZT150Z-1AT steel grab adopts six-petal form, with 360°continuous rotation, the clamp opening is large, the arc shape reduces the resistance of the clamp and scrap iron, the position of the gripping teeth increases wear-resistant steel, and the six-petal semi-closed grab can easily grab large pieces and loose pieces, so that the grab is more labor-saving and the service life is longer. At the same time, the grab cylinder adopts built-in installation to prevent collision and better protection.
3.Convenience and applicability of operation
The operation is relatively simple, and the technical requirements for the operator are usually not as high as those for large and complex equipment, so it is easy to get started. In situations where fine sorting, stacking or processing of small and loose materials is required (such as picking specific items from a waste pile, sorting small waste parts), its flexibility and controllability are better than large equipment. The low fuselage height and small tail spin radius make it an ideal choice for operating in roof-restricted environments such as factories and greenhouses.
Applications
1. Steel industry
Steel grabbers are widely used in steel production, processing and transportation. In steel production, steel grabbers are often used to lift raw materials, semi-finished products and finished steel products, as well as for stacking and loading and unloading operations. Its efficient operation mode and stable performance can improve production efficiency and reduce labor intensity.
2. Construction site
In construction sites, steel grabbers are mainly used to hoist and carry steel of various shapes, such as beams, columns, plates, etc. It can help workers complete high-altitude operations and heavy object handling, and improve construction efficiency and safety.
3. Steel structure manufacturing
In the steel structure manufacturing industry, steel grabbers are often used to lift and carry structural parts of various shapes, such as beams, columns, bridge beams and slabs, etc. It can help manufacturers assemble and process large steel structures and improve production efficiency and quality.
4. Other fields
Steel grabbers can also be used in metal processing, shipbuilding, automobile manufacturing and other fields to lift, transport and stack steel and metal products of various shapes.

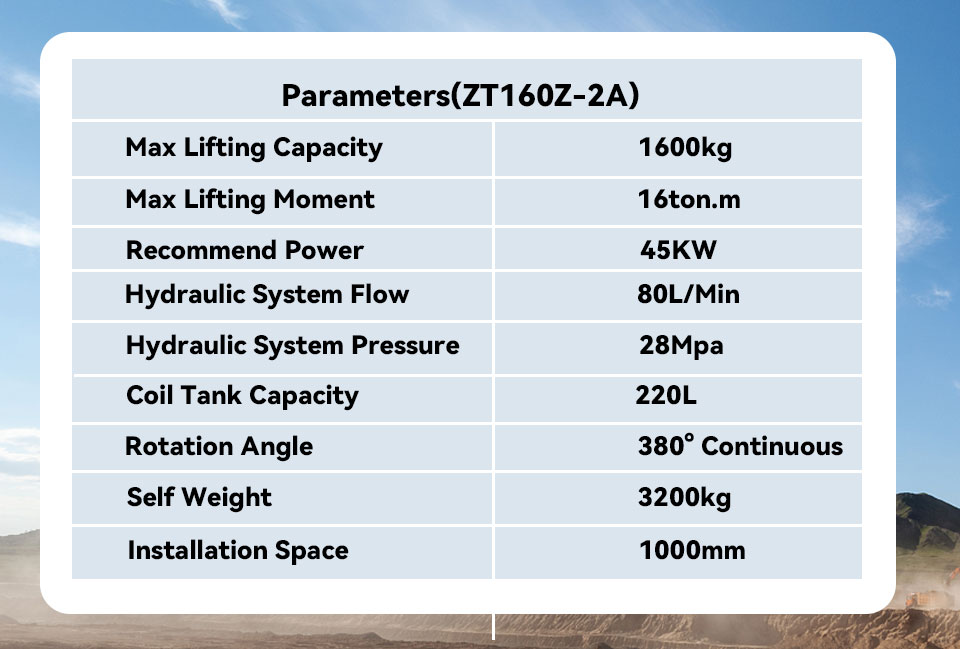

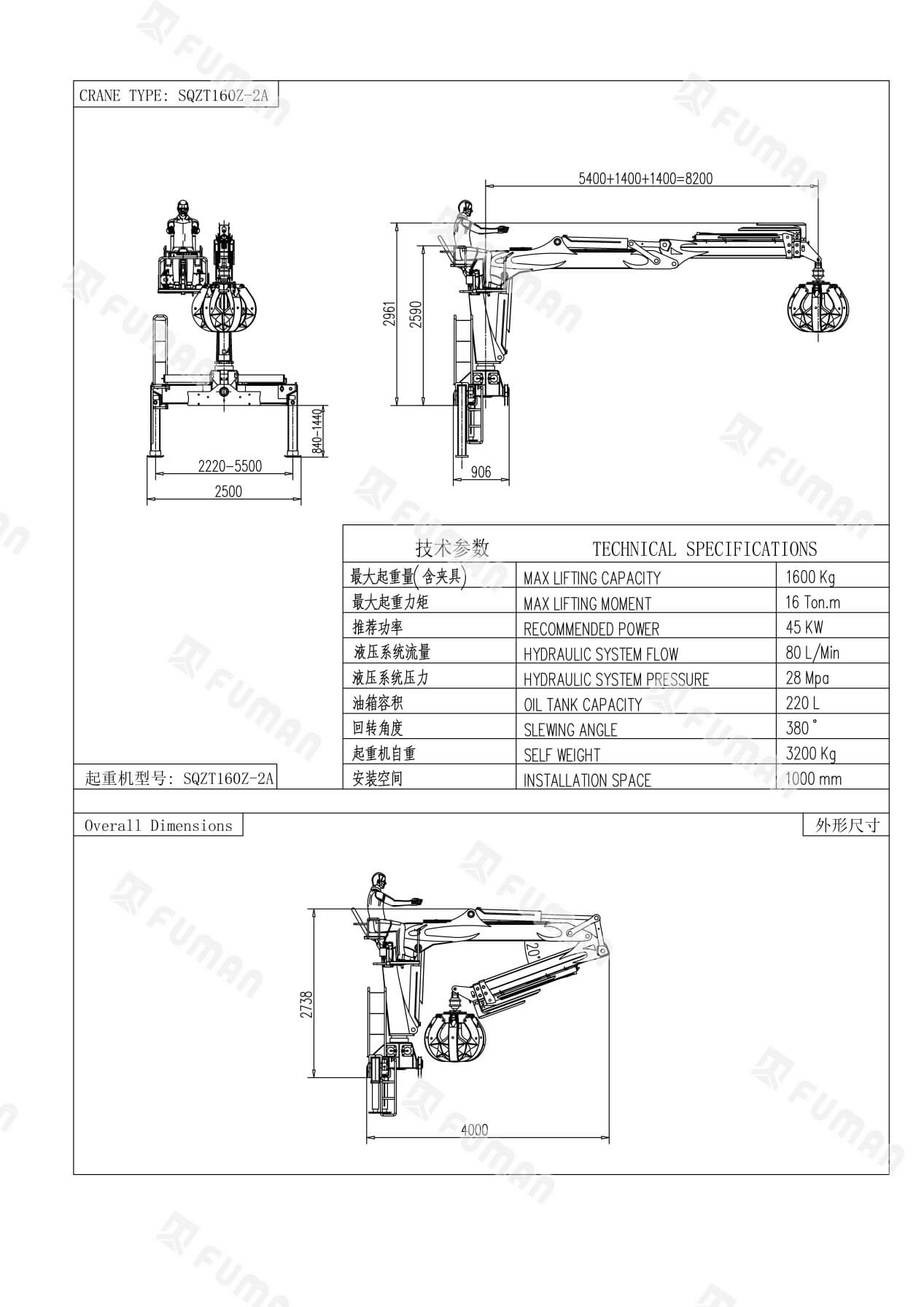

Parameters(ZT160Z-2A) | |
Max Lifting Capacity | 1600kg |
Max Lifting Moment | 16ton.m |
Recommend Power | 45KW |
Hydraulic System Flow | 80L/Min |
Hydraulic System Pressure | 28Mpa |
Coil Tank Capacity | 220L |
Rotation Angle | 380° |
Self Weight | 3200kg |
Installation Space | 1000mm |
Grab Crane Operation Guide
1. Precautions before operation
(1) The crane is not allowed to be used before the outrigger cylinder is opened and locked.
(2) Before connecting the power take-off, be sure to check whether the control handle is in the middle position; if the handle is not in the middle position, return it to the middle position.
2.Operation and start-up
Operation process:step on the clutch, put the speed lever in the neutral position, start the car, then pull out the manual air valve of the power take-off, and then slowly release the clutch pedal. At this time, the power take-off is in working state.
3. Telescopic boom operation

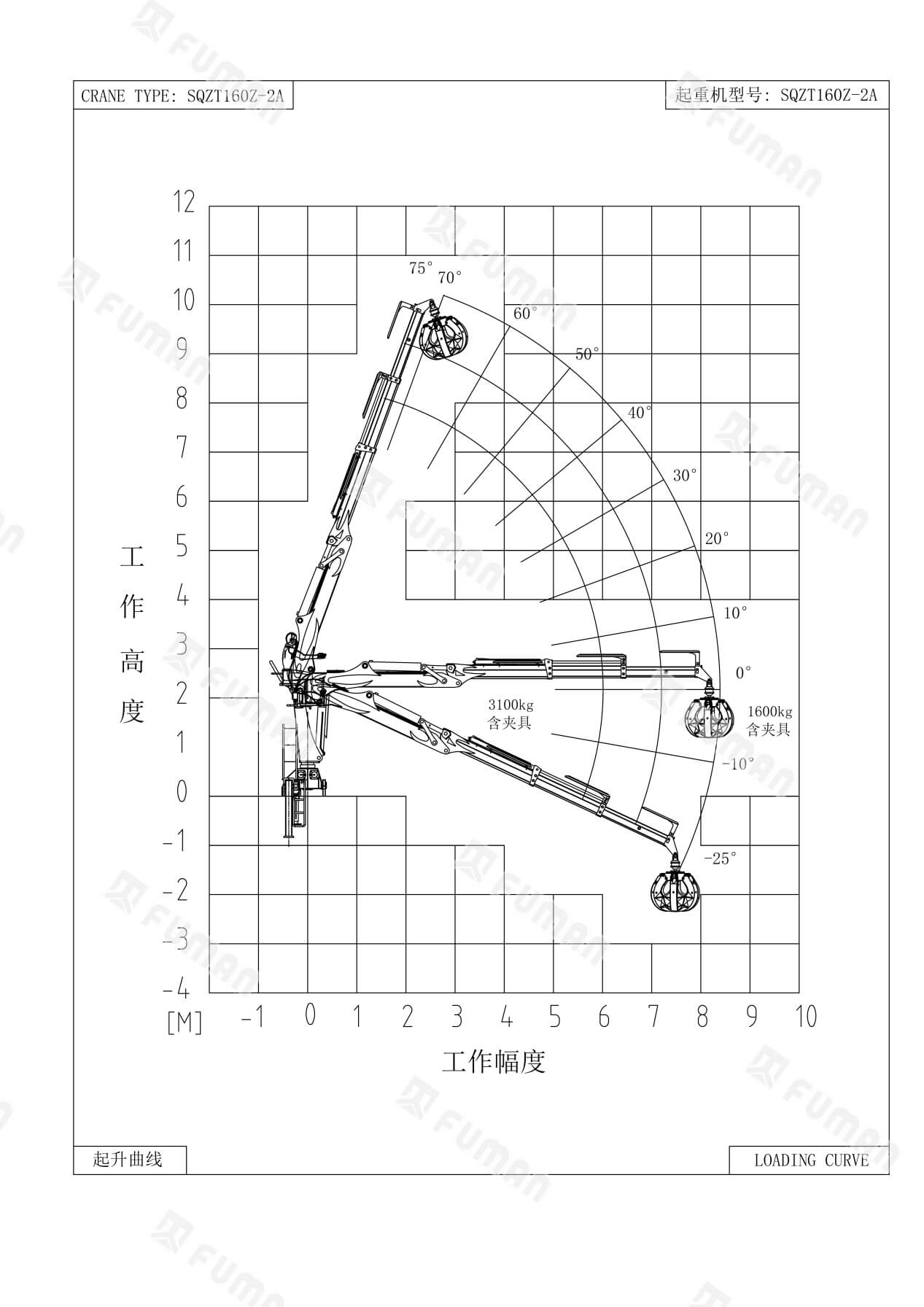

Before lifting the load, you must estimate the weight of the load (this value should be compared with the rated load on the lifting moment) and calculate the route from the load drop point.
When lowering the load, operate slowly, land accurately and without swinging, and be careful not to let the load hit the crane or the car.
In order to increase the service life of the crane, avoid turning the turntable with load when the telescopic boom is extended. It is best to retract the telescopic boom to its shortest before turning.
After hanging the load, avoid sudden starts and stops, as this will cause unnecessary stress on the crane structure.
4. Crane folding
a. Folding the telescopic arm: pull the telescopic arm control lever to fully retract the telescopic arm.
b. Closing the boom: pull the luffing control lever to close the boom.
