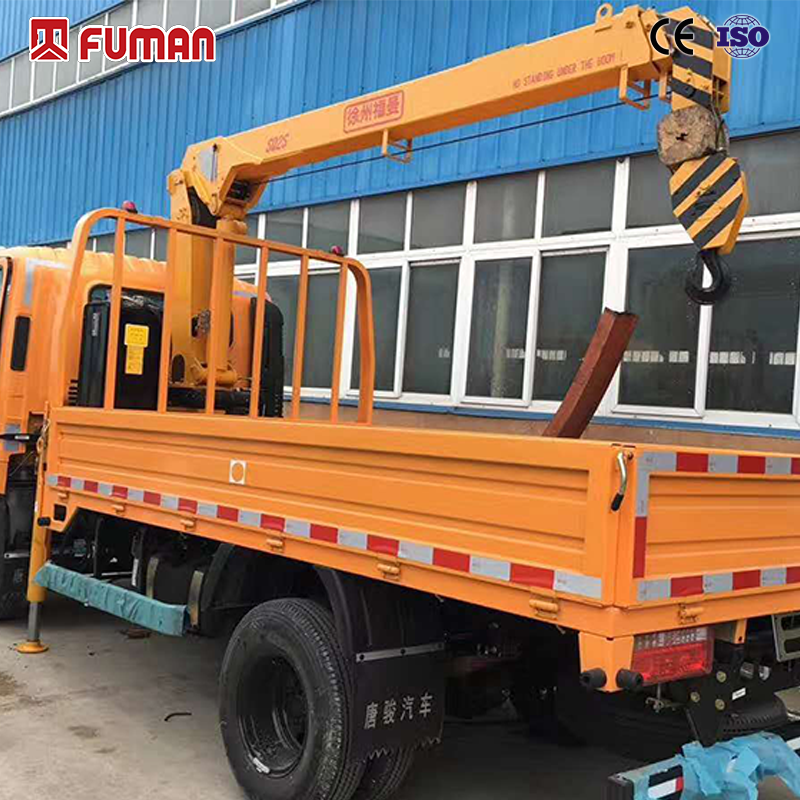

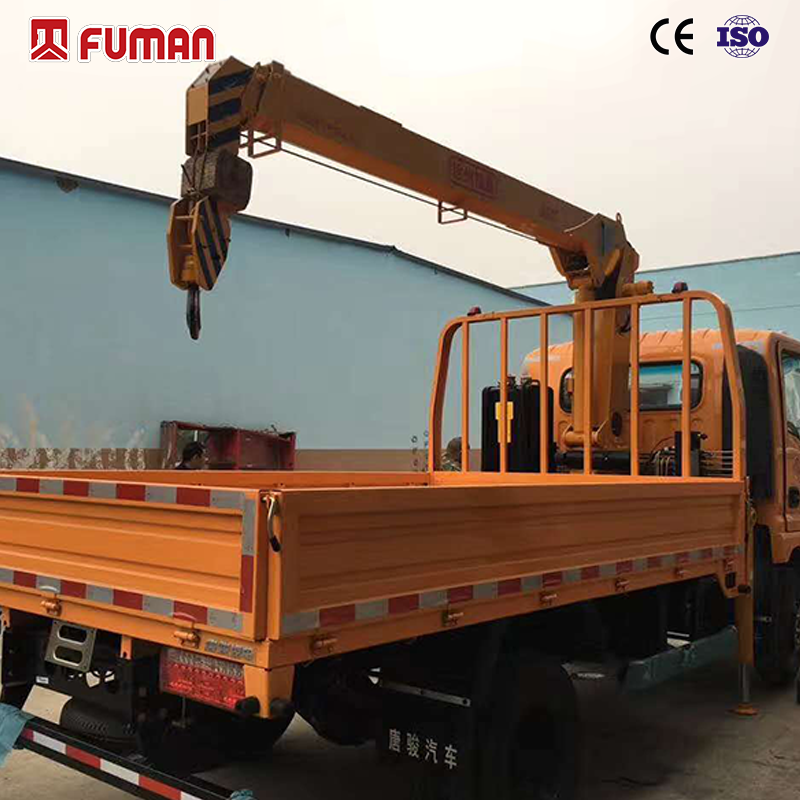

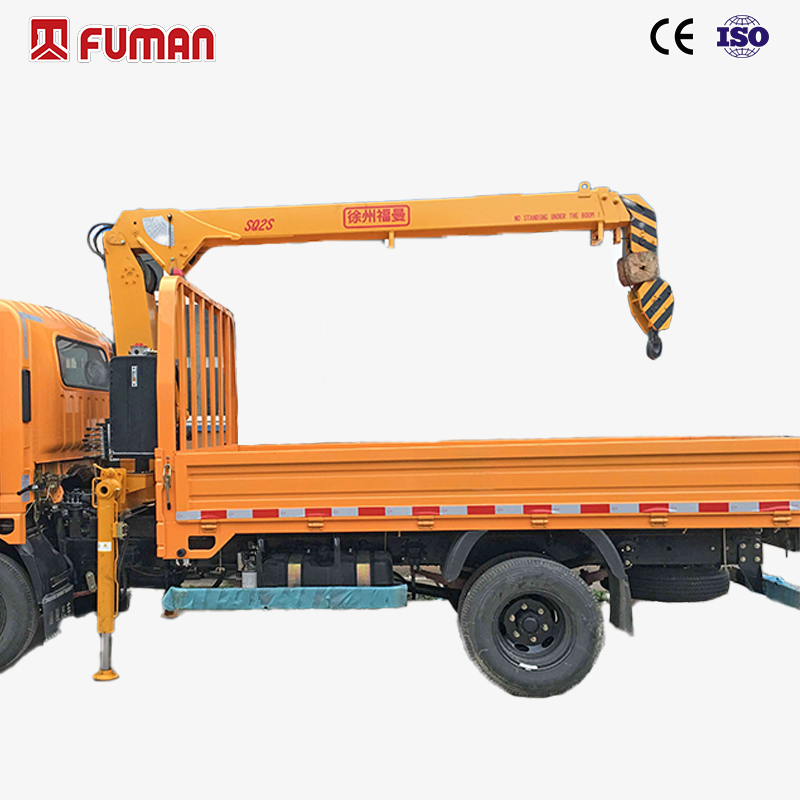

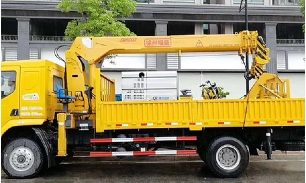

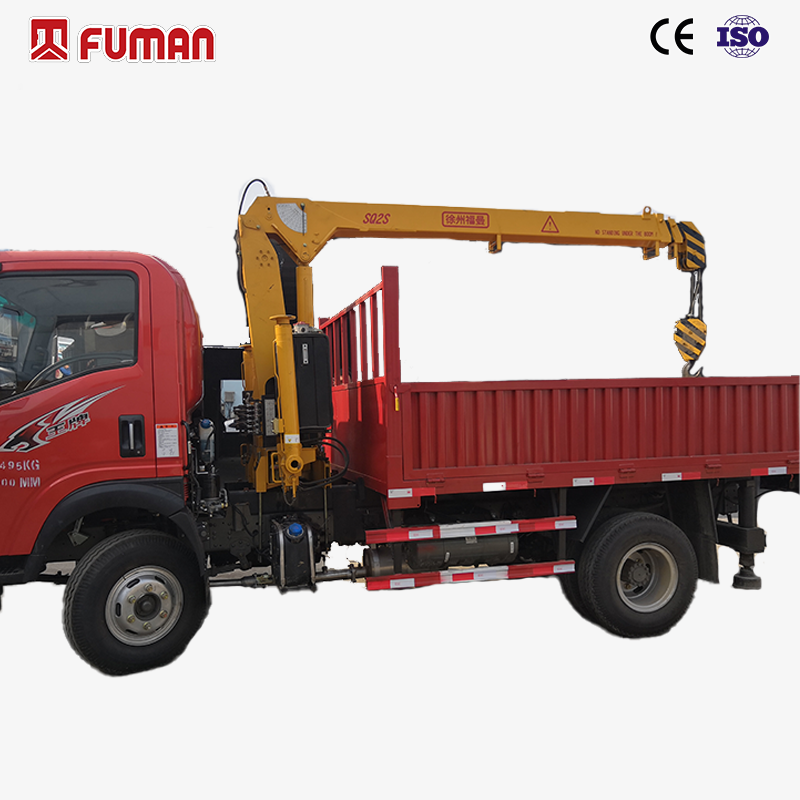

F040TC-03 2-Ton Telescopic Boom Truck-Mounted Crane

Light-duty lifting operations are often constrained by the excessive self-weight of the equipment and limited installation space. Buyers frequently struggle with conventional cranes that consume valuable cargo space or prove difficult to operate in confined areas. The F040TC-03 2-ton hydraulic telescopic boom truck-mounted crane offers an ideal solution through its compact, lightweight design. It maintains the vehicle’s payload capacity while delivering the required rated lifting performance—perfect for tasks such as material handling on construction sites, loading and unloading miscellaneous cargo, and positioning small-scale equipment.

This crane features a maximum lifting moment of 4.2 ton-meters, a rated maximum lifting capacity of 2,000 kg, and a maximum working radius of 8.2 meters. It supports 360° continuous rotation, weighs only 850 kg, and requires just 700 mm of installation space, allowing for direct mounting onto light-duty truck chassis. Beyond this telescopic boom model, our product range includes knuckle boom cranes, ship-mounted telescopic and knuckle boom cranes, grab cranes, and forestry cranes (log loaders), tailored to various operational environments—including marine applications and forestry operations. The hydraulic system operates at a rated pressure of 20 MPa with a flow rate of 25 L/min. The unit offers a slewing speed of less than 2 RPM, and the outriggers provide a maximum span of 3,120 mm, ensuring stable support during operation, while the telescopic boom delivers smooth, precise, and controllable movement.

Product Features

1. Lightweight design: Weighing only 850 kg, it occupies minimal space and preserves the chassis's cargo-carrying capacity.

2. Three-section telescopic boom: Offers a maximum working radius of 8.2m and 360° continuous rotation, ensuring flexibility when operating in confined spaces.

3. Proven hydraulic system: Delivers smooth operation, while the wide outrigger stance provides a generous safety margin for lifting tasks.

Tips

1. Always refer to the load capacity chart; the rated lifting capacity decreases as the working radius increases. Overloading is strictly prohibited.

2. Before starting any lifting operations, ensure the outriggers are fully extended, placed on a solid surface, and leveled.

3. Regularly inspect the hydraulic oil, slewing bearing pins, and seals to extend the service life of the unit.

FAQ

Q: Can this telescopic boom crane be installed on any light-duty truck chassis?

A: Not necessarily. You must verify the strength of the chassis frame and the compatibility of the Power Take-Off (PTO) unit. Please provide your chassis specifications before placing an order, and we will assist in confirming compatibility.

Q: What is the warranty period, and is the supply of spare parts reliable?

A: The unit comes with a standard warranty. Spare parts for core components—such as hydraulic cylinders and slewing bearings—are readily available, and we provide technical drawings and maintenance manuals.

Q: What are the advantages of this model compared to a knuckle boom crane?

A: The straight-boom (telescopic) design offers greater reach and a simpler structure, making it ideal for lifting materials over longer distances. Knuckle boom cranes, by contrast, are better suited for folding into compact spaces. Each type is designed for different operational requirements.

Q: What does routine maintenance involve?

A: Regularly check the hydraulic oil level and quality, lubricate the slewing and pivot points, and inspect limit switches, lifting gear, and hydraulic hoses for damage or leaks before every use.

Q: Can this unit be equipped with attachments like a grab or a timber grapple? A: The main unit features reserved connection points, allowing for the optional addition of a timber-handling attachment. Marine telescopic boom cranes and marine knuckle boom cranes are also available in anti-corrosive versions, which differ in structural specifications from truck-mounted models.
