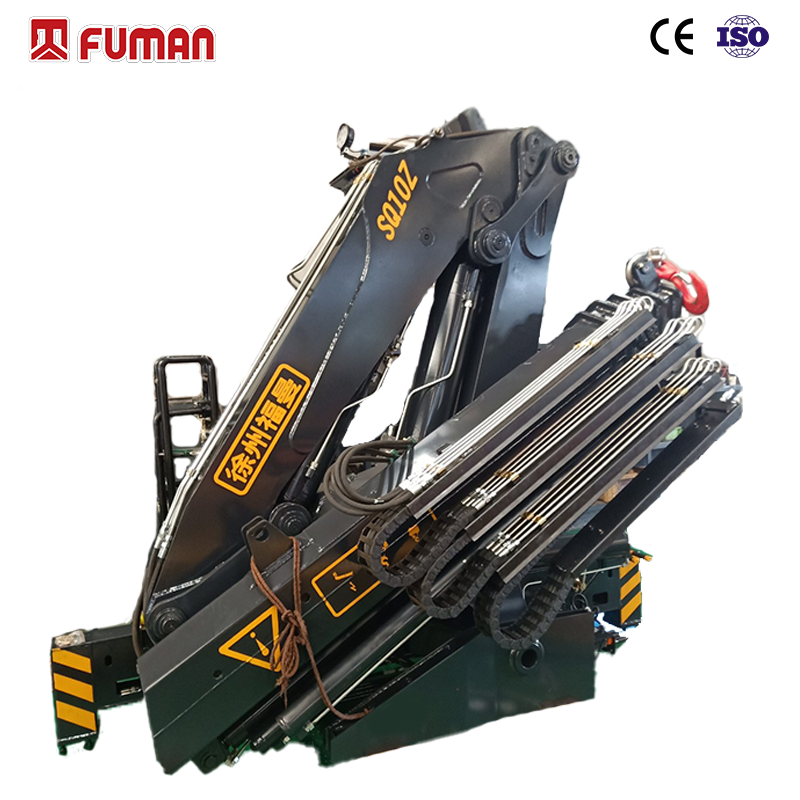

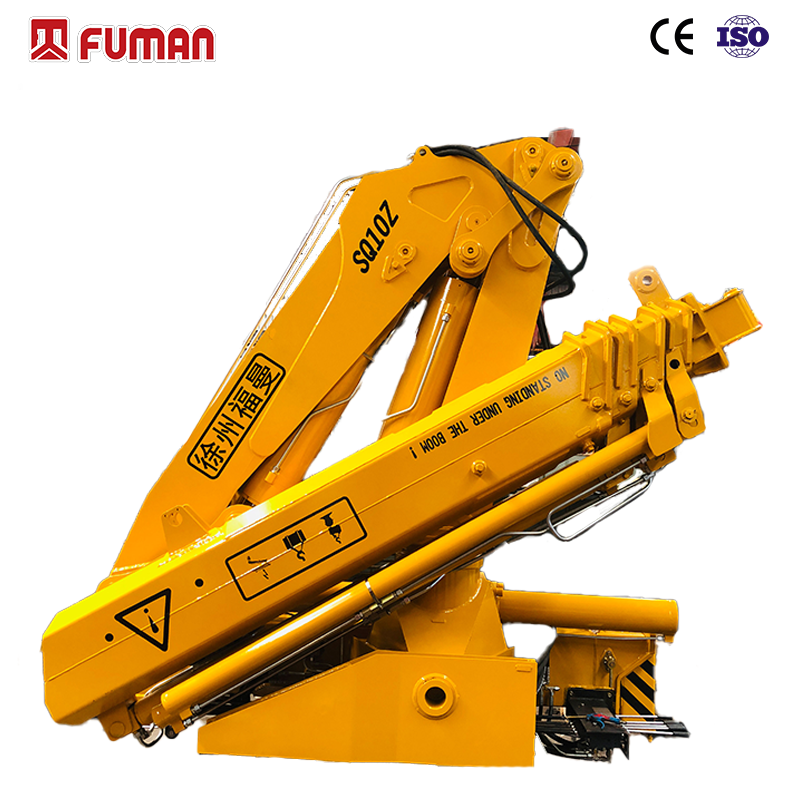

F200KC-04 10-Ton Knuckle Boom Truck-Mounted Crane

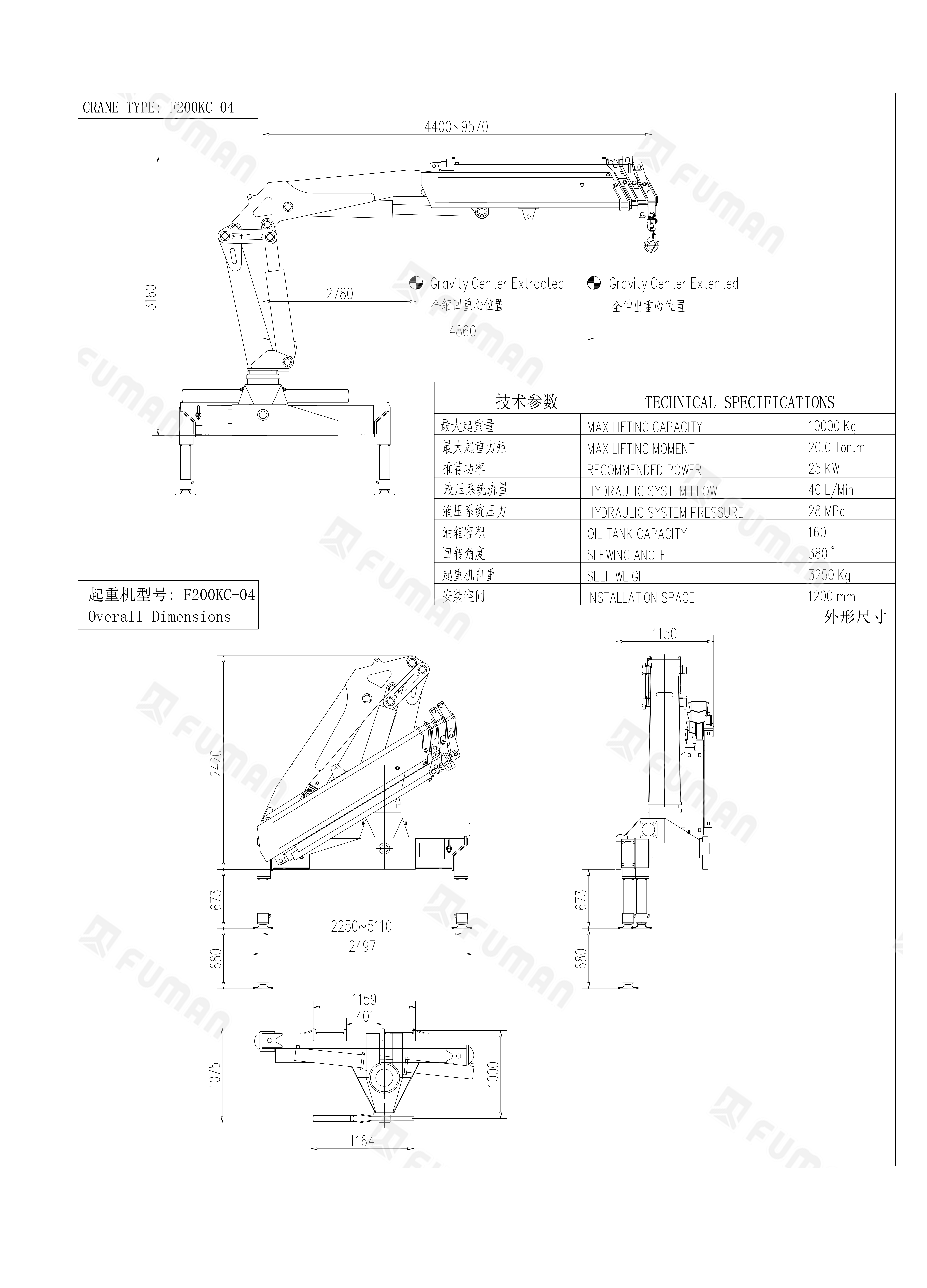

Lifting operations in confined spaces are often restricted, and conventional crane models tend to occupy excessive cargo bed space. Buyers frequently struggle to choose between telescopic boom cranes and knuckle boom cranes, while also needing to accommodate various auxiliary attachments. We introduce the F200KC-04 10-ton Knuckle Boom Truck-Mounted Crane. Featuring a compact design and a stable hydraulic system, it enables flexible lifting operations within limited installation space—ideal for logistics transport, municipal emergency repairs, and material handling at construction sites. This model offers a maximum lifting capacity of 10,000 kg, a maximum lifting moment of 20 ton-meters, a 380° slewing range, and a self-weight of 3,250 kg, requiring only 1,200 mm of installation space. Compared to telescopic boom cranes, this truck-mounted knuckle boom crane is easier to deploy and supports a wide range of optional accessories, such as remote controls, aerial work baskets, and grapples. It can be equipped with a grapple for handling bulk materials or configured for timber handling (similar to a forestry crane). For maritime applications, we also offer marine-grade knuckle boom crane solutions. The unit provides a rated load of 10 tons at a 2-meter working radius and can still lift 1,600 kg at its maximum working radius of 9.57 meters. When folded and stowed, it leaves the cargo bed clear, ensuring convenient mobility and providing a highly cost-effective mobile lifting solution.

Product Features

1. Lightweight design: With a self-weight of 3,250 kg and an installation footprint of only 1,200 mm, it fits most standard truck chassis with minimal modification required.

2. Versatile operation: Features a 380° slewing range and a stable hydraulic system; supports a variety of attachments to handle diverse lifting tasks.

Usage Tips

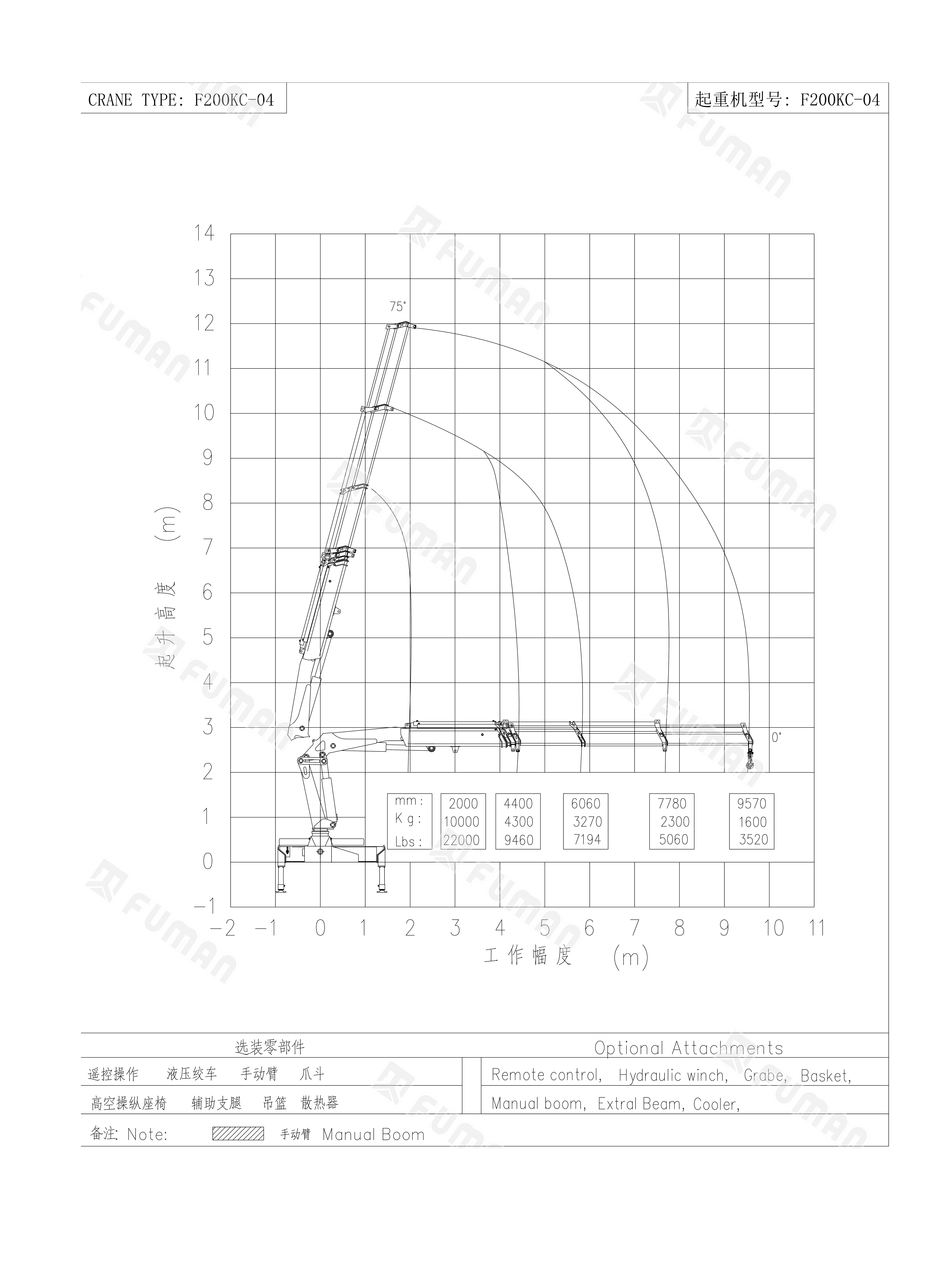

1. Before operation, verify the working radius and load weight against the load chart. Exceeding the rated load is strictly prohibited.

2. During long periods of inactivity, apply grease regularly to all pivot points to protect the hydraulic cylinders and pins.

FAQ

Q: Can this crane be equipped with accessories such as a grab bucket or a man basket?

A: Yes. Optional accessories—including remote controls, hydraulic winches, man baskets, and grab buckets—are available to suit various operational requirements.

Q: What are the key tasks for routine maintenance?

A: Check hydraulic lines daily for leaks, lubricate pivot points regularly, and replace hydraulic oil on schedule to prevent impurities from damaging hydraulic components.

Q: Can this unit be customized or modified in the same way as a ship-mounted telescopic or knuckle boom crane?

A: This model is designed for vehicle-mounted use; for marine applications, please select a dedicated Marine Knuckle Boom Crane. Customization for this unit is limited to the selection and adaptation of accessories compatible with vehicle-mounted configurations.

Q: What is the policy regarding equipment warranty and technical support?

A: The entire unit is covered by a warranty. We provide prompt responses to any reported issues, along with operational guidance and the supply of spare parts.
