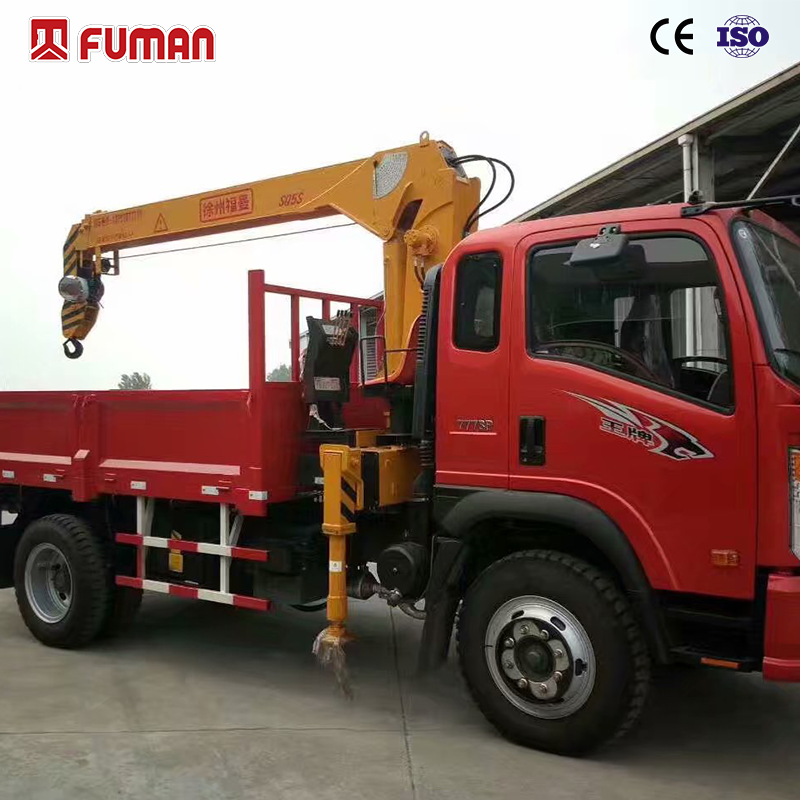

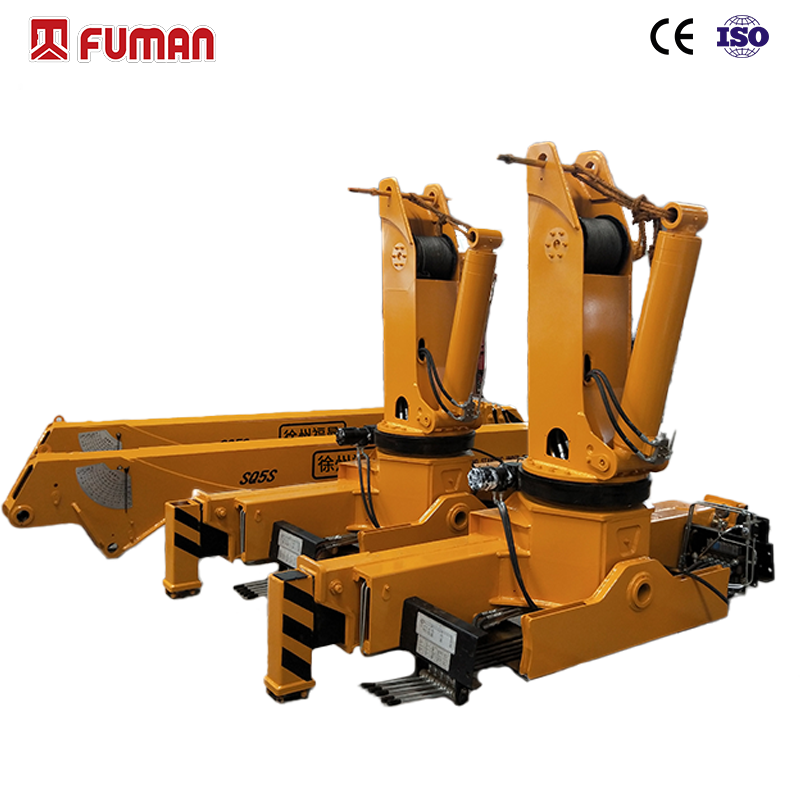

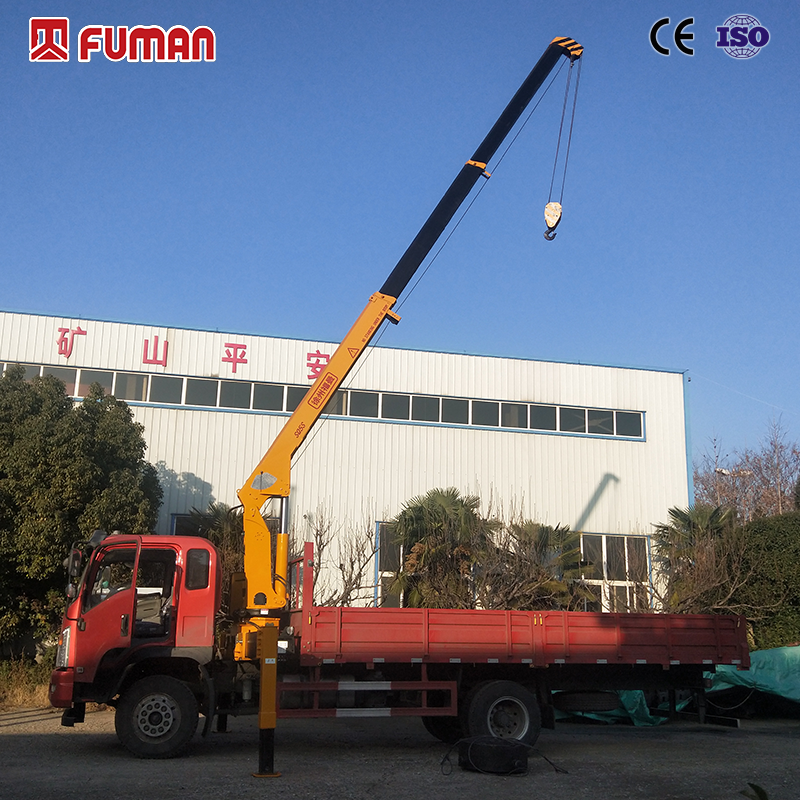

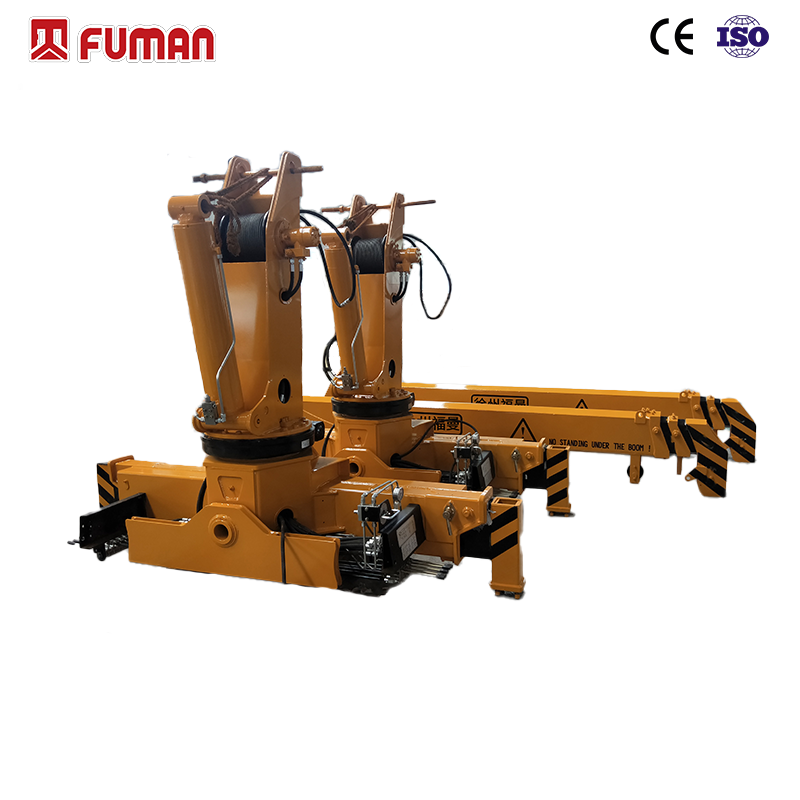

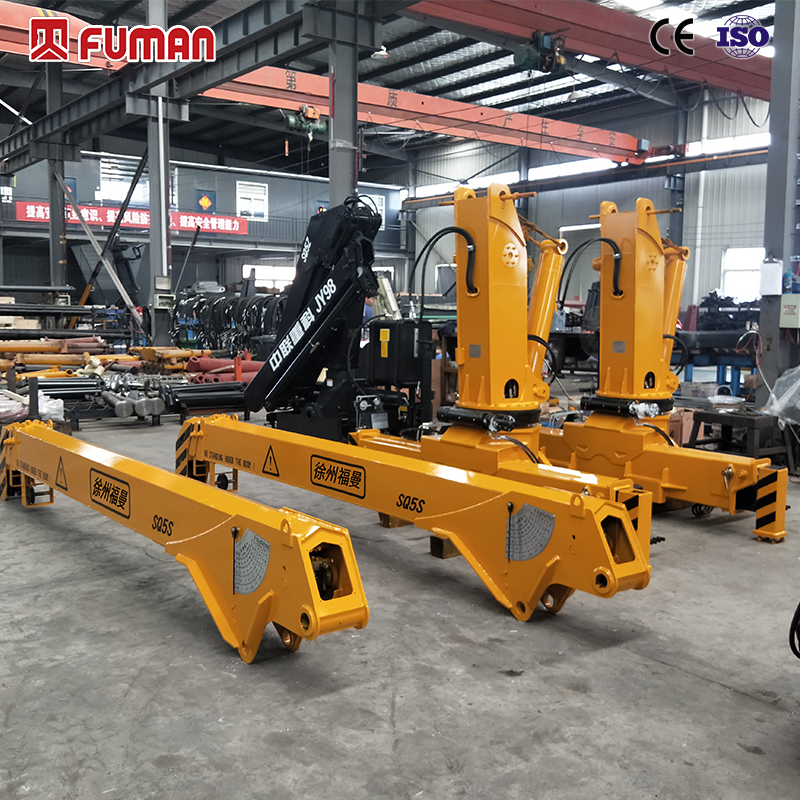

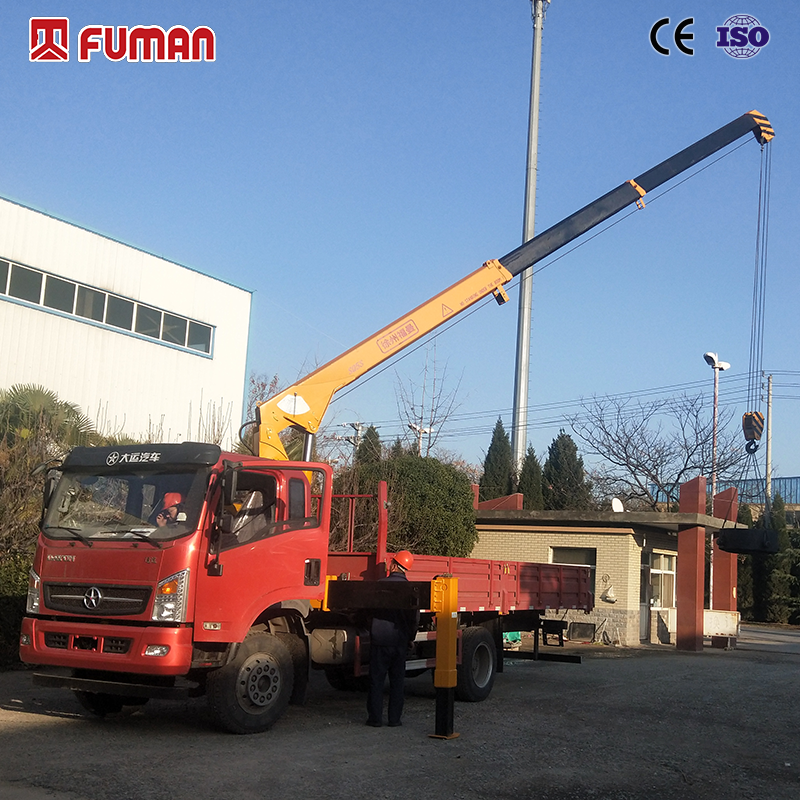

F125TC-03 5-Ton Truck-Mounted Telescopic Boom Crane

Many conventional cranes on the market are relatively heavy, which reduces the remaining payload capacity of the truck chassis once installed. Finding the right balance between lifting capacity and unit weight is often a challenge for customers during the selection process. The F125TC-03 telescopic boom crane features a rated lifting moment of 12.5 ton-meters and a maximum working radius of 9.06 meters. Weighing only 2,100 kg and requiring just 850 mm of mounting space, its lightweight design is highly compatible with a wide range of medium-duty truck chassis. It is well-suited for tasks such as transporting construction materials, emergency road repairs, and loading/unloading operations at job sites.

In addition to this truck-mounted telescopic crane, our product line includes knuckle boom cranes, ship-mounted telescopic boom cranes, and marine knuckle boom cranes. We also offer specialized equipment such as grab cranes and forestry cranes (log loaders) to meet diverse operational needs—from land-based lifting and marine applications to timber handling. The equipment supports 360° continuous rotation and utilizes a reliable hydraulic drive system. With an adjustable outrigger span ranging from 2,250 mm to 5,110 mm, it offers excellent adaptability to various ground conditions. Optional features—including wireless remote control, a load moment limiter, and a hydraulic oil cooler—can be added according to your specific requirements.

Product Features

1. Optimized unit weight: At 2,100 kg, the crane exerts minimal load on the truck chassis, ensuring compatibility with a broader range of vehicle models.

2. Maximum working radius of 9.06 m, 360° continuous rotation, and a stable hydraulic drive system, offering precise control over all lifting operations.

Tips

1. When selecting equipment, distinguish between telescopic boom cranes and knuckle boom cranes; telescopic boom models are generally preferred for long-reach applications in open spaces.

2. For scenarios involving high-frequency or prolonged continuous operation, we recommend installing a hydraulic oil cooler to maintain the stability of the hydraulic system.

FAQ

Q: How much installation space is required to mount this crane onto a vehicle?

A: An installation space of 850mm is required. We provide complete engineering drawings, which can be handed directly to a chassis modification workshop for assembly.

Q: Which components should be the primary focus for routine maintenance?

A: Regularly check the condition of the hydraulic oil, the integrity of hose/pipe seals, and the structural connections of the outriggers. Always operate in strict accordance with the load chart; overloading is strictly prohibited.

Q: Besides truck-mounted telescopic cranes, are other types of equipment available?

A: Yes—we also offer knuckle boom cranes, ship-mounted telescopic boom cranes, marine knuckle boom cranes, grab cranes, and forestry cranes (log loaders), all of which are available for individual quotation and supply.

Q: Can optional accessories be added at a later stage?

A: Yes, items such as remote controls, load moment limiters, and oil coolers can be added later. The crane unit comes with pre-configured standard hydraulic ports, making subsequent modifications straightforward.
