What Is A Knuckle Boom Crane​

A knuckle boom crane, commonly called an articulating crane, is a hydraulically powered, multi-jointed lifting solution designed for exceptional spatial efficiency and versatility. Fleet managers, construction directors, and procurement teams constantly face challenging logistical hurdles when evaluating capital expenditures. Traditional lifting equipment often wastes valuable bed space and demands multiple vehicles on a single site. This creates severe bottlenecks on tight urban job sites where every inch matters.

Moving away from basic mechanics reveals immense business value. You can easily maximize payload capacity. You navigate low-clearance environments safely. You combine transportation and heavy lifting capabilities into one highly capable asset. In this guide, we will explore the precise anatomy of these advanced machines. You will learn how to evaluate chassis compatibility and read complex load charts. Read on to master fleet integration, navigate regulatory compliance, and confidently select the perfect crane for your daily operational needs.

Key Takeaways

• Knuckle boom cranes fold compactly behind the truck cab, preserving cargo space and allowing a single vehicle to load, transport, and unload materials.

• They excel in tight, low-clearance environments where traditional straight boom cranes cannot operate.

• Evaluating a truck mounted knuckle boom crane requires analyzing load charts, maximum horizontal/vertical reach, and vehicle chassis compatibility (GVWR).

• Total cost of ownership must account for specialized operator training (NCCCO certifications) and rigorous hydraulic maintenance schedules.

Anatomy and Mechanics of a Knuckle Boom Crane

Understanding how an articulating crane works requires looking at its core components. They differ greatly from standard lifting equipment. They rely on complex geometry and fluid dynamics to achieve precise load placement.

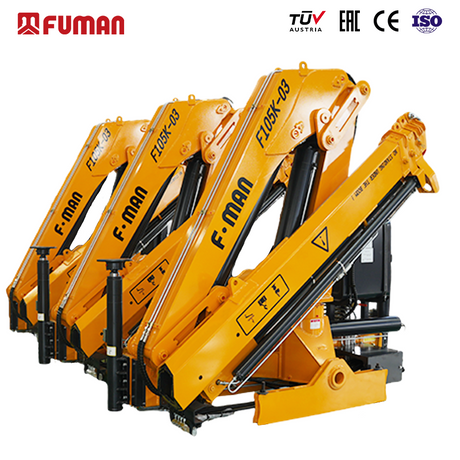

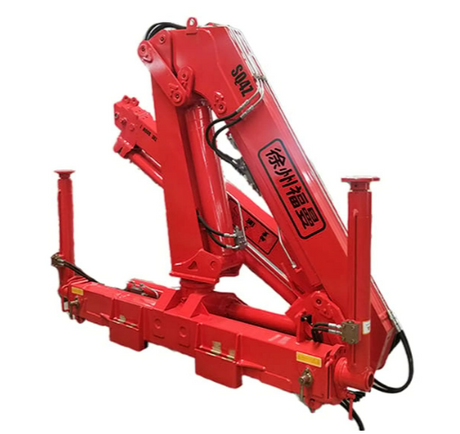

The Articulating Design

The core structure consists of a main boom and an outer boom. A powerful "knuckle" joint connects them. This joint mimics the movement of a human finger. It allows the crane to fold back on itself. Operators can reach over obstacles and drop loads accurately. This dual-boom design provides unparalleled articulation. It makes the crane highly adaptable to awkward spaces.

Hydraulic Power Systems

High-pressure hydraulics drive both the lifting capacity and the precise articulation. Fluid flows through reinforced hoses to actuate heavy-duty cylinders. These cylinders control the main boom, the knuckle joint, and any telescopic extensions. The hydraulic system ensures smooth, predictable movements. It prevents sudden jerks during delicate lifts.

Attachments and Tooling

You gain massive operational flexibility through specialized attachments. Operators quickly swap tools at the boom tip to match the job. This adaptability turns one vehicle into a multi-purpose workhorse.

• Pallet Forks: Ideal for moving brick, block, and palletized roofing materials.

• Grapples: Perfect for handling scrap metal, timber, and loose debris.

• Clamshell Buckets: Used extensively for excavating loose dirt or moving gravel.

• Winches: Provide vertical lifting capabilities below ground level.

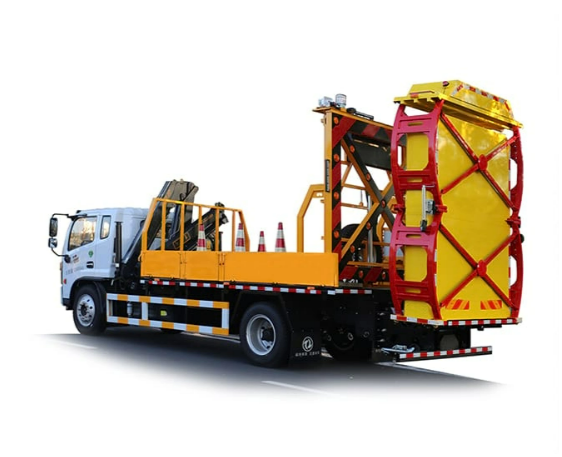

Stowage Profile

The "Z-fold" storage configuration defines this equipment. The booms fold tightly together across the width of the truck. This profile rests compactly behind the cab. It keeps the vehicle center of gravity low and stable. It also improves overall aerodynamics during highway transit. You preserve nearly the entire truck bed for cargo.

Best Practice: Always grease the knuckle pins and boom pivot points weekly. Dry joints strain the hydraulic cylinders and lead to premature mechanical wear.

Knuckle Boom vs. Telescopic (Straight) Boom Cranes

Fleet operators frequently debate between articulating and straight boom designs. Each serves distinct operational purposes. Choosing the right one depends heavily on your daily job site conditions.

Space and Payload Efficiency

Contrast the compact folding of a knuckle boom against a straight boom. A straight boom requires static bed space. It often rests over the entire length of the cargo bed. You lose significant payload volume. Articulating cranes fold away. They let you stack materials right up to the crane pedestal.

Clearance and Maneuverability

Articulating cranes maneuver loads horizontally into tight spaces. You can easily feed drywall through a second-story window. You can work safely under active power lines. Straight booms require high vertical clearance. They must raise the boom high to achieve a short radius. This makes straight booms nearly useless inside buildings or under bridges.

Lifting Profiles

We must discuss the specific trade-offs in lifting profiles. Straight booms generally offer higher maximum vertical reach. They excel at heavy, vertical-only lifting. Articulating cranes offer a superior payload-to-weight ratio. They dominate in precise load placement and horizontal reach scenarios.

Cost and Complexity

Articulating cranes involve more moving parts. They have multiple pivot points and exposed hydraulic lines. This requires different maintenance considerations compared to simpler straight booms. You must inspect hoses and seals more frequently. Straight booms have fewer joints, making visual inspections slightly faster.

Evaluating a Truck Mounted Knuckle Boom Crane for Your Fleet

Adding a truck mounted knuckle boom crane requires careful planning. You cannot simply buy the largest unit available. You must align the equipment specifications with your actual workflow.

Defining Success Criteria

Start by mapping your current operational bottlenecks. Do you rely heavily on third-party unloaders? Do your delivery drivers frequently encounter inaccessible job sites? Define what success looks like. It might mean eliminating forklift rentals. It might mean reducing delivery times by twenty percent. Match these goals to specific crane capabilities.

Load Charts and Lift Capacities

You must understand how to read a load chart. Lifting capacity always decreases as horizontal reach extends. A crane might lift 10,000 pounds at five feet. It might only lift 2,000 pounds at thirty feet. The load chart plots this curve. Always evaluate your heaviest routine load. Then, determine the maximum distance you must place it from the truck.

Chassis and Axle Requirements

A critical dependency exists between the crane size and the truck chassis. You cannot mount heavy lifting equipment on a weak frame.

• Gross Vehicle Weight Rating (GVWR): The truck must legally support the crane, the flatbed, and the maximum cargo payload.

• Frame Reinforcement: The chassis often requires additional steel plating (double-framing) to handle the torque generated during lifting.

• Axle Configurations: Heavy cranes require upgraded front axles. Sometimes they require twin steer axles or additional pusher axles to distribute the weight.

Control Systems

Modern equipment offers varied control interfaces. Manual levers mount directly on the crane pedestal. Tethered controls give operators a short wandering radius. Radio remote controls offer the best solution. They improve operator safety dramatically. Operators can walk around the load. They secure the best line-of-sight for precise placements.

Common Mistake: Buying a crane based solely on maximum lift capacity. Buyers often forget to check if their existing truck chassis has the required RBM (Resisting Bending Moment) to handle the crane's torque.

Implementation Realities: Maintenance, Training, and Compliance

Procurement is only the first step. Operating a complex hydraulic machine introduces new responsibilities. You must commit to rigorous safety standards and specialized training.

Regulatory Compliance

You must adhere to strict industry regulations. OSHA strictly governs crane operations in commercial applications. ANSI (B30.22) sets the specific safety standards for articulating cranes. These standards dictate inspection frequencies, structural criteria, and operational limits. Ignoring them invites severe penalties and catastrophic accidents.

Operator Training

Specialized training is an absolute necessity. Standard truck drivers cannot operate this equipment safely without instruction. You must plan for NCCCO (National Commission for the Certification of Crane Operators) certification. Specifically, operators need the articulating boom crane designation. This impacts your payroll structure and your hiring process. You must recruit certified operators or pay to train your existing staff.

Preventative Maintenance

Complex hydraulic systems have clear vulnerabilities. You must maintain hoses, seals, and pivot pins. Neglect leads to blown lines and dropped loads.

1. Check hydraulic fluid levels and look for active leaks under the pedestal.

2. Inspect all visible hoses for abrasion, cracking, or bulging.

3. Verify that the outriggers deploy smoothly and lock securely.

4. Test the emergency stop functions on the remote control.

5. Perform a scheduled annual load test to verify structural integrity.

Risk Mitigation

Articulating cranes introduce unique stability risks. The center of gravity shifts drastically when a load extends outward. The mandatory use of outriggers and stabilizers is non-negotiable. Operators must possess strong ground-bearing pressure awareness. Soft dirt, hollow pavement, and hidden trenches cause fatal tip-overs. Always use proper outrigger pads to distribute the load footprint.

Shortlisting Logic and Next Steps

Moving from research to procurement requires a structured approach. You want to approach dealers with data, not just vague requirements.

Conducting a Site and Fleet Audit

We recommend assessing your typical job site dimensions first. Measure the average load weights you handle daily. Evaluate your existing truck chassis inventory. Do you need a turnkey package (truck and crane together), or will you retrofit an existing vehicle? Document these facts before contacting dealers.

Vendor Evaluation

Advise your procurement team to prioritize dealer support. The initial purchase price matters less than uptime. Prioritize dealers offering robust aftermarket support. They must have accessible spare parts inventory locally. Look for vendors who provide integrated upfitting services. A single vendor responsible for the crane, truck, and installation reduces warranty disputes.

Actionable Next Step

Encourage your team to request specific load charts from manufacturers. Do not rely on marketing brochures. Request a functional demonstration. Base this demonstration on your heaviest routine lift at the maximum required reach. This physical test quickly separates capable machines from inadequate ones.

Conclusion

The knuckle boom crane represents a strategic leap forward in fleet capability. It functions as a dual-purpose logistics and lifting tool. It eliminates the need for separate delivery and hoisting vehicles. You preserve essential cargo space while gaining precise, low-clearance maneuvering.

Successful deployment relies completely on preparation. You must match precise load charts to realistic daily operations. You must pair the crane with a robust, adequately rated truck chassis. Committing to proper operator training and daily inspections guarantees safe, efficient operations.

Take action today by auditing your current fleet limitations. Consult with a qualified structural upfitter or crane specialist. Request a custom quote based on your specific payload and reach requirements to transform your job site logistics.

FAQ

Q: How much weight can a knuckle boom crane lift?

A: Lift capacities vary widely depending on the specific model and size. Smaller units handle between 1,000 and 5,000 pounds. Heavy-duty commercial models can lift over 40,000 pounds close to the pedestal. Capacity always decreases significantly as the boom extends horizontally. You must check the specific load chart for exact limits.

Q: Do you need a CDL to operate a truck mounted knuckle boom crane?

A: CDL requirements depend on the truck's Gross Vehicle Weight Rating (GVWR), not the crane itself. If the combined vehicle weight exceeds 26,000 pounds, you need a Commercial Driver’s License. However, operating the crane professionally generally requires a separate NCCCO articulating crane operator certification.

Q: What is the expected lifespan of an articulating crane?

A: A well-maintained articulating crane generally lasts 10 to 15 years in standard commercial use. Lifespan relies heavily on routine preventative maintenance. Regular hydraulic fluid changes, timely seal replacements, and strict adherence to load limits prevent premature structural fatigue and extend the equipment's life.

Q: How does a knuckle boom crane impact the truck's payload capacity?

A: Adding a crane increases the vehicle's empty weight, which directly reduces the maximum allowable payload capacity. However, because it folds compactly behind the cab, it preserves the physical volume of the cargo bed. You carry slightly less weight, but you retain maximum physical space for transporting materials.
