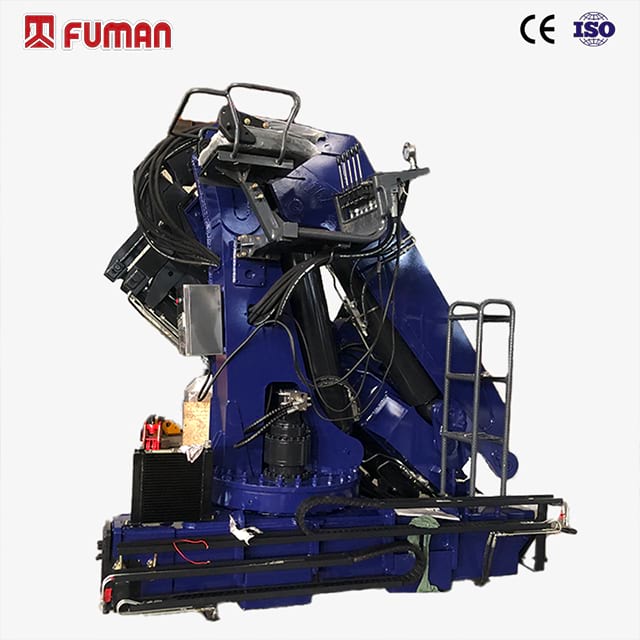

How Do Outrigger Setup and Ground Conditions Affect Knuckle Boom Crane Stability?
Views: 0 Author: Site Editor Publish Time: 2026-07-26 Origin: Site
A crane is only as stable as the ground beneath it. Catastrophic failures, such as tip-overs or ground punch-throughs, rarely stem from mechanical failure. Instead, they happen when operators misjudge the interaction between the equipment and the earth. Every time a boom extends, immense pressure transfers downward. If the surface yields, the entire operation is compromised instantly.
Fleet managers, safety directors, and utility operators face the constant challenge of deploying heavy equipment across unpredictable terrains. Standard outrigger floats on a truck mounted knuckle boom crane often generate high ground bearing pressures. This creates a critical mismatch between equipment design and site realities like soft soil, uncompacted fill, or roadside slopes. When the ground fails, the crane follows.
Ensuring stability requires a technical evaluation of ground bearing capacity, proper outrigger pad selection, and strict adherence to configuration-specific load charts. This guide breaks down the mechanics of stability to inform equipment selection, site preparation, and safety compliance for your next lift.
Ground Bearing Capacity is the Limiting Factor: Even the highest-rated knuckle boom crane cannot safely operate if the ground cannot support the concentrated load transferred through the outriggers.
Float Size Dictates Pressure: Many folding boom cranes feature smaller factory outrigger floats by design, necessitating engineered outrigger pads or crane mats to distribute weight effectively.
Dynamic Forces Alter Stability: The articulation of a folding boom crane creates complex, shifting centers of gravity and dynamic side loads that static calculations do not fully capture.
Load Chart Specificity is Mandatory: Stability is contingent on matching the actual outrigger deployment configuration (fully extended, mid-extend, or retracted) to the corresponding manufacturer-issued load chart.
Risk Mitigation Requires Standardization: Standardizing pre-lift ground assessments and outrigger deployment protocols is critical for preventing operator shortcuts and ensuring regulatory compliance.
The Physics of Knuckle Boom Crane Stability
A stable lift requires maintaining the center of gravity within the crane’s tipping axis under maximum static and dynamic loads. The tipping axis acts as a fulcrum. If the combined center of gravity of the truck, crane, and load crosses this invisible line, gravity takes over. The outriggers expand this tipping axis, providing the necessary footprint to counter the leverage of the extended boom. Understanding this physical reality is the foundation of safe operation on any job site.
Dynamic Forces vs. Static Loads
Lifting is never entirely static. The movement of the boom—slewing, articulating, and telescoping—creates dynamic forces and structural deflection. These movements multiply the pressure exerted on individual outriggers. When an operator swings a heavy load rapidly and stops suddenly, the momentum generates a shock load. This dynamic force can temporarily double the downward pressure on a single outrigger pad, testing the absolute limits of the ground beneath it. Operators must account for these dynamic multipliers when assessing site readiness, as static weight calculations alone will leave you dangerously unprepared for the reality of a moving load.
Center of Gravity in a Folding Boom Crane
The unique geometry of a folding boom crane shifts the center of gravity more dynamically than a stiff-boom crane. As the knuckle joints articulate and fold, the load moves through multiple planes. This rapid shifting makes outrigger footprint, rigidity, and alignment non-negotiable. The chassis must remain perfectly level to ensure the center of gravity behaves predictably according to the load chart. Even a slight incline alters the geometry of the lift, pushing the center of gravity closer to the tipping axis and drastically reducing the safe lifting capacity.
The Danger of Side Loading
Side loading introduces lateral forces that destabilize the crane structure and compromise the tipping line. Wind gusts, off-lead lifting, or unlevel setups pull the boom sideways. Cranes are designed to handle vertical loads, not horizontal stress. Side loading can twist the boom structure and shift the center of gravity outside the outrigger footprint, leading to immediate tipping or structural failure. Field crews must strictly monitor wind speeds and ensure the load line remains perfectly plumb throughout the entire lifting operation to prevent these destructive lateral forces.
Evaluating Ground Conditions and Bearing Capacity
Assessing site readiness and soil integrity is the first step before equipment deployment. Operators must evaluate the ground to ensure it can withstand the maximum pressure the crane will exert. Guesswork in this phase leads directly to accidents. You need a systematic approach to reading the ground.
First Moves on Questionable Ground
When arriving on-site, operators need a practical step-by-step framework to evaluate the terrain. Do not just park and deploy.
Conduct a visual sweep of the entire setup area, looking for water pooling, which indicates soft spots or poor drainage.
Test soil firmness by observing how heavy delivery vehicles or the crane truck itself tracks across the surface. Deep ruts are an immediate red flag.
Look for signs of recent excavation, uncompacted backfill, or utility markers that suggest disturbed earth.
Check the surrounding topography for slopes, retaining walls, or embankments that could shear under pressure.
If the ground looks questionable, always assume the lowest possible bearing capacity and plan to use maximum load distribution mats.
Identifying Soil Types and Load Limits
Allowable ground bearing pressure (GBP) varies drastically across different surfaces. Understanding these differences is crucial for safe outrigger deployment. You must match your pad size to the specific soil type.
Soil / Surface Type | Characteristics & Risks | Estimated Bearing Capacity (psf) |
|---|---|---|
Cohesive soils (clay) | Highly susceptible to moisture changes. Prone to sliding and squeezing under pressure, especially when wet. | 2,000 - 4,000 |
Cohesionless soils (sand/gravel) | Risk of shifting or washing out under dynamic loads and vibrations. Requires containment. | 3,000 - 6,000 |
Saturated/wet mud | Extremely low GBP. Offers almost no resistance. Requires maximum load distribution through oversized mats. | < 1,500 |
Engineered surfaces (asphalt) | Risk of subsurface voids. Asphalt softens significantly in hot weather, leading to punch-throughs. | 4,000 - 8,000 |
Solid Bedrock / Concrete | High capacity, but concrete can crack suddenly if bridging a void. Point loads must still be distributed. | 10,000+ |
Calculating Ground Bearing Pressure (GBP)
Calculating GBP is straightforward but critical. The formula is the Total Load (Crane Weight + Load Weight + Rigging) divided by the Outrigger Pad Surface Area. However, operators must remember that during rotation, the maximum load can shift up to 100% of the total force onto a single outrigger. Therefore, pad selection must be based on the peak load per point, not an average distributed weight across all four outriggers. If your crane exerts 40,000 lbs of force on one outrigger during a swing, the pad beneath that specific outrigger must be large enough to reduce the pressure below the soil's maximum capacity.
Hidden Hazards
Subsurface anomalies compromise stability invisibly. Underground utility lines, buried storage tanks, and recently backfilled trenches create voids that collapse under outrigger pressure. Sudden moisture saturation from high water tables can turn seemingly solid ground into a hazard. Always consult site plans and use ground-penetrating radar if necessary when working in developed areas. Never set up directly over a known utility trench, even if it has been paved over, as the compaction levels are rarely sufficient to support heavy point loads.

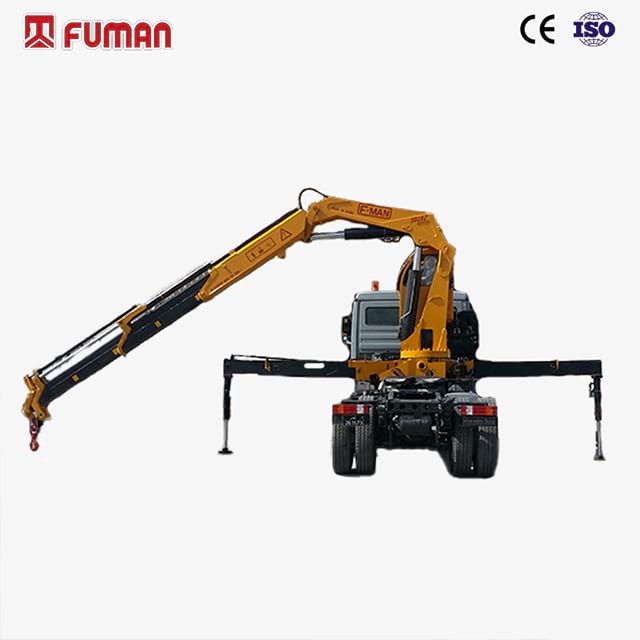

Outrigger Setup Protocols for a Truck Mounted Knuckle Boom Crane
Achieving a level, stable base requires technical approaches and the right auxiliary equipment. Relying solely on factory components is often insufficient for real-world job sites. You have to build a foundation before you can lift.
Float Size and Load Distribution
Factory-installed outrigger floats on a truck mounted knuckle boom crane are typically small. They are designed for compact transit to maximize payload on the chassis. This small surface area concentrates the crane's weight, creating high ground bearing pressure. To safely operate on most soils, operators must use auxiliary distribution tools to spread this load over a wider area. Think of it like walking on snow: boots sink, snowshoes float. You need to provide snowshoes for your crane.
The Role of Engineered Outrigger Pads and Crane Mats
Auxiliary pads are necessary to bridge the gap between the crane's pressure and the ground's capacity. Different materials offer varying levels of performance, and selecting the wrong material can be just as dangerous as using no pad at all.
Material Type | Advantages | Disadvantages |
|---|---|---|
Wood/Plywood | Inexpensive, readily available on most construction sites. | Susceptible to rotting, splitting, and unpredictable deflection limits. Hidden internal rot can cause sudden failure. |
Engineered UHMW/Composite Plastic | High strength-to-weight ratio, waterproof, predictable performance, minimal deflection, ergonomic handles. | Higher initial purchase cost. Can be slippery if covered in mud or ice. |
Steel Mats | Maximum rigidity for heavy-duty applications. Will not bend under extreme point loads. | Logistically demanding to transport and position. Very heavy, often requiring a secondary machine to place. |
Leveling and Cribbing Techniques
Crane leveling requires strict tolerances, typically within 1 degree or 1%. An unlevel setup drastically reduces structural capacity and invalidates standard load charts. When using cribbing to level outriggers, operators must stack materials tight and level. Avoid excessive height-to-width ratios to prevent rolling. Ensure full surface contact between the outrigger float, the cribbing, and the ground pad. Never use hollow blocks, bricks, or scrap debris for cribbing. Use interlocking engineered blocks or solid hardwood timbers, and always build a base wider than the top to ensure stability.
Equipment Limitations and Operational Trade-Offs
Buyers and fleet managers must navigate design trade-offs when selecting equipment. The right choice depends on the typical operational environment and the specific demands of the jobs you undertake.
Short-Span vs. Wide-Span Configurations
A wider outrigger span increases the tipping axis, providing a significantly better stability profile for heavy lifts. However, it requires a larger operational footprint, which can be problematic in tight urban spaces. Short-span configurations fit into smaller areas but sacrifice overall lifting capacity at maximum reach. You have to evaluate your typical job site. If you constantly work in narrow alleys, a wide-span outrigger system will be useless because you will never be able to fully deploy it.
The Reality of Short-Jacking
Operating with partially extended outriggers in congested urban environments is known as short-jacking. This practice carries severe risks. Modern cranes utilize safety systems, like variable stability systems, to limit capacity based on individual outrigger extension. Without these systems, swinging a load over a short-jacked side will cause an immediate tip-over. If you must short-jack, you must strictly adhere to the reduced capacity load charts for that specific configuration, and physically block the swing gear to prevent the boom from entering the danger zone.
Roadside and Slope Setup Challenges
Utility and line workers face specific constraints when setting up on shoulders, working near steep embankments, or navigating high-profile road crowns. The soil near embankments lacks lateral support and can easily shear away under pressure. Operators must use extensive cribbing to achieve level setups and position the truck far enough from the edge to ensure the ground remains intact. A general rule of thumb is to keep the outrigger pad at least a distance equal to the depth of the embankment away from the edge.
Implementation Risks and Safety Mitigation
Human error and changing environmental conditions are the primary drivers of stability failures. Robust safety protocols are the only defense against these unpredictable variables.
Operator Error and Setup Shortcuts
Common operational failures include failing to deploy pads on hard asphalt surfaces, assuming the pavement will hold. Operators sometimes rely on visual leveling instead of using physical bubble or digital levels, leading to off-chart lifts. Ignoring changes in soil conditions or skipping the pad setup to save time directly invites disaster. Complacency is the enemy of stability. Every setup must be treated with the same level of scrutiny, regardless of how routine the lift seems.
Environmental and Shift Changes
Ground conditions change over time. A sudden rainstorm can soften clay mid-lift. Vibration from continuous operation can compact the soil beneath a pad, causing it to sink unevenly. Morning frost can melt by the afternoon, drastically reducing ground bearing capacity. Operators must continuously monitor the outriggers throughout the shift. If a pad begins to sink or tilt, the operation must stop immediately, the load must be secured, and the setup must be re-evaluated and corrected.
Regulatory Compliance and Pre-Lift Checklists
A standardized safety workflow is essential for compliance and risk reduction. You cannot manage what you do not measure.
Execute mandatory site-specific pre-lift assessments before any outrigger deployment.
Document GBP vs. Soil Capacity calculations for every major lift and keep them in the cab.
Ensure strict adherence to OSHA 1926.1402 (Ground Conditions) and ASME B30.22 standards.
Implement a formal End of Shift inspection to verify ground integrity during multi-day operations.
Require sign-off from the lift director or site supervisor before the boom is raised on questionable terrain.
Conclusion
Conduct a fleet-wide audit of current outrigger pads to ensure they meet the demands of your heaviest cranes and replace any damaged wood with engineered composite mats.
Implement mandatory ground condition training for all operators, focusing on soil identification and dynamic load calculations.
Establish standardized pre-lift checklist protocols that require documented ground assessments and supervisor sign-off before any boom is extended.
Equip all crane trucks with digital inclinometers to eliminate the guesswork of visual leveling on uneven terrain.
FAQ
Q: How do you calculate ground bearing pressure for crane outriggers?
A: Divide the total weight of the crane, rigging, and maximum load by the total surface area of the outrigger pad in contact with the ground. Note that during operation, 100% of this force can shift onto a single outrigger, requiring the calculation to be based on the peak load per point, not an average distributed weight.
Q: Can you operate a knuckle boom crane on soft ground or wet clay?
A: Yes, but only if you use engineered crane mats or oversized outrigger pads to distribute the ground bearing pressure to a level below the soil's maximum bearing capacity. If the soil cannot support the load even with mats, the site must be remediated or compacted.
Q: Why do folding boom cranes often have smaller outrigger floats?
A: Manufacturers design folding boom cranes for compact transport, maximizing payload capacity on the truck chassis. Consequently, the factory floats are small, shifting the responsibility of safe load distribution onto the operator through auxiliary pads.
Q: What is the "first move" when setting up on questionable ground?
A: Conduct a visual and physical site assessment. Look for signs of water accumulation, underground utility markers, or uncompacted backfill. Test soil firmness and always default to using larger, engineered outrigger pads to maximize the distribution footprint.
Q: What are the risks of "short-jacking" a truck mounted knuckle boom crane?
A: Short-jacking (failing to fully extend outriggers on one or both sides) drastically reduces the tipping line. Operating without a corresponding short-jack load chart or an active variable stability monitoring system will result in an immediate tip-over if the boom swings over the short side.
Q: Do outrigger pads increase a knuckle boom crane's lifting capacity?
A: No. Outrigger pads do not increase the crane’s structural lifting capacity. They simply ensure that the ground can support the load without yielding, allowing the crane to safely operate up to its rated capacity.
Q: How do utility line workers safely set up cranes on slopes or roadside shoulders?
A: Operators must use engineered cribbing to level the outrigger pads, ensuring the crane remains within its 1-degree level tolerance. Additionally, they must position the truck to avoid placing outriggers too close to the shoulder's slope edge, where the soil lacks lateral support.
