F500KC-05

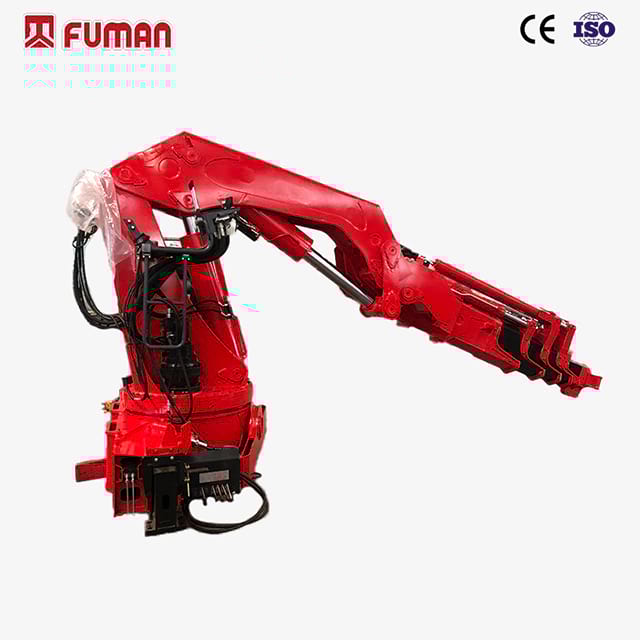

The FUMAN 25 Ton Truck Mounted Knuckle Boom Crane is a heavy-duty mobile solution designed for high-capacity lifting in demanding industrial and infrastructure projects. Combining a 25-ton lifting capacity with a knuckle boom design, this crane offers exceptional power, mobility, and precision, making it ideal for large-scale construction, mining, and energy applications.

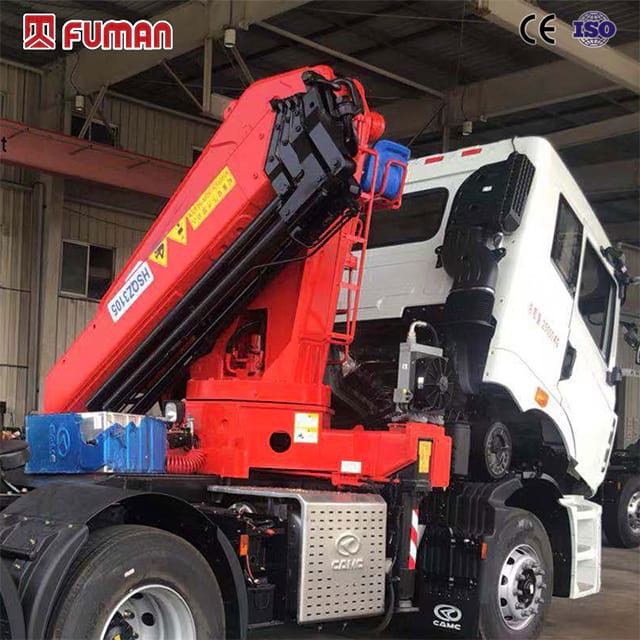

Robust Truck Chassis Integration: Mounted on a reinforced 8x4 chassis with advanced suspension, ensuring stable road transport and reliable on-site operation under full load.

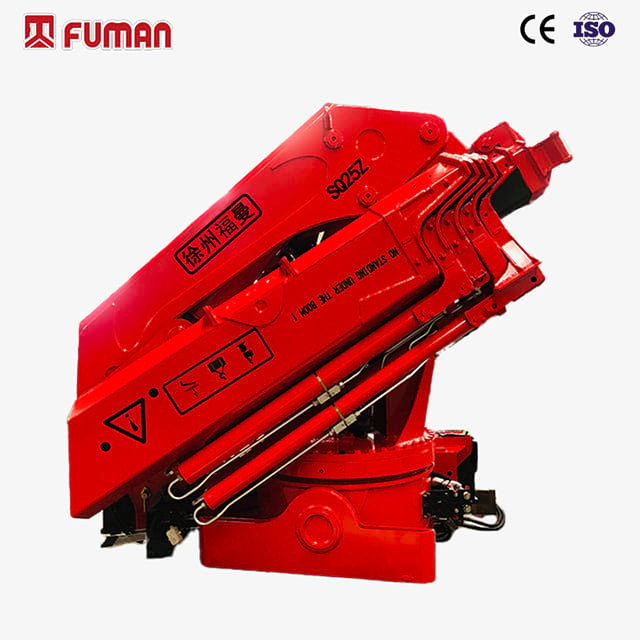

Knuckle Boom with Telescopic Extension: 4-section boom extends to 22 meters, providing a maximum horizontal reach of 18 meters for versatile heavy-lifting tasks.
Intelligent Load Moment Indicator (LMI): Real-time system that adjusts hydraulic pressure and boom speed to prevent overloading, ensuring compliance with international stability standards.
Dust- and Water-Resistant Hydraulics: Sealed components and high-grade filters protect the hydraulic system in harsh environments, reducing maintenance by 25%.
Luxury Operator Cabin: Spacious cabin with air suspension seats, climate control, and a 360° camera system, enhancing comfort and visibility during long working hours.
Heavy Infrastructure Projects: Supports bridge erection, dam construction, and tunnel boring, lifting massive concrete blocks and steel structures with precision.
Mining & Resource Extraction: Transports heavy machinery and ore processing equipment in remote mining sites, navigating rough terrain with its all-wheel drive system.
Power Generation: Lifts turbine components and generator units in thermal and nuclear power plants, ensuring safety in high-load, high-precision operations.
Emergency Infrastructure Repair: Rapidly deploys to disaster zones for heavy debris removal and temporary bridge installation, leveraging its high capacity and mobility.
Heavy-Lift Expertise: Decades of experience in designing cranes for extreme load conditions, with a focus on structural integrity and operational safety.
Advanced Manufacturing: Uses laser-cut high-tensile steel (yield strength: 700 MPa) and robotic welding for uniform quality and reduced material fatigue.
Global After-Sales Network: Dedicated service teams for large equipment, offering scheduled maintenance, remote diagnostics, and genuine parts supply within 48 hours.
Environmental Compliance: Meets strict emission standards (EPA Tier 4 Final, Euro VI) with low-noise engines and eco-friendly hydraulic fluids.

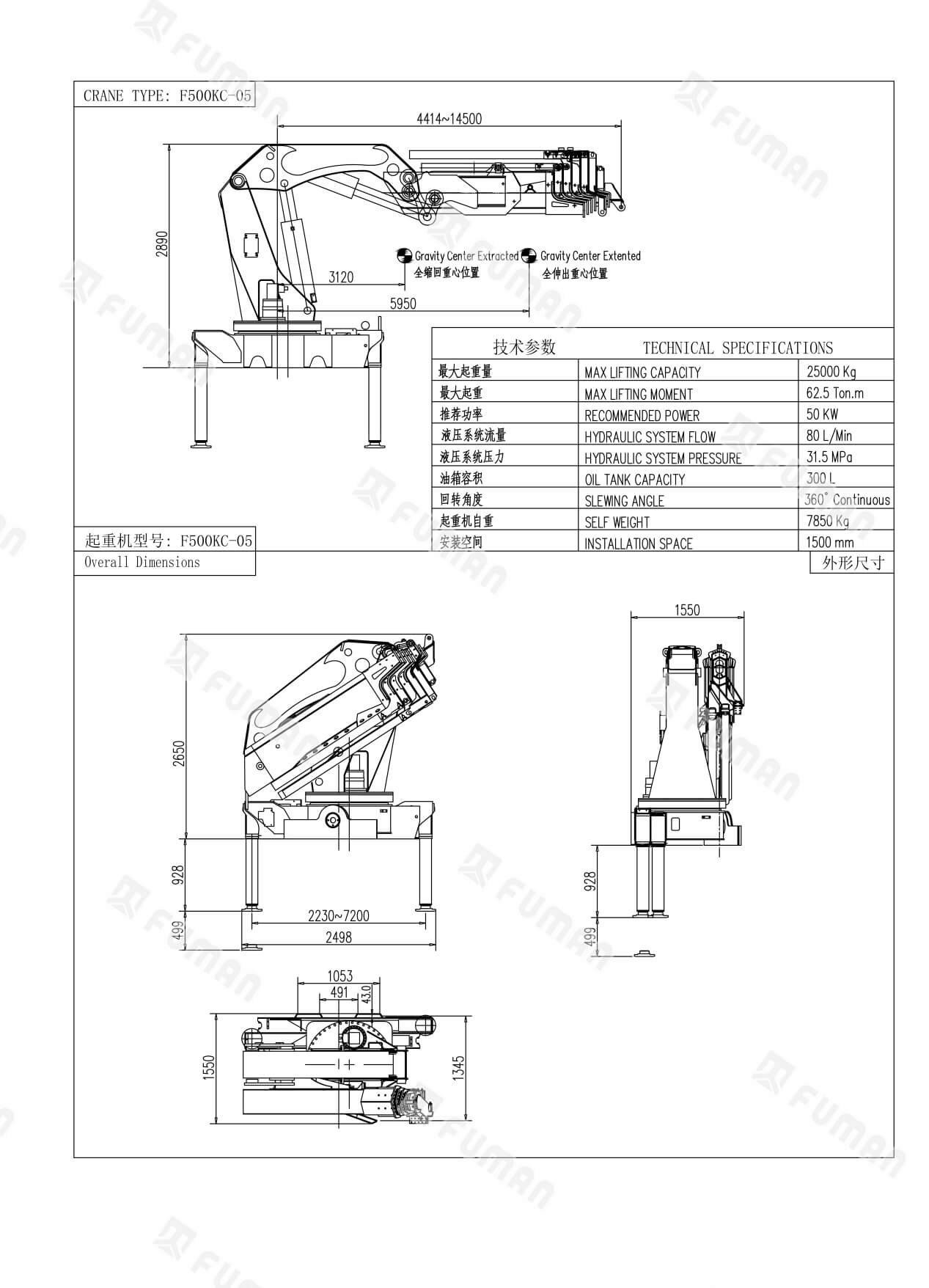

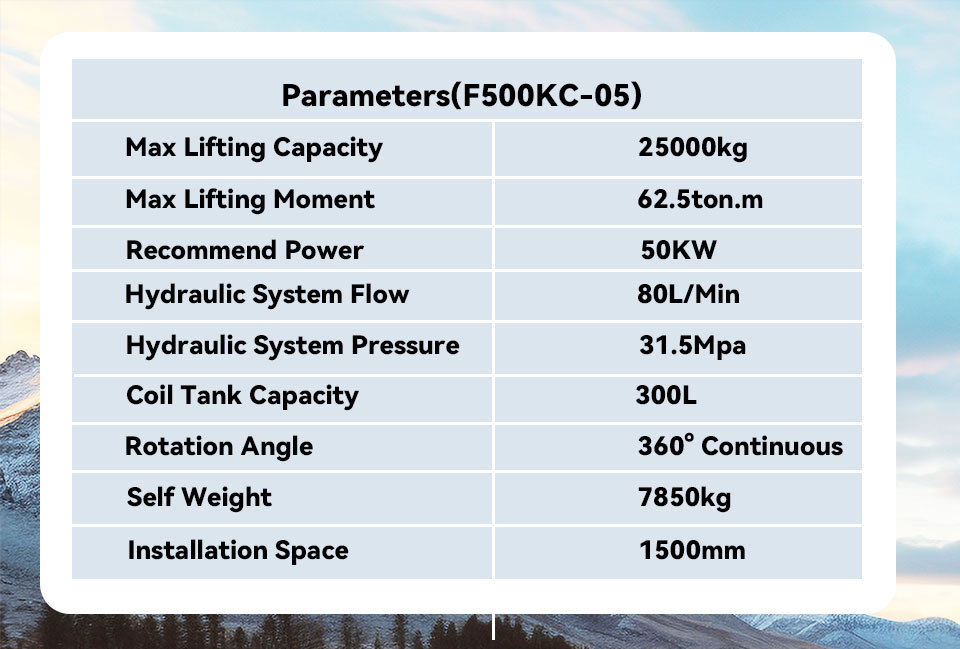

Parameters(F500KC-05) | |
Max Lifting Capacity | 25000kg |
Max Lifting Moment | 62.5ton.m |
Recommend Power | 50KW |
Hydraulic System Flow | 80L/Min |
Hydraulic System Pressure | 31.5Mpa |
Coil Tank Capacity | 300L |
Rotation Angle | 360° Continuous |
Self Weight | 7850kg |
Installation Space | 1500mm |
