F200KC-04

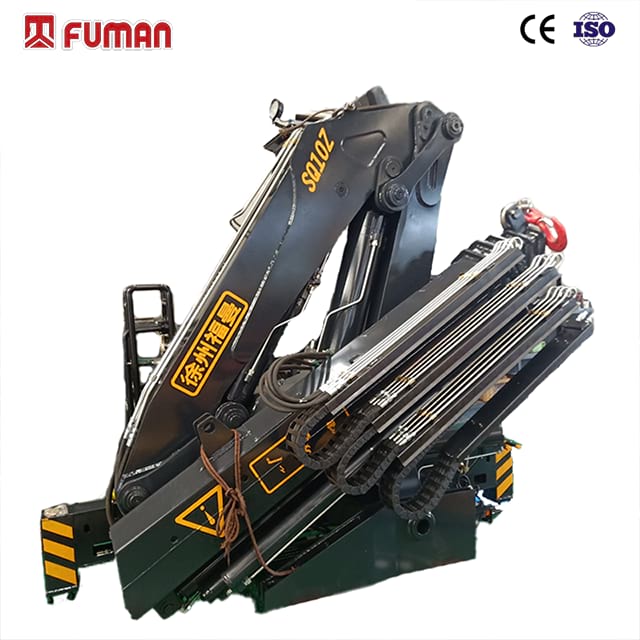

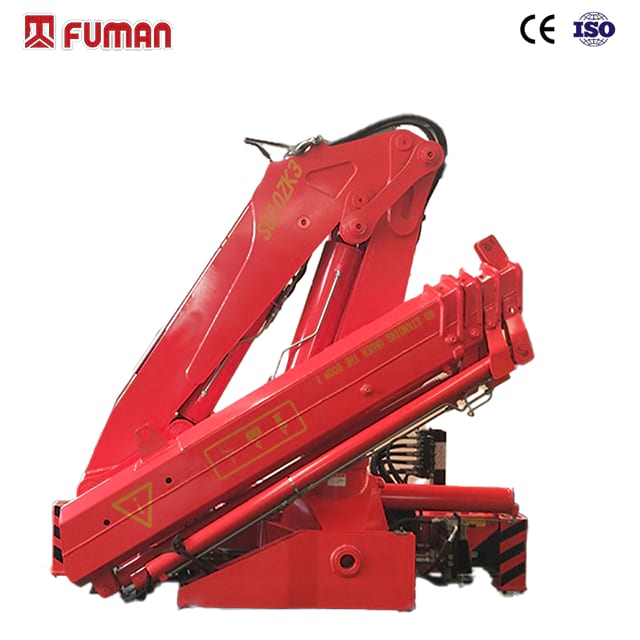

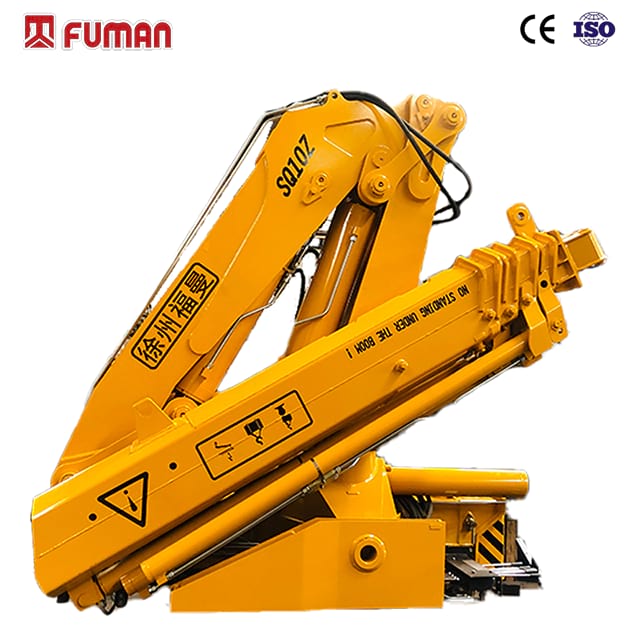

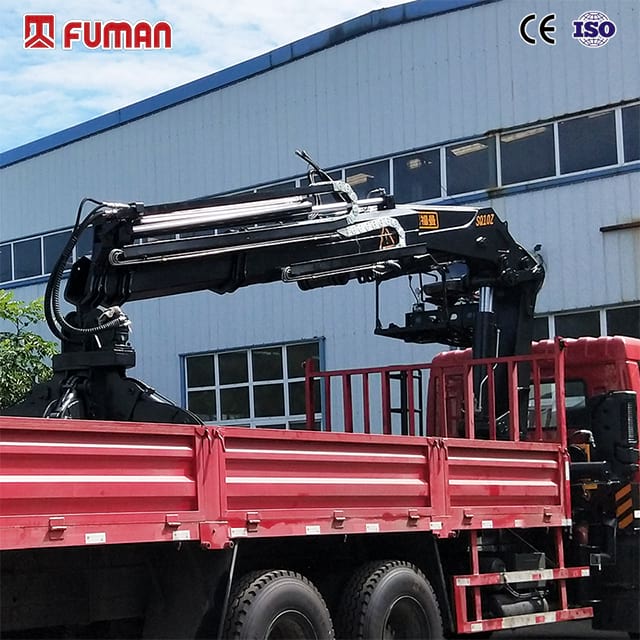

The FUMAN 10 Ton Knuckle Boom Crane with Remote Control is a precision-engineered lifting solution designed for versatility and safety in complex environments. With a maximum lifting capacity of 10 tons, this crane combines a compact knuckle boom design with advanced remote control technology, enabling efficient operation in confined spaces. Its robust structure and intuitive controls make it ideal for applications requiring both power and maneuverability, such as urban construction, industrial maintenance, and logistics handling.
Wireless Remote Control System: Operate the crane from up to 50 meters away with a 2.4GHz anti-interference controller, allowing precise control over boom articulation, 360° rotation, and load positioning.

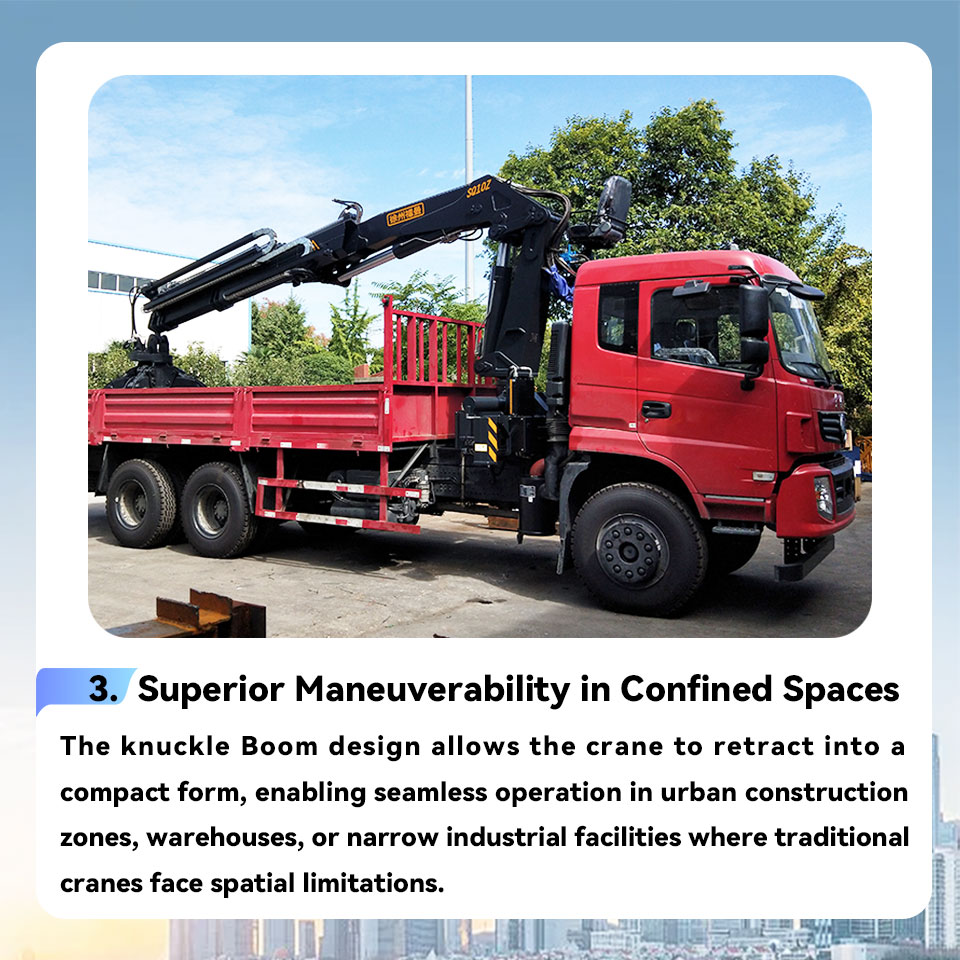

Flexible Knuckle Boom Design: Multi-joint articulation enables access to hard-to-reach areas, while the compact folded size (3.2m x 2.1m) minimizes space requirements for transportation and storage.
High-Efficiency Hydraulic System: Equipped with energy-saving pumps and reinforced cylinders, ensuring smooth operation under full load and reducing fuel consumption by 15% compared to standard models.
Dual Safety Protection: Integrates overload sensors and automatic collision detection, triggering visual/audible alarms to prevent accidents and ensure compliance with OSHA and CE standards.
Digital Monitoring Interface: Real-time display of load weight, boom angle, and hydraulic pressure on the operator panel, enhancing operational transparency and decision-making.
Construction & Infrastructure: Efficiently lifts steel beams, precast concrete, and rooftop equipment in tight urban job sites, reducing reliance on manual labor and improving project timelines.
Industrial Equipment Installation: Manages machinery placement in factories and power plants, navigating narrow aisles and low-clearance areas with precision.
Warehouse & Logistics: Streamlines cargo handling in distribution centers, enabling quick loading/unloading of pallets and oversized items with minimal downtime.
Railway Maintenance: Facilitates trackside operations such as signal installation and bridge inspection, adapting to the confined spaces and safety requirements of railway environments.
Engineering Excellence: Backed by 20+ years of experience in knuckle boom crane design, incorporating feedback from 10,000+ global projects to optimize performance and durability.
Customization Capability: Tailor boom length (6-12 meters), control interfaces, and structural coatings to meet specific industry needs, from indoor warehouses to outdoor construction sites.
Global Service Network: 24/7 technical support and a network of 50+ certified service centers, ensuring rapid response to maintenance requests and minimizing equipment downtime.
Cost-Effective Performance: Balances high lifting capacity with low operational costs, featuring long-lasting components and energy-efficient systems to maximize return on investment.

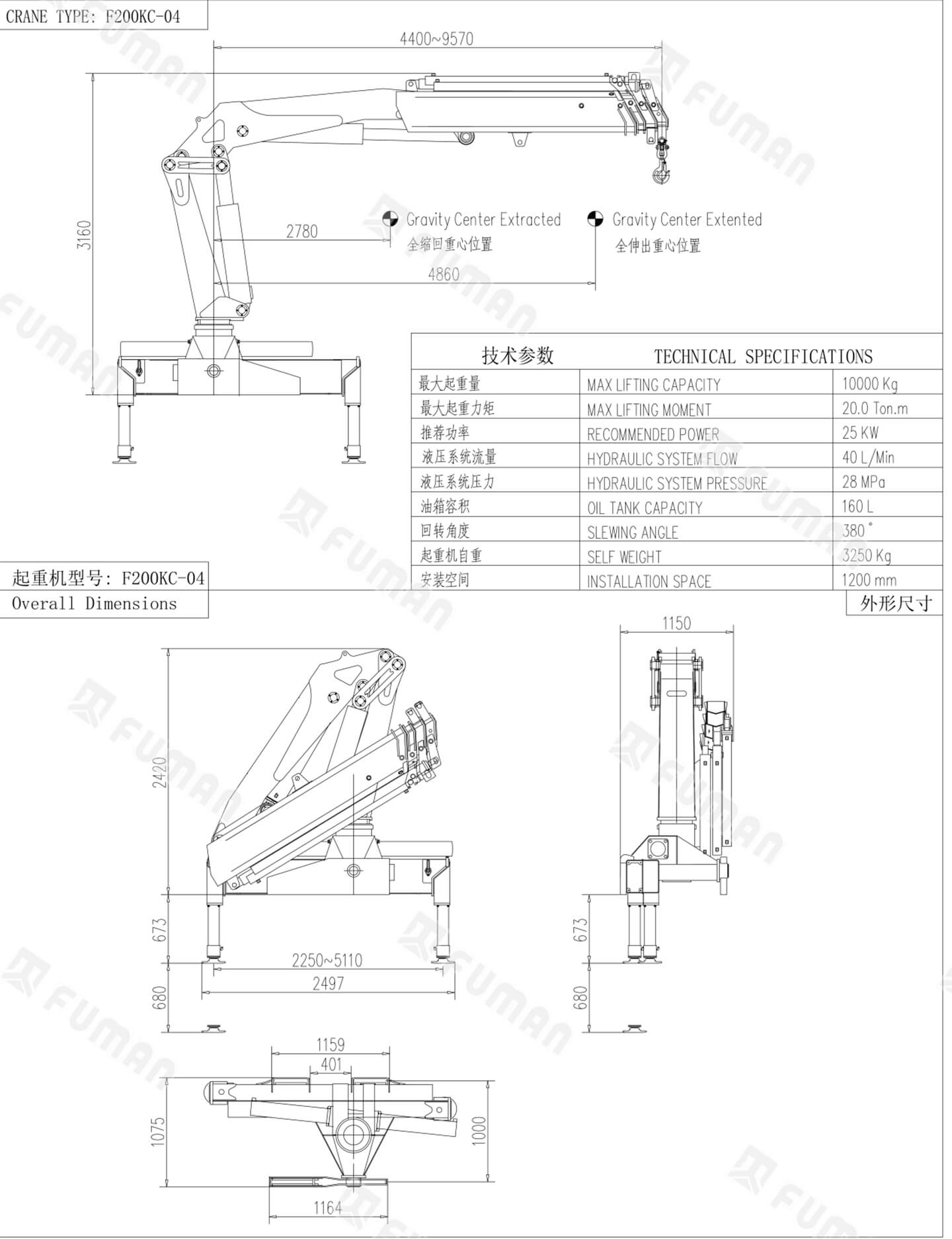

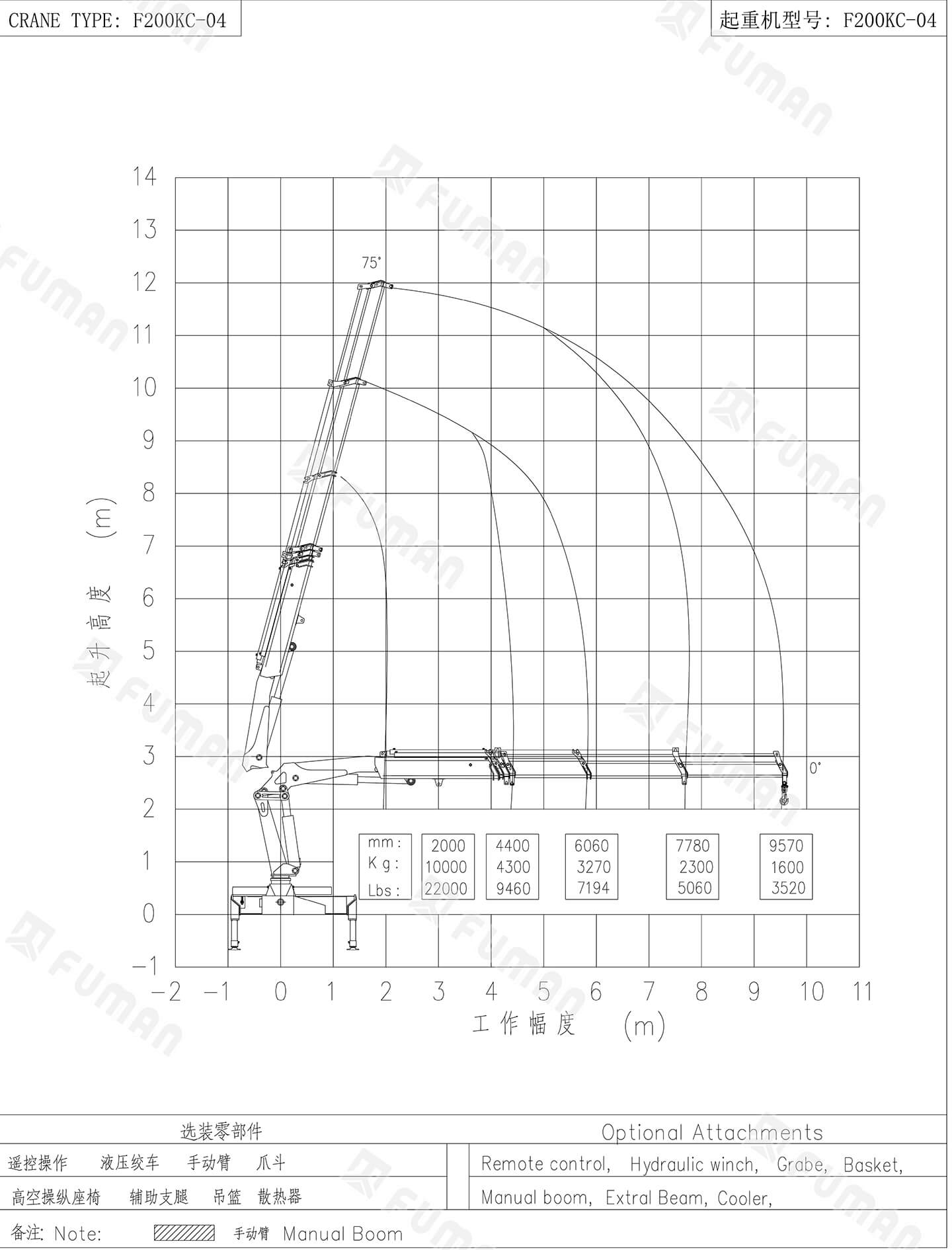

Parameters(F200KC-04) | |
Max Lifting Capacity | 10000 Kg |
Max Lifting Moment | 20 Ton.m |
Recommend Power | 25 KW |
Hydraulic System Flow | 40 L/Min |
Hydraulic System Pressure | 28 Mpa |
Coil Tank Capacity | 160 L |
Installation Space | 1200 mm |
Self Weight | 3250 kg |
Slewing Angle | 360 ° Continuous |
Knuckle Boom Crane Operation Guide
1. Pre-Operation Inspection
Verify ground stability, check hydraulic fluid levels, and inspect cables/controls for damage. Ensure safety devices (load limiter, emergency stop) function properly. Confirm load weight matches crane capacity using the rated chart.
2. Setup & Stabilization
Deploy outriggers on solid ground, ensuring the crane remains level. Extend stabilizer pads if on soft terrain. Rotate the cab to position the boom clear of obstacles. Lock wheels and engage parking brakes.
3. Load Handling
Use the joystick to unfold the knuckle boom smoothly. Position hooks vertically above the load’s center of gravity. Lift slowly, maintaining tension on slings. Avoid sudden movements—swing/retract the boom incrementally for precision.
4. Shutdown & Maintenance
Retract the boom fully, secure all components, and park on level ground. Clean debris, lubricate joints weekly, and log hydraulic system pressures. Schedule professional inspections every 500 operating hours.
