How Much Can A Knuckle Boom Crane Lift​?

Buyers and operators moving from straight-boom equipment often face a major frustration during equipment selection. They search for a single, static maximum lift capacity for articulating equipment. Finding one universal number is practically impossible. Selecting the wrong size causes severe operational problems immediately. It quickly leads to unsafe job site conditions, tipping risks, and failed lifts. Alternatively, you end up buying massive machinery completely unsuited for your daily structural limits.

You must understand how these complex machines actually operate in the field. A knuckle boom crane relies on a highly dynamic lifting capacity. Its true strength depends heavily on lifting moments, boom outreach, and vehicle integration geometry. This dynamic relationship is especially crucial when sizing a truck mounted knuckle boom crane for daily payload operations. This comprehensive guide breaks down exact capacity ranges, load chart mechanics, and critical procurement considerations. You will learn exactly how to match machine specifications to your exact project requirements.

Key Takeaways

• Capacity is Dynamic: A knuckle boom’s lift capacity is determined by a continuous ratio of weight to distance, measured in lifting moment (ft-lbs or ton-meters), not just static pounds.

• Vast Performance Range: Capacities range from 2,200 lbs in compact models to over 200 tons in extreme, close-radius heavy-duty applications.

• The Payload Advantage: Truck mounted articulating cranes fold compactly behind the cab, maintaining maximum vehicle payload capacity compared to traditional straight-boom alternatives.

• Ideal Use Cases: They excel at low-clearance, horizontal lifting and navigating obstacles, but are not ideal for prolonged static suspension of heavy loads.

1. The Core Variable: Why Lift Capacity Isn't a Static Number

The "Tons vs. ft-lbs" Friction

Straight-boom operators often struggle when reviewing articulating equipment specifications. They typically think purely in standard tons. Telescopic equipment usually promotes a fixed maximum tonnage based on vertical winching. However, articulating models feature multiple movable joints. These joints create nearly infinite angle configurations during operation. A standard static load chart for every possible angle would exceed hundreds of pages. You cannot simply ask for a flat maximum weight rating. The boom geometry changes constantly as you manipulate the separate arm sections.

Understanding Lifting Moment (Torque)

Manufacturers rate these machines using maximum lifting moment instead of static weight. Engineers measure this vital torque in foot-pounds (ft-lbs) or ton-meters. This metric reflects the mechanical force required to hoist a specific weight at a specific horizontal distance. It utilizes basic lever principles. A long lever makes heavy objects exert more downward force on the central base. Therefore, the machine's true power lies in its ability to resist this rotational force. Understanding lifting moment prevents dangerous overloading scenarios on busy work sites.

The Golden Formula

Experienced operators rely on a simple real-world calculation to determine safe parameters. We call this the golden formula of articulating lifts. You divide the total ft-lbs rating by your current radius in feet. This simple division equals your maximum safe lift capacity in pounds. For example, you might operate a unit rated for 50,000 ft-lbs. If you need to reach out 20 feet, you divide 50,000 by 20. Your maximum safe lift at that exact distance equals 2,500 lbs. This formula puts the calculation responsibility safely into the operator's hands.

Distance Degradation

Distance degrades lifting power rapidly due to gravity and leverage. You must account for this performance drop during project planning. A standard commercial model might easily hoist 6,300 lbs at a short 10-foot radius. This close-range power handles massive concrete blocks easily. However, push that boom fully extended horizontally to 31 feet. You will see the capacity drop dramatically to just 1,800 lbs. The machine itself does not lose power. The load simply exerts exponentially more leverage against the truck chassis at that extended distance.

2. Lifting Capabilities by Equipment Class

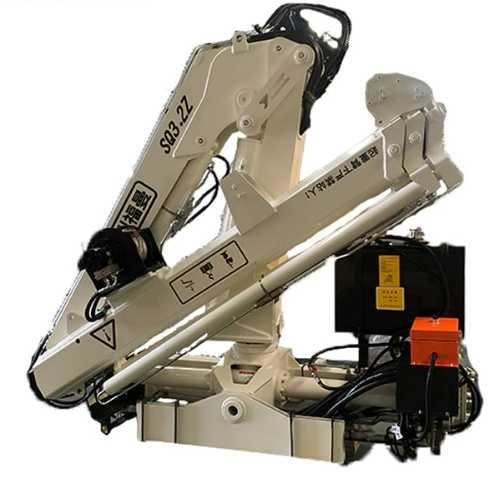

Compact / Light-Duty Models

Compact and light-duty models handle close-range municipal tasks effortlessly. You will typically see them lift 1,500 to 4,000 lbs at a very close radius. Municipal maintenance crews and light utility workers favor these agile units. They easily lift small water pumps, traffic barriers, and backup generators. These units usually deliver around 10,000 ft-lbs of lifting moment torque. They offer a maximum horizontal outreach of roughly 10 to 12 feet. Fleet managers mount them easily on smaller commercial truck chassis without requiring massive outriggers.

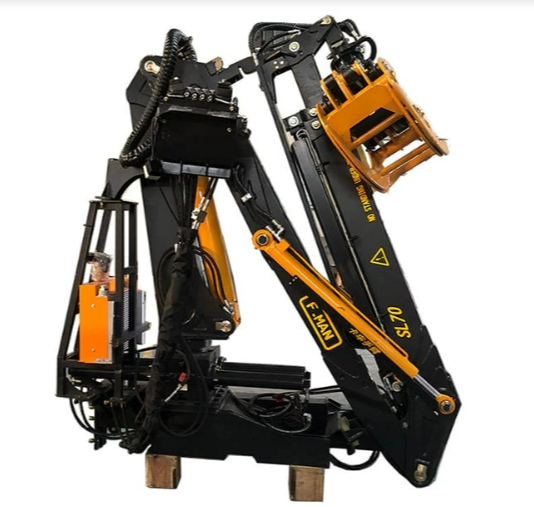

Medium-Duty Models

Medium-duty models take on much heavier commercial construction work. They safely lift 5,000 to 15,000 lbs within their optimal working radius. Construction crews use them heavily for placing palletized building materials. They excel at positioning rooftop HVAC units and lifting precast concrete forms. You can expect roughly 45,000 ft-lbs of torque from these versatile machines. They provide a generous outreach of up to 35 or 40 feet. They perfectly balance impressive lifting strength against daily highway maneuverability.

Heavy / Super-Heavy Models

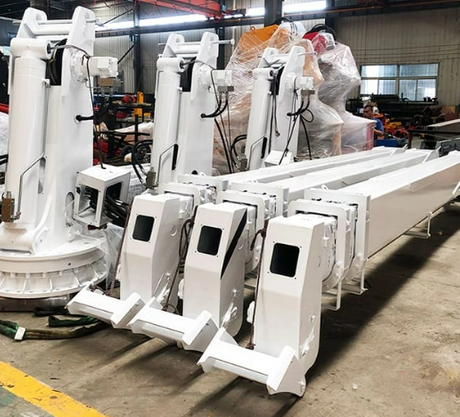

Heavy and super-heavy models tackle massive infrastructural loads. Their peak capacity ranges from 20,000 lbs to over 200 tons at an extreme close radius. Marine harbor environments, heavy infrastructure projects, and specialized industrial moves require this massive power. They handle shipping containers, heavy marine engines, and massive steel I-beams. Remember, this peak capacity still drops exponentially at maximum hydraulic outreach. Operators must utilize massive, multi-stage outriggers to stabilize the vehicle when handling these extreme weights.

Equipment Class Comparison Summary

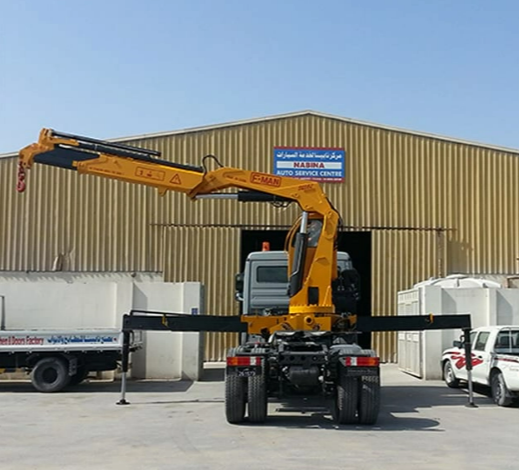

3. Evaluating Truck Mounted Knuckle Boom Cranes: Power vs. Payload

The Tare Weight Calculation

Evaluating commercial equipment requires balancing hydraulic power against vehicle payload limits. Every pound the equipment weighs directly subtracts from your legal hauling payload. We call this the critical tare weight calculation. You must optimize this balance for local highway compliance. If your commercial truck has a specific Gross Vehicle Weight Rating, the chassis can only hold so much. A heavy straight boom might consume your entire available weight allowance. You must select equipment lightweight enough to leave room for your actual cargo.

Space Efficiency

Space efficiency drives incredible daily operational value for fleet managers. The fold-behind-cab design provides a massive logistical advantage. It allows you to load the entire truck bed fully. You can consolidate transport, delivery, and lifting into a single commercial vehicle. This effectively reduces equipment redundancy on crowded construction sites. You do not need a separate delivery flatbed and a separate mobile lifting rig. The articulating arms fold up tightly like a Z-shape directly behind the driver.

Link Arm Systems

Technical components directly affect geometric performance during heavy lifts. Link arm systems play a crucial operational role here. Manufacturers offer single or dual link-arm configurations for their hydraulic joints. Dual link systems provide a distinct, measurable operational advantage. They create a smoother, highly uniform load curve across the entire reach. Without a link system, lifting power fluctuates depending on the exact angle of the joints. Dual linkages ensure consistent lever strength across the entire working envelope.

4. Ideal vs. Not Ideal Scenarios: Knuckle Boom vs. Telescopic

Knowing when to deploy articulating equipment versus telescopic equipment prevents dangerous mistakes. Each design serves distinct mechanical purposes on the job site.

When to Choose a Knuckle Boom (Ideal Scenarios)

• Maneuverability: They easily navigate tight urban residential sites. You can articulate the boom carefully over fences and around complex obstacles.

• Low Clearance Operation: Telescopic booms require high vertical clearance to operate their wire winches. Articulating models excel at direct horizontal lifting. They push loads straight inside warehouse doors or safely underneath low power lines.

• Attachment Versatility: They integrate multiple hydraulic attachments seamlessly. You can quickly swap grapples, pallet forks, or earth augers directly onto the rigid boom tip.

• Precise Placement: Rigid hydraulics push the load exactly where you want it. You eliminate the dangerous pendulum swinging associated with long wire ropes.

When to Avoid a Knuckle Boom (Not Ideal Scenarios)

• Extended Static Suspension: Avoid holding incredibly heavy loads in mid-air for extended periods. Wire-rope telescopic equipment handles static suspension much more safely and reliably.

• Extreme Linear Reach: Do not use them if your sole requirement involves dropping loads straight down into deep underground shafts. Telescopic winches perform long linear drops much better.

• Ultra-High Altitudes: If you need to hoist materials to the top of a 10-story high-rise, traditional lattice or straight booms perform better.

Operational Capabilities Chart

5. Procurement Advice: How to Size Your Crane

Proper equipment sizing requires careful mathematical planning before you contact a dealer. Follow these precise procurement steps to guarantee operational success.

1. Map Your "Reach Capacity": Never buy equipment based on maximum static lift alone. Identify the physical weight of your heaviest typical daily load. Multiply this load weight by the furthest horizontal distance you must place it from the vehicle's center base. This calculation dictates your required lifting moment torque.

2. Account for Attachments: Buyers often forget attachment weight during their planning phase. You must deduct the physical weight of grabs, rotators, or pallet forks. This attachment tare weight subtracts directly from your total available lifting capacity. A 500-lb grapple reduces a 2,000-lb lift limit to exactly 1,500 lbs.

3. Ensure Compliance and Training: Sizing must align completely alongside your internal operational safety plans. OSHA categorizes these machines specifically as material handling equipment. They fall under different regulatory codes than standard personnel bucket lifts. You must arrange proper certification programs for your operators handling suspended loads.

4. Assess Dealer Support Networks: These specialized units rely heavily on highly complex hydraulic cylinders. They do not use simple mechanical wire winches. You must prioritize brands offering robust aftermarket parts networks. Fast access to replacement seals, hydraulic hoses, and specialized technicians prevents catastrophic downtime.

5. Evaluate Chassis Compatibility: Review your current truck fleet specifications. Ensure your chosen vehicle frame can handle the extreme torsion forces generated during a maximum-reach lift. You might need frame reinforcements or specialized multi-point outriggers installed.

Conclusion

Asking "how much can it lift" always requires knowing exactly "how far you need to reach." You cannot separate the weight from the distance. A well-sized articulating rig offers unmatched daily payload efficiency for commercial fleets. It provides incredible horizontal articulation for navigating extremely tight job sites. You simply must ensure the lifting moment torque aligns properly against your specific dimensional needs.

Take immediate action before calling a local equipment dealer. Document your three most common material weights carefully. Measure your exact required placement distances on a typical job site. Bring these specific dimensions directly to your vendor. They will map your exact numbers against precise hydraulic load charts. This preparation guarantees you select the safest, most capable machine for your daily operations without over-speccing the equipment.

FAQ

Q: What is the absolute maximum a knuckle boom crane can lift?

A: While most commercial truck-mounted models cap out between 10 to 50 tons, specialized ultra-heavy articulating cranes can lift over 200 tons at a very tight radius. These massive units require highly specialized chassis and immense outrigger stabilization to handle such extreme localized weight.

Q: Are knuckle boom lifts the same as knuckle boom cranes?

A: No. According to OSHA and ANSI, knuckle boom lifts (Mobile Elevating Work Platforms) are designed specifically for personnel. Their capacities generally remain limited to 500–750 lbs. Knuckle boom cranes are engineered exclusively for heavy material handling and safely lift thousands of pounds.

Q: Why are they called "knuckle boom" cranes?

A: The boom features multiple hydraulically powered sections separated by flexible joints. We call these joints knuckles. This mechanical design allows the entire boom arm to fold back onto itself, much like a human finger bending inward.

Q: Do I need a separate load chart for attachments?

A: No, you do not need a separate chart. However, you must manually subtract the tare weight of any attachment from the safe working load indicated on your current radius chart. If your pallet fork weighs 400 lbs, your safe lifting capacity drops by exactly 400 lbs.
