F042K-02

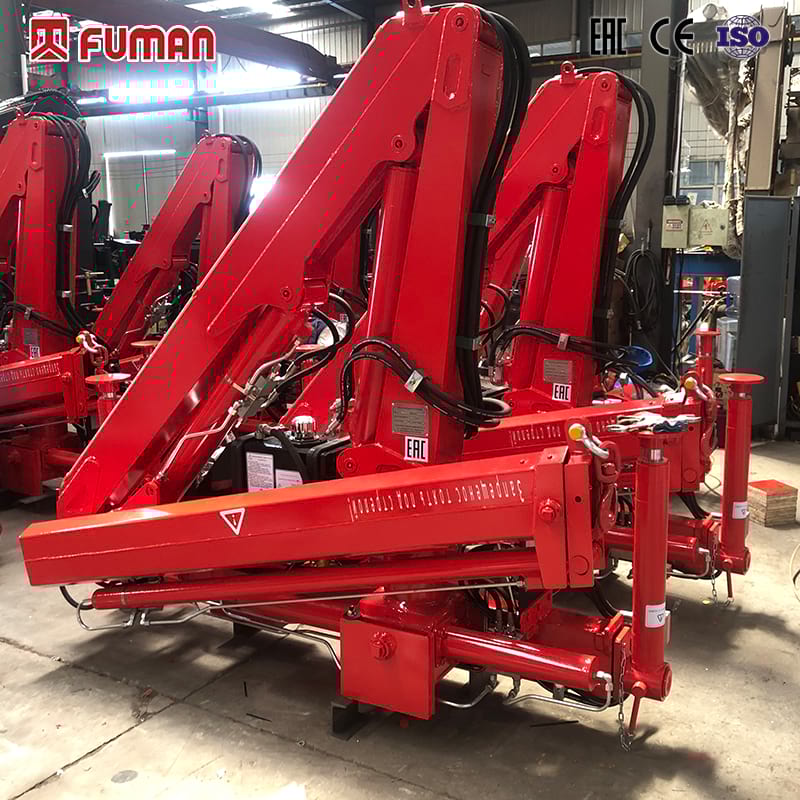

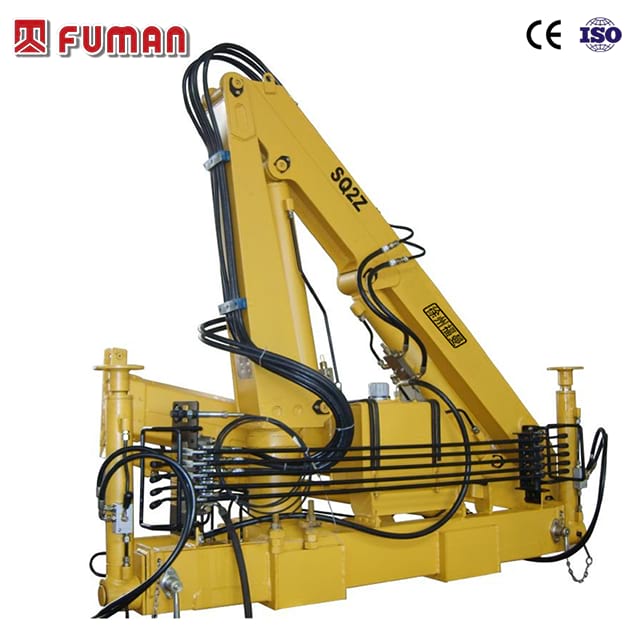

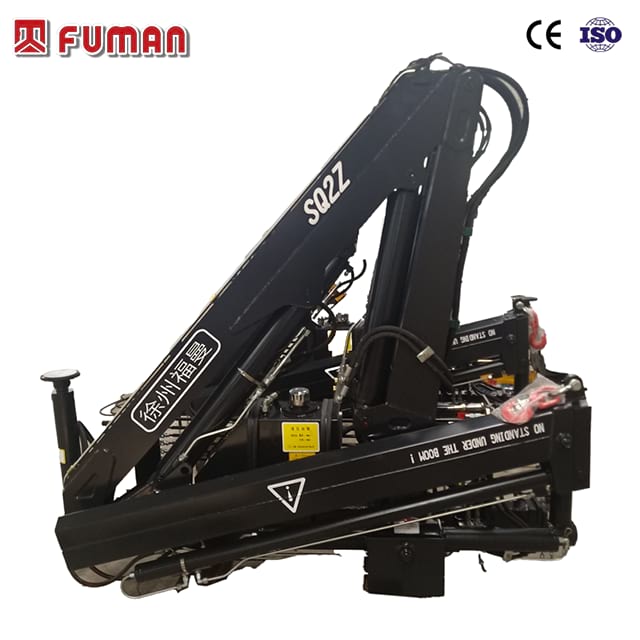

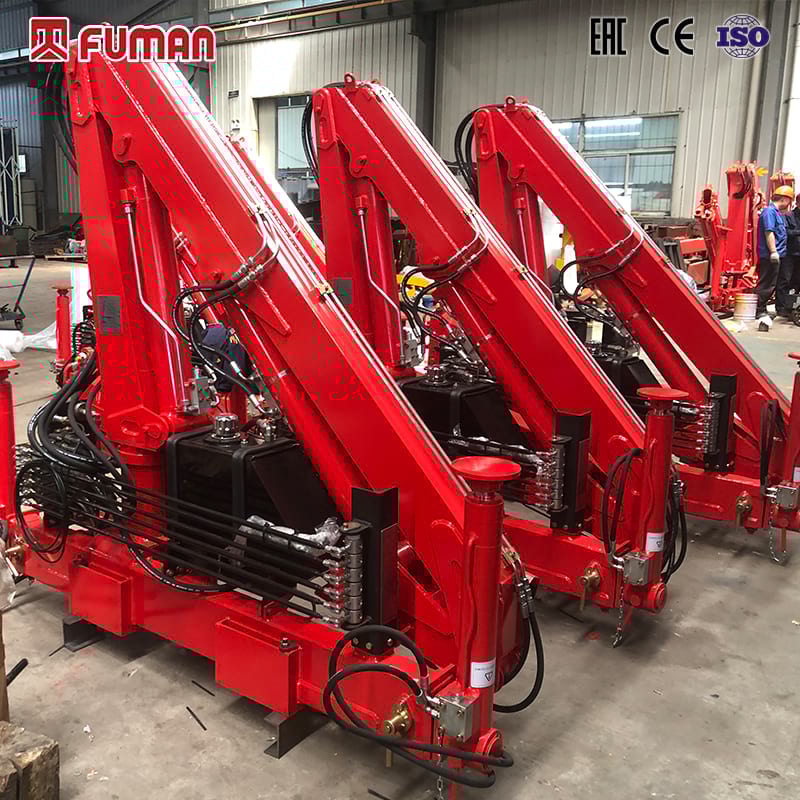

The FUMAN 2 Ton Truck Mounted Knuckle Boom Crane is a mid-capacity mobile solution designed for versatile lifting in urban and industrial environments. With a 2-ton lifting capacity and a knuckle boom design, this crane balances power, mobility, and precision, making it ideal for construction, warehouse logistics, and equipment installation projects.
Maneuverable Truck Chassis: 4x4 drive system with differential lock, navigating narrow roads and uneven terrain while maintaining stable load handling.
Articulated Knuckle Boom: 360° rotation and multi-joint folding enable access to tight spaces, with a maximum horizontal reach of 10 meters and vertical lift height of 12 meters.
Energy-Efficient Hydraulics: Variable-speed pumps reduce fuel consumption by 15%, delivering consistent performance under medium loads.
Advanced Safety Features: Overload protection, collision detection sensors, and a redundant braking system comply with OSHA and CE safety standards.
Digital Monitoring System: Real-time display of load weight, boom angle, and maintenance alerts on the operator panel, enhancing operational transparency.
Urban Infrastructure: Lifts precast concrete panels, steel beams, and utility equipment in city construction projects, minimizing space requirements.
Warehouse Operations: Efficiently moves oversized cargo and machinery in logistics centers, optimizing vertical storage and loading dock productivity.
Industrial Maintenance: Installs and replaces equipment in factories with limited overhead space, such as power generation and manufacturing facilities.
Railway Support: Facilitates trackside operations like signal replacement and light maintenance, adapting to railway safety and accessibility constraints.
Engineering Innovation: Patented boom locking mechanism reduces wear and tear, extending the service life of critical components by 25%.
Modular Customization: Options for extended boom segments, cold-resistant hydraulic fluids, and specialized cab configurations for regional requirements.
Global Service Network: 80+ certified technicians available 24/7 for remote diagnostics and on-site repairs, ensuring minimal project delays.
Environmental Responsibility: Uses low-emission engines and recyclable materials, aligning with global sustainability goals for industrial equipment.

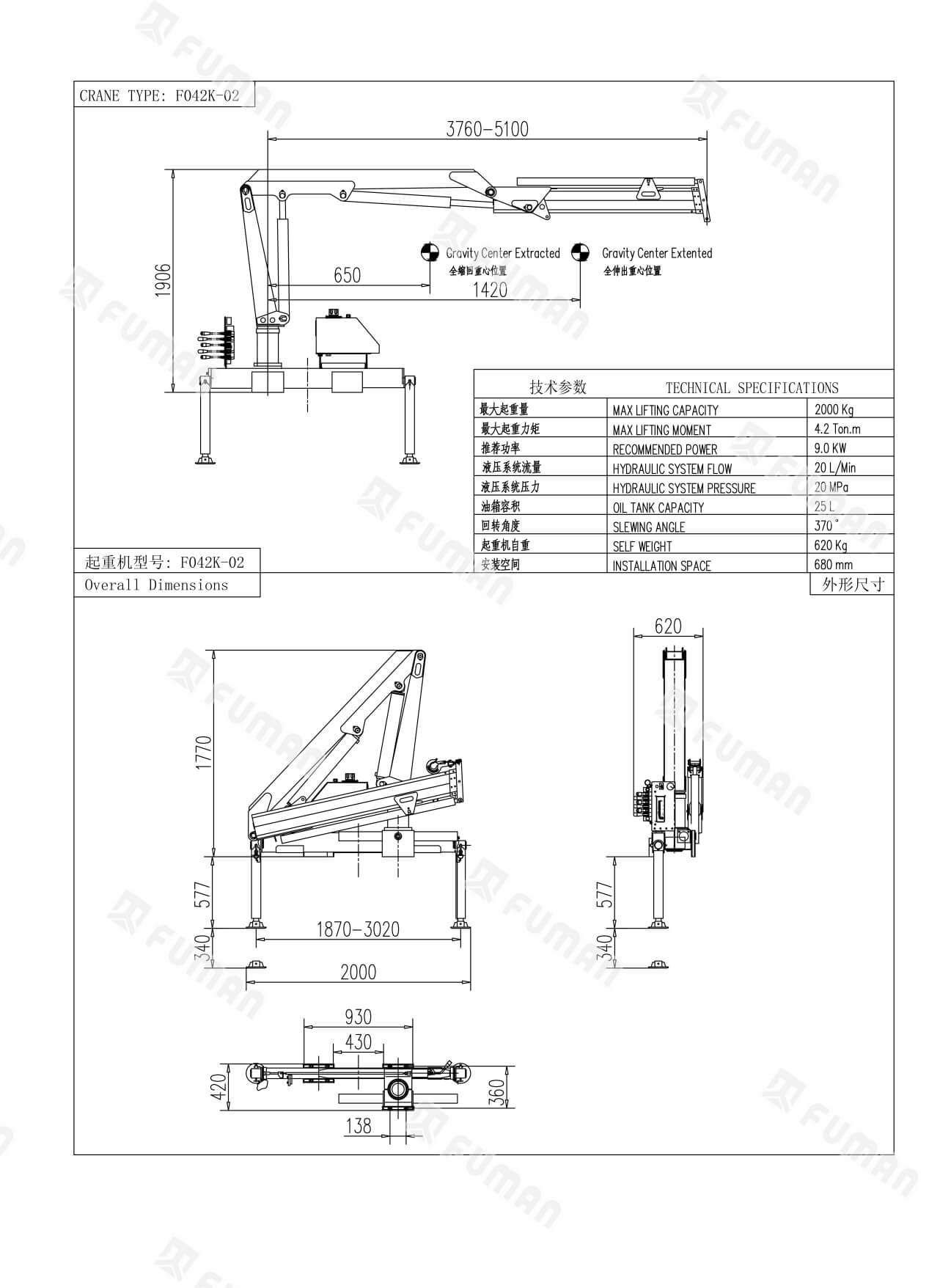

Parameters(F040K-02) | |
Max Lifting Capacity | 2000kg |
Max Lifting Moment | 4.2ton.m |
Recommend Power | 9KW |
Hydraulic System Flow | 20L/Min |
Hydraulic System Pressure | 20Mpa |
Coil Tank Capacity | 25L |
Installation Space | 680mm |
Self Weight | 620kg |
Rotation Angle | 370° |
