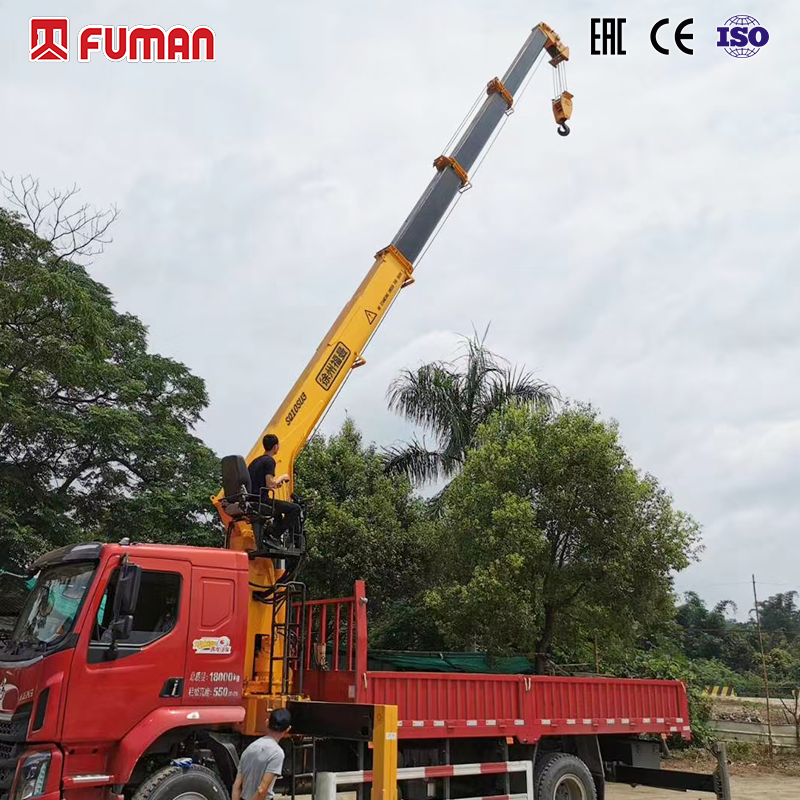

F250TC-04 10-Ton Telescopic Boom Truck-Mounted Crane

Lifting equipment on the market often suffers from issues such as insufficient operating radius, excessive self-weight, and limited compatibility with truck chassis. Buyers frequently struggle with model selection, finding it difficult to distinguish between the ideal use cases for telescopic boom cranes and knuckle boom cranes. The F250TC-04 is a 10-ton class telescopic boom crane featuring a rated lifting moment of 25 ton-meters and a maximum operating radius of 14.05 meters. It supports 360° continuous rotation and has a self-weight of only 3,560 kg; its compact design allows for easy mounting onto standard truck chassis. Wide-span outriggers ensure stability during lifting operations. Optional features—such as remote control systems, load moment limiters, and hydraulic oil coolers—are available, making it well-suited for municipal construction, cargo loading and unloading, emergency road repairs, and equipment hoisting.

Within the spectrum of lifting equipment, knuckle boom cranes are better suited for confined areas with obstacles. Ship-mounted telescopic and knuckle boom cranes are designed for marine environments, while grab cranes and forestry cranes (log loaders) are primarily used for handling bulk materials or timber. This telescopic boom crane, with its long reach and stable load-bearing capacity, is the preferred choice for frequent lifting operations in open, land-based environments.

1. Product Features: 360° full-rotation hydraulic drive, a stable 26 MPa hydraulic system, and an outrigger span of 5,510 mm. It balances high load capacity with excellent chassis compatibility, with various optional components available to meet specific needs.

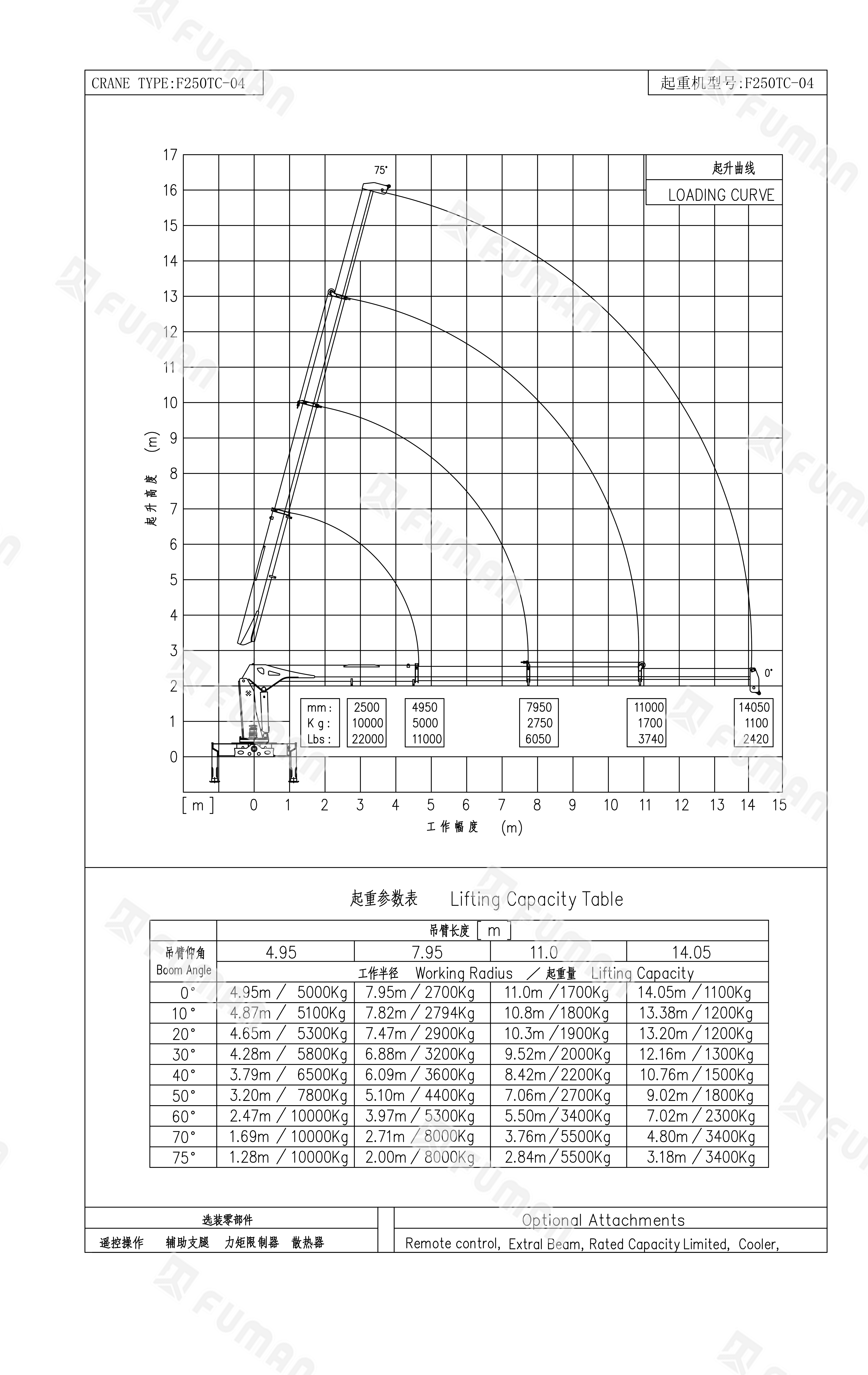

2. Tip: Before beginning any lifting operation, always verify the rated load for the required radius by consulting the load chart. Never exceed the rated lifting moment to ensure the safety of both the equipment and the job site.

FAQ (Frequently Asked Questions)

Q1: Can this crane be mounted directly onto any truck chassis? A1: This model requires an installation space of 1200mm. It is necessary to verify the chassis frame structure and ensure compatibility with the power take-off (PTO) and hydraulic interfaces. We can provide installation drawings to assist you in verifying chassis compatibility.

Q2: What are the key aspects of routine maintenance?

A2: Regularly check the condition of the hydraulic oil, the sealing of hydraulic lines, and the hydraulic locks on the outriggers. Apply grease periodically to the slewing and articulation points. For units equipped with an optional oil cooler, pay close attention to oil temperature fluctuations when operating in high-temperature environments.

Q3: What kind of after-sales technical support is available?

A3: Each unit comes with a complete set of operation and maintenance manuals. We provide online video-based technical guidance and ensure a long-term supply of wear parts. The warranty period follows the agreed-upon terms, and our technical staff are readily available to address any malfunctions.

Q4: Can a grapple attachment be installed, similar to those used on log loaders or forestry cranes?

A4: Yes, appropriate attachments can be installed based on your specific operating conditions. However, this requires a recalculation of the load chart and adjustments to the moment limiter parameters. We can evaluate the feasibility of such modifications for you.
