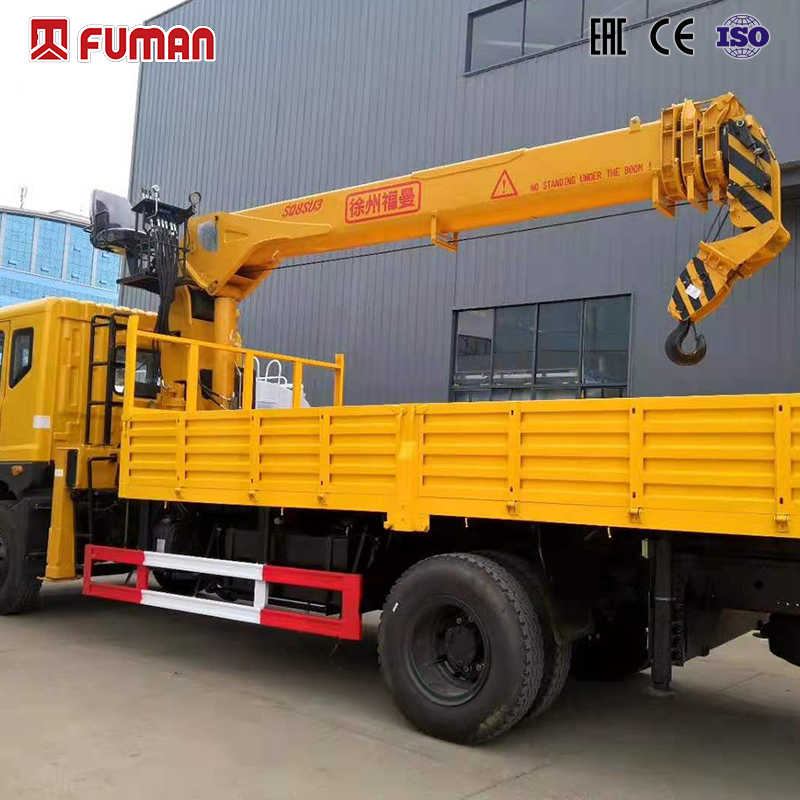

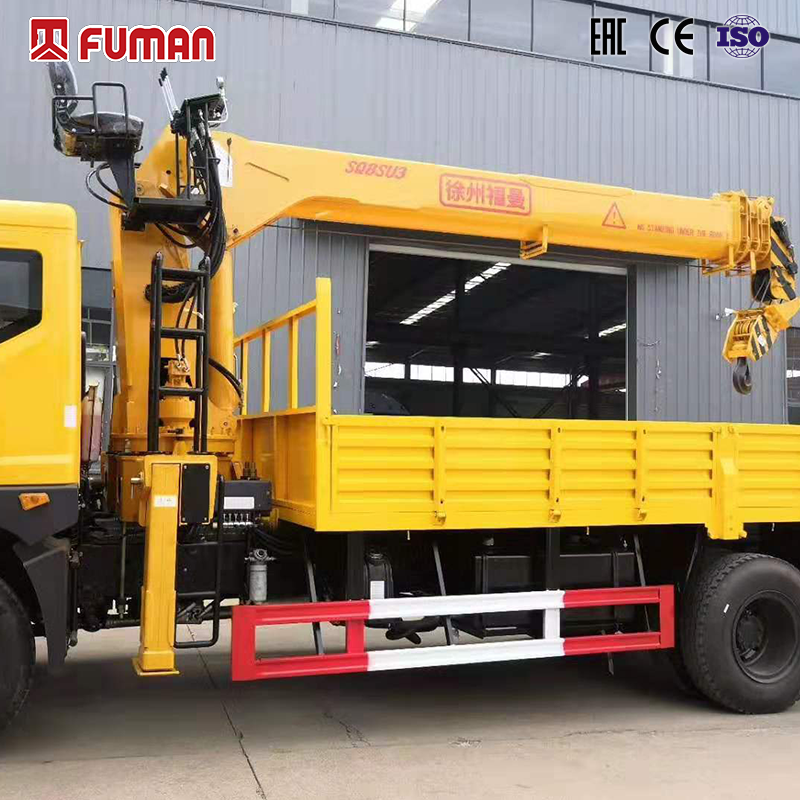

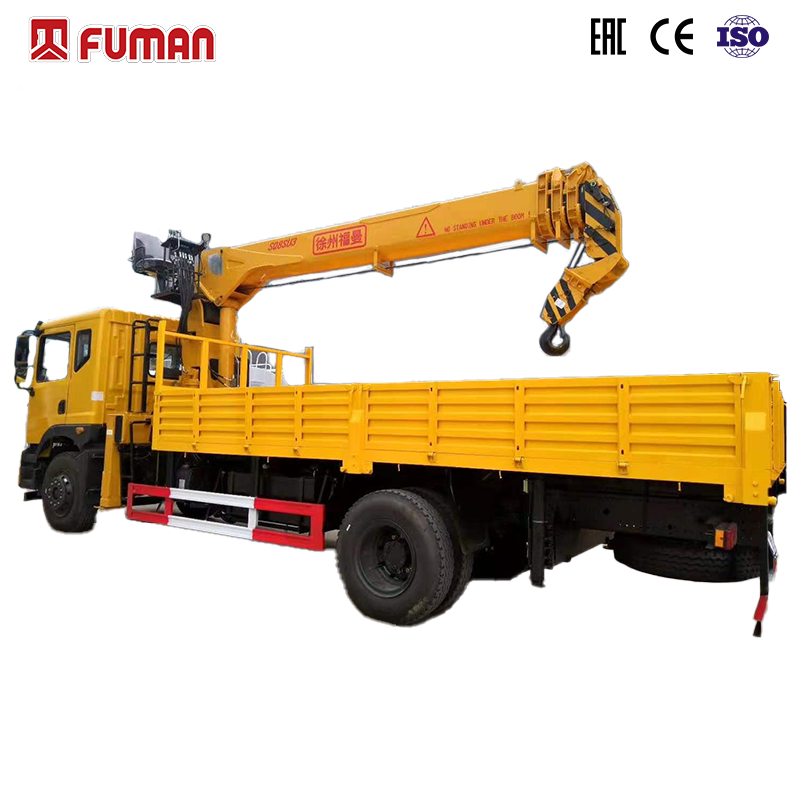

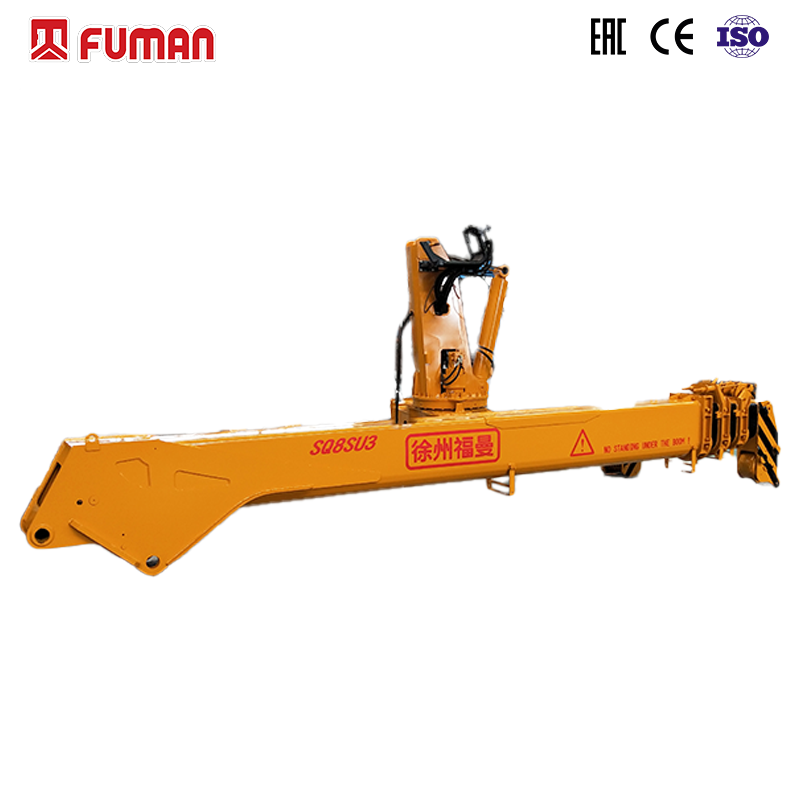

F200TC-04 8-Ton Telescopic Boom Truck-Mounted Crane

Some lifting equipment on the market suffers from inaccurate load rating specifications and insufficient load capacity during long-reach operations. Furthermore, buyers often face challenges such as excessive crane self-weight—which reduces the vehicle's remaining payload capacity—and difficulties in coordinating chassis modifications. The F200TC-04 8-ton telescopic boom truck-mounted crane features a maximum lifting moment of 20 ton-meters, 360° full-circle rotation, and a maximum working radius of 14.05 meters. It utilizes a hydraulic telescopic straight-boom design, has a self-weight of 3,350 kg, requires 1,200 mm of mounting space, and features an outrigger span of 5,510 meters. It is well-suited for lifting tasks in construction, municipal engineering, and on-site material handling.

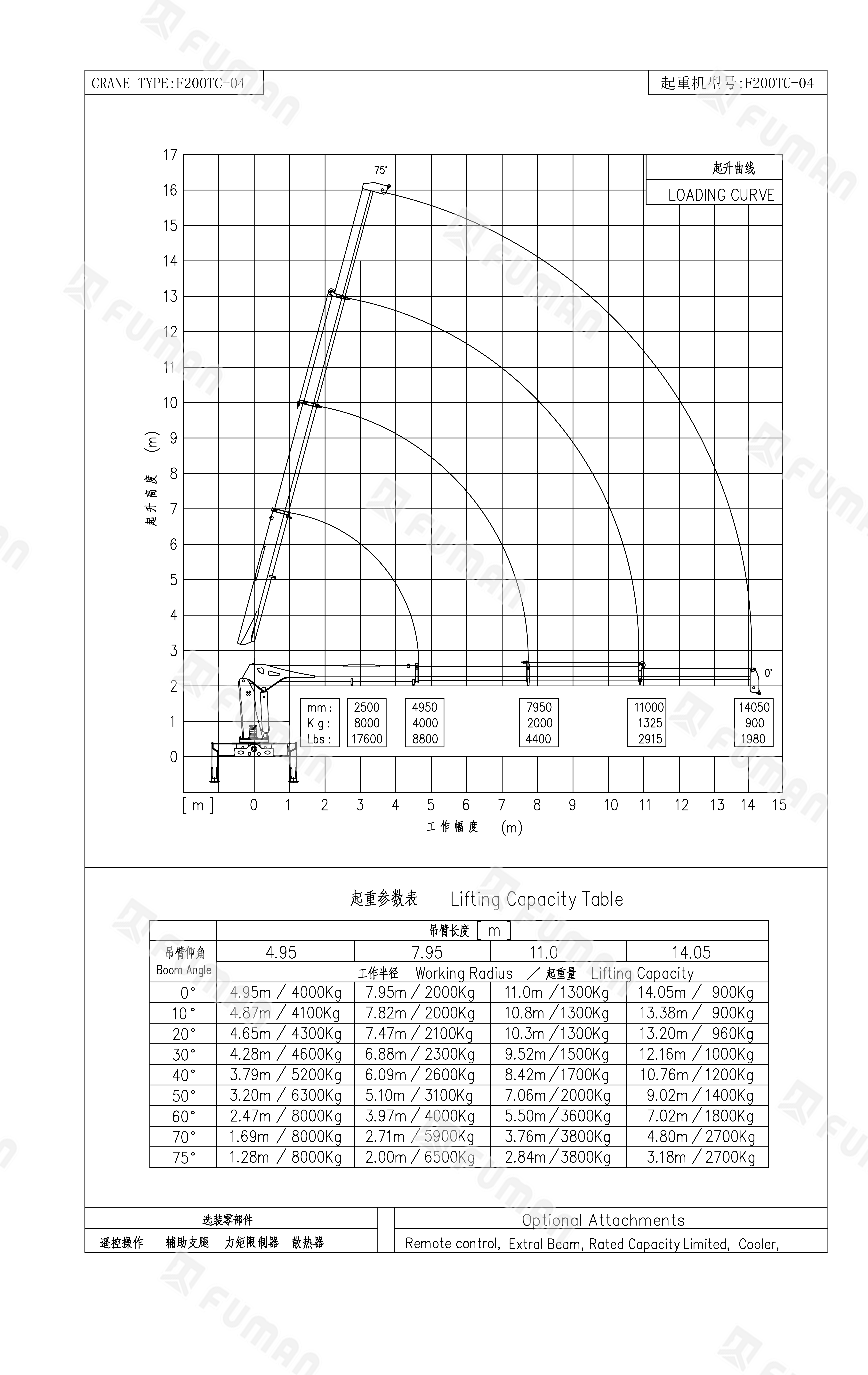

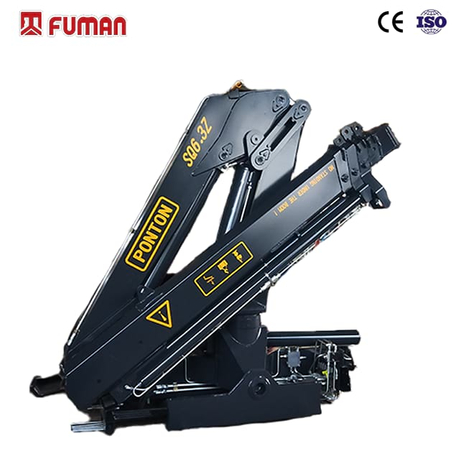

Telescopic boom cranes are better suited for long-reach lifting, distinguishing them from knuckle boom cranes, which are designed for operations in confined spaces. For marine construction, options include ship-mounted telescopic or knuckle boom cranes; for handling bulk materials or logs, specialized equipment such as a grab machine or a forestry crane (log loader) may be used. The crane’s boom offers four telescopic stages—4.95m, 7.95m, 11.0m, and 14.05m—supported by a load chart that allows operators to verify safe lifting capacities at specific radii. Optional features such as remote controls, load moment limiters, oil coolers, and jib extensions can be added to meet on-site safety and operational requirements.

Product Features

1. Lightweight construction with a self-weight of 3,350 kg; minimizes impact on the chassis's payload capacity, making it compatible with a wide range of truck chassis.

2. 20 ton-meter lifting moment, 360° full-circle rotation, and a maximum working radius of 14.05 meters, ensuring stable load handling during long-reach operations.

Tips

1. Before beginning any lifting operation, ensure the outriggers are fully extended. Always verify the allowable load against the load chart; overloading is strictly prohibited. 2. The hydraulic system has a rated pressure of 26 MPa; please use hydraulic oil with appropriate specifications and regularly inspect the sealing of all pipelines.

FAQ

Q1: Are there specific restrictions regarding the truck chassis to be used with this model?

A1: The equipment requires 1200 mm of installation space and is compatible with most heavy-duty chassis. Please provide the chassis specifications prior to purchase, and we will assist in verifying compatibility.

Q2: Which components should be prioritized during routine maintenance?

A2: Regularly inspect hydraulic pipelines, the slewing bearing, and the wear condition of wire ropes. Replace hydraulic oil and filter elements according to the prescribed schedule. Never operate the equipment if a fault is present.

Q3: How are warranty coverage and the supply of spare parts handled?

A3: The main unit comes with a standard warranty. Operational documentation and load charts are provided upon delivery. We ensure a continuous supply of original spare parts and offer remote technical support for any issues.

Q4: Can optional accessories be selected and configured individually based on specific needs?

A4: Yes. Options such as remote control units, load moment limiters, oil coolers, and auxiliary booms are available and can be selected according to your project requirements.
