How Does A Knuckle Boom Crane Work​

Fleet managers and site operators constantly balance two competing needs. You must maximize truckbed payload space while maintaining heavy-lifting capabilities. A rigid lifting setup often steals valuable cargo room. A knuckle boom crane resolves this conflict. It utilizes an articulating arm. This arm folds compactly when you are not actively hoisting loads. However, these systems rely on complex hydraulics. You need a precise understanding of load moments, maintenance realities, and operator compliance before adding one to your fleet.

This article breaks down the mechanical principles behind these machines. We compare their performance against straight-boom alternatives. We also provide a clear framework to help you evaluate a truck mounted knuckle boom crane for commercial applications. You will learn how modern control systems improve safety and how to navigate regulatory requirements effectively.

Key Takeaways

• Mechanical Advantage: Utilizes hydraulic cylinders to mimic a human finger joint, allowing for "up-and-over" lifting and horizontal placement in tight clearance zones.

• Payload Preservation: Folds down behind the cab or at the rear, freeing up maximum deck space for cargo compared to straight-arm telescopic cranes.

• Versatility vs. Maintenance: Offers superior attachment flexibility (forks, grapples, augers) but requires stricter maintenance protocols due to a higher number of moving parts and hydraulic joints.

• Compliance Baseline: U.S. operations require adherence to ASME B30.22 standards, and loads exceeding 2,000 lbs trigger mandatory OSHA certification for operators.

Anatomy and Mechanics: How a Knuckle Boom Crane Operates

To fully grasp the capabilities of this equipment, we must look at its mechanical foundation. Unlike rigid straight booms, the articulating boom features multiple hinged sections. High-pressure hydraulics power these sections. This design enables the arm to bend back on itself. You gain compact storage and the ability to execute extreme close-quarter lifting.

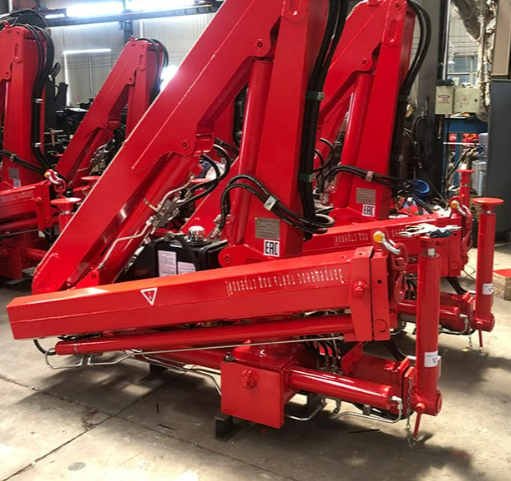

Component Breakdown (The System Architecture)

An articulating crane functions as a unified system of specialized components. Each part plays a critical role in lifting heavy loads safely.

• The Heart (Hydraulic System): The truck’s PTO (Power Take-Off) or independent electric motors drive this system. It uses pressurized fluid to govern cylinder extension, retraction, and rotation. The fluid transfers immense power to the lifting joints.

• The Skeleton (High-Tensile Steel Boom & Base): Manufacturers engineer these structures to handle intense shear forces. They use advanced steel alloys. This minimizes dead weight on the vehicle chassis while maximizing lifting strength.

• The Nerves (Control Valves & Systems): This network dictates fluid flow distribution. Modern proportional valves allow for simultaneous, multi-axis movements. Operators experience no power drop-offs when moving multiple joints at once.

• The Anchor (Stabilizer Outriggers): These legs expand the vehicle's footprint. They counteract tipping forces during extended horizontal lifts. They are critical for maintaining balance on uneven terrain.

The "Lower Load Moment" Advantage

Engineers often talk about the "lower load moment" advantage. Because the arm can fold inward, it pulls the load extremely close to the central pivot point at the base. It excels at lifting highly concentrated, heavy loads directly adjacent to the truck. A straight boom must extend outward at an angle, which increases leverage against the truck. The articulating arm keeps the center of gravity tight. You get incredible lifting power right next to the vehicle frame.

Knuckle Boom vs. Telescopic Boom: Which Solves Your Operational Bottleneck?

Choosing the right lifting equipment dictates your daily efficiency. You must evaluate your specific job site realities. Here is a breakdown of when each design works best.

When to Choose an Articulating Boom

You should opt for the articulating design when flexibility and space are primary concerns. Consider these scenarios:

• Space Constraint Realities: They perform best in urban environments or indoor facilities. They also excel under bridge underpasses. Vertical clearance is limited in these areas, but you still require horizontal reach.

• Payload Maximization: They are ideal when the truck must act as both the delivery vehicle and the lifting equipment. You can haul building materials or logs while keeping the boom folded neatly out of the way.

• Obstacle Navigation: The unique "up-and-over" articulation helps you bypass barriers. Operators can easily drop loads behind high walls or directly onto elevated residential roofs.

When to Stick with a Telescopic (Straight) Boom

Straight booms remain relevant for specific tasks. They are better suited for pure vertical height requirements. Erecting multi-story steel frames is a perfect example. You should choose a telescopic model for scenarios where absolute maximum lifting capacity outweighs maneuverability.

Terminology Trap (Crane vs. Loader vs. Lift)

Buyers often confuse similar terms during procurement. Misunderstanding these categories leads to improper equipment selection. Evaluate your purchase based on your primary daily task.

Performance Capabilities and Duty Classifications

You must size the equipment correctly to your application. Buying an undersized machine leads to accelerated wear. Standardized classifications dictate smart fleet procurement.

Sizing the Equipment to the Application

Industry standards divide these machines into three main duty classes. Each class serves distinct operational needs.

1. Light-Duty (0.5 to 3 Metric Tons): This category is perfect for municipal utility trucks. It handles landscaping duties and last-mile heavy delivery efficiently. The equipment adds minimal weight to smaller chassis profiles.

2. Medium-Duty (3 to 10 Metric Tons): This represents the industry standard for general commercial use. You will see these on construction logistics vehicles and pipe-laying operations. They also serve well on mid-sized marine vessels for deck operations.

3. Heavy-Duty (10 to 30+ Metric Tons): These models tackle heavy infrastructure projects. They handle concrete pre-cast elements and assist in complex salvage operations. They require heavily reinforced, multi-axle truck platforms.

Reach Limitations

Current high-tensile engineering pushes the boundaries of horizontal and vertical span. Advanced models achieve horizontal extensions up to 24 meters. They can also hit vertical reaches up to 27 meters. However, operators must respect the physics of leverage. Lifting capacity drops exponentially as the radius increases. A machine rated for 10 tons near the base might safely lift only a fraction of that weight at maximum extension.

Translating Advanced Control Systems to ROI

Modern electronic control systems are no longer luxury add-ons. They serve as critical liability-reduction tools. These technologies protect your equipment, your operators, and your bottom line.

Mitigating Operator Error and Risk

Even experienced operators face challenging conditions. Smart systems prevent fatal miscalculations on the job site.

• Overload Protection (OLP): This system constantly monitors hydraulic pressure. It automatically halts outward and downward movement when lift capacity reaches 90-100%. This immediate intervention prevents catastrophic tipping or structural failure.

• Variable Stability Limiters (VSL): Operators cannot always extend outriggers fully in tight spaces. VSL computes safe lifting capacities in real-time. It bases these calculations exactly on how far the outrigger legs are deployed. This is essential for tight urban job sites.

Reducing Maintenance and Downtime

Equipment longevity depends on reducing mechanical stress. Software now helps preserve hardware.

• Load Stability Systems (LSS): This technology dampens vertical boom bouncing during abrupt stops. When an operator halts a heavy load suddenly, LSS absorbs the shock. This reduces mechanical stress on the cylinders and the truck chassis. Over time, it significantly extends the equipment's lifespan.

Lowering the Training Threshold

Finding skilled operators remains a constant industry challenge. Technology helps bridge this skills gap. Features like Crane Tip Control (CTC) allow semi-automated, single-lever operation. The computer translates one joystick movement into the complex coordination of multiple cylinders. This dramatically smooths out boom movement. It significantly shortens the onboarding time for new operators while maintaining high safety margins.

Maintenance Overhead and Compliance Realities

Procuring heavy machinery requires a clear view of ongoing operational demands. The complexity of articulating equipment demands rigorous upkeep and strict adherence to safety regulations.

Maintenance Overhead

Fleet managers must account for higher long-term maintenance frequency. An articulating boom is highly versatile, but this versatility comes from mechanical complexity. More articulation means more pivot pins. It means more bushings. It also means more exposed hydraulic lines along the bending joints. You must perform regular inspections compared to a straight boom. Lubrication protocols are strict. Ignoring greasing intervals leads to premature pin wear and costly joint replacements. You must schedule downtime for thorough hydraulic hose inspections to prevent pressure blowouts during lifts.

Regulatory Compliance

You cannot ignore the regulatory environment. Skipping compliance protocols exposes your company to massive liabilities.

• OSHA Requirements: The United States government mandates strict rules for lifting operations. Lifting loads exceeding 2,000 lbs requires mandatory, documented operator certification. You must ensure your team meets these national standards.

• Financial Risks: Non-compliance carries steep penalties. Operating without adherence to ASME B30.22 standards can trigger OSHA fines exceeding $14,000 per violation. These fines easily dwarf the cost of proper certification programs. Typical certification costs range between $200 and $1,500 per operator. Investing in training is much safer than risking regulatory audits.

Conclusion

An articulating crane is a premium asset designed specifically for versatility and payload preservation. If your operation prioritizes maximum truckbed space, it is an excellent choice. It excels at navigating tight urban clearances and performing versatile material handling. The higher maintenance requirements are easily justified by your increased delivery efficiency.

Fleet evaluators should take actionable steps before acquiring a new unit. Conduct a thorough route-and-load audit. Define your maximum expected load at the maximum required radius. Do not base your decision solely on the base lifting capacity. Finally, assess your existing truck chassis. Ensure it can support the required outrigger footprint safely.

FAQ

Q: How much weight can a knuckle boom crane lift?

A: Depending on the duty class, capacities range from under 1,000 lbs to over 60,000 lbs at the base pivot. Capacity decreases rapidly as the boom extends horizontally. You must consult the specific load chart for accurate limits at various extensions.

Q: Does a truck mounted knuckle boom crane require a CDL to operate?

A: The crane itself does not dictate the CDL. The Gross Vehicle Weight Rating (GVWR) of the truck chassis it is mounted on determines if a Commercial Driver's License is required. This threshold is typically over 26,000 lbs.

Q: Can a knuckle boom crane rotate 360 degrees?

A: Yes. Most modern configurations feature continuous or high-degree slewing (rotation). This is enabled by a robust rack-and-pinion or slew ring mechanism located at the base of the unit.

Q: Are they suitable for indoor operations?

A: Yes. When mounted on tracked bases or equipped with electric/hybrid power take-offs, they produce zero emissions. They also generate minimal noise. This makes them ideal for indoor industrial maintenance and tight facility operations.
