How Does Boom Articulation Help a Knuckle Boom Crane Work in Confined Spaces?

Modern job sites present severe spatial constraints that challenge traditional lifting methods. Dense urban environments, indoor industrial facilities, and complex infrastructure projects demand equipment that can operate within strict physical boundaries. Standard stiff-boom cranes require massive overhead clearance and wide swing radiuses just to deploy. This operational bottleneck frequently leads to project delays, increased road closure costs, and the complete inability to execute lifts in obstacle-dense areas. Site managers often find themselves stuck when a conventional crane cannot even extend its outriggers without blocking active traffic lanes or hitting overhead structures.

The mechanical solution to these spatial limitations is the knuckle boom crane. Its multi-jointed articulation allows for precise load placement without the massive spatial footprint of a conventional crane. By utilizing a folding mechanism, these machines navigate tight spaces efficiently. They set up quickly, execute complex lifts around existing infrastructure, and pack up compactly, ensuring projects stay on schedule even in the most restrictive environments.

• Unmatched Spatial Versatility: Articulation allows the crane to fold down to a compact size and deploy in low-clearance or obstacle-heavy zones where straight booms cannot operate.

• Superior Payload-to-Weight Ratio: The design of a folding boom crane minimizes the dead weight of the equipment, allowing for heavier payloads on smaller, more maneuverable truck chassis.

• Precision and Safety: Multi-joint hydraulics combined with remote operation capabilities eliminate the "pendulum effect" of suspended loads, drastically reducing safety risks in tight quarters.

• Strategic Attachments: The addition of a jib can significantly increase height capacity in confined areas, though buyers must understand the structural limitations regarding operational radius at low boom angles.

• Operator Dependency: The mechanical versatility of articulating cranes demands specialized operator training to safely execute complex, multi-joint maneuvers around obstacles.

The Mechanics of Boom Articulation: How it Works

The "Knuckle" Joint Explained

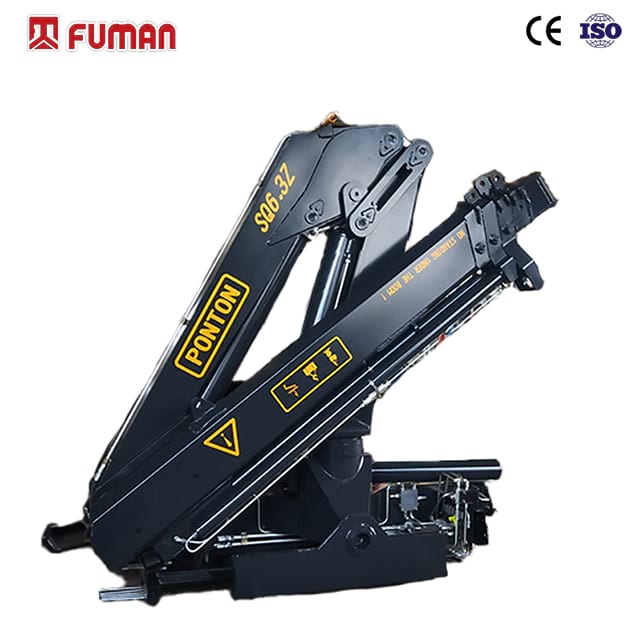

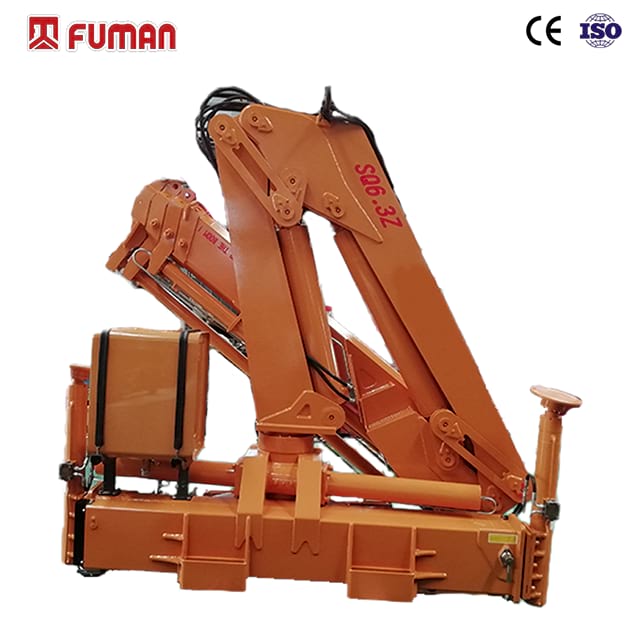

The core functionality of an articulating crane relies on heavy-duty hydraulic cylinders and pivot pins. These components allow the main boom and outer boom to bend at a central hinge, functioning much like a human finger. This knuckle joint provides the flexibility needed to maneuver loads through complex geometric paths. Instead of simply telescoping outward in a straight line, the boom can reach up, bend over a wall, and extend down into a trench. Operators adjust the angle of each boom section independently. This grants exceptional control over the lift trajectory, allowing the machine to thread materials through narrow windows or between structural steel beams.

Folding Boom Crane vs. Stiff Boom Crane

When comparing a folding boom crane to a traditional stiff boom crane, the spatial geometry differs significantly. A stiff boom requires a long, rigid footprint for both deployment and stowage. It must boom up vertically before it can telescope out, demanding substantial overhead space. The folding mechanism of an articulating unit allows it to stow compactly behind the truck cab or at the rear of the bed. During deployment, it unfolds in sections. This eliminates the need for a massive vertical clearance zone.

Hydraulic Precision & Attachment Versatility

Independent control over multiple boom sections enables operators to manipulate the load horizontally and vertically with millimeter precision. Proportional hydraulic valves ensure smooth, jerk-free movements, which is critical when handling fragile materials like glass panels or heavy machinery. Furthermore, the articulation supports a wide array of end-of-boom attachments. Operators can equip hooks, winches, personnel baskets, pallet forks, or grabs. Transforming the equipment into a multi-functional utility tool requires following a strict procedure to ensure safety and hydraulic integrity.

1. Lower the boom tip to a comfortable, ground-level working height.

2. Shut off the hydraulic flow and relieve pressure from the auxiliary lines.

3. Disconnect the hydraulic quick-couplers to prevent fluid spills.

4. Remove the primary locking pin and detach the current implement.

5. Align the new attachment, secure the load pin, and reconnect the hydraulic lines.

Overcoming Confined Space Challenges

Navigating Low Overhead Clearances

Indoor facility maintenance, tunnel work, and underpass construction present severe overhead restrictions. In these scenarios, the ability to unfold horizontally rather than vertically is a primary success criterion. An articulating unit can extend its outer boom while keeping the main boom low. This geometry allows it to reach deep into structures without striking the ceiling or overhead lighting. We frequently see this application in manufacturing plants where heavy presses or motors need replacing, but the roof trusses prevent a standard crane from operating. The horizontal deployment capability makes it indispensable for indoor lifting tasks.

Bypassing Complex Obstacles

Active job sites are rarely empty spaces. Operators frequently encounter walls, scaffolding, piping, and power lines. The secondary boom angle and articulation joints allow the equipment to reach over, under, and around these existing infrastructure elements. By adjusting the knuckle joint, the operator can thread the boom through narrow gaps. This delivers materials precisely where needed without dismantling surrounding structures. For example, lifting roofing materials over a parapet wall and placing them gently on the deck is a standard operation that relies entirely on the bending capability of the outer boom.

Minimizing the Setup Footprint

In narrow alleys or during single-lane road closures, setup space is at a premium. A truck mounted knuckle boom crane typically requires a smaller outrigger footprint compared to a conventional crane of similar capacity. Advanced models feature variable outrigger monitoring systems. This allows the machine to operate safely even if the outriggers can only be partially extended on one side due to a wall or curb. The compact chassis positioning allows the vehicle to set up close to the lift zone, maximizing reach while minimizing disruption to surrounding traffic or site operations.

Evaluation Dimensions: Matching Crane Specs to Spatial Constraints

Interpreting Load Chart Realities at Extreme Angles

Evaluating lifting capacity requires careful attention to the load chart, especially when the boom is fully articulated. Capacity diminishes rapidly as the horizontal reach extends. The knuckle joint impacts the center of gravity, meaning the machine can lift significantly less weight at its maximum horizontal extension than it can close to the pedestal. Operators must calculate the load weight against the specific boom angle and extension length required for the lift. Failing to read the chart correctly at extreme horizontal angles triggers the overload protection system, halting the lift entirely.

The Role of Jibs in Articulated Cranes

Adding a jib alters performance characteristics drastically. A jib provides additional height capacity, allowing the operator to reach over tall, close obstacles like a five-story building edge. However, it is critical to understand that a jib does not effectively increase the horizontal working radius at low boom angles. The structural limitations of the jib pins and hydraulic cylinders mean that extending a jib horizontally with a heavy load creates massive leverage forces. Relying on a jib for extra horizontal reach at low angles can lead to equipment failure or instability. Jibs are for reaching up and over, not straight out.

Chassis Integration and Sizing

The size of the truck chassis directly impacts maneuverability and lifting power. A compact, single-axle chassis offers excellent access to tight urban areas but limits the maximum lifting power and requires careful counterweight management. A larger, tandem or tridem-axle chassis provides greater stability, handles heavier payloads, and supports a larger boom. However, it sacrifices maneuverability in narrow access routes. Selecting the right chassis involves balancing the need for tight access against the required payload capacity. The truck frame must also be properly reinforced with fish-plates to handle the extreme torsional forces generated during heavy, off-center lifts.

Operational Safety and Risk Mitigation in Tight Workspaces

Eliminating the Pendulum Effect

Operating inches away from glass facades or active machinery demands absolute load control. Articulating booms excel here by keeping the boom tip close to the load. This reduces the required cable length, thereby minimizing load swing, commonly known as the pendulum effect. Shorter cable lengths translate directly to safer, more predictable lifts in confined environments. When you only have two feet of cable between the boom tip and the rigging, the load cannot build momentum. This direct control prevents accidental impacts with surrounding structures.

Operator Visibility and Remote Control Systems

Visibility is often compromised in tight spaces. Radio Remote Controls (RRC) detach the operator from a fixed cabin or ground control station. This allows them to walk the perimeter of the confined space. Mobility ensures the operator maintains a direct line-of-sight with both the load and potential obstacles. Standing right next to the placement zone eliminates blind spots. The operator can watch the load clear a tight opening by mere inches without relying on hand signals from a rigger, significantly reducing the risk of accidental collisions.

Mitigating Urban Hazards & Collisions

Urban work zones present numerous structural collision risks, including overhead utility lines, adjacent buildings, and congested personnel areas. The articulation of the boom allows the operator to navigate these hazards precisely. By adjusting the boom angles, the operator can maintain safe minimum approach distances (MAD) from power lines. Advanced systems also allow site managers to program virtual walls into the crane's computer. If the boom approaches the pre-set boundary of a building or power line, the hydraulics automatically slow down and stop, mitigating the risk of catastrophic accidents.

The Human Factor (Training and Certification)

Piloting a multi-jointed folding boom requires a high level of operator skill. Managing complex load paths in tight spaces is not intuitive. It demands specialized training and certification. Operators must understand the nuances of multi-joint movements, load chart interpretation at various angles, and the specific safety protocols for confined space lifting. Running three hydraulic functions simultaneously to keep a load perfectly level while booming down and extending out takes hundreds of hours of seat time to master. Untrained personnel can easily trap the boom against a structure or overload the cylinders.

Compliance and Regulatory Factors

Indoor and urban lifts are subject to strict regulatory considerations. Emissions regulations often dictate the use of electric or hybrid Power Take-Off (PTO) systems rather than standard diesel engines when operating indoors. Running a diesel truck inside a warehouse creates immediate carbon monoxide hazards. Plug-in electric PTOs allow the hydraulics to run silently and emission-free. Additionally, noise ordinances in residential areas and specific safety certifications for articulated lifting gear must be adhered to, ensuring compliance with local site requirements and avoiding costly project shutdowns.

Overall Value and Conceptual Trade-Offs

Payload Capacity vs. Maximum Reach

When selecting lifting equipment, buyers must analyze the primary trade-off. While highly maneuverable, articulating booms generally sacrifice maximum vertical reach and absolute peak tonnage compared to similarly sized stiff-boom cranes. A straight boom will always reach higher and lift heavier at its maximum vertical extension. The decision hinges on whether the project prioritizes maneuverability in tight spaces over raw lifting height. If your daily operations involve placing materials on three-story roofs in congested neighborhoods, articulation wins. If you are setting steel on a ten-story high-rise with an open footprint, a straight boom is required.

Maintenance Complexities of Multi-Joint Hydraulics

The implementation realities of multi-joint hydraulics involve increased maintenance complexities. More moving parts, pivot pins, bronze bushings, and exposed hydraulic lines require a rigorous, specialized preventative maintenance schedule. Every hinge point requires regular greasing to prevent premature wear. Hydraulic hoses routed through the boom sections must be inspected daily for chafing or leaks. The load moment indicator (LMI) sensors located at the knuckle joints must be calibrated regularly. Skipping maintenance on these complex machines leads to pinned joints seizing or hydraulic failures under load.

Conclusion

A knuckle boom crane is the definitive choice when project success hinges on navigating complex geometry, low clearances, and strict footprint limitations. The ability to fold, articulate, and operate via remote control provides unmatched versatility on modern job sites. To integrate this equipment effectively into your fleet, follow these actionable steps:

1. Conduct a physical site audit of your most challenging work environments to measure exact overhead clearances and outrigger footprint limits.

2. Request and analyze specific load charts for fully articulated boom positions based on your heaviest anticipated payloads.

3. Verify local emission and noise regulations to determine if an electric or hybrid PTO system is required for your indoor operations.

4. Schedule an on-site demonstration with your primary operators to evaluate the remote control responsiveness and multi-joint maneuverability firsthand.

FAQ

Q: What is the main advantage of a knuckle boom crane over a straight boom crane?

A: The primary advantage is its articulating, folding design. This allows the equipment to operate in confined spaces and navigate around obstacles without requiring the high overhead clearance that straight boom cranes demand.

Q: Can a truck mounted knuckle boom crane operate indoors?

A: Yes. They deploy in low-clearance areas by unfolding horizontally rather than booming up vertically. For indoor environments, they can run on electric or hybrid PTO options to comply with strict zero-emission regulations and noise ordinances.

Q: How does adding a jib affect a knuckle boom crane's performance?

A: Adding a jib increases height capacity and provides extra articulation points to reach over tall obstacles. However, it does not effectively increase the horizontal working radius at low boom angles due to structural limitations and reduced lifting capacity.

Q: Does operating a folding boom crane in tight spaces require special licensing or training?

A: Yes. Safely managing complex, multi-joint operations around obstacles requires a high skill level. Operators must undergo specialized training and hold specific safety certifications mandated by local regulations to handle these machines safely.

Q: How much weight can a knuckle boom crane lift at maximum reach?

A: Lifting capacity at maximum reach is significantly lower than close to the pedestal. Operators must consult the specific load chart, as the articulation angle, horizontal extension, and center of gravity directly impact the safe working load.

Q: Why is load swing reduced when using an articulated crane?

A: Load swing, or the pendulum effect, is reduced because the articulating boom positions its tip very close to the load. This minimizes the length of the winch cable required, providing greater stability and direct control over the suspended material.
