Key Features Of Telescopic Boom Cranes

Telescopic boom cranes are some of the most versatile and efficient lifting machines in use today. These cranes are especially popular in industries such as construction, logistics, and port operations, where flexibility and precision are key. What sets telescopic boom cranes apart from other lifting equipment is their ability to extend and retract their booms, providing a range of motion and reach that makes them ideal for a wide variety of lifting tasks. Their powerful hydraulic systems, mobility options, and advanced safety features make them indispensable tools in handling heavy loads, even in tight or difficult-to-reach spaces.

Telescoping Boom

Extendability

One of the defining features of telescopic boom cranes is their extendable boom. The boom is composed of multiple nested sections that can slide out and extend, much like a telescope, allowing the crane to reach great heights and access difficult-to-reach areas. This extendability makes telescopic boom cranes ideal for working in locations where space is constrained or when lifting materials to significant heights.

Range of Extension for Flexible Operations

The range of extension in telescopic boom cranes varies, but it can reach impressive lengths, making them highly adaptable for different job sites. Whether you're working on a construction site with tight corners or need to access areas on high-rise buildings, the extendable boom provides flexibility that fixed-boom cranes simply cannot offer. The adjustable boom length allows operators to perform tasks that require a longer reach without having to move the entire crane, thereby reducing time and improving efficiency.

Adjustable Reach

The adjustable reach of a telescopic boom crane allows operators to position the crane’s load at various angles. This feature is particularly beneficial in situations where the load must be placed in difficult-to-reach locations. The operator can extend or retract the boom as needed to reach specific areas with precision, eliminating the need for repositioning the crane itself.

Hydraulic System

Hydraulic Lifting Mechanism

The hydraulic system is at the heart of a telescopic boom crane’s operation. It powers the movement of the boom and ensures that the crane can lift heavy loads with ease and precision. Hydraulic cranes work by using hydraulic fluid to create pressure, which is then used to extend the boom or lift loads. This system is highly efficient, providing the necessary force to lift heavy objects while maintaining smooth operation.

How Hydraulics Power Boom Movement

Hydraulics are used to move the boom sections in a telescopic crane. Each section of the boom has a hydraulic cylinder that controls its movement. When the operator activates the system, hydraulic fluid is pushed into the cylinder, which extends or retracts the boom. The use of hydraulics allows for smooth, controlled movement, and offers the advantage of power without the need for a large number of mechanical parts.

Load Distribution

The hydraulic system plays an important role in distributing the load evenly across the boom. As the crane lifts a heavy load, the hydraulic system ensures that the weight is balanced across the boom’s length. This helps prevent the crane from tipping or becoming unstable during lifting. Additionally, the hydraulic system’s precision ensures that the load is lifted gradually and safely.

Hydraulic Control for Precise Load Handling

Hydraulics also allow for precise load handling. With the ability to control the flow of hydraulic fluid, operators can adjust the speed and power of the boom’s movements. This fine control is essential when lifting heavy or delicate loads that require careful placement. It allows operators to safely lift and place materials with great accuracy, minimizing the risk of accidents or damage to the load.

Mobility and Portability

Mobile Cranes

Telescopic boom cranes are available in mobile configurations, meaning they can be mounted on trucks or trailers for easy transportation. These mobile cranes are ideal for projects that require movement between different job sites. Mobile cranes are often used in construction, where lifting operations need to be performed in multiple locations over the course of the project. The ability to move the crane from one area to another without disassembling it saves time and increases efficiency.

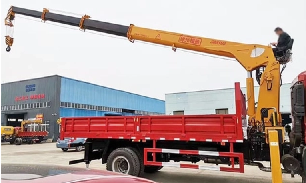

Lorry-Mounted and Self-Propelled Models

Lorry-mounted cranes are cranes that are mounted directly onto a truck or lorry, making them highly portable and efficient for short-distance travel. Self-propelled models, on the other hand, are equipped with their own power source and can travel without the need for a separate vehicle. This makes them ideal for work sites where space is tight and transportability is essential. The added mobility ensures that operators can position the crane quickly and efficiently, reducing downtime and increasing productivity.

Stationary Cranes

In some applications, stationary telescopic boom cranes are used. These cranes are mounted in a fixed location, typically on a base or platform. Stationary cranes are ideal for long-term lifting operations in specific locations, such as warehouses, ports, or industrial plants. They are particularly useful for heavy-duty lifting tasks that require continuous use. While they lack the mobility of mobile cranes, stationary cranes offer the advantage of increased stability, especially when lifting extremely heavy loads.

Lifting Capacity

Maximum Weight Limits

One of the most important considerations when choosing a telescopic boom crane is its lifting capacity. Telescopic boom cranes are designed to lift heavy loads, and their capacity depends on the length of the boom, the type of crane, and the materials being lifted. These cranes are capable of handling a wide range of load sizes, from light equipment to large industrial materials. The maximum weight limit varies from one model to another, but modern telescopic boom cranes can lift thousands of pounds with ease.

How Boom Length Affects Lifting Power

The length of the boom plays a significant role in the crane’s lifting capacity. As the boom extends, the crane’s lifting power is typically reduced. This is because a longer boom increases the leverage on the crane’s base, making it more difficult to maintain balance. However, the hydraulic system is designed to adjust for these changes, ensuring that the crane can still lift heavy loads even when fully extended. Operators must carefully monitor the boom length and load capacity to ensure safe operation.

Variable Lifting Ranges

Many telescopic boom cranes feature variable lifting ranges, meaning the lifting capacity can change depending on the boom’s extension. When the boom is extended to its maximum length, the crane’s lifting capacity is typically lower, as mentioned. However, when the boom is shorter, the crane can handle heavier loads. This flexibility allows operators to adjust the crane’s lifting power based on the specific requirements of the job. It also helps improve the crane’s efficiency, as operators can match the crane’s power to the task at hand.

Safety Features

Load Sensors and Monitoring

Safety is a key priority when using telescopic boom cranes. Many modern cranes are equipped with load sensors that monitor the weight of the load being lifted. These sensors provide real-time feedback to the operator, ensuring that the crane does not exceed its maximum weight capacity. If the load exceeds the safe limit, the crane will alert the operator or automatically shut down to prevent accidents.

How Load Limits Are Controlled

Load limits are controlled through a combination of sensors, automated systems, and manual checks. The crane's control system will typically include safety settings that prevent overloading by limiting the boom extension or load lifting capacity when necessary. These safety measures ensure that the crane operates within safe parameters, protecting both the equipment and the operators.

Stability and Anti-Collision Systems

To further enhance safety, many telescopic boom cranes are equipped with stability systems that prevent tipping and anti-collision technology to avoid accidents. The crane’s outriggers, or stabilizers, are extended during operation to increase the crane’s footprint and provide additional stability when lifting heavy loads. Anti-collision systems, which use sensors and alarms, help prevent the crane from hitting obstacles or other machinery while operating.

Conclusion

Telescopic boom cranes are essential tools in industries ranging from construction to logistics, thanks to their extendable booms, hydraulic power, and flexible mobility options. These cranes offer exceptional versatility, capable of handling various load sizes with precision and efficiency. Their advanced safety features, including load sensors and anti-collision systems, ensure safe and reliable operation, even in the most demanding environments. Whether you need a mobile crane for dynamic job sites or a stationary model for heavy-duty tasks, telescopic boom cranes provide the ideal solution for lifting and hoisting challenges.
