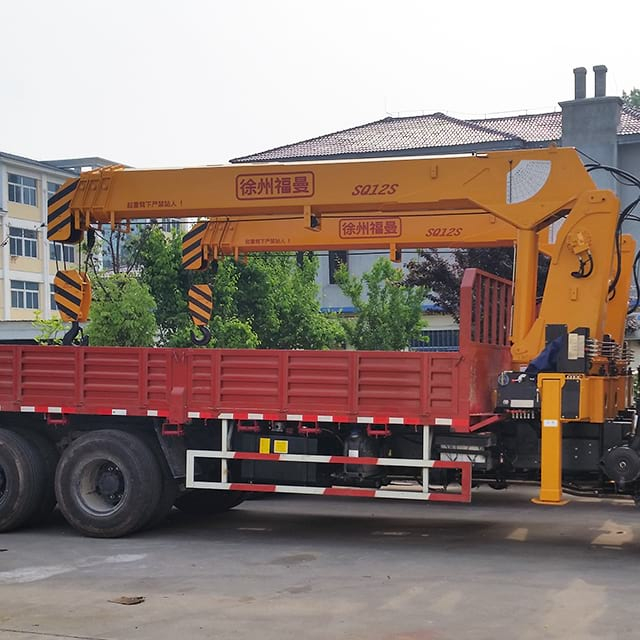

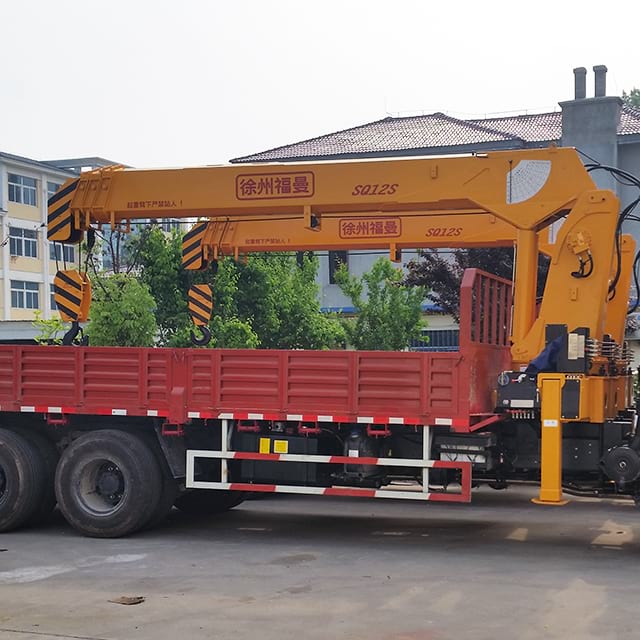

F300TC-04
The F300TC-04 model telescopic boom truck crane is a highly efficient and reliable lifting device, specifically designed to meet the demands of heavy-duty lifting applications. With a maximum lifting capacity of 12,000 kg and a maximum lifting moment of 30 ton·m, it is suitable for a wide range of tasks, including construction, machinery installation, and cargo handling. Powered by a recommended 45 kW engine, the crane is equipped with a hydraulic system providing a flow rate of 63+40 L/min and a hydraulic pressure of up to 26 MPa, ensuring stable and efficient operation even under complex working conditions. The crane features a slewing speed of less than 2 revolutions per minute and offers a full 360° continuous rotation, enhancing operational flexibility and convenience. Additionally, the F300TC-04 is equipped with a 200 L hydraulic oil tank, ensuring extended, efficient operation. Its compact installation space of just 1300 mm makes it suitable for a variety of work environments.
Product Advantages
1.Exceptional Load Capacity and Stability
The F300TC-04 model telescopic boom truck crane is capable of lifting up to 12,000 kg with a maximum lifting moment of 30 ton·m, making it ideal for handling heavy lifting tasks. The crane is designed with high-strength materials and an advanced hydraulic system, providing exceptional stability and resistance to tipping during operations. Even in extreme working conditions, the crane ensures the smooth completion of lifting tasks, greatly enhancing work efficiency and reducing safety risks. Whether on construction sites, in machinery installations, or during port operations, the F300TC-04 delivers powerful support, reducing lifting time and labor costs.
2.Efficient Hydraulic System and Flexibility
The F300TC-04 model crane is equipped with an efficient hydraulic system that provides a flow rate of 63+40 L/min and a pressure of 26 MPa, ensuring stable operation in complex working conditions. The hydraulic system maintains continuous working efficiency during heavy lifting and prolonged operations. Additionally, the 360° continuous slewing function gives the crane exceptional flexibility during operations. With a slewing speed of less than 2 revolutions per minute, the crane can perform precise movements in confined spaces, allowing operators to easily adjust the boom angle for maximum operational range. The combination of the hydraulic system's high efficiency and the crane's flexibility not only improves operational efficiency but also enhances safety and ease of use, making it suitable for a wide range of complex and variable working environments.
Applications
1. Construction Sites
Telescopic boom truck cranes are widely used on construction sites, especially during the construction process where quick and flexible lifting of building materials (such as steel, concrete panels, etc.) is required. The telescopic boom allows for easy access to narrow or high areas, improving construction efficiency and shortening project timelines.
2. Equipment Handling and Installation
For sites that require the handling and installation of large machinery or heavy equipment (such as manufacturing plants or industrial parks), telescopic boom truck cranes can easily move equipment to designated locations. Their efficient lifting capability ensures precise and smooth installation of equipment.
3. Power and Telecommunications Industry
During the installation and maintenance of electrical facilities and communication towers, telescopic boom truck cranes are used to lift power equipment (such as transformers, distribution boxes, cables, etc.) to elevated heights. Their adjustable boom makes them highly adaptable to various heights and working environments, making them an indispensable tool in the power and telecommunications sectors.
4. Ship and Port Operations
Telescopic boom truck cranes are used in port and maritime operations for lifting containers, ship components, and other heavy cargo. Their adjustable height and powerful lifting capacity make them very popular in port logistics, enabling them to complete lifting tasks even in tight spaces.
5. Logistics and Transportation
In the logistics and transportation sector, telescopic boom truck cranes are commonly used for loading and unloading goods, especially in areas where fixed lifting equipment cannot be utilized. Their flexibility allows them to work in busy city streets or confined spaces, significantly improving logistics efficiency.
6. Municipal and Infrastructure Construction
In municipal and infrastructure projects, telescopic boom truck cranes are used for lifting and transporting materials and equipment required for road construction, bridge building, etc. They are particularly useful in confined spaces, such as city centers or narrow construction sites.
7. Mobile Repair and Maintenance
Telescopic boom truck cranes play a crucial role in mobile repair operations, particularly for on-site repairs of vehicles (such as trains, buses, etc.) and industrial equipment. Their adjustable boom length allows for easy access to hard-to-reach or elevated maintenance points.
8. Agriculture and Horticulture
In agriculture and horticulture operations, telescopic boom truck cranes can be used for lifting large farming equipment, tree transplantation, or construction of farm facilities. Their versatility makes them an ideal choice for various outdoor lifting tasks.

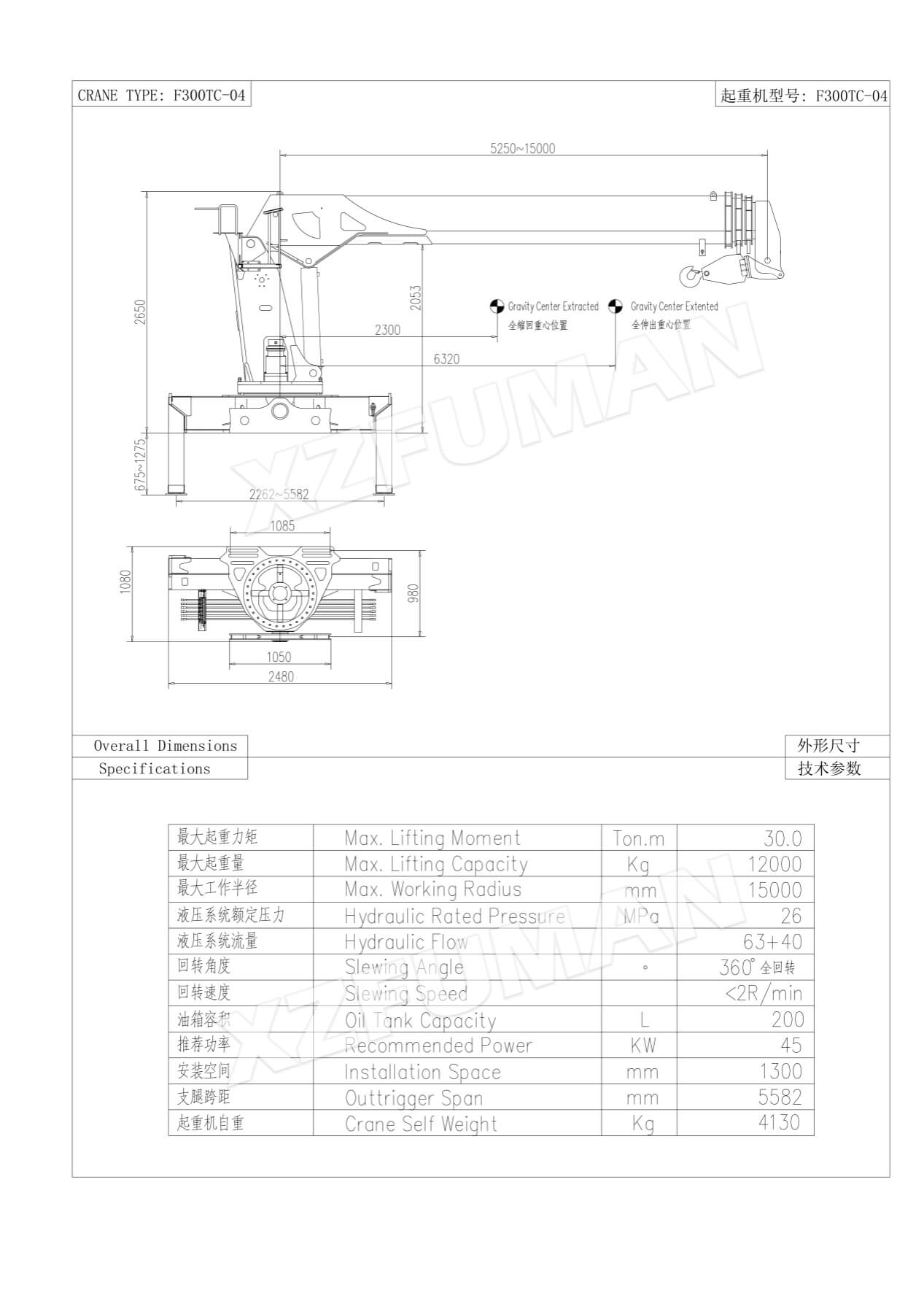

Parameters(F300TC-04) | |
Max Lifting Capacity | 12000 kg |
Max Lifting Moment | 30 ton.m |
Recommend Power | 45 KW |
Hydraulic System Flow | 63+40 L/Min |
Hydraulic System Pressure | 26 Mpa |
Slewing Speed | <2R/min |
Slewing Angle | 360° Continuous |
Coil Tank Capacity | 200 L |
Installation Space | 1300 mm |
Self Weight | 4130kg |
Telescopic Boom Truck Crane Operating Guide
1. Pre-Operation Inspection
Ground Stability: Ensure that the crane is parked on solid, level ground. Avoid operating on soft or uneven surfaces. Use stabilizing mats if necessary.
Hydraulic System Check: Verify that the hydraulic oil level is within the normal range and ensure there are no oil leaks in the system.
Cables and Control Devices Check: Inspect the cables and control devices for any damage or wear, ensuring all connections are intact and functioning correctly.
Safety Device Check: Confirm that safety devices such as the load limiter, emergency stop, and other safety features are functioning properly.

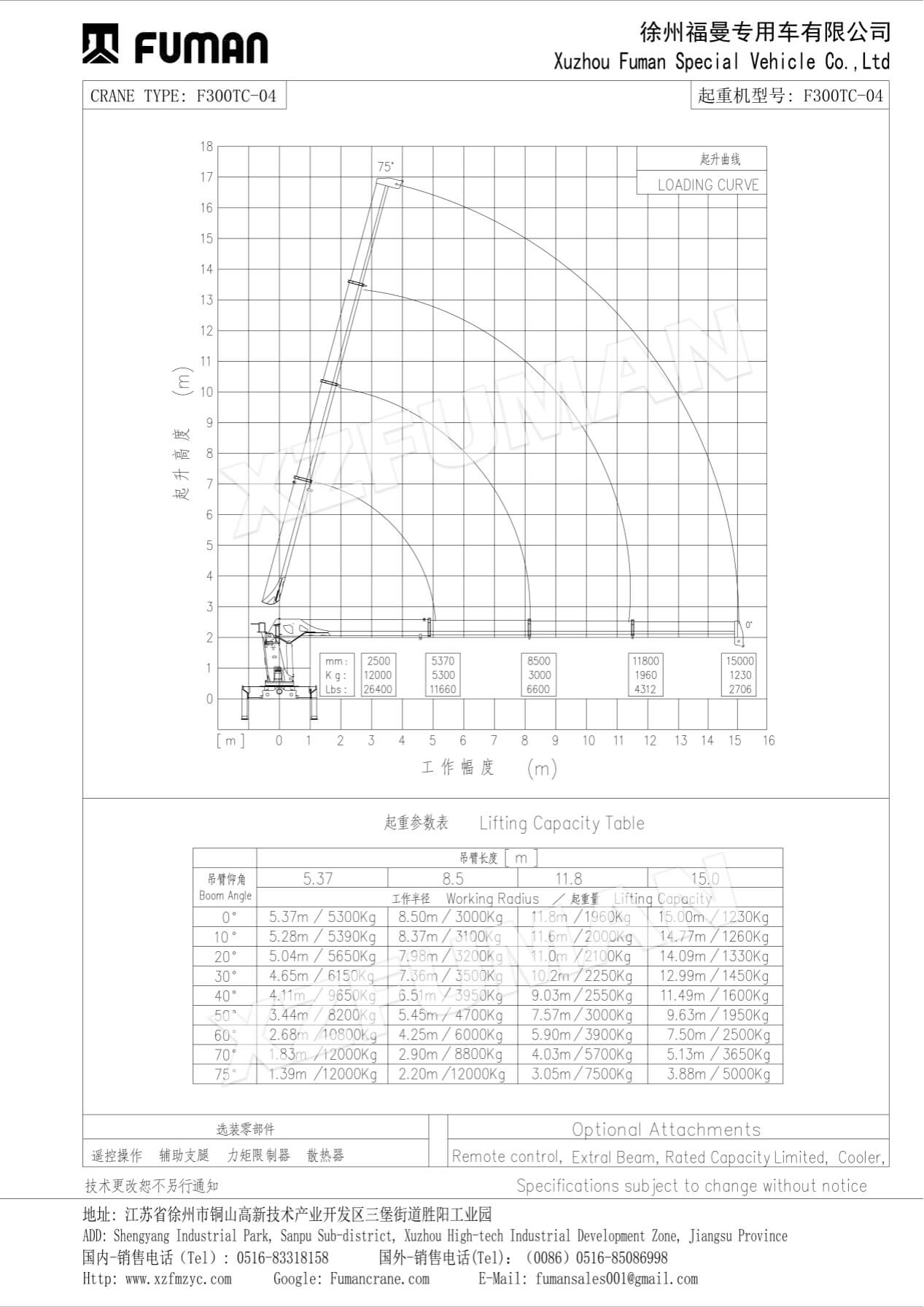

Load Verification: Use the load chart to confirm that the weight of the load is within the crane's rated lifting capacity.
2. Setup and Stabilization
Stabilizing Legs Deployment: Extend the stabilizing legs on solid ground to ensure the crane is stable and level. If operating on soft ground, use stabilizing pads.
Cab Rotation: Rotate the crane’s cabin to ensure the boom arm is clear of obstacles, ensuring sufficient working space.
Wheel Lock and Parking Brake: Lock the wheels and engage the parking brake to prevent the crane from moving.
3. Load Handling
Boom Operation: Use the control lever to smoothly extend the boom arm, ensuring that the boom is positioned directly above the center of gravity of the load.
Lifting the Load: Lift the load slowly and steadily, ensuring that the lifting ropes or slings remain taut. Avoid jerky movements.
Boom Swing: Avoid sudden movements when swinging the boom. Perform any swinging or retraction in a gradual manner to maintain precision and stability.
4. Shutdown and Maintenance
Retracting the Boom: After operation, fully retract the boom arm and secure all components in place.
Parking Position: Park the crane on level ground to ensure stability when not in use.
Regular Maintenance: Clean the crane weekly to remove debris, lubricate joints, and check hydraulic system pressure. Perform a professional inspection every 500 operating hours.
