ZT150Z-1AT

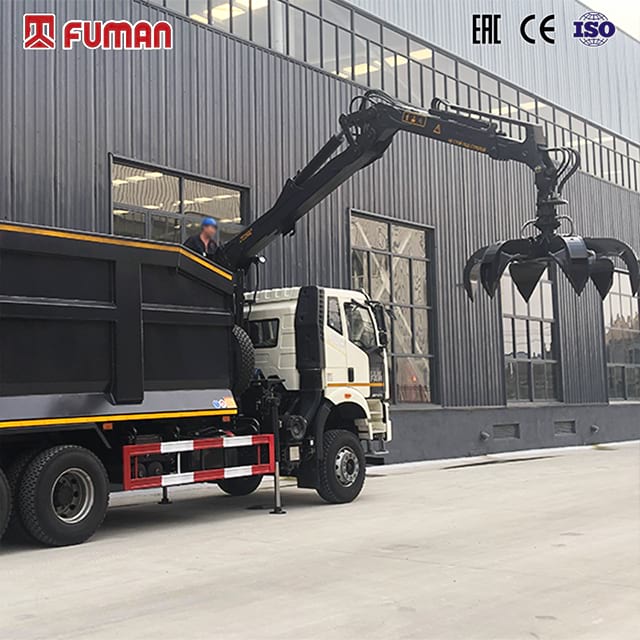

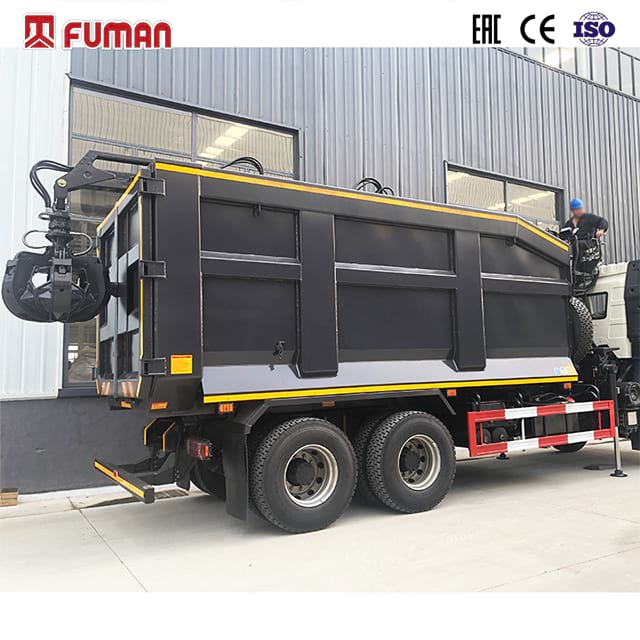

The FUMAN 1.6 Ton Heavy Duty Grab Crane is a robust solution designed for rugged material handling in industrial and maritime environments. With a 1.6-ton lifting capacity and a heavy-duty grab mechanism, this crane excels in handling bulk materials, waste, and oversized items, making it ideal for ports, construction sites, and recycling facilities.

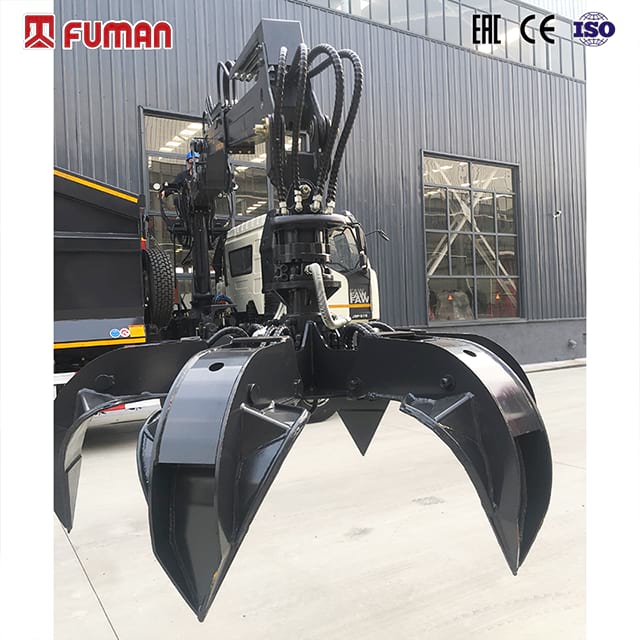

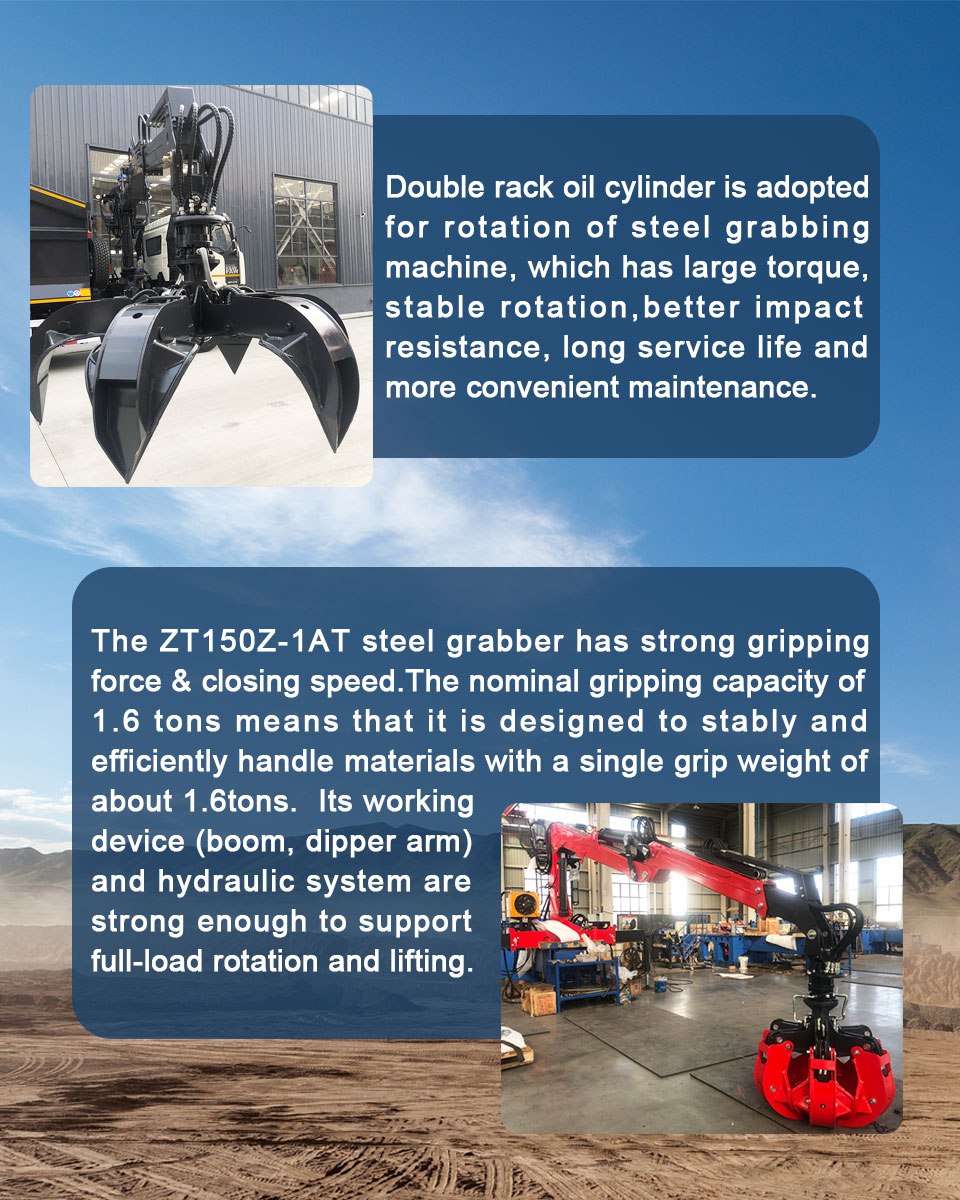

Durable Grab Mechanism: High-tensile steel grab bucket with adjustable jaw width (0.8-1.5 meters), capable of handling loose materials (gravel, sand, waste) and irregularly shaped cargo.
Hydraulic Power System: High-pressure pumps provide strong grabbing force, with a cycle time of 15 seconds for efficient material handling.
Corrosion-Resistant Design: Stainless steel components and epoxy coatings protect against rust and chemical damage, ensuring performance in harsh environments like ports and recycling plants.
360° Slewing Base: Continuous rotation for versatile load positioning, combined with a compact footprint (base diameter: 2.5 meters) for space-efficient operation.
Dual Control Options: Cabin-based joystick or remote control for safe operation in dusty, wet, or high-noise environments.
Port & Terminal Operations: Loads/unloads bulk cargo (coal, grain, ore) on ships and trucks, enhancing quay-side productivity.
Construction & Demolition: Handles construction debris, recycled materials, and aggregates on job sites, reducing manual labor and improving safety.
Waste Management: Efficiently moves waste materials in recycling facilities and landfills, adapting to the 脏乱 and challenging conditions of waste handling.
Mining Support: Transports raw minerals and ore in small-scale mining operations, navigating narrow tunnels and limited-access areas.
Heavy-Duty Expertise: Engineered for 24/7 operation, with a fatigue life of 100,000+ cycles under maximum load, ideal for high-duty cycle environments.
Customizable Grab Attachments: Options for magnetized grabs, timber clamps, and waste shears to meet specific material handling needs.
Regulatory Compliance: Certified by major industrial safety bodies (OSHA, CE, ISO 14001), ensuring compliance with environmental and safety standards.
Cost-Effective Maintenance: Easy-to-replace grab teeth and standardized hydraulic parts reduce downtime and repair costs by 30%.

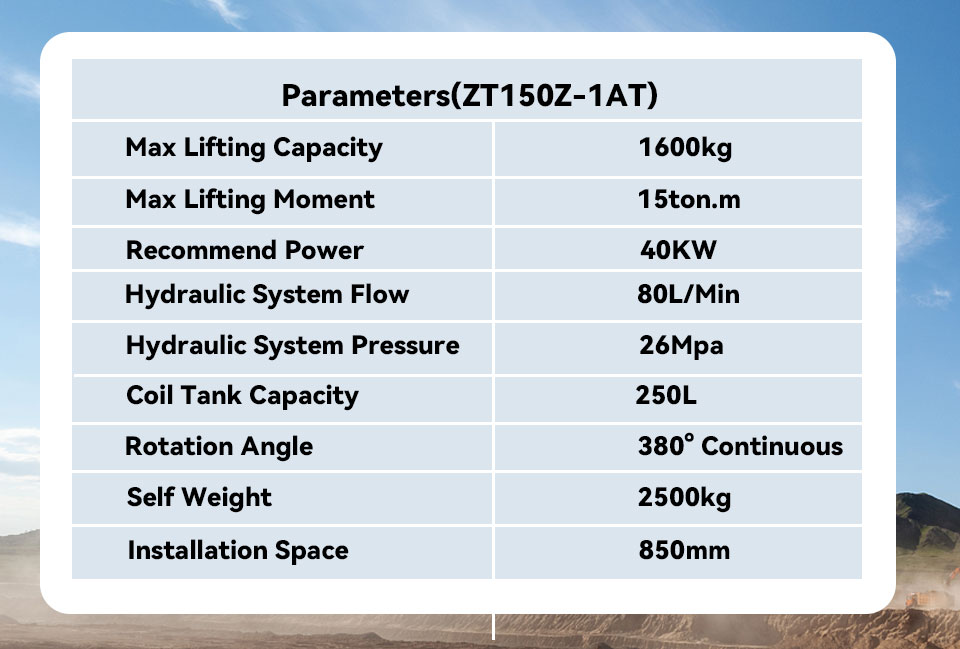

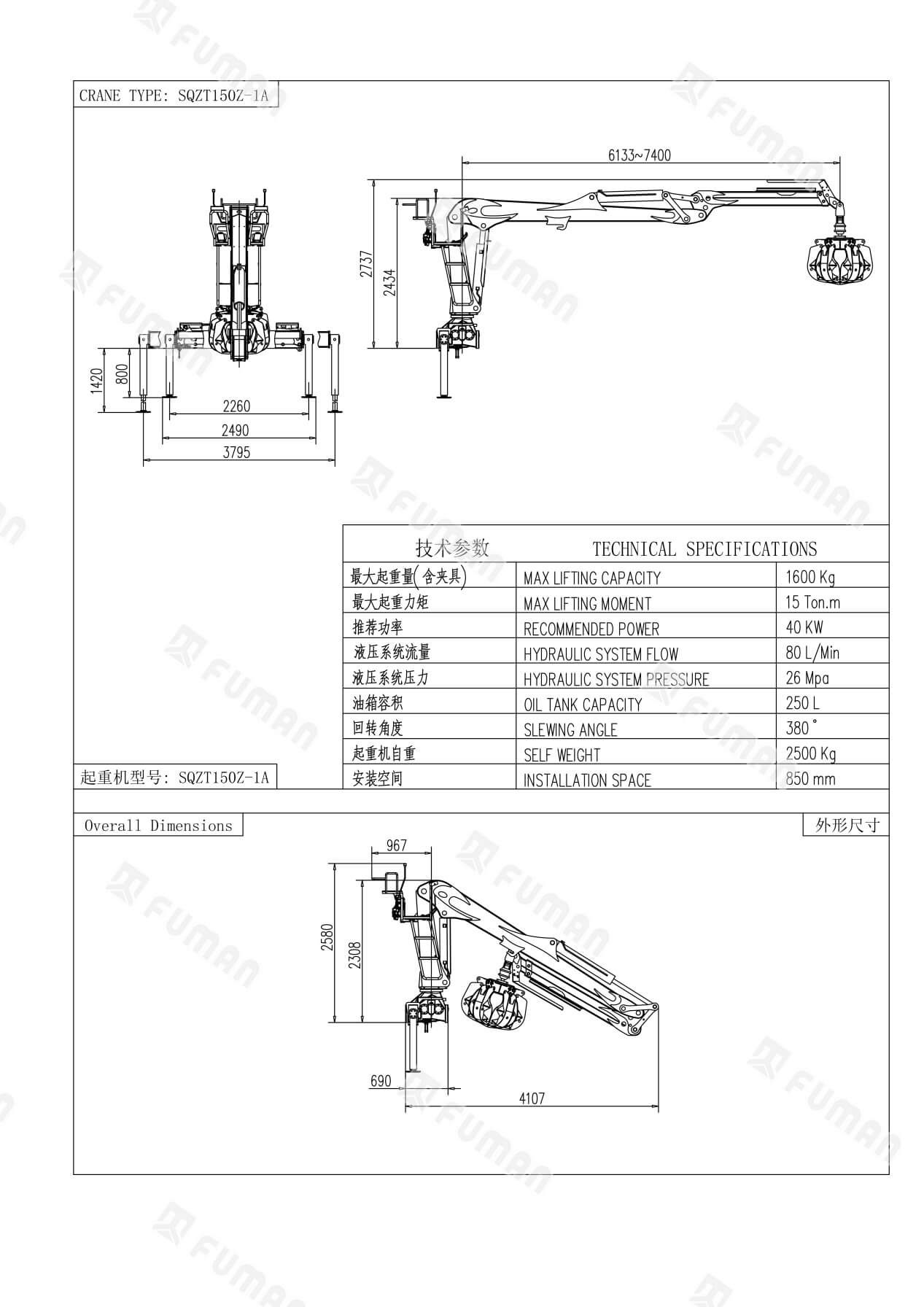

Parameters(ZT150Z-1AT) | |
Max Lifting Capacity | 1600kg |
Max Lifting Moment | 15ton.m |
Recommend Power | 40KW |
Hydraulic System Flow | 80L/Min |
Hydraulic System Pressure | 26Mpa |
Coil Tank Capacity | 250L |
Rotation Angle | 380° |
Self Weight | 2500kg |
Installation Space | 850mm |
