6 Things You Need To Know About Marine Crane Booms

Offshore lifting operations face unique, high-stakes variables every single day. Saltwater corrosion, dynamic wave motion, and extreme lateral loads constantly test heavy equipment limits. Selecting the wrong lifting machinery inevitably leads to catastrophic mechanical failure. It also causes severe vessel downtime and triggers serious compliance violations. You need a highly reliable marine cranes boom engineered specifically for these brutal maritime environments. We understand the intense pressure naval architects and procurement teams face. This article provides a rigid, engineering-focused evaluation framework. You will discover exactly how to evaluate structural integrity and assess motion control capabilities. We also detail how to match specific boom architectures to your available deck footprint. By strictly following this comprehensive guide, you can confidently specify equipment tailored to your exact offshore or port-side applications.

Key Takeaways

• Marine vs. Land Design: True marine booms are engineered for dynamic lateral loads and static heel angles, unlike land-based truck crane retrofits.

• Application-Driven Selection: Boom architecture dictates deck footprint and lifting capacity; options range from space-saving knuckle booms to the highly versatile telescopic marine hydraulic crane.

• Material Integrity: Longevity in high-salinity environments requires specific high-yield steels (e.g., Q355, Martensitic) and seal-welded internal structures.

• Motion Control: Modern drive modes must incorporate heave compensation and anti-sway technology to counteract vessel roll and pitch.

• Compliance: Verifiable adherence to international maritime safety standards (OSHA, IMO) is a non-negotiable procurement baseline.

1. The Engineering Difference: True Marine Booms vs. Modified Truck Booms

Procurement teams often look for shortcuts during equipment upgrades. They frequently fall into the land-based modification trap. Purchasing "marinized" land cranes seems convenient. However, this represents a dangerous operational error. Standard commercial truck booms fail at sea because engineers design them primarily for static vertical gravity. They do not anticipate dynamic wave action.

A genuine maritime boom endures extreme dynamic lateral loads. Vessel roll and sudden wind sheer exert massive side-loading forces during active lifting. Land cranes lack the structural rigidity to absorb these horizontal shocks. Their slender profiles buckle under sudden offshore gusts. Marine-grade equipment uses heavily reinforced pedestal integration to manage these violent directional shifts.

Static heel angles represent another major engineering divide. Vessels frequently list during heavy load transfers. We call this tilting a static heel. A purpose-built offshore boom utilizes oversized slew bearings. These heavy-duty bearings allow the system to rotate and operate smoothly even while the ship sits at an angle.

Common Mistakes to Avoid:

• Deploying standard commercial truck booms on moving barges.

• Ignoring the manufacturer's specified static heel limits.

• Assuming a thick coat of paint equals true marine-grade engineering.

• Underestimating the lateral force of offshore wind shear.

2. Choosing the Right Boom Architecture for Your Deck Space

Boom architecture dictates your overall deck footprint and maximum lifting capacity. You must align the physical structure with your vessel's operational mission.

Telescopic Marine Hydraulic Crane

This design handles long-distance cargo transfers perfectly. It accommodates varied reach requirements without demanding excessive deck space. The structure features nested hollow steel sections. They utilize synchronized or independent cylinder extensions. We highly favor the telescopic marine hydraulic crane in port operations and active research vessels. It offers unmatched versatility. However, operators must perform rigorous maintenance. You must keep internal sliding pads lubricated and free of salt buildup.

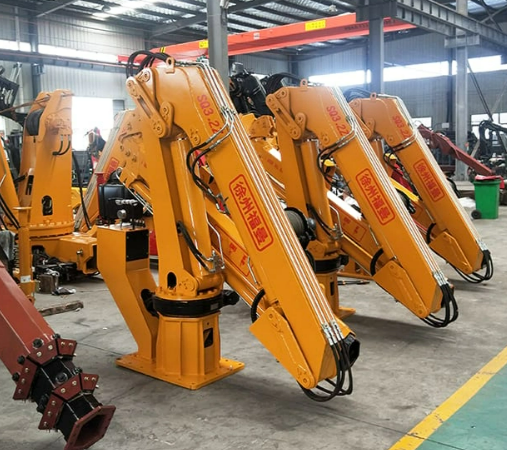

Knuckle / Articulating Booms

You should select this option for extreme deck space limitations. It operates at incredibly high speeds. The metal structure folds inward like a human finger. It offers the lowest possible center of gravity when stowed. You will find it ideal for precise, close-quarters lifting. It dominates ROV deployment and supply boat transfers. Keep in mind it generally possesses a lower maximum lifting capacity compared to straight variants.

Stiff / Box Booms

Stiff booms offer unmatched simplicity. They handle heavy lifting duties reliably. The design completely lacks complex folding mechanisms. This mechanical simplicity makes it highly dependable in punishing environments. It requires minimal daily intervention. You typically need much more clearance space on the deck to accommodate its fixed length during rotation.

Lattice Booms

Engineers reserve this type for extreme heavy-duty offshore platforms. It dominates drillship applications. The framework features a lightweight but incredibly strong steel truss structure. The fixed length strictly limits operational flexibility. However, it maximizes pure vertical load capacity. The open truss design also allows heavy offshore winds to pass through harmlessly.

3. Material Specifications: Combating the Saltwater Threat

Saltwater relentlessly attacks structural integrity. Standard construction materials degrade rapidly offshore. You must specify appropriate metallurgy during procurement.

High-yield steel requirements form the foundation of marine survivability. You need high-strength, low-alloy steels. Engineers frequently specify Q355, HG785, or highly specialized Martensitic steels. These specific alloys provide exceptional yield strength. They achieve this critical strength without adding excessive top-weight to the vessel. Maintaining a low center of gravity remains crucial for overall ship stability.

Seal-welded construction provides vital structural defense. Standard booms often leave small gaps in their metal casing. Seal-welded box structures prevent saltwater from penetrating the interior. They completely block humid, salty air. This meticulous manufacturing technique neutralizes internal rust entirely. It protects the hollow spaces where inspectors cannot easily reach.

Marine-grade surface treatments act as the final barrier. Manufacturers must apply multi-layer epoxy marine coatings. The process requires a zinc-rich primer, an epoxy intermediate coat, and a polyurethane topcoat. Furthermore, you must specify stainless-steel fittings. They shield external hydraulic lines and vulnerable connection points from rapid oxidation.

4. Drive Systems and Motion Compensation

The drive system dictates how efficiently and safely you can move cargo. You must choose a power source aligned with your operational environment.

Drive System Options:

1. Hydraulic: Offers an exceptionally high power-to-weight ratio. It boasts proven historical reliability in harsh conditions. However, high-pressure fluid leaks pose severe environmental risks. Systems require constant, vigilant pressure monitoring.

2. Electric: Delivers unmatched precision control. It operates with very low noise output. It works best for specific, lighter loads. Unfortunately, scaling electric drives for massive offshore operations remains technically difficult.

3. Hybrid: Represents the optimal modern balance. A hybrid system uses heavy-duty hydraulic power for the main hoist. It utilizes electric drives for precise, smooth slewing rotation.

Active Heave Compensation (AHC) represents a mandatory feature for open-ocean operations. Unpredictable wave motion disrupts lifting accuracy. AHC uses advanced sensor-driven hydraulic responses. Inertial Measurement Units (IMUs) detect the vessel's exact vertical movement. The computer commands hydraulic valves to react instantly. AHC absorbs the wave motion seamlessly. This technology keeps the suspended load mathematically stable relative to the seabed.

Anti-sway technology complements AHC. While AHC handles vertical movement, anti-sway software manages horizontal pendulum effects. It automatically adjusts the boom head position to cancel out dangerous lateral swings during sudden wind gusts.

5. Regulatory Compliance and Safety Standards

Operating heavy machinery at sea invites strict regulatory oversight. Procurement shortlists must require documented compliance with major maritime safety frameworks. You cannot compromise on these certifications.

Operational safety mandates dictate daily workflow. You must verify adherence to OSHA standards for marine terminals. Specifically, look for compliance with maritime operations safety protocols. International maritime authorities demand rigorous testing. Require certifications matching International Maritime Organization (IMO) directives. Ensure alignment with ILO safety conventions.

Environmental impact regulations heavily influence drive system selection. Offshore projects face intense scrutiny regarding hydraulic fluid usage. Your equipment must align with local environmental frameworks. You must ensure absolute compliance with regulations mirroring the Clean Water Act. Specify biodegradable hydraulic fluids where appropriate.

Stability prerequisites fundamentally dictate boom selection. You must match the equipment to the vessel's specific stability profile. Barges heavily utilize spuds. These hydraulic legs anchor firmly into the seabed to create a rigid lifting platform. Deep-water ships rely on Dynamic Positioning (DP) systems. Your chosen lifting equipment must integrate safely with these existing stability mechanisms.

6. Maintenance Realities

Maritime operations punish mechanical components constantly. Understanding maintenance realities ensures consistent operational readiness and prevents dangerous mid-ocean failures.

The hydraulic seal vulnerability demands constant attention. High-pressure hydraulic cylinders remain highly susceptible to saltwater scoring. When a cylinder extends, ambient saltwater dries on the rod. The resulting salt crystals act like microscopic sandpaper. When the rod retracts, these crystals tear the sensitive polymer seals. Seal degradation happens quickly. You must deploy protective bellows or specify specialized marine seal compounds.

You must establish a rigorous preventative maintenance cadence. Routine hydraulic fluid analysis identifies microscopic metal wear before total failure occurs. Crews must conduct daily visual inspections. They must check wire ropes for broken strands. They must ensure sheaves rotate freely without grinding. Schedule periodic structural NDT (Non-Destructive Testing). Focus ultrasonic or magnetic particle testing heavily on boom pivot points and pedestal base mounts.

Shortlisting Logic for Procurement:

• Evaluate global spare part availability thoroughly.

• Assess local service network response times in your primary operating regions.

• Examine the physical ease of access to the equipment's primary lubrication points.

• Demand comprehensive, easy-to-read troubleshooting manuals from the manufacturer.

Conclusion

Acquiring offshore lifting equipment remains a strict balancing act. You must carefully align your available deck space, anticipated load profile, and marine-environment survivability. Relying on retrofitted land machinery simply courts disaster. You must demand dedicated maritime engineering.

Decision-makers should take immediate action. First, audit your vessel's static heel limits thoroughly. Second, verify the maximum structural capacity of your deck pedestal. Finally, demand certified, marine-specific load charts from your shortlisted manufacturers. By prioritizing material integrity and advanced motion control, you secure safe and reliable operations for years to come.

FAQ

Q: What is the difference between an offshore crane and a marine crane?

A: While often used interchangeably, "offshore cranes" generally refer to heavy-duty equipment on fixed oil platforms or wind farms facing extreme open-ocean conditions. "Marine cranes" are typically mounted on vessels, barges, or docks specifically for cargo handling and transit operations.

Q: Can a standard boom truck be used on a barge?

A: No. Boom trucks lack the marine-grade anti-corrosion treatments required for sea survival. They also lack oversized slew bearings and the dynamic side-load structural integrity needed to operate safely under unpredictable wave-induced motion.

Q: How does a telescopic marine boom work in freezing offshore conditions?

A: They utilize specialized extreme-temperature hydraulic fluids. Manufacturers install internal cylinder heaters to maintain optimal viscosity. They also deploy specialized seal compounds to prevent the hydraulic system from freezing, cracking, or deploying sluggishly in arctic environments.
