FF500KC-5AJ

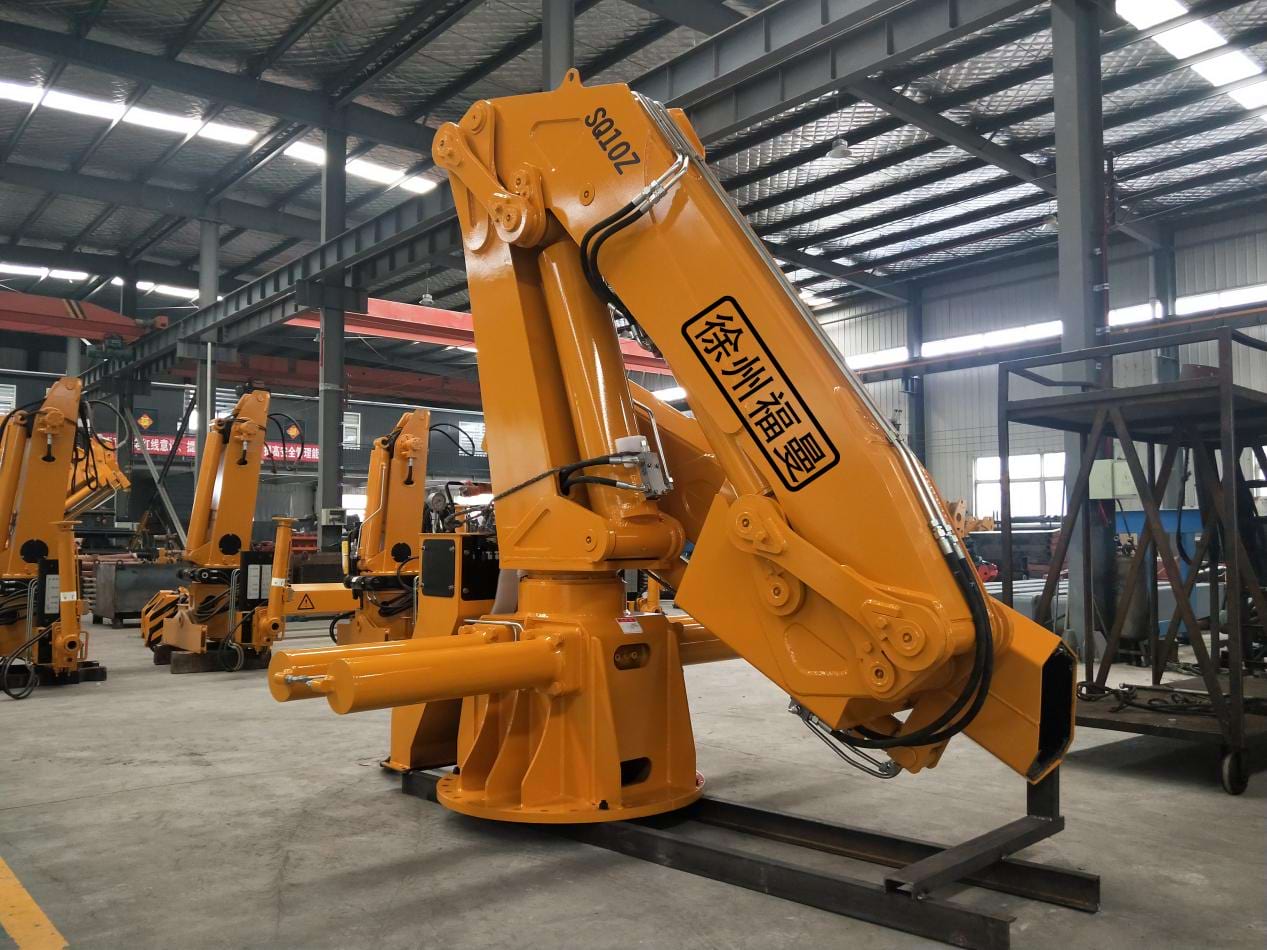

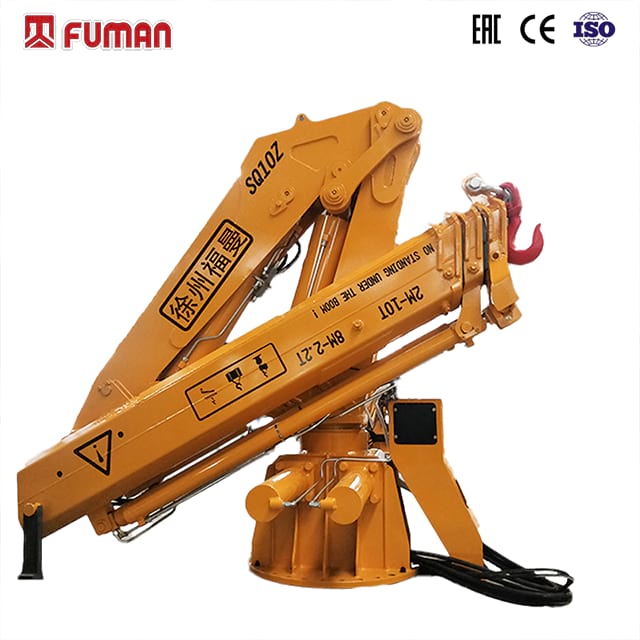

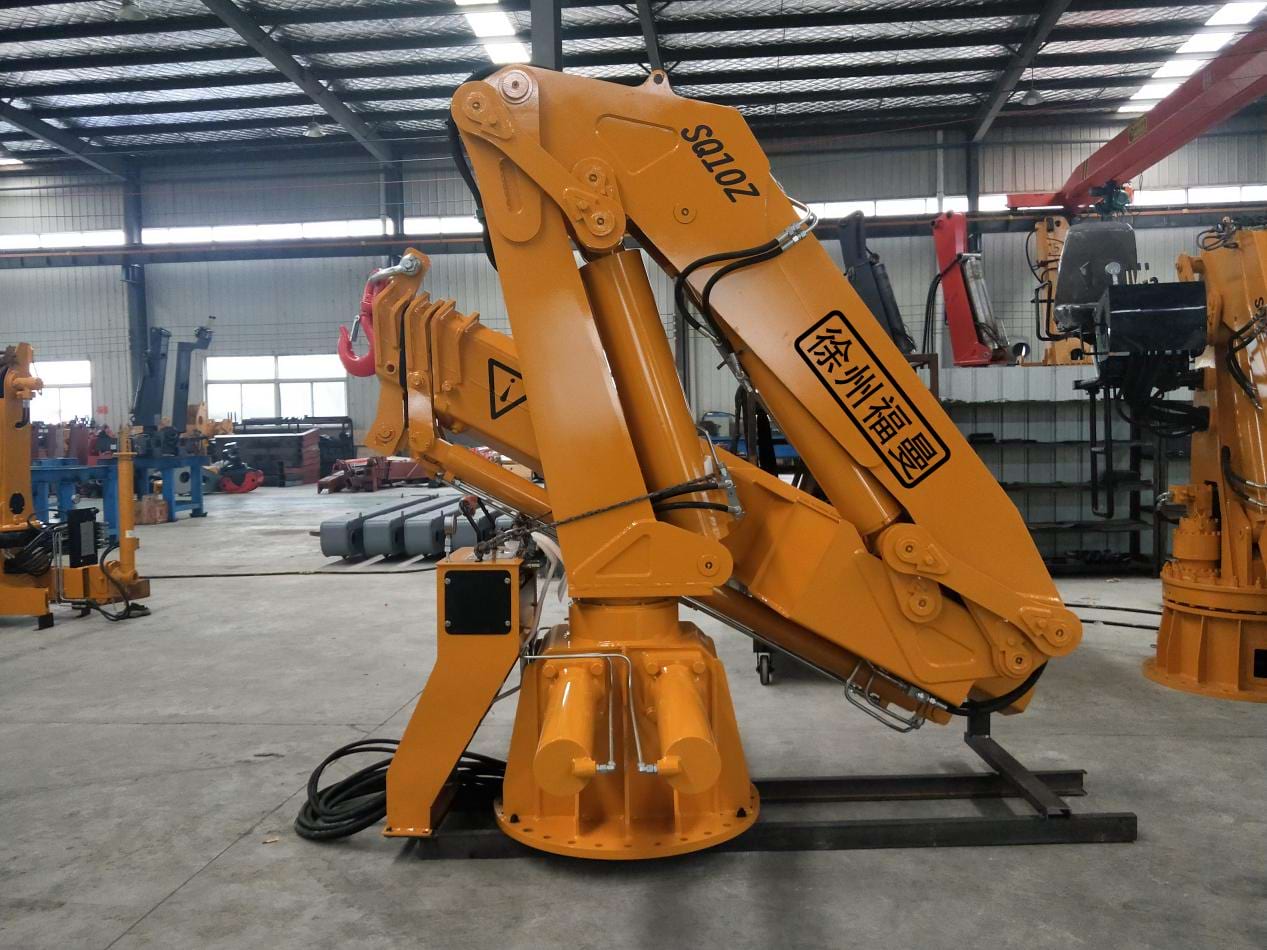

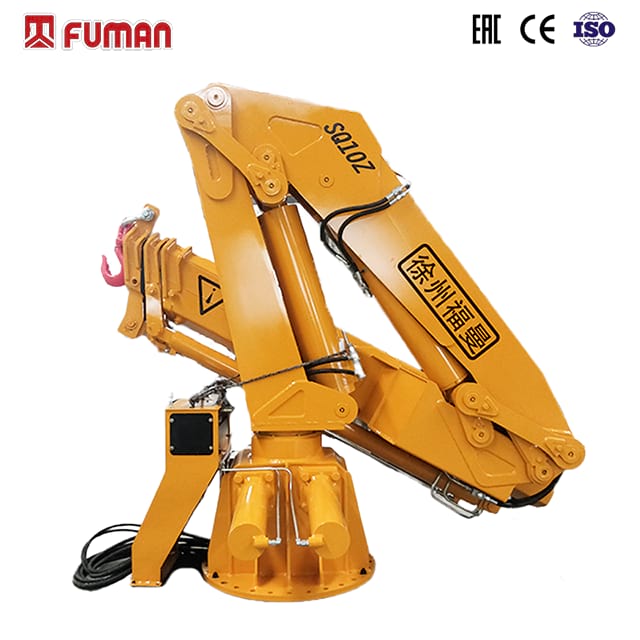

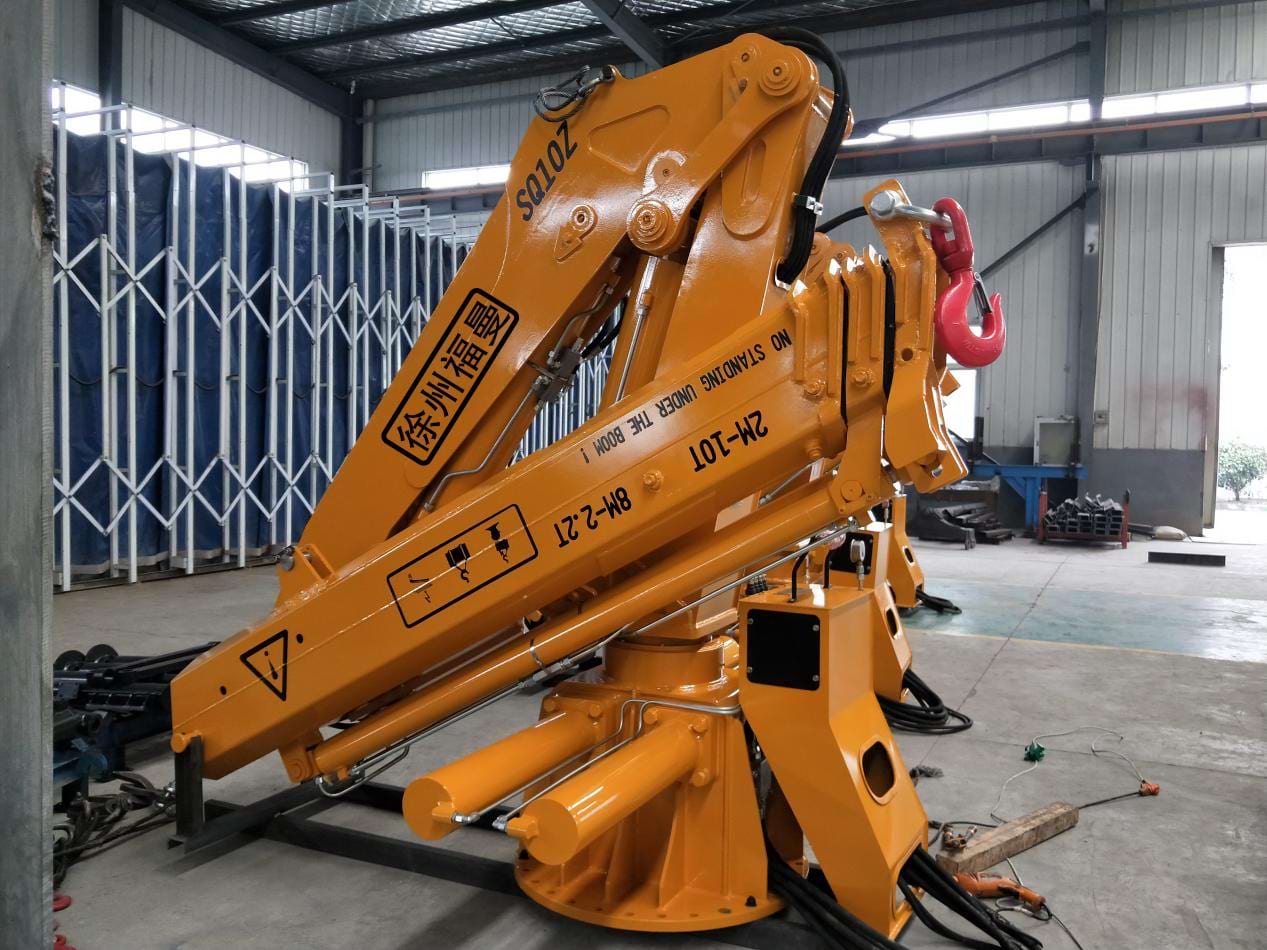

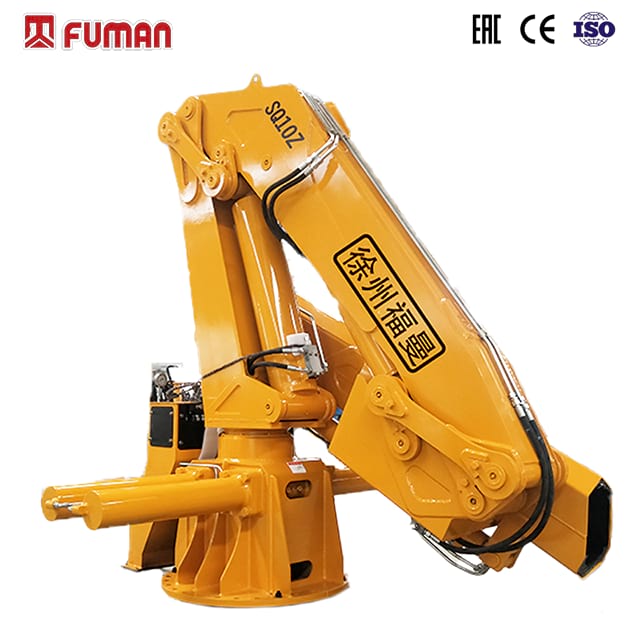

FF500KC-5AJ Industrial Marine Crane: 50 Ton-Meter Heavy-Lift Power for Offshore & Port Operations
Engineered by Xuzhou Fuman Special Vehicle Co., Ltd, the FF500KC-5AJ is a heavy-duty hydraulic deck crane designed for extreme maritime lifting challenges. With a massive 50 ton-meter lifting moment and 10,000 kg max capacity, this 360° full-rotation crane dominates operations on offshore supply vessels, construction barges, large workboats, and port utility ships. Its 12.3 m lifting height and 10,300 mm max radius enable handling of shipping containers, wind turbine components, and heavy machinery across docks, shipyards, and open sea. Certified for rigorous marine environments, it combines 30 MPa high-pressure hydraulics with corrosion-resistant engineering to deliver unmatched reliability in saltwater applications.
Key Advantages & SEO Keywords Integration
Industrial Heavy-Lift Capacity
10,000 kg max load handles ISO containers, offshore modules, and construction materials.
50 ton·m moment stabilizes lifts in dynamic sea conditions and harsh weather.
Extended Operational Range
10.3 m working radius covers large vessel decks and pier-to-ship transfers.
12.3 m lifting height clears ship superstructures for multi-level cargo handling.
High-Efficiency Hydraulic System
30 MPa pressure + 80 L/min flow powers rapid winch operations and heavy cargo cycling.
200 L oil capacity supports continuous offshore operations without frequent refills.
Marine-Optimized Durability
Saltwater-resistant coatings (ISO 12944 C5-M standard) combat corrosion.

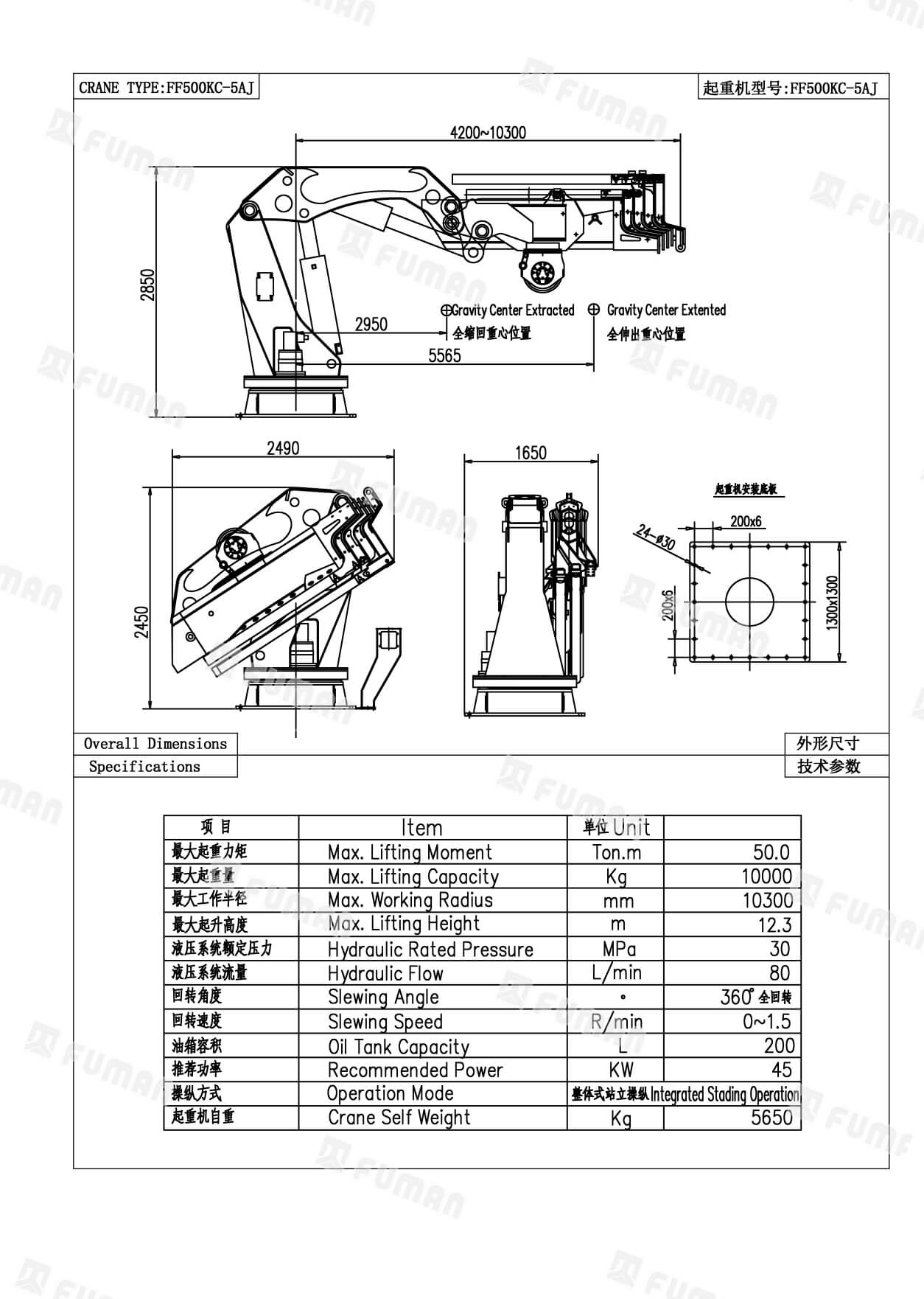

Compact base (2006×1650 mm) maximizes deck space on utility vessels and barges.
Precision Control & Safety
0-1.5 R/min variable slewing enables millimeter-accurate positioning.
Integrated load moment indicator (LMI) ready for safety compliance.
Parameters(FF500KC-5AJ) | |
Max Lifting Capacity | 10000kg |
Max Lifting Moment | 50ton.m |
Recommend Power | 45KW |
Hydraulic System Flow | 80L/Min |
Hydraulic System Pressure | 30Mpa |
Coil Tank Capacity | 200L |
Rotation Angle | 360° Continuous |
Self Weight | 5650kg |
Max Working Radius | 10300mm |
