FF040KC-2A

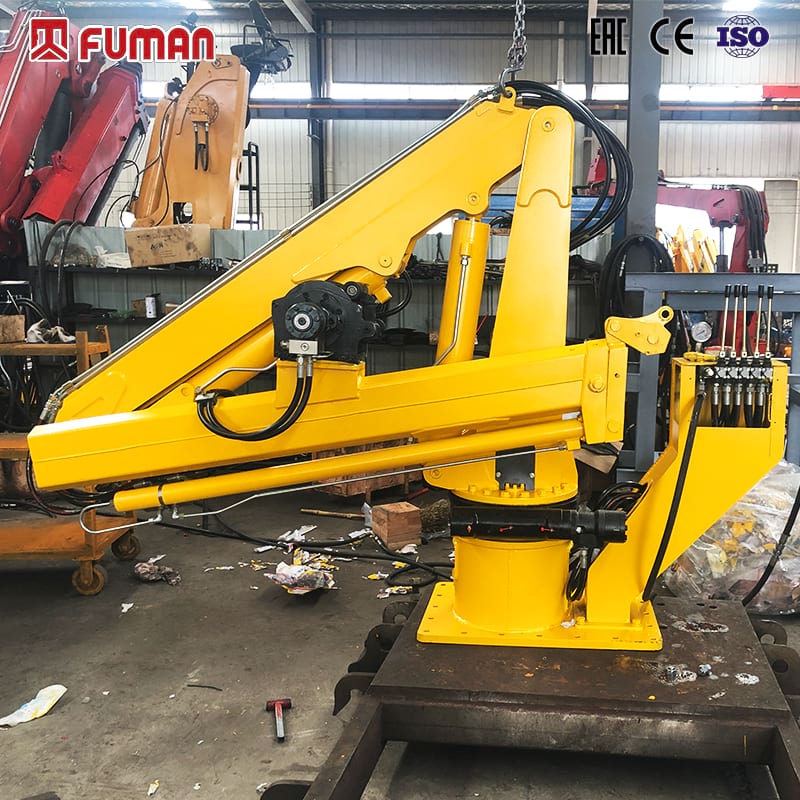

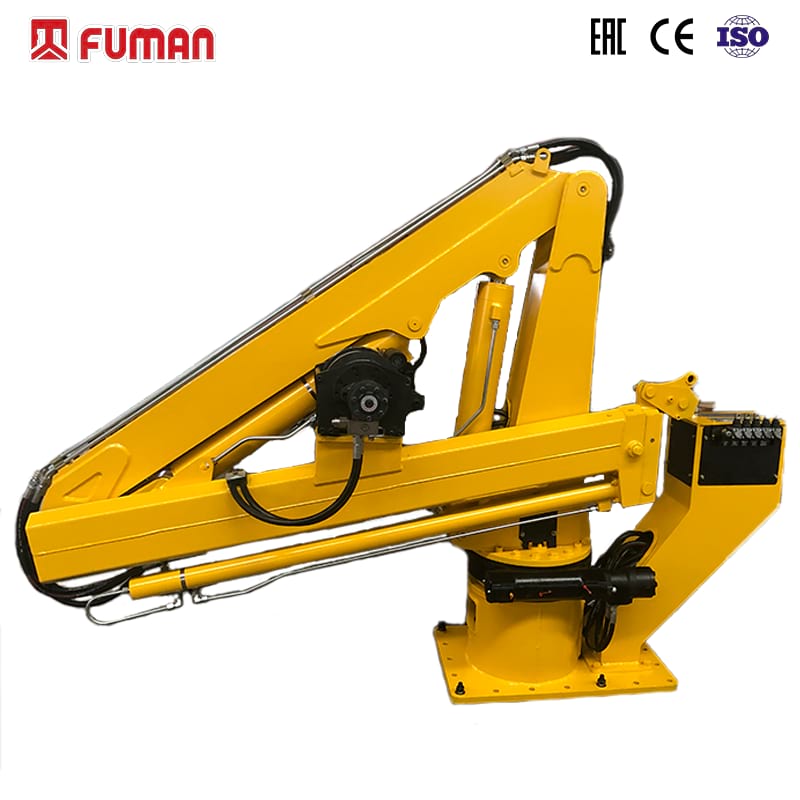

FF040KC-2A Heavy-Duty Marine Crane: 360° Full-Rotation Power for Offshore Operations
Engineered by Xuzhou Fuman Special Vehicle Co., Ltd, the FF040KC-2A is an industrial-grade hydraulic deck crane built for demanding maritime applications. With a 4.0 ton-meter lifting moment and 2,000 kg max capacity, this full-rotation marine crane (360° continuous slewing) delivers robust performance on tugboats, supply vessels, patrol boats, and offshore platforms. Its 6.8 m lifting height clears vessel superstructures, while 5100 mm max radius enables cargo transfer between ships or dockside operations. Designed for heavy marine logistics, port handling, and offshore construction, this crane features saltwater-resistant engineering and high-efficiency hydraulics (20 MPa pressure), providing reliable lifting power in harsh sea environments.
Key Advantages & SEO Keywords Integration
Industrial-Grade Lifting Capacity
2000 kg max load handles cargo containers, machinery, and offshore equipment.
4.0 ton·m moment ensures stability during heavy-lift marine operations.
Unrestricted 360° Operation
Full-rotation crane eliminates blind spots – critical for ship-to-ship transfers.
0-1.3 R/min variable speed enables precision control in rough sea conditions.
Extended Reach & Clearance
5100 mm working radius covers wide decks and pier-side applications.
6.8 m lifting height clears vessel rails for container loading/unloading.
Marine-Optimized Hydraulics
High-pressure system (20 MPa) delivers power for winch operations and cargo handling.
50 L oil capacity reduces refilling frequency during extended offshore missions.
Rugged Corrosion Protection
Marine-grade coatings and sealed components combat saltwater degradation.

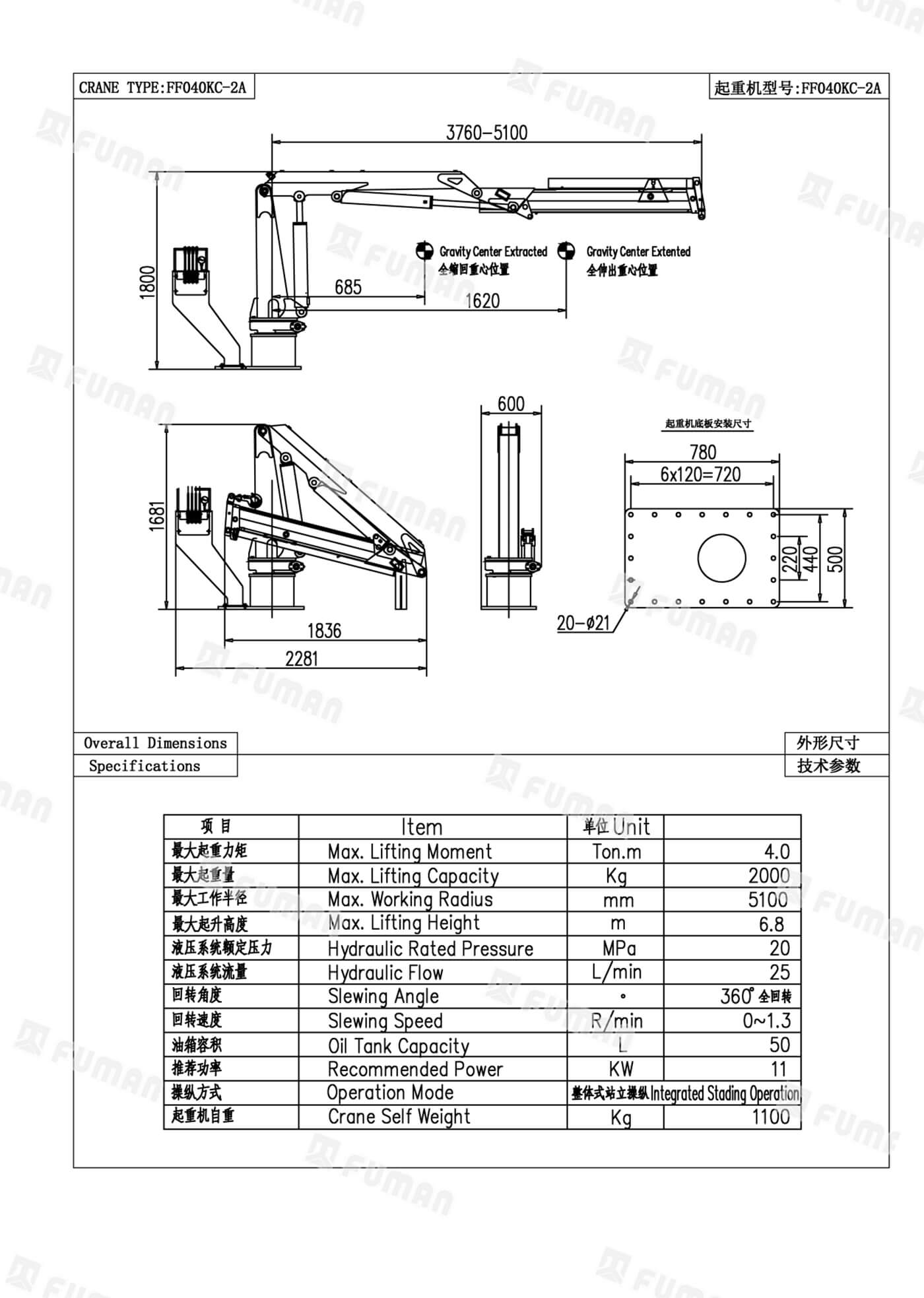

Compact base (1836×685 mm) fits confined decks on workboats and utility vessels.

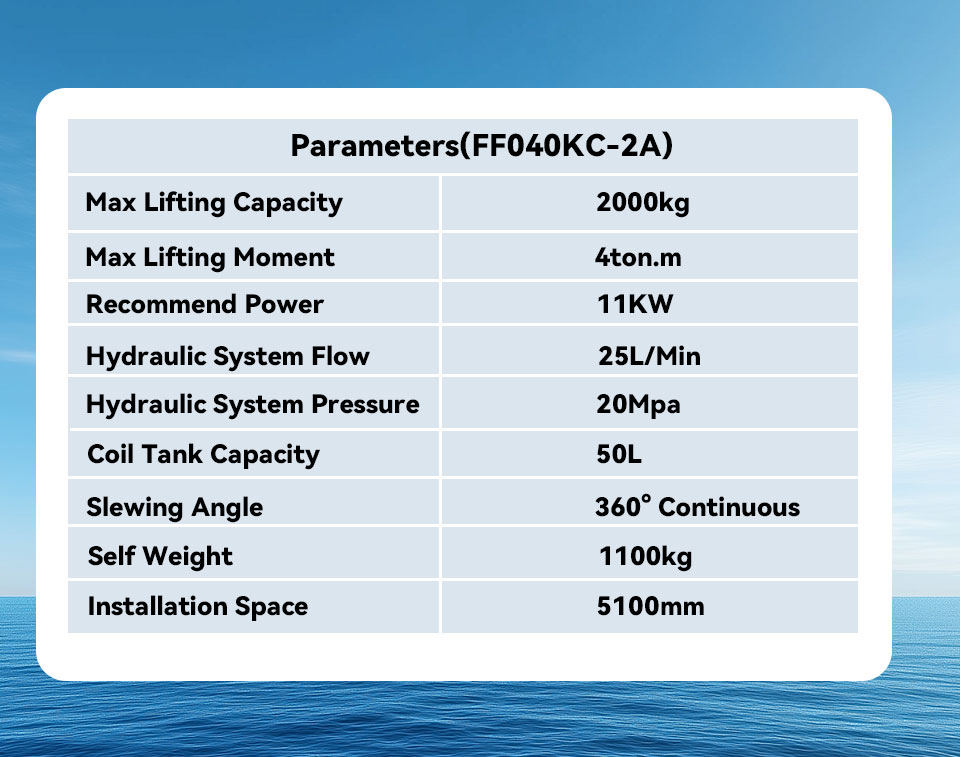

Parameters(FF040KC-2A) | |
Max Lifting Capacity | 2000kg |
Max Lifting Moment | 4ton.m |
Recommend Power | 11KW |
Hydraulic System Flow | 25L/Min |
Hydraulic System Pressure | 20Mpa |
Coil Tank Capacity | 50L |
Rotation Angle | 360° Continuous |
Self Weight | 1100kg |

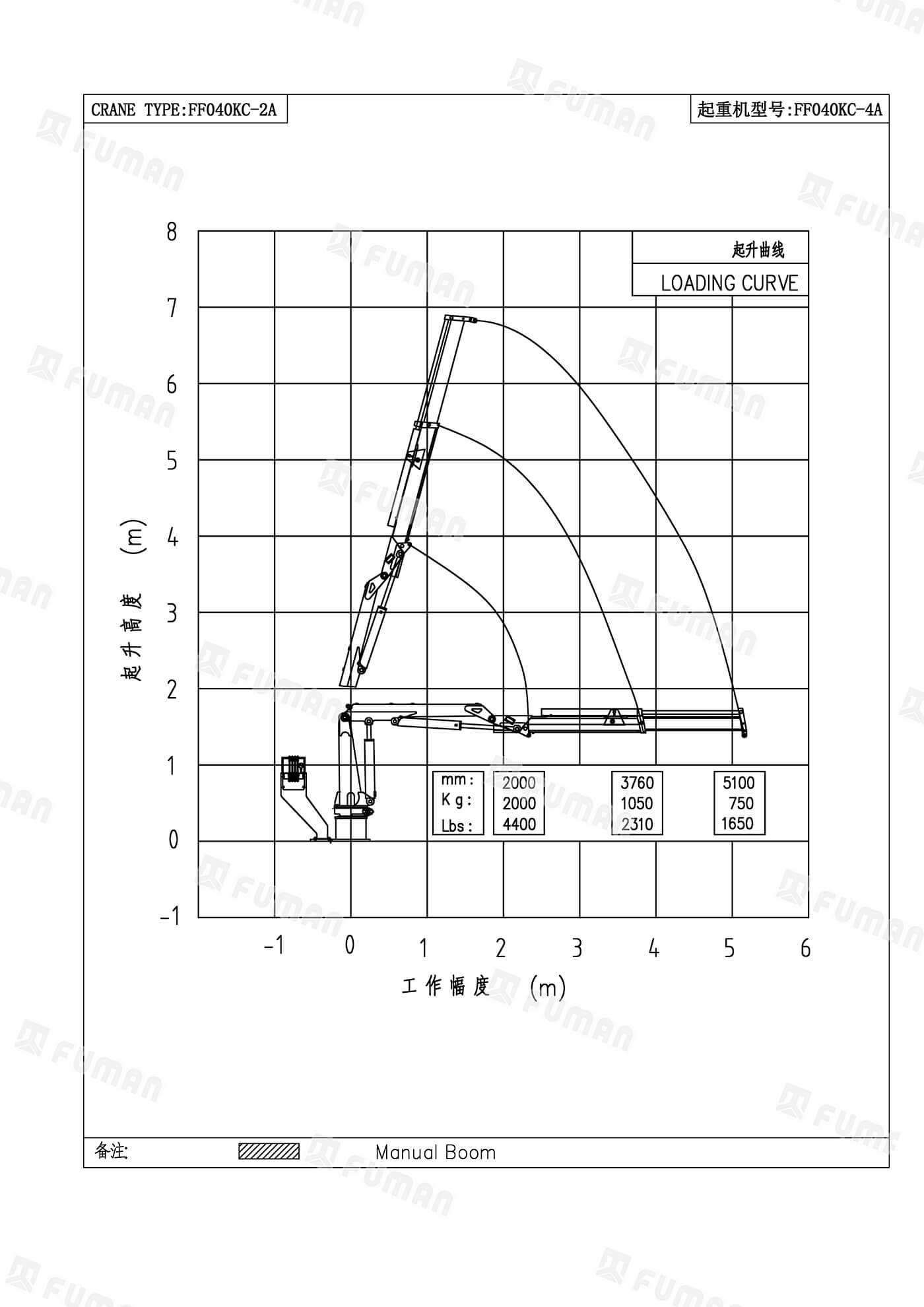

Max Working Radius | 5100mm |
