3.2 Ton Truck Mounted Knuckle Boom Crane

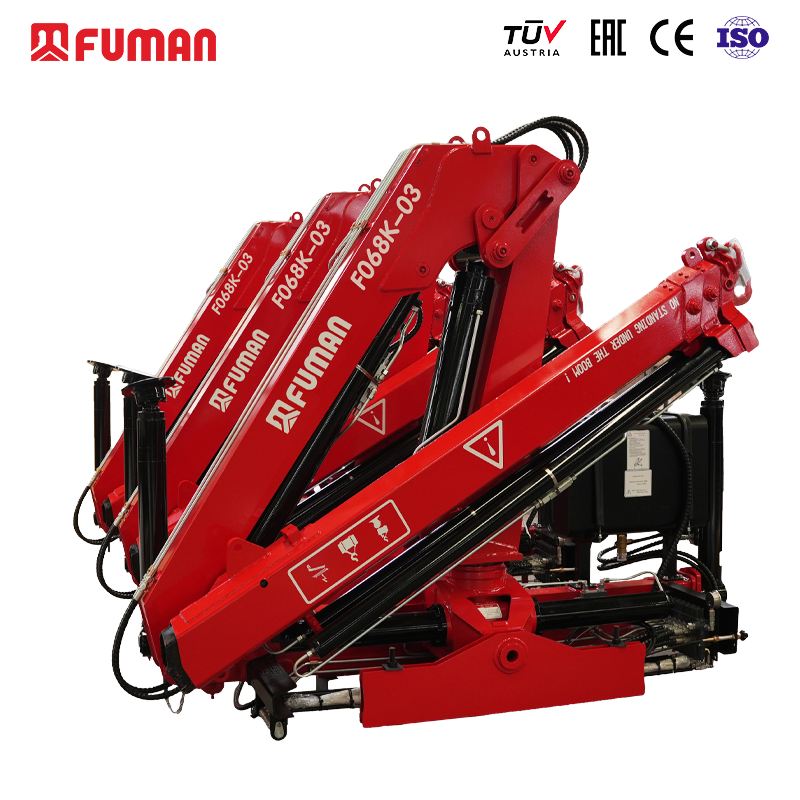

F068K-03 3.2-Ton Truck-Mounted Knuckle Boom Crane

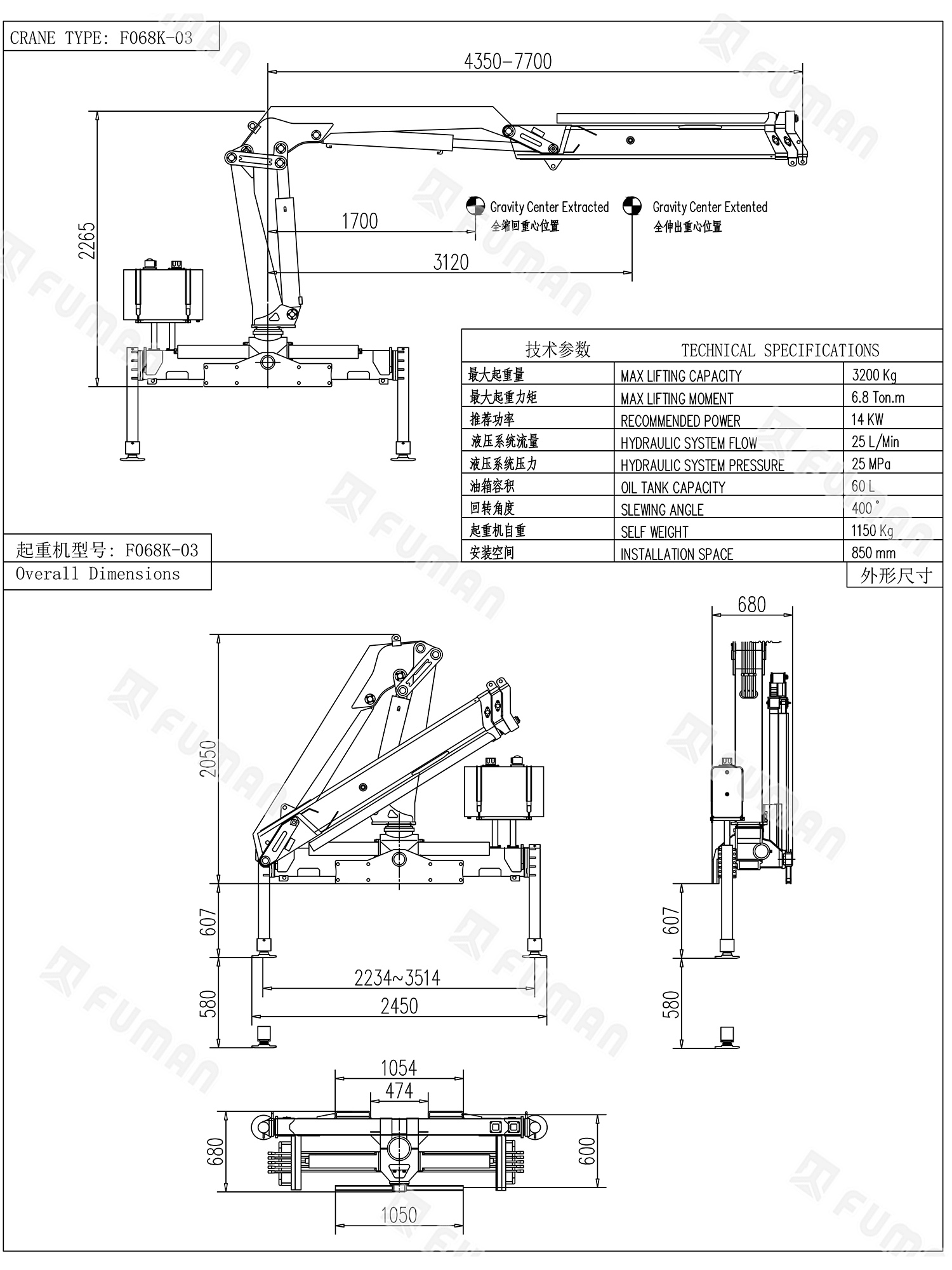

When operating in confined urban spaces, conventional telescopic boom cranes often take up too much room and face limitations regarding maneuvering and extension; furthermore, customers in construction and logistics frequently struggle with chassis load limits and insufficient installation space. Our Knuckle Boom Crane is designed to solve these specific challenges, offering flexible lifting and luffing capabilities within a compact footprint. It ensures stable material handling, is compatible with light-duty truck chassis, and excels in narrow urban streets and confined worksites. Model F068K-03 features a rated maximum lifting capacity of 3,200 kg and a lifting moment of 6.8 ton-meters. It is equipped with a 400° continuous slewing mechanism and operates at a hydraulic pressure of 25 MPa. The unit weighs only 1,150 kg, requires just 850 mm of installation space, and offers a maximum working radius of 7.7 meters. Optional accessories include remote controls, hydraulic winches, grapples, man baskets, oil coolers, and load moment limiters; it can also be configured with a grapple attachment to expand its material-handling capabilities. In addition to this truck-mounted knuckle boom crane, we offer a wide range of products—including ship-mounted telescopic and knuckle boom cranes, as well as forestry cranes (log loaders)—to meet diverse lifting and handling needs across truck, marine, and forestry applications.

Product Features

1. Lightweight design: Weighs 1,150 kg and requires only 850 mm of installation space; compatible with most light-duty trucks, minimizing chassis load.

2. 400° continuous slewing: Features a compact folding boom structure and a maximum working radius of 7.7 meters, allowing for flexible operational positioning in tight spaces. 3. Extensive configuration options: Accessories such as moment limiters, remote controls, grapples, and man baskets can be added to meet the requirements of various operating conditions, including lifting, aerial work with personnel, and material handling.

Usage Tips

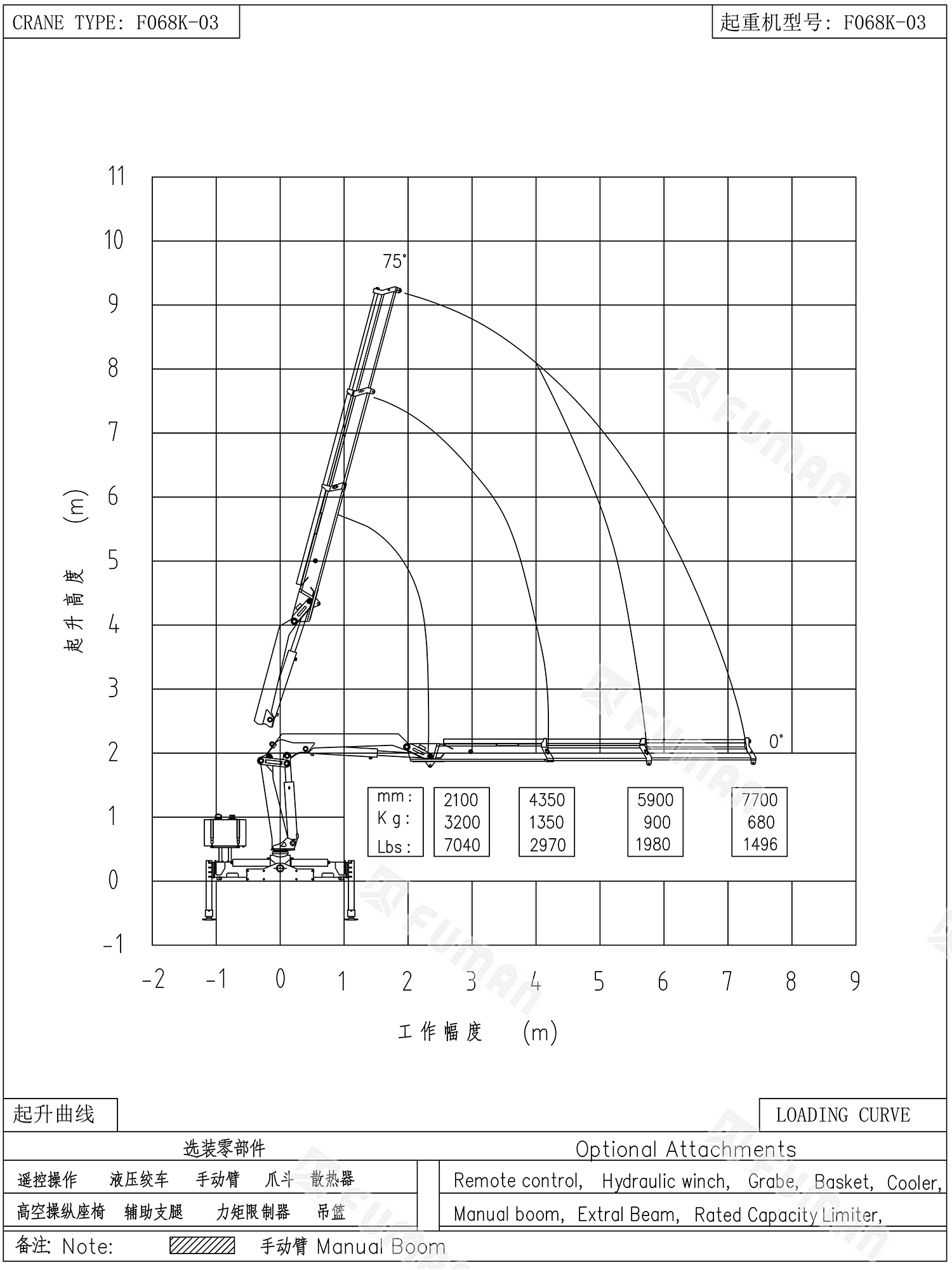

1. Always extend the outriggers before operation and ensure the ground is firm and level; strictly adhere to the load chart and do not exceed rated capacities.

2. Regularly check the condition of the hydraulic oil and change it on schedule to ensure the long-term, stable operation of the 25MPa hydraulic system.

FAQ

Q1: Can this Knuckle Boom Crane be mounted directly onto a standard light-duty truck?

A1: This model requires an installation space of 850mm and has a dead weight of 1,150kg; it can be installed provided the chassis load capacity and frame structure meet the requirements. We recommend providing chassis specifications for our technical team to verify before placing an order.

Q2: What should be prioritized during daily maintenance of the hydraulic system?

A2: Prioritize regular checks of the hydraulic oil level and cleanliness, as well as inspections for leaks at hose connections. For models equipped with an oil cooler, monitor heat dissipation during hot seasons to prevent system overheating.

Q3: What does the after-sales service include?

A3: A warranty is provided for the entire unit; core hydraulic components and structural parts that suffer non-human-induced damage during the warranty period are covered according to the terms. We also provide remote technical guidance to assist with installation, commissioning, and troubleshooting.

Q4: Can it be fitted with a grapple to function as a machine for handling bulk materials?

A4: Yes, grapple accessories are available as options, allowing for bulk material handling after installation. If you require a forestry crane for log handling, we can also provide information on our forestry crane solutions.

Q5: Do you offer marine lifting equipment as well?

A5: Yes, we also supply ship telescopic boom cranes and marine knuckle boom cranes suitable for lifting operations on ship decks.
