Can A Knuckle Boom Crane Be Used To Set Steel​?

Traditional steel erection relies heavily on telescopic straight-boom cranes or massive crawlers. These machines use wire ropes and winches to lift heavy beams. Naturally, many contractors view other equipment choices skeptically. However, modern construction demands incredible flexibility. We now see high-capacity articulated cranes deployed on complex structural jobs. They easily navigate tight spaces where traditional rigs fail. But are they truly up to the task?

You need facts before swapping out your standard hoist. Our goal here is to objectively evaluate this approach. We will examine the mechanical feasibility of using a knuckle boom crane for structural steel placement. We will explore the strict safety compliance realities you face. We will also highlight critical operational limitations. By the end, you will understand exactly when this equipment makes sense and when it poses unnecessary risks.

Key Takeaways

• Feasibility: Yes, knuckle boom cranes can set steel, provided the crane is equipped with a winch attachment for millimeter-precise load suspension during bolting and welding.

• Ideal Use Cases: They excel in low-clearance environments, indoor facility expansions, and tight urban footprints where straight booms cannot physically operate or deploy.

• Core Limitations: Standard hydraulic-only articulation lacks the smooth micro-adjustability of a traditional hoist line. Load capacity also decays rapidly at maximum horizontal reach.

• Compliance Warning: Using a crane to hold structural steel in place during assembly constitutes "construction work," subjecting the operation to strict OSHA steel erection standards, nullifying standard material delivery exemptions.

1. Mechanical Realities: How Articulated Cranes Handle Structural Loads

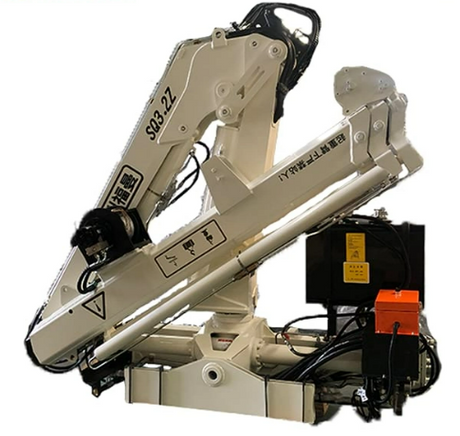

Hydraulic Actuation vs. Wire Rope Suspension

Standard articulated booms rely on hydraulic cylinders. These cylinders push and pull various boom sections to position the load. Telescopic cranes operate differently. They primarily use a heavy-duty winch and a wire rope to hoist materials. This fundamental mechanical difference heavily impacts steel erection.

Hydraulic power provides immense lifting force. It allows the machine to fold and unfold like a human finger. However, lifting rigid steel beams requires more than just raw power. It requires stable, sustained suspension. Wire ropes hang perfectly plumb. Hydraulic cylinders hold the load rigidly in place at a specific angle.

The "Jerky Movement" Factor

Raw hydraulic movement often feels abrupt. Fluid pushes into a cylinder, causing the boom to jump slightly. You need millimeter-level alignment to match bolt holes on structural beams. A sudden hydraulic jolt can easily pinch a worker's hand. It can also disrupt a welder's bead.

1. Micro-adjustments: Ironworkers need the beam to lower by tiny fractions of an inch.

2. Hydraulic lag: Valves open and close, sometimes causing a tiny delay or sudden drop.

3. Operator skill: Only highly skilled personnel can feather hydraulic controls smoothly enough for steel alignment.

Because of this jerky movement, relying solely on hydraulic articulation is dangerous for fine steel work.

Deflection and Load Moment

High-tensile steel boom sections behave uniquely under heavy loads. When you extend the boom horizontally, the metal naturally flexes. Engineers call this deflection. A long boom holding a heavy column will bounce slightly when you stop moving. This bounce complicates precise placement.

Live boom extension systems help manage this deflection. They allow operators to adjust the boom length while holding structural columns at negative angles. Modern machines balance the deflection mathematically. Still, you must account for this physical flex when planning a critical lift.

The Winch Requirement

For serious steel erection, a secondary winch system is a non-negotiable requirement. You must outfit the final boom section or fly jib using a hydraulic hoist line. The winch gives you the smooth, gear-reduced micro-adjustability of a traditional crane. It stabilizes suspended loads effectively. It allows ironworkers to guide the beam into place safely while the boom remains completely stationary.

2. When to Choose a Knuckle Boom for Steel Erection (Ideal Scenarios)

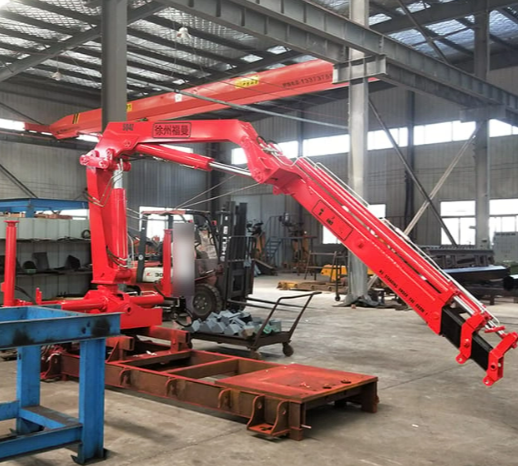

Low-Clearance and Indoor Operations

Articulated equipment excels in low-clearance environments. You often encounter tight height restrictions when retrofitting steel inside existing manufacturing plants. A straight boom cannot raise its mast indoors without hitting the roof. An articulating arm simply unfolds horizontally. It reaches under overhead pipes, HVAC ducts, and existing trusses seamlessly.

Through-Window / Opening Insertions

Urban construction often demands creative logistics. Sometimes you must pass steel beams through structural openings, windows, or doorways. An articulated fly jib provides a massive tactical advantage here. You can bend the final joint at a severe angle. The operator essentially reaches into the building. This maneuver is a physical impossibility for straight booms.

Combined Logistics and Erection

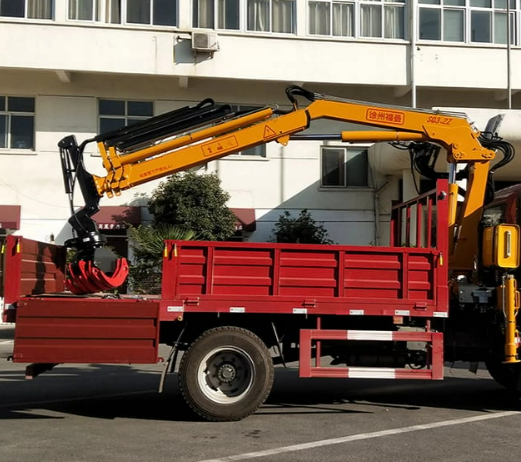

Efficiency drives modern project schedules. A truck mounted knuckle boom crane delivers incredible logistical value. The unit transports the structural members on its own flatbed. It drives directly to the site. The operator parks, stabilizes the chassis, and immediately begins erection. You do not need a separate delivery vehicle. You avoid coordinating a separate mobile crane setup. This dual-purpose capability shrinks your site footprint significantly.

Utilizing the Truck as Counterweight

Confined setups limit outrigger deployment. Standard cranes require wide, fully extended outriggers to prevent tipping. Some specific engineering designs allow articulating units to float outriggers safely. The design leverages the truck chassis itself as a dynamic counterweight. The truck might lean slightly during a heavy lift. However, the advanced stabilizing geometry keeps the operation entirely within safe limits. This allows you to work in narrow alleys or tight residential lots.

3. Critical Limitations and Operational Risks

Rapid Load Capacity Decay

You must understand how horizontal reach affects lifting power. Capacity drops rapidly as you extend the arm away from the pedestal. Steel erectors must meticulously calculate the load radius against the heaviest beam.

Do not assume a 10-ton crane can lift 10 tons anywhere on the job site. At full horizontal extension, you might struggle to hold a standard 2,000 lb roof joist. Always consult the specific unit's load chart before rigging.

Vertical Reach Ceilings

Articulating machines dominate horizontal spaces. However, they hit strict vertical ceilings. You cannot compare their height limits against telescopic cranes. A large telescopic rig easily achieves 200+ feet of vertical reach. Articulating units generally cap out much lower. They work best for single-story structures, mid-rise frameworks, or interior mezzanine builds.

Maintenance Realities in Heavy Duty Cycles

Steel erection places dynamic stress on machinery. The equipment holds heavy loads for prolonged periods. The complex hydraulic matrix requires serious attention. Multiple articulation points demand frequent lubrication. You must inspect the pins and bushings daily. Heavy duty cycles accelerate wear on hydraulic seals. If you neglect maintenance, cylinders will drift under load, creating severe safety hazards.

Operator Skill Threshold

Manipulating multiple joints simultaneously takes practice. Achieving a perfectly linear lift is difficult. The operator must extend one cylinder while retracting another just to move the load straight up. This requires significantly more advanced training than operating a single straight boom. Do not let an inexperienced operator set steel. The risk of sudden, uncoordinated movement is too high.

4. OSHA Compliance and Safety Standards for Steel Erection

Material Delivery vs. Active Erection

You must clearly understand strict regulatory boundaries. Many operators mistakenly believe their delivery exemptions cover steel assembly. This is false. Unloading steel bundles directly to the ground falls under material delivery exemptions. In these specific cases, rules remain somewhat flexible.

The "Suspended Load" Clause

Active erection changes everything legally. The moment you use the machine to support structural members, the law shifts. Holding a beam steady while ironworkers bolt it together constitutes "construction work." This action immediately triggers stringent construction safety standards. In the United States, OSHA Subpart R governs steel erection. The standard material delivery exemptions vanish instantly.

Common Mistake

Operators often deliver materials using basic cargo hooks. They then attempt to help the crew hold a beam for a quick weld using the same setup. This violates OSHA standards and exposes the contractor to massive liability if an accident occurs.

Mandatory Safety Mechanisms

Regulatory bodies demand specific safety matrices for steel assembly. You cannot bypass these systems.

• Anti-Two-Block Systems (A2B): If you use a winch, you must have a functioning A2B system. This prevents the hook block from colliding with the boom tip.

• Load Moment Indicators (LMI): The machine must calculate the boom angle, length, and load weight continuously. The LMI alerts the operator before the equipment reaches an unsafe tipping point.

• Automatic Overload Protection: The system must physically lock out unsafe movements. If a load is too heavy, the hydraulics must refuse to extend further.

• Load-Holding Valves: Cylinders require specialized valves to prevent sudden drops if a hydraulic hose bursts during suspension.

5. Knuckle Boom vs. Telescopic Boom: Decision Framework for Steel

Choosing the right equipment dictates project profitability. You must match the machine's capabilities directly to your site conditions. We built a straightforward decision framework to help you specify the correct crane.

When to Spec a Telescopic Boom

You should default to a traditional straight boom under specific conditions. Projects requiring high vertical reach absolutely need them. Multi-story steel frames demand vertical capabilities that articulating arms cannot provide. You also need straight booms for heavy, long-span structural beams. These pieces require prolonged, static suspension. Operations prioritizing raw lifting power and mechanical simplicity over maneuverability should stick to telescopic models.

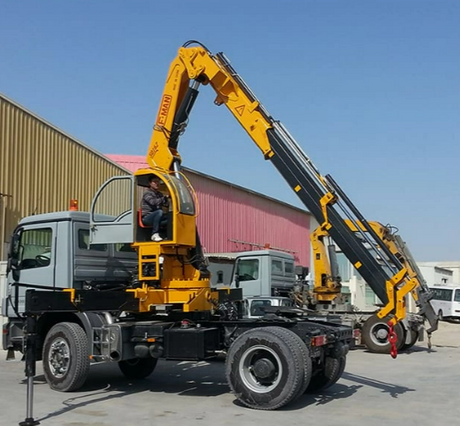

When to Spec a Truck Mounted Knuckle Boom Crane

You should switch to articulating units when space dictates the workflow. Sites with severe spatial constraints benefit immensely. You can navigate around overhead power lines easily. Indoor access requirements essentially mandate their use. They are perfect for placing shorter, lighter pre-engineered metal building (PEMB) components. You should also spec them for projects where minimizing setup time is critical to project margins. Reducing the equipment footprint keeps urban job sites safer and less congested.

Best Practice

Always require the operator to perform a dry run without the load. Have them articulate the boom through the exact path they will use to place the beam. This verifies spatial clearances and ensures the hydraulic geometry can actually reach the connection point safely.

Conclusion

A knuckle boom crane is a highly capable tool for setting steel in restrictive environments. It solves complex logistical nightmares in urban centers and tight indoor facilities. However, feasibility depends entirely on preparation. Buyers must understand its mechanical limits. You must specify a winch attachment to guarantee the precision alignment required for bolting and welding.

We recommend several action-oriented next steps for buyers and contractors. First, meticulously audit the heaviest piece of steel on your project plan. Second, measure the exact required reach radius from the safest possible parking footprint. Finally, overlay this specific data onto the load chart of a prospective articulated crane. Do this before committing to any rental or purchase. Proper planning ensures you leverage the machine's versatility without compromising structural safety.

FAQ

Q: Do I need a special license to operate a knuckle boom crane for setting steel?

A: Yes. While delivering standard materials might have exemptions depending on local jurisdiction, using any crane to actively set structural steel requires certified operator credentials. In the US, this typically means holding an active NCCCO certification. Active erection triggers strict construction standards.

Q: Can a knuckle boom crane hold a steel beam steady enough for welding?

A: Yes, but it is heavily dependent on the crane having a winch attachment and load-holding valves. Standard hydraulic cylinder articulation without a hoist line makes micro-adjustments difficult. Sudden hydraulic movements can easily disrupt the process and complicate welding.

Q: How much weight can a knuckle boom safely lift at maximum extension?

A: Capacity drops significantly at full reach. A mid-size crane capable of lifting 6,000 lbs at 10 feet may drop below 1,800 lbs at 30 feet. Always consult the specific unit's load chart for accurate horizontal lifting parameters before rigging any structural steel.
