How To Choose The Right Marine Crane Boom for Your Vessel?

Selecting a marine cranes boom isn't just a procurement task. It is a critical engineering decision. This choice directly impacts your vessel's operational safety, cargo handling efficiency, and regulatory compliance. You cannot afford to treat this selection lightly.

Unlike land-based equivalents, marine cranes must operate under extreme physical stress. They handle dynamic loads during unpredictable sea states. They constantly battle highly corrosive saltwater environments. A mismatch between your operational needs and the equipment jeopardizes both crew safety and mission success. Vessel operators need a clear methodology to make the right choice.

This guide provides a practical, engineering-focused framework. You will learn to evaluate your vessel's specific lifting requirements accurately. We will help you map those requirements to the correct boom architecture. Finally, you will navigate the technical specifications necessary to finalize your procurement shortlist.

Key Takeaways

• Base your load capacity calculations on Safe Working Loads (SWL) in dynamic sea conditions, not just static harbor capabilities.

• Match the boom design to your deck's physical constraints: prioritize folding or knuckle booms for restricted spaces, and stiff or telescopic booms for heavy-duty, long-reach operations.

• Prioritize marine-specific structural durability, including electro-hydraulic drives, active heave compensation, and rigorous anti-corrosion treatments.

• Ensure alignment with maritime safety regulations and insist on equipment backed by recognized Classification Society certifications (e.g., DNV, ABS, CCS).

Defining Your Operational Baseline and Load Requirements

An under-specced crane causes severe operational bottlenecks. It forces your crew to delay critical lifts. Conversely, an over-specced model wastes critical deck space. It also inflates vessel weight unnecessarily. You must establish a precise operational baseline before reviewing any product catalogs.

Static vs. Dynamic Loads

You must differentiate between static and dynamic loads carefully. Static capacity measures the maximum lifting capability in flat water, typically inside a calm harbor. Dynamic capacity measures continuous operational capability under specific offshore sea states.

Marine environments introduce wave height, vessel pitch, and roll. These factors generate immense g-forces and momentum. You must consult dynamic derating charts. These charts calculate the true Safe Working Load (SWL) during active sea conditions. A crane rated for 10 tons in a harbor might only safely lift 5 tons during a Sea State 3 operation. Ignoring this distinction leads to catastrophic equipment failure.

Operational Scenarios

Different maritime operations demand entirely different lifting profiles. You should define your exact use case early.

• Cargo & Provision Handling: This scenario requires speed and moderate reach. You need equipment capable of reliable, continuous operation during busy port turnarounds.

• Offshore Construction & Dredging: These tasks demand exceptionally high load thresholds. You will likely integrate specialized attachments like pile drivers or heavy dredging grabs. Seamless integration with the vessel's dynamic positioning (DP) system is often required.

• Fishery & Research: These operations prioritize precise positioning over raw lifting power. Automated recovery systems are crucial for retrieving expensive scientific equipment. A minimal deck footprint is highly desirable to preserve working space.

Reach and Radius Constraints

You must define the required working radius precisely. Start by calculating the minimum radius. This ensures you avoid dangerous blind spots immediately near the crane pedestal. Next, calculate the maximum extension required. The boom must clear the vessel’s beam safely to load or unload cargo over the side. A miscalculated radius renders the crane completely useless for ship-to-ship transfers.

Mapping Marine Crane Boom Architectures to Vessel Capabilities

Different boom designs solve very specific operational constraints. You must align the physical architecture with your defined use cases. Selecting the wrong structural type will hinder your daily operations.

Stiff Boom (Straight Boom)

The stiff boom design remains mechanically simple. It is highly durable and incredibly reliable. It contains fewer hydraulic components than articulated models. This simplicity drastically reduces potential failure points and lowers maintenance demands.

It works best for heavy load lifting where deck space is abundant. Choose this architecture if precision articulation is not a primary requirement for your crew. It is a staple on flat-deck barges and large offshore support vessels.

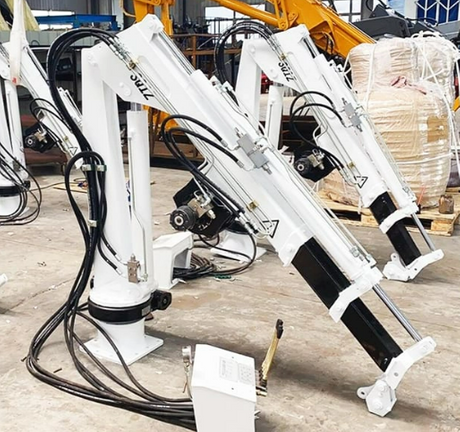

Telescopic Marine Hydraulic Crane

A telescopic marine hydraulic crane offers a highly adjustable working radius. It achieves this flexibility without sacrificing significant load capacity. Operators can extend or retract the boom fluidly to reach specific target zones.

It is best for vessels requiring flexible reach for varied offshore support tasks. It excels in environments where swing clearance is limited. You can retract the boom to navigate tight spatial constraints, then extend it fully for over-the-side lifting.

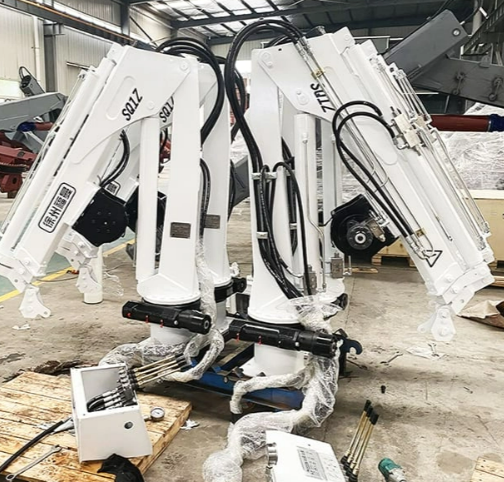

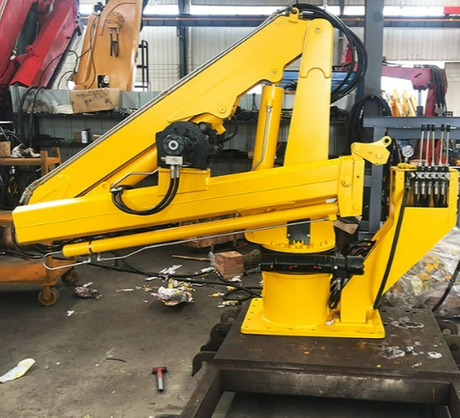

Knuckle Boom (Articulated Boom)

The knuckle boom features multiple articulation points. This geometry allows the operator to maneuver payloads around complex deck obstacles. It provides extremely high precision during delicate operations.

It is best for complex offshore construction and tight deck configurations. The articulated design keeps the lifting point very close to the payload. This proximity drastically minimizes dangerous pendulum effects during rough sea operations. It is widely used for subsea equipment deployment.

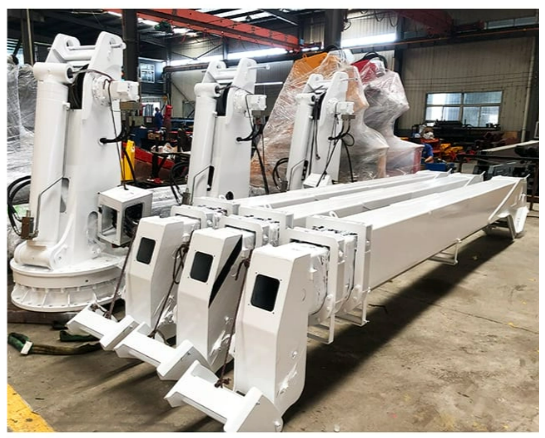

Folding Boom

Engineers designed this boom to fold compactly completely into itself. It maximizes available space when not actively in use.

It is best for vessels facing severe spatial constraints. Tugs, small workboats, and compact research vessels utilize folding booms extensively. They require the crane to have a minimal footprint when stowed safely.

Boom Architecture Comparison Chart

Use the following summary chart to compare the core attributes of each boom type.

Critical Technical Specifications and Environmental Durability

You must evaluate the internal components just as strictly as the external architecture. The marine environment destroys substandard equipment rapidly.

Drive and Control Systems

You will typically choose between electro-hydraulic and fully electric drive systems. You must weigh the ruggedness of hydraulic systems against modern electric alternatives. Hydraulics boast high shock-load tolerance. They handle extreme offshore conditions reliably. However, modern electric drives offer precise control. They produce lower emissions and require less routine maintenance.

Automation integration is reshaping maritime lifting. The industry is shifting heavily toward remote operation. Look for IoT-enabled predictive maintenance systems. These sensors alert your crew before a component fails. Active heave compensation (AHC) is another vital feature. AHC neutralizes vertical vessel movement automatically. It ensures much safer offshore lifting by keeping the payload perfectly steady relative to the seabed.

Deck Integration and Pedestal Design

You must assess your deck's structural conditions thoroughly. The crane pedestal cannot simply sit on top of standard deck plating. It must match the ship’s internal structural reinforcements perfectly. The shipyard must weld the pedestal directly into structural bulkheads below the deck. This deep integration distributes extreme dynamic loads safely across the entire hull. Failing to reinforce the deck leads to catastrophic structural tearing during heavy lifts.

Marine-Grade Protection (The Reality of Saltwater)

Standard industrial paint is entirely insufficient for maritime operations. C5-M marine environments will strip standard coatings in months. You must evaluate the vendor’s specific anti-corrosion protocols.

Demand thermal metallization processes. Require specialized, multi-layer marine epoxy coatings. Insist on stainless steel piping for all exposed hydraulic lines. Ensure all electrical components feature sealed, high-level IP ratings (IP66 or higher). Protecting the internal mechanisms from continuous salt spray is mandatory for long-term survival.

Navigating Compliance and Safety Standards

Operating a marine crane without proper compliance is incredibly risky. You expose your crew to danger and your company to massive liabilities.

Regulatory & Certification Requirements

A marine crane is a severe liability without rigorous certification. You must demand compliance with international maritime standards outlined by the IMO. Occupational safety laws dictate strict operational parameters. You cannot ignore them.

Ensure the manufacturer provides independent certifications. Major Classification Societies must verify the equipment. Look for stamps from DNV, ABS, LR, or CCS. You must match the specific certification to your vessel's official registry. Without recognized certification, your vessel will fail insurance inspections. Port state controls may detain your ship. Commercial charterers will reject your vessel outright.

Safety Redundancies

You must look closely for built-in safety mechanisms. Redundancy saves lives at sea. Overload protection systems are absolutely critical. Manual Overload Protection Systems (MOPS) allow operators to release tension safely. Automatic Overload Protection Systems (AOPS) release the wire automatically if tension exceeds a critical limit. This prevents a sinking load from pulling your vessel underwater.

Ensure the crane features rapid emergency stop functionality. Fail-safe braking systems must engage automatically if power is lost. These mechanisms must be standard inclusions, never optional upgrades.

Procurement Risks and Shortlisting Next Steps

Procuring heavy marine equipment carries significant implementation risks. You must anticipate these challenges before signing any purchase orders.

Common Implementation Risks

Integration failure remains a primary risk. Many operators miscalculate the vessel's center of gravity after installation. Adding a massive steel structure high above the waterline raises the center of gravity. This reduces the metacentric height and causes severe vessel stability issues. You must consult naval architects to verify stability parameters.

Underestimating environmental impact is another common trap. Operators sometimes select commercial-grade components instead of marine-grade ones. Components not rated for extreme temperature fluctuations will crack. Parts exposed to continuous salt spray without proper metallization will seize rapidly. Do not cut corners on environmental hardening.

Shortlisting Logic

Follow a structured process to narrow down your vendor options efficiently. Use this step-by-step logic to build your shortlist:

1. Filter by Certification: Immediately discard any vendors lacking your required Classification Society certifications (DNV, ABS, CCS, etc.).

2. Request Dynamic Charts: Demand dynamic load charts specific to your worst-case operational sea states. Do not accept static harbor charts as proof of capability.

3. Evaluate Support Networks: Analyze the vendor's aftermarket support network. Ensure they have technicians and spare parts available in your vessel's primary operating regions.

4. Assess Customization: Consider custom engineering options. If a standard model requires awkward or expensive deck modifications, a custom-engineered pedestal might be safer and more efficient.

Conclusion

Choosing the right marine crane boom dictates your vessel’s long-term operational viability. This decision demands careful engineering analysis. It requires you to balance heavy load dynamics against spatial constraints. You must also account for the harsh environmental realities of continuous saltwater exposure.

Take action by compiling your vessel's detailed deck plans today. Document your required operational sea states clearly. Confirm your desired classification standards based on your vessel's registry. Once you organize these critical details, consult with a specialized marine crane engineer. They will help you finalize a secure, compliant, and highly efficient lifting solution.

FAQ

Q: What is the difference between static and dynamic load capacity in marine cranes?

A: Static capacity is the maximum load the crane can lift in calm, harbor conditions. Dynamic capacity accounts for the g-forces and momentum generated by active wave action, vessel pitch, and roll. These environmental factors significantly reduce the safe working load during offshore operations.

Q: Why choose a telescopic marine hydraulic crane over a stiff boom?

A: A telescopic boom allows operators to extend or retract the reach fluidly. This adjustability makes it highly versatile for varying cargo placements. It is ideal for offshore tasks where deck space doesn't allow for a fixed, long boom sweep to operate safely.

Q: How important is Classification Society certification for a deck crane?

A: It is absolutely mandatory for commercial vessels. Without recognized certification from societies like DNV, ABS, or CCS, the vessel faces severe consequences. It may fail insurance inspections, face detention by port state controls, or fail commercial charter requirements.

Q: Can a marine crane boom be customized for existing deck layouts?

A: Yes. Many specialized manufacturers engineer custom pedestals, specific boom lengths, and tailored hydraulic power units. These customized elements allow the crane to fit seamlessly into difficult retrofits or highly constrained vessel deck designs.
