Main Factors Affecting Marine Crane Boom Performance

In offshore and port operations, crane boom failure or underperformance directly translates to vessel downtime, safety hazards, and compounding financial losses. Assessing a marine crane requires looking beyond static lifting capacities. True performance depends on how the boom architecture handles dynamic marine environments, rigorous compliance standards, and continuous fatigue cycles. A poorly specified lifting system struggles against harsh waves, aggressive salt air, and heavy pendulum loads. We designed this guide to provide a definitive breakdown of the mechanical, environmental, and regulatory factors dictating marine cranes boom reliability. You will learn how dynamic sea states alter load charts and why material quality shapes long-term resilience. We also explore classification society requirements to help procurement and engineering teams confidently evaluate and shortlist equipment.

Key Takeaways

• Boom performance is governed by a combination of structural design (e.g., telescopic vs. knuckle), dynamic load capacities, and environmental resilience.

• Operating in marine environments requires calculating "reduction factors" to account for sea swells, wind loads, and load pendulation, which significantly lower standard Safe Working Loads (SWL).

• Upfront capital expenditure is heavily influenced by non-negotiable quality markers, including marine-grade steel selection, anti-corrosion treatments, and classification society certifications (ABS, CCS, DNV).

• Long-term ROI depends on proactive fatigue management and routine non-destructive testing (NDT) to identify high-cycle structural stress before catastrophic failure.

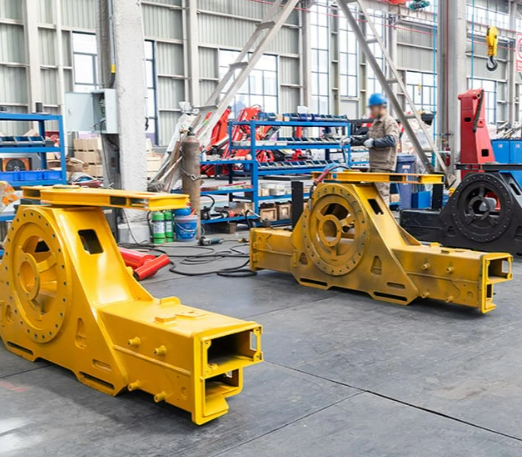

Boom Architecture and Mechanical Specifications

Evaluating boom types against operational footprints and payload requirements is your first critical step. You must match the physical architecture of the crane to the vessel's primary mission. A mismatch here forces operators into dangerous lifting angles or restricts deck mobility.

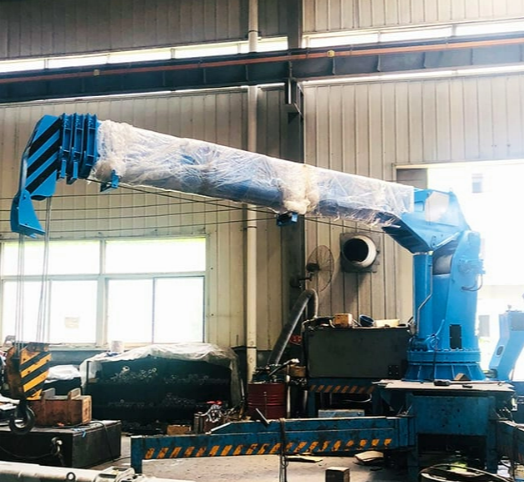

Solution Categories

There are three primary boom architectures utilized across offshore vessels. Each presents distinct advantages regarding spatial efficiency, maintenance requirements, and load placement precision. We must compare them closely to understand their ideal use cases.

Evaluation Criteria

Two primary metrics dictate structural viability during active offshore operations. You must evaluate these specific parameters before approving any procurement order.

Boom Length vs. Load Radius: The load radius represents the horizontal distance from the crane's center of rotation to the suspended hook. As this radius increases, lifting capacity decreases exponentially. Engineering teams must carefully map their maximum required outreach against the actual payload limits at that specific distance. Pushing a boom to its maximum length while lifting near its capacity limit creates dangerous tipping moments. You must always maintain a comfortable safety margin.

Weight-to-Capacity Ratio: Lighter boom designs inherently increase the vessel's payload capacity. The crane expends less energy lifting its own mass. However, reducing structural weight requires advanced engineering. Manufacturers must use higher-cost, high-tensile steel to maintain necessary structural integrity. This material shift often increases manufacturing complexity and upfront purchase prices. You must balance the need for a lightweight footprint against the capital required to source advanced metallurgy.

Dynamic Loads and Sea State Variables

Unlike land-based construction cranes operating on solid ground, marine booms must account for a moving base and independent load movement. The marine environment introduces continuous kinetic energy into the lifting equation. You must design operational parameters around constant vessel heave, pitch, and roll.

Load Chart Interpretation

Understanding marine load charts means distinguishing between theoretical capabilities and actual field limits. You cannot rely on static numbers when operating on open water.

• Rated Capacity: This figure denotes the theoretical maximum weight the crane lifts under perfect, static conditions. It assumes zero wind and zero vessel movement.

• Safe Working Load (SWL): This represents the actual allowed lifting capacity during specific operations. It serves as your primary guiding metric.

• Reduction Factors: These are mathematical multipliers applied to compensate for dynamic forces. Wind drag, vessel heave, and wave action severely reduce the initial SWL. Engineers use these factors to de-rate the crane safely for rough sea states.

Load Pendulation (The Pendulum Effect)

Uncontrolled load sway dramatically increases structural stress on the boom assembly. When a heavy container or piece of machinery swings laterally, it generates immense side-loading forces. This pendulum effect severely damages structural pivot points, slewing bearings, and hydraulic cylinders.

When evaluating lifting equipment, you must verify how the design mitigates load sway. Does the manufacturer offer dynamic heave compensation systems? These systems actively adjust cable tension to keep the load steady while the vessel rides ocean swells. You should also ask if they support advanced tag-line constraints. These constraints limit impact deceleration. They prevent abrupt energy transfers from ripping through the boom structure during offloading operations. Controlling pendulation ensures the longevity of your mechanical assets.

Environmental Stressors and Mitigation Engineering

The offshore environment acts as a constant operational variable, not an occasional disruption. Harsh weather rapidly degrades unprotected machinery. You must incorporate environmental resilience directly into your procurement specifications.

Wind Limitations

High winds threaten load stability and introduce severe lateral stress directly onto the boom. You cannot ignore wind shear during complex lifts.

Standard safe operational limits generally cap at 20 to 25 mph (32 to 40 km/h). This acts as your actionable metric. When wind speeds exceed these thresholds, operators must immediately secure or stow the booms. Strong gusts turn swinging loads into uncontrollable wrecking balls. Operating beyond recommended wind ratings guarantees structural fatigue and risks catastrophic tipping events.

Corrosion and Salt Air

Saltwater exposure remains the leading cause of long-term structural degradation. Saline environments relentlessly attack exposed metal, electrical housings, and hydraulic connections.

When shortlisting equipment, look for verifiable protective measures. Your procurement logic should demand the following:

• Marine-Grade Steel: Specify robust weathering steels designed to resist oxidation.

• Enclosed Cylinders: Demand fully enclosed hydraulic cylinder rods. This prevents abrasive salt crystals from pitting the delicate metal surfaces.

• Advanced Coatings: Verify the application of multi-layer marine epoxy systems. These specialized coatings provide a crucial physical barrier between bare metal and corrosive sea spray.

Temperature Extremes

Drastic temperature shifts alter mechanical fluid dynamics and material properties. Cold weather severely thickens standard hydraulic fluids. This viscosity change slows down telescopic marine hydraulic crane actuation and increases pump strain. Extreme cold also makes wire ropes dangerously brittle.

Winter deployments require distinct equipment upgrades. You should implement winter-grade hydraulic fluids and specify built-in pre-heating systems for engine compartments. Conversely, high-temperature tropical deployments require unique protections. You must install UV-resistant hoses and heat-rated seals to prevent sudden pressure leaks under the intense sun.

Material Quality, Compliance, and Cost Drivers

Bridging the gap between entry-level pricing and premium, field-ready marine cranes requires understanding underlying material choices. You pay upfront for engineering resilience and stringent safety compliance.

Classification Society Certifications (The "ID Card" of Quality)

Certifications act as the definitive proof of quality. Compliance with recognized maritime bodies like ABS (American Bureau of Shipping), CCS (China Classification Society), BV (Bureau Veritas), or LR (Lloyd's Register) serves as a major price driver.

You must practice absolute risk avoidance here. Skipping certified equipment creates insurmountable liability, insurance, and regulatory risks for offshore operations. Classification bodies mandate rigorous testing phases. They scrutinize everything from weld penetration depth to emergency stop fail-safes. A crane lacking these credentials simply cannot operate legally on most commercial vessels or offshore oil installations.

Component Sourcing

The origin and quality of peripheral safety components directly impact boom reliability. Even the strongest steel structure fails if its electronic sensors malfunction. You must closely examine three critical systems:

1. Load Moment Indicators (LMIs): These onboard computers calculate lift safety in real-time. They process boom angle, load radius, and weight to warn operators before tipping limits occur.

2. Anti-Two Block Systems: These safety mechanisms prevent the hook block from physically colliding with the boom tip. Such collisions snap wire ropes instantly.

3. Hydraulic Valves: Premium proportional directional valves ensure smooth, micro-millimeter precision. Cheap valves cause jerky, unsafe load movements.

Furthermore, operating in hazardous environments fundamentally alters your procurement budget. Explosion-proof configurations (ex-proof) are mandatory for oil and gas platforms. These specialized thick-cast housings isolate internal electrical sparks from highly combustible atmospheric gases. This specific upgrade protects entire rigs from catastrophic ignition events.

High-Cycle Fatigue and Lifespan Management

Constant loading, unloading, and dynamic ocean stress inevitably lead to steel fatigue. This operational risk amplifies significantly in high-outreach container operations and aggressive offshore handling scenarios.

Damage Tolerance Frameworks

Engineering infinite fatigue life into a heavy lifting system is economically impossible. Thickening steel indefinitely makes the crane too heavy to install. Instead, modern procurement relies on specialized damage tolerance frameworks.

Engineers calculate predictable crack propagation rates within the steel structure. This mathematical approach allows operators to schedule maintenance interventions long before structural failure occurs. You assume microscopic fissures will eventually form due to repetitive stress. The overarching goal shifts toward managing their growth safely through rigorous observation.

Maintenance Protocols (SOPs)

Standard operating procedures separate reliable maritime fleets from dangerous ones. You must strictly enforce inspection timelines across all operational levels.

Daily Pre-Operation Checks

Operators must execute visual checks before initiating any lift. They should inspect wire ropes for fraying or broken strands. They must visually confirm boom structural integrity, checking for obvious bending or paint flaking. Additionally, operators must monitor baseline hydraulic pressure levels to catch slow leaks early.

Long-Term Interventions

You must schedule mandatory Non-Destructive Testing (NDT) intervals. Specialized technicians perform these tests using ultrasonic equipment or magnetic particle inspection methods. These techniques reveal hidden flaws entirely invisible to the naked eye.

Ultrasonic waves detect sub-surface anomalies, while magnetic particles highlight hairline surface cracks. These methods locate micro-fissures deep inside the boom structure before they escalate into complete mechanical shearing. Routine NDT remains a non-negotiable aspect of offshore heavy lifting safety protocols.

Conclusion

Choosing the right marine cranes boom configuration requires balancing upfront specifications with hidden longevity factors. Focus on reach, capacity, and architectural style while heavily prioritizing anti-corrosion engineering and regulatory compliance.

• Always match boom architecture directly to your deck space limitations and payload profile.

• Calculate true operational capacity utilizing specific dynamic reduction factors, rather than theoretical static load limits.

• Prioritize equipment validated by recognized classification societies like ABS or CCS to ensure strict maritime regulatory compliance.

• Implement strict preventative maintenance schedules, including daily visual checks and advanced ultrasonic testing.

Next-Step Actions: Procurement teams should immediately request complete load charts from suppliers. Ensure these charts explicitly detail dynamic reduction factors for varied sea states. Verify all classification society documentation thoroughly during the shortlisting phase. Finally, assess the supplier's aftermarket support infrastructure to guarantee access to critical NDT services and rapid hydraulic maintenance.

FAQ

Q: What is the maximum safe wind speed for operating a marine crane boom?

A: Most standard marine cranes are rated for safe operation in wind speeds up to 20–25 mph (32–40 km/h). Beyond this threshold, operations must cease and the boom must be properly secured. Always consult the manufacturer's specific load and weather charts.

Q: What is the difference between Rated Capacity and Safe Working Load (SWL) in marine cranes?

A: Rated Capacity is the maximum theoretical weight the crane can lift under ideal, static conditions. SWL is the actual permitted working load in a specific operational scenario, which is significantly lower in marine environments due to applied reduction factors for wave dynamics, wind, and vessel movement.

Q: How often should a marine crane boom undergo structural inspection?

A: Best practices dictate daily visual inspections by the operator, comprehensive monthly checks of hydraulics and safety devices (like LMIs), annual professional evaluations, and formal load test recertifications (often including Non-Destructive Testing for steel fatigue) every 3 to 5 years.

Q: Why are telescopic marine hydraulic cranes preferred for certain offshore vessels?

A: A telescopic marine hydraulic crane offers an optimal balance of extensive reach and spatial efficiency. The boom can be retracted to save critical deck space when stowed, while still providing the necessary extension for flexible cargo handling or service operations when deployed.
