FF300TC-4A

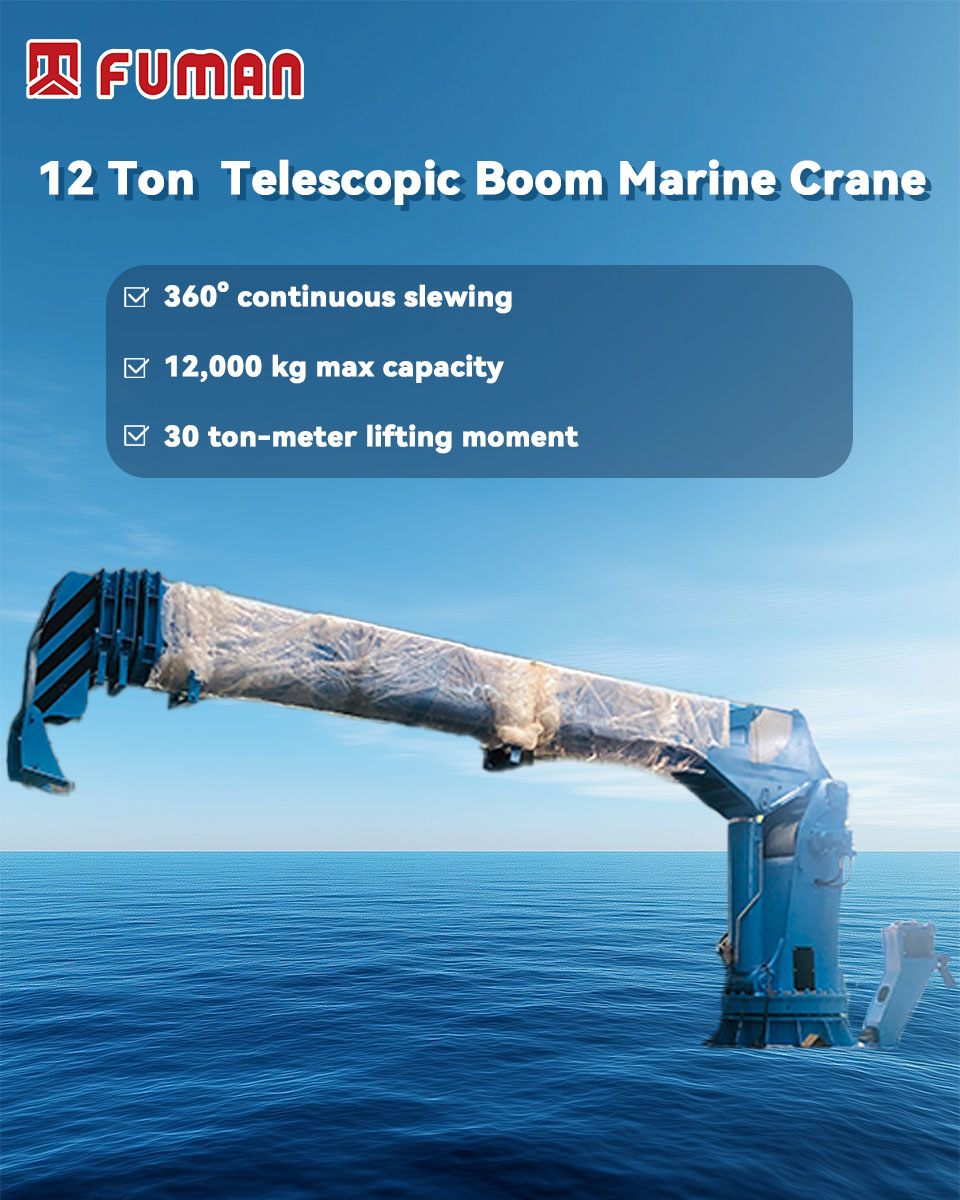

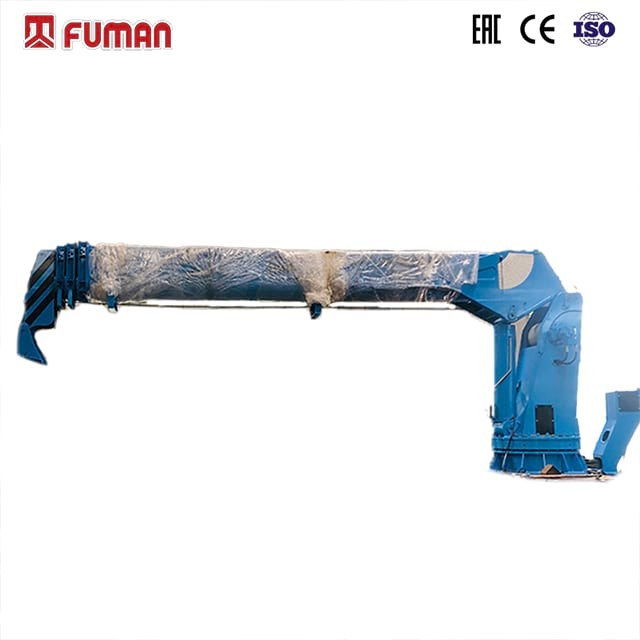

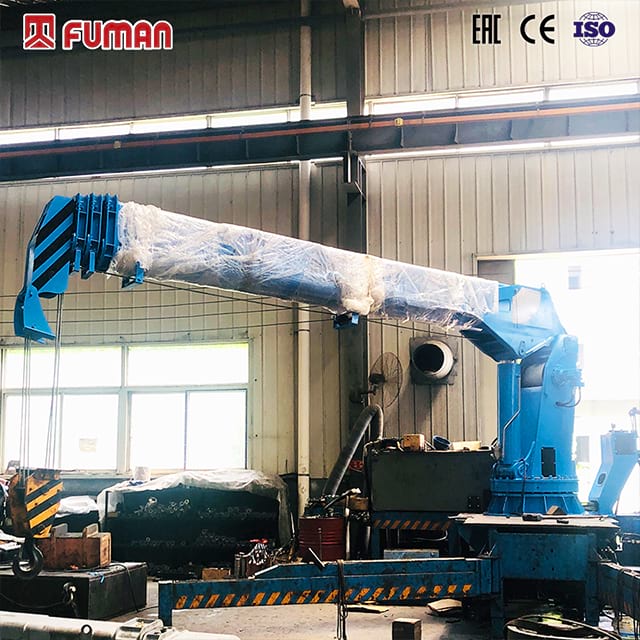

The FUMAN 12 Ton Telescopic Marine Hydraulic Cargo Crane is a robust solution designed for heavy-lifting tasks in demanding maritime environments. With a 12-ton lifting capacity and a telescopic boom system, this crane combines power, precision, and corrosion resistance to meet the needs of bulk cargo vessels, offshore rigs, and busy port terminals.
Reinforced Boom Structure: High-tensile steel alloy joints and heavy-duty hydraulic cylinders ensure stable operation at maximum load, with a fatigue life of 100,000+ cycles.
Telescopic Boom with Luffing Jib: Optional jib attachment extends vertical reach by 40%, enabling lifting heights up to 25 meters for tall cargo stacks on container ships and bulk carriers.
Advanced Sealing Technology: Double-lip shaft seals and pressure-balanced reservoirs prevent seawater intrusion into hydraulic systems, reducing the risk of component failure by 60%.
Vibration-Damping Mechanism: Hydraulic shock absorbers and anti-sway controls minimize boom oscillations during lifting, improving operator control and cargo safety in rough seas.
Ergonomic Control Interface: Joysticks with proportional feedback and a 7-inch touchscreen display for intuitive operation, even for operators new to marine cranes.
Bulk Cargo Transportation: Efficiently loads/unloads coal, grain, and ore on dry bulk carriers, with high-speed cycle times to maximize vessel turnaround.
Offshore Oil & Gas Support: Transports heavy machinery and supplies to offshore platforms, operating reliably in extreme temperatures and high humidity.
Cruise Ship Maintenance: Lifts lifeboats, engine components, and onboard amenities during dry-dock repairs, ensuring minimal disruption to passenger operations.
Port Logistics & Warehousing: Handles heavy industrial equipment and project cargo in busy ports, optimizing cargo throughput with its large lifting capacity and flexible reach.
Field-Tested Durability: Proven in the North Sea and Southeast Asian waters, with a recorded 99.2% uptime in operations spanning over 5 years.
Modular Component Design: Standardized hydraulic valves, motors, and control modules sourced from global suppliers, ensuring quick replacement and cost-effective maintenance.
Digital Diagnostics System: Pre-installed IoT sensors transmit real-time performance data to our monitoring platform, enabling predictive maintenance and reducing unplanned downtime.
Tailored Training Programs: Customized operator training for marine crews, covering safety protocols, load planning, and advanced maneuvering in different sea conditions.

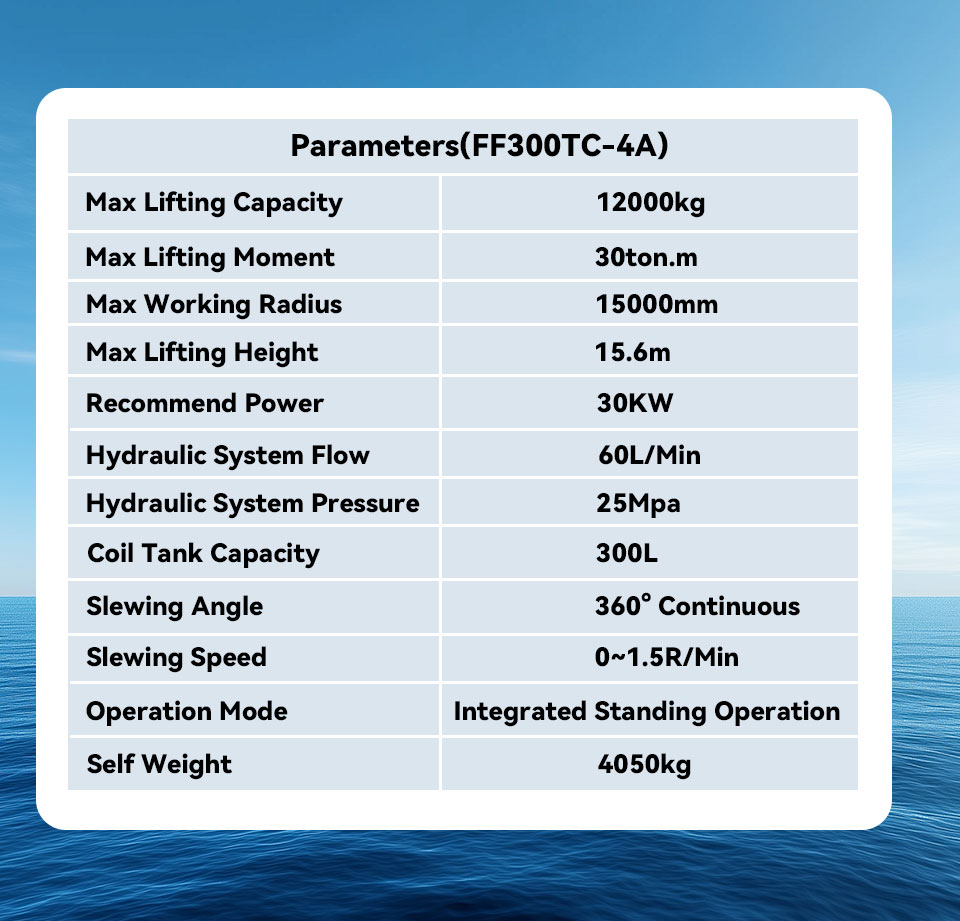

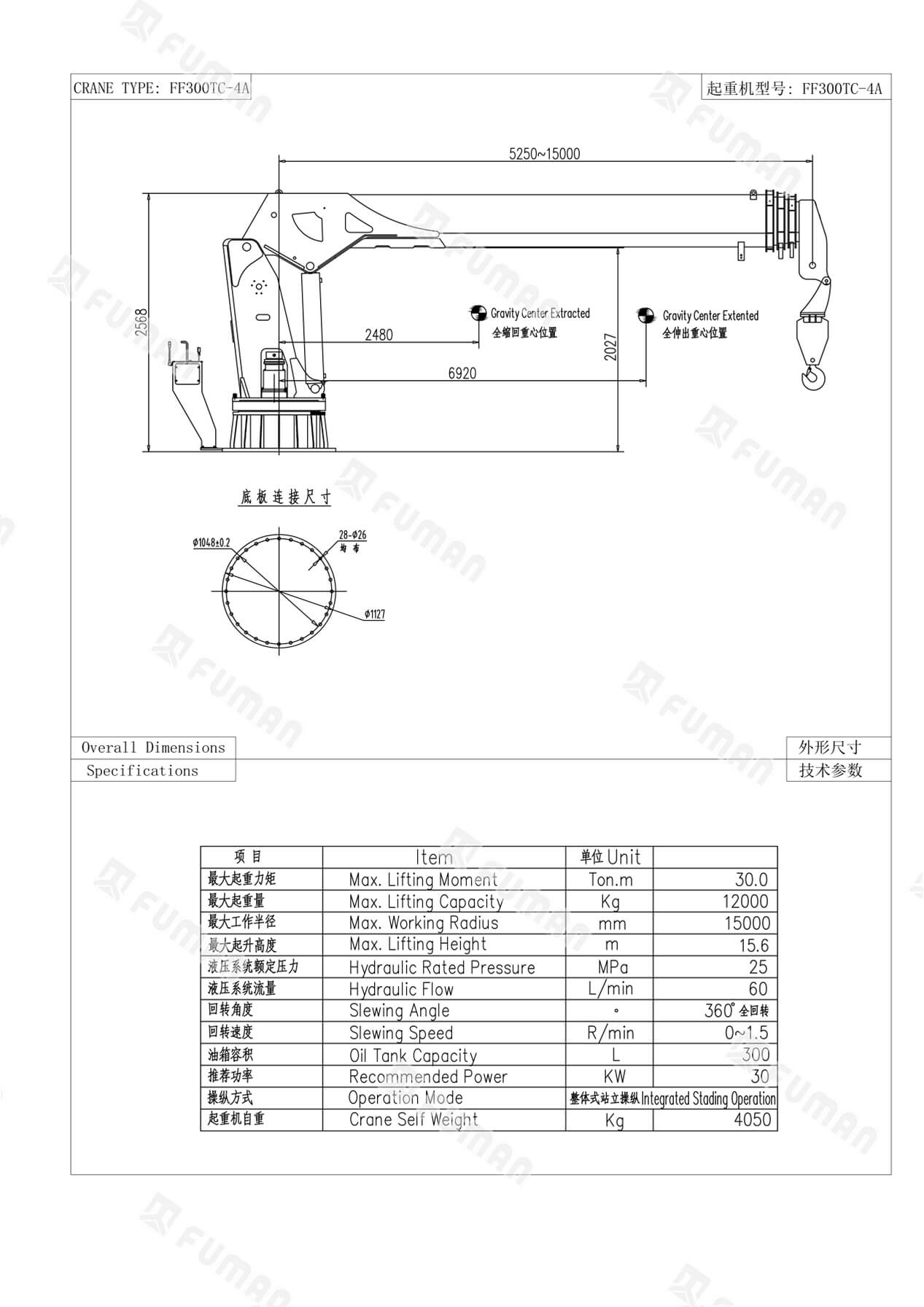

Parameters(FF300TC-4A) | |
Max Lifting Capacity | 12000kg |
Max Lifting Moment | 30 ton.m |
Max Working Radius | 15000mm |
Max Lifting Height | 15.6m |
Recommend Power | 30KW |
Hydraulic System Flow | 60L/Min |
Hydraulic System Pressure | 25Mpa |
Coil Tank Capacity | 300L |
Slewing Angle | 360° Continuous |
Slewing Speed | 0~1.5R/Min |
Operation Mode | Integrated Standing Operation |
Self Weight | 4050kg |
