ZM65-2B

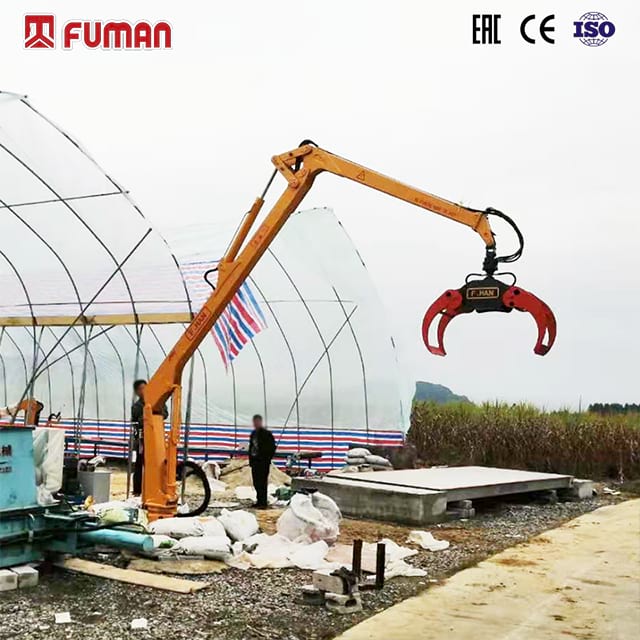

The FUMAN 500KG Hydraulic Timber Crane is a rugged, versatile lifting solution engineered to simplify heavy material handling across diverse industries. Designed to safely lift, transport, and position loads up to 500 kilograms, this crane combines robust performance with portability, making it ideal for professionals in forestry, construction, agriculture, and logistics, as well as homeowners tackling large-scale projects.
Constructed with a high-strength steel frame and corrosion-resistant components, the crane withstands harsh outdoor conditions and frequent use, ensuring long-term reliability. Its advanced hydraulic system delivers smooth, controlled movements, allowing precise load positioning while minimizing operator effort. The compact, foldable design prioritizes mobility— featuring quick-assembly mechanisms, it fits easily into pickup trucks, trailers, or storage spaces, enabling seamless deployment across remote job sites or confined environments. Whether you’re managing timber in a forest, organizing materials in a warehouse, or completing a home renovation, the FUMAN crane enhances productivity by reducing manual labor and streamlining workflows.
Handles large logs, steel beams, machinery parts, and bulk materials with stability, thanks to a reinforced lifting arm and balanced base design that minimizes sway during transport.
Ideal for irregularly shaped loads, eliminating the need for multiple lifting tools and reducing project downtime.
Lightweight construction and foldable components allow effortless transportation in standard vehicles, making it suitable for multi-site operations or remote locations.
Modular design enables tool-free assembly in minutes, with clear instructions for quick setup—no professional training required.
Compact dimensions ensure maneuverability in tight spaces, such as between trees, narrow alleyways, or crowded job sites.
High-efficiency hydraulic pump provides smooth, responsive lifting and lowering, with adjustable speed controls for delicate material handling.
Built-in safety features include overload protection valves and emergency stop functions, complying with international safety standards (CE/ISO certified) to safeguard operators and equipment.
Intuitive control panel with labeled levers for lifting, rotating, and positioning, designed for the lowest learning curve—suitable for both experienced operators and first-time users.
Ergonomic handles reduce fatigue during extended use, while a detailed user manual and online video tutorials guide setup, operation, and routine maintenance.
Sealed hydraulic components and rust-resistant coatings protect against moisture, dust, and UV exposure, minimizing wear and tear in harsh environments.
Accessible grease points and a simple maintenance schedule ensure low upkeep costs, with a service life that outperforms budget alternatives.
Efficiently load cut logs onto trucks or transport them to processing areas, eliminating the need for manual dragging that causes worker strain and material damage.
Adapts to uneven terrain, moving seamlessly between tree stands to improve productivity in remote forest sites.
Streamline inventory management by stacking timber bundles, pallets, or heavy building materials with precision—reducing scratches and breakage during handling.
Facilitates quick loading/unloading of trucks, optimizing workflow in high-throughput storage facilities.
Lifts steel beams, concrete blocks, and roofing materials to elevated levels, improving efficiency on multi-story projects.
Compact size makes it indispensable for urban construction sites with limited space, operating alongside cranes and excavators without obstruction.
Moves agricultural equipment (irrigation pipes, feed bins) and bulk materials (hay bales, fertilizer bags) with ease, supporting year-round farm operations.
Ideal for maintaining machinery by lifting heavy parts during repairs, reducing downtime for critical equipment.
Empowers homeowners to tackle ambitious tasks like installing roof trusses, moving garden structures, or assembling sheds—safely and independently.
No certification required, making complex projects accessible to non-professional users.
We deliver products tested for structural integrity, load capacity, and operational safety—backed by international certifications.
Continuous R&D ensures our cranes incorporate the latest industry advancements in efficiency and safety.
Adjustable mounting options (trailer, pickup bed, stationary base) and accessory compatibility allow seamless integration with existing equipment.
Dedicated engineering team provides free consultations to tailor configurations for unique workflows, ensuring optimal performance.
Direct-to-customer model eliminates middleman costs, offering professional-grade quality at prices 20% lower than comparable brands.
Long lifespan and low maintenance translate to a lower total cost of ownership, outperforming cheaper alternatives prone to breakdowns.
24/7 customer service for technical issues, spare parts, and operational guidance. Comprehensive 2-year warranty covers manufacturing defects, with fast shipping to [North America, Europe, Asia-Pacific] and other major regions.
Uses recycled steel and energy-efficient hydraulic systems to reduce environmental impact, aligning with global green manufacturing standards.
Encourages responsible resource use by minimizing material waste during handling and transport.

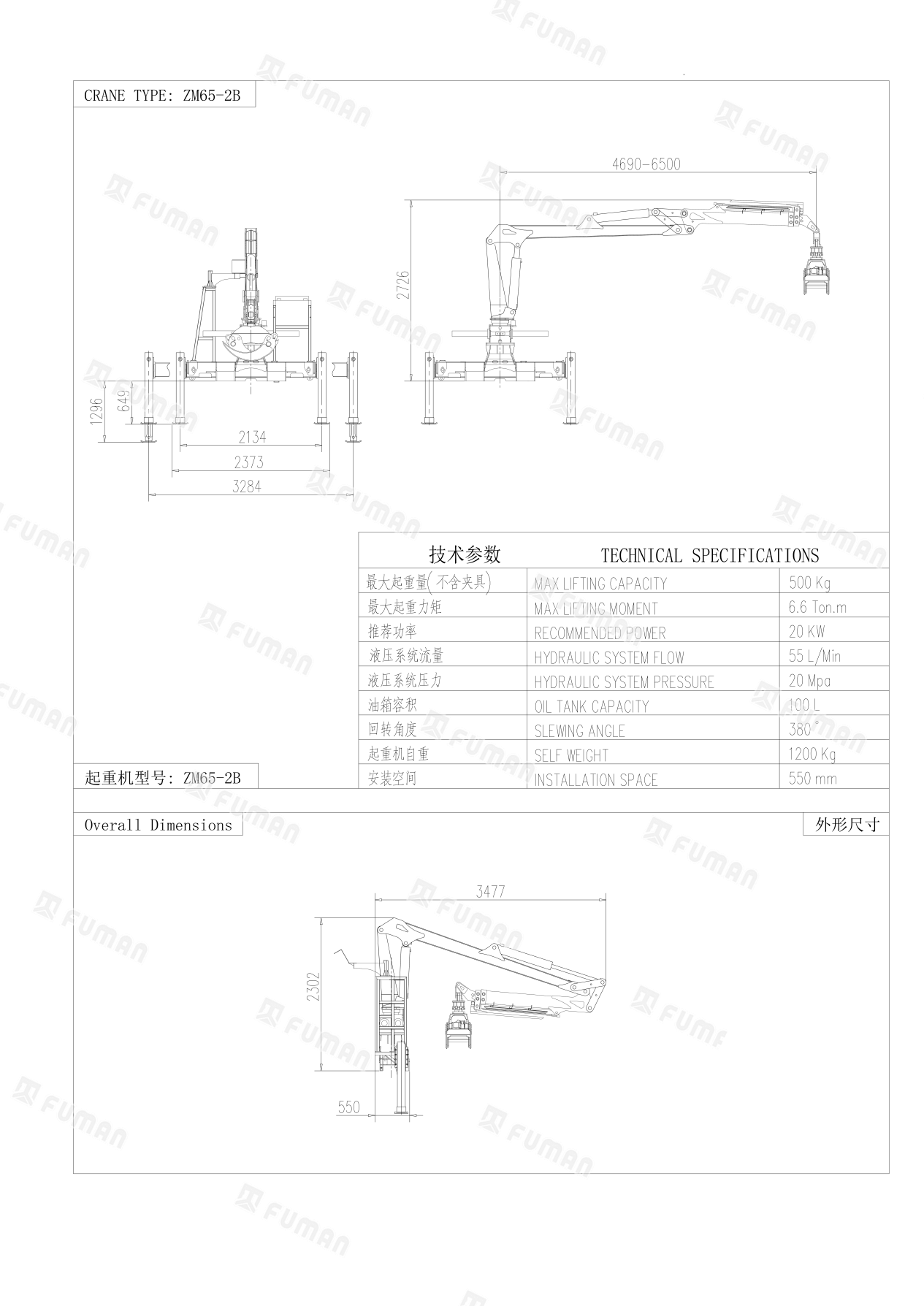

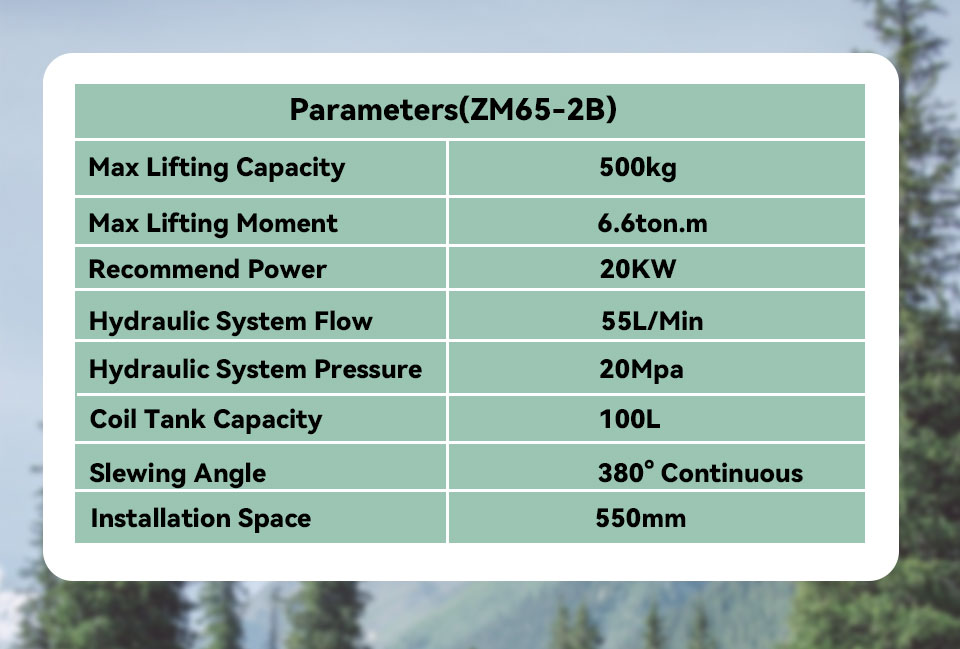

Parameters(ZM65-2B) | |
Max Lifting Capacity | 500kg |
Max Lifting Moment | 6.6ton.m |
Recommend Power | 20KW |
Hydraulic System Flow | 55L/Min |
Hydraulic System Pressure | 20Mpa |
Coil Tank Capacity | 100L |
Rotation Angle | 380° |
Self Weight | 1280kg |
Installation Space | 550mm |
Timber Crane Operation Guide
1. Precautions before operation
(1) The crane is not allowed to be used before the outrigger cylinder is opened and locked.
(2) Before connecting the power take-off, be sure to check whether the control handle is in the middle position; if the handle is not in the middle position, return it to the middle position.
2. Operation start
Operation process: step on the clutch, put the speed lever in the neutral position, start the car, then pull out the manual air valve of the power take-off, and then slowly release the clutch pedal. At this time, the power take-off is in working condition.
3. Operation of the telescopic arm
Before lifting the cargo, you must estimate the weight of the cargo (this value should be compared with the rated load on the lifting torque) and calculate the route from the cargo drop point.
When lowering the cargo, operate slowly, land accurately and without swinging, and be careful not to let the cargo hit the crane or the car.
In order to increase the service life of the crane, avoid rotating the turntable with load when the telescopic arm is extended. It is best to shorten the telescopic arm to the shortest before rotating.
4. Crane folding
a. Folding the telescopic arm: pull the telescopic arm control lever to fully retract the telescopic arm.
b. Closing the boom: pull the luffing control lever to close the boom.
