FF040TC-3A

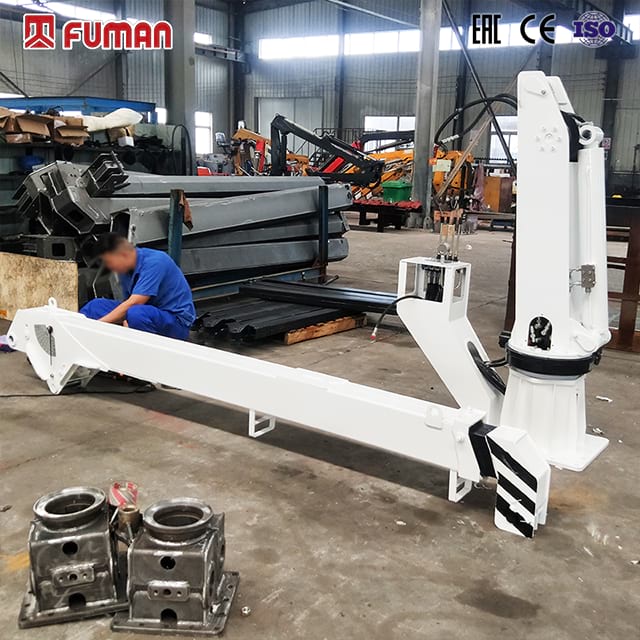

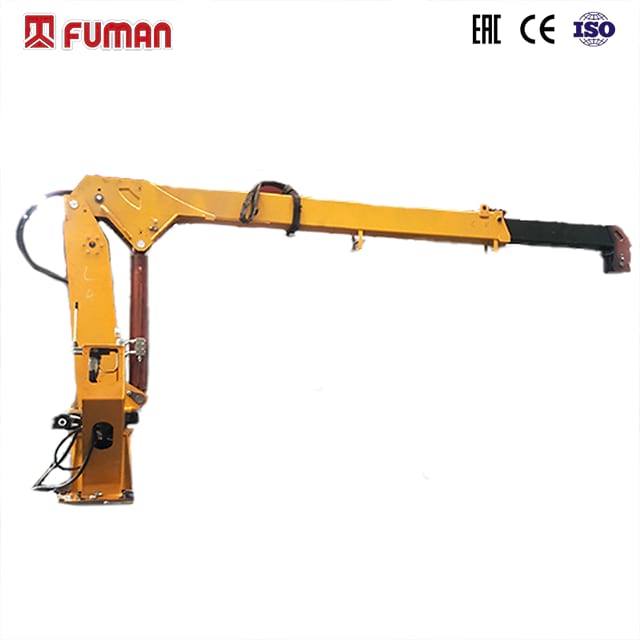

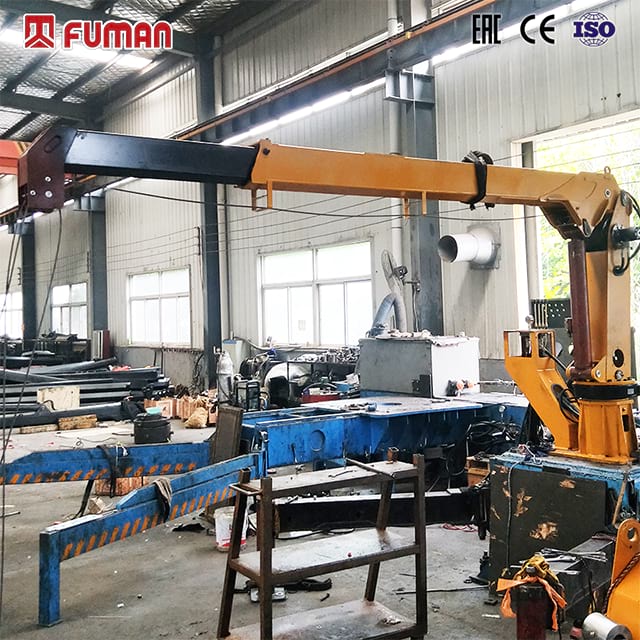

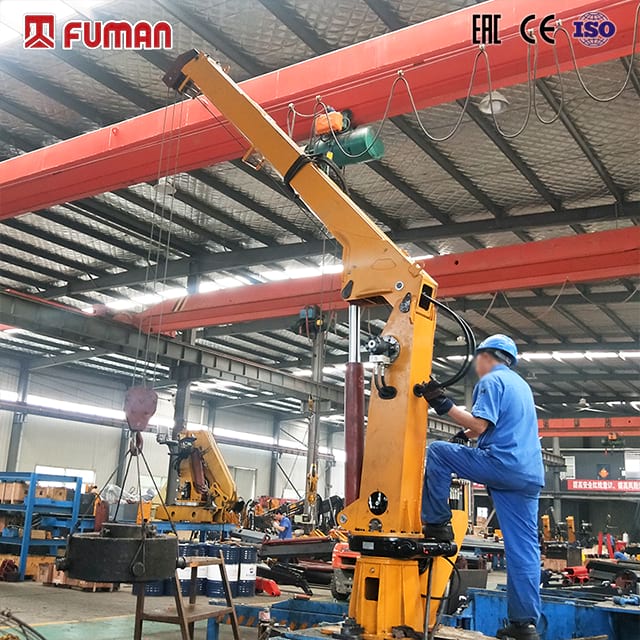

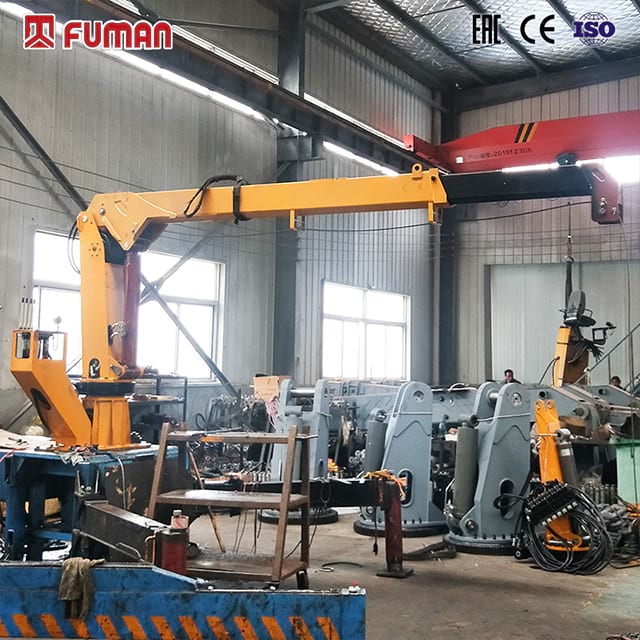

The FUMAN Telescopic Marine Hydraulic Cargo Crane is a high-performance solution for heavy-duty cargo handling in marine and offshore applications. Featuring a telescopic boom system and advanced hydraulic technology, this crane delivers exceptional reach, precision, and durability, making it ideal for container terminals, heavy lift vessels, and naval shipyards.
Heavy-Duty Telescopic Boom: 5-section steel boom with a maximum reach of 20 meters, capable of lifting 15 tons at 10 meters and 8 tons at full extension.
Dual-Pump Hydraulic System: Independent pumps for boom extension and slewing, enabling simultaneous movements to reduce cycle times by 30% during intensive cargo operations.
Extreme Weather Protection: Polyurethane coatings and marine-grade seals protect against salt spray, UV radiation, and chemical corrosion, ensuring minimal maintenance in harsh environments.
Integrated Load Monitoring System: Real-time display of load weight, boom angle, and stability margins on both the operator panel and shore-based control station.
Optional Remote Hydraulic Control: Enables shore-based operators to manage cargo handling in hard-to-see deck areas, enhancing safety and efficiency during complex maneuvers.
Container Terminal Operations: Stacks and transfers 20'/40' containers between vessels, trucks, and storage yards with high-speed precision.
Heavy Lift Vessel Operations: Handles oversized cargo such as industrial turbines, offshore modules, and bridge segments during long-distance marine transportation.
Naval Ship Maintenance: Lifts engines, propellers, and combat systems on warships and submarines, supporting dockside repairs and upgrades.
Marine Construction Projects: Aids in installing offshore wind foundations, harbor structures, and underwater pipelines, requiring precise load positioning in dynamic sea conditions.
Classification Society Approval: Certified by ABS, BV, and RINA, ensuring compliance with the most stringent international marine safety and environmental standards.
Aerodynamic Boom Design: CFD-optimized profile reduces wind resistance by 25%, improving stability during high-speed slewing and reducing stress on structural components.
24/7 Maritime Support Network: Dedicated hotline for emergency repairs, with mobile service teams equipped to deploy to vessels in port or at anchor within 4 hours.
Sustainable Marine Solutions: Uses bio-degradable hydraulic fluids and energy recovery systems, minimizing environmental impact during operation and maintenance.

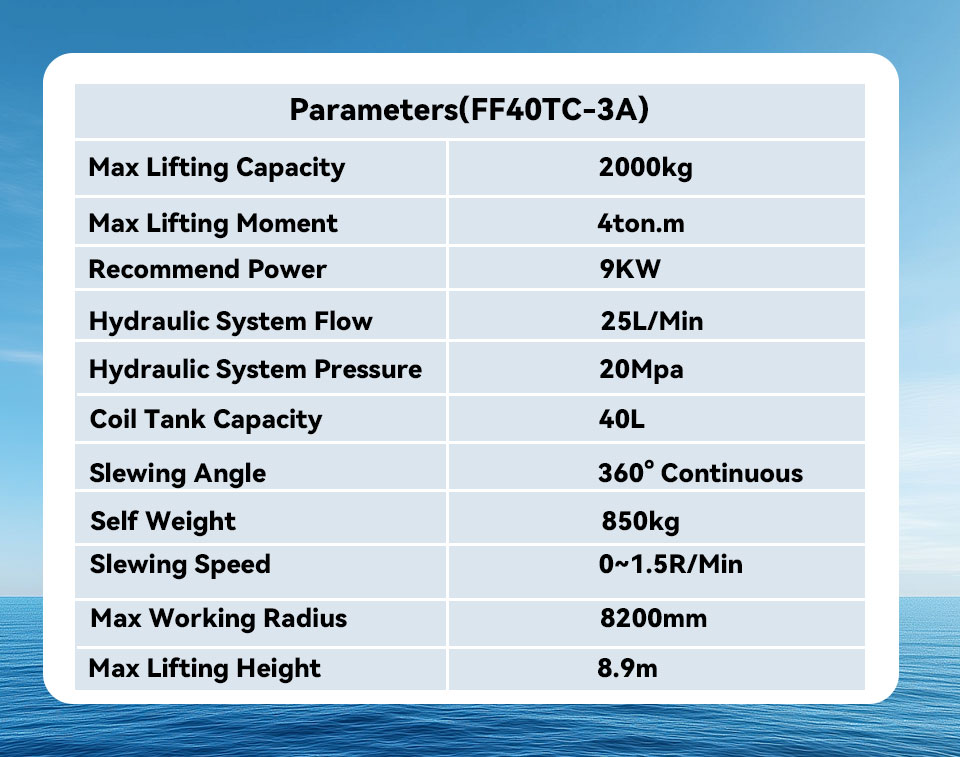

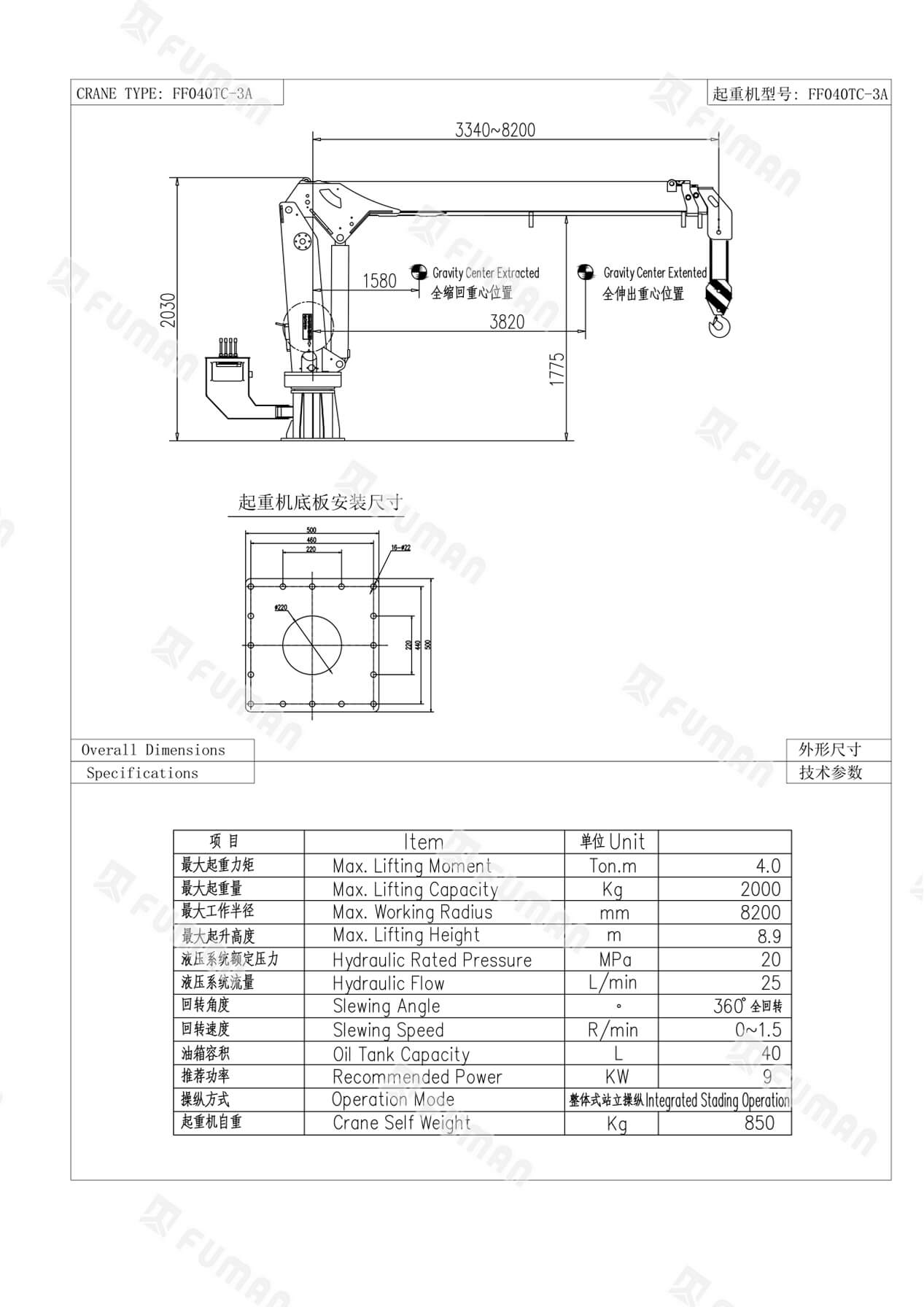

Parameters(FF40TC-3A) | |
Max Lifting Capacity | 2000kg |
Max Lifting Moment | 4 ton.m |
Max Working Radius | 8200mm |
Max Lifting Height | 8.9m |
Recommend Power | 9 KW |
Hydraulic System Flow | 25L/Min |
Hydraulic System Pressure | 20Mpa |
Coil Tank Capacity | 40L |
Slewing Angle | 360° Continuous |
Slewing Speed | 0~1.5R/Min |
Operation Mode | Integrated Standing Operation |
Self Weight | 850kg |
