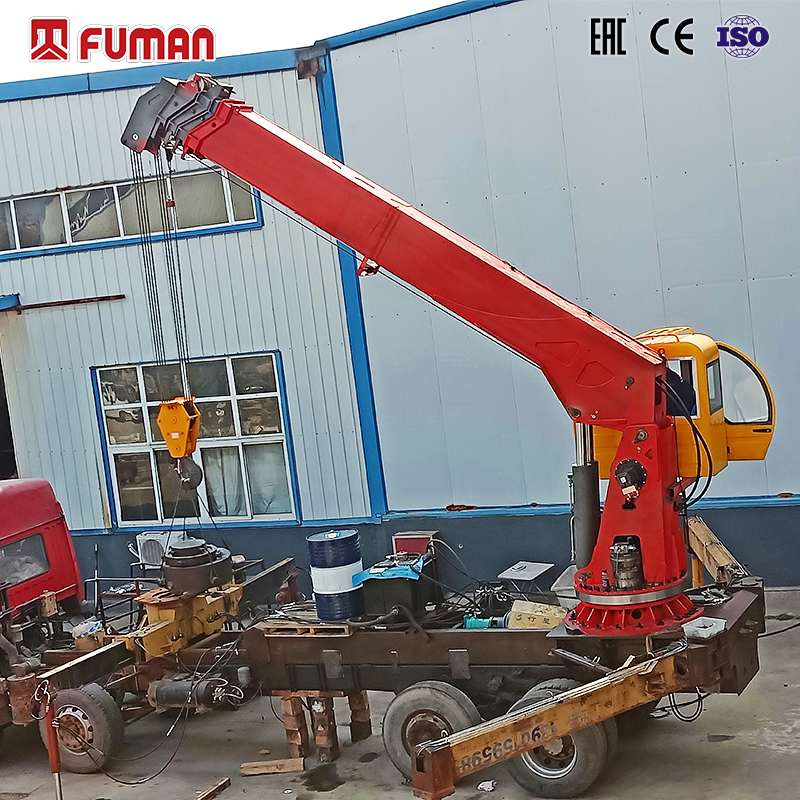

F500TC-05 20-Ton Telescopic Boom Truck-Mounted Crane

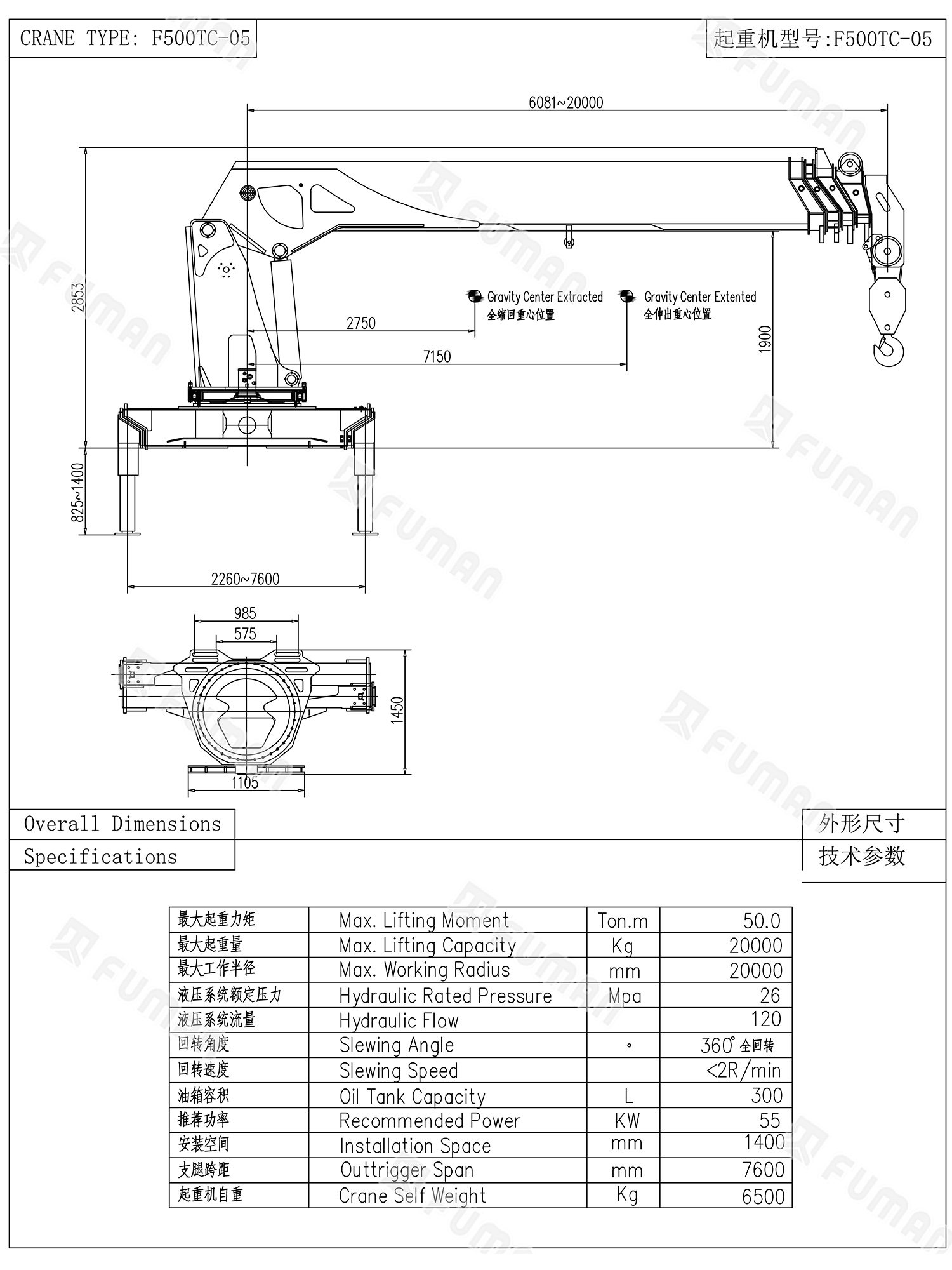

In long-reach lifting operations, common challenges for procurement teams include excessive equipment self-weight, restricted outrigger configurations, and a lack of essential safety options. Selecting the right equipment often makes it difficult to strike a balance between lifting capacity, vehicle payload, and operating radius. The F500TC-05 is a telescopic boom crane featuring a five-section boom, a rated lifting capacity of 20 tons, a lifting moment of 50 ton-meters, and a maximum operating radius of 20 meters. It offers 360° continuous rotation and is equipped with a high-performance hydraulic system. With a self-weight of 6,500 kg and a wide outrigger span, it ensures stable and reliable operation. Optional features—such as wireless remote control, load-limiting devices, and cooling systems—make it ideal for construction projects, cargo handling, and high-altitude maintenance. Our product line also includes knuckle boom cranes, ship-mounted telescopic boom cranes, marine knuckle boom cranes, as well as specialized equipment like grab machines and forestry cranes (log loaders) designed for material handling and timber loading/unloading.

Product Features

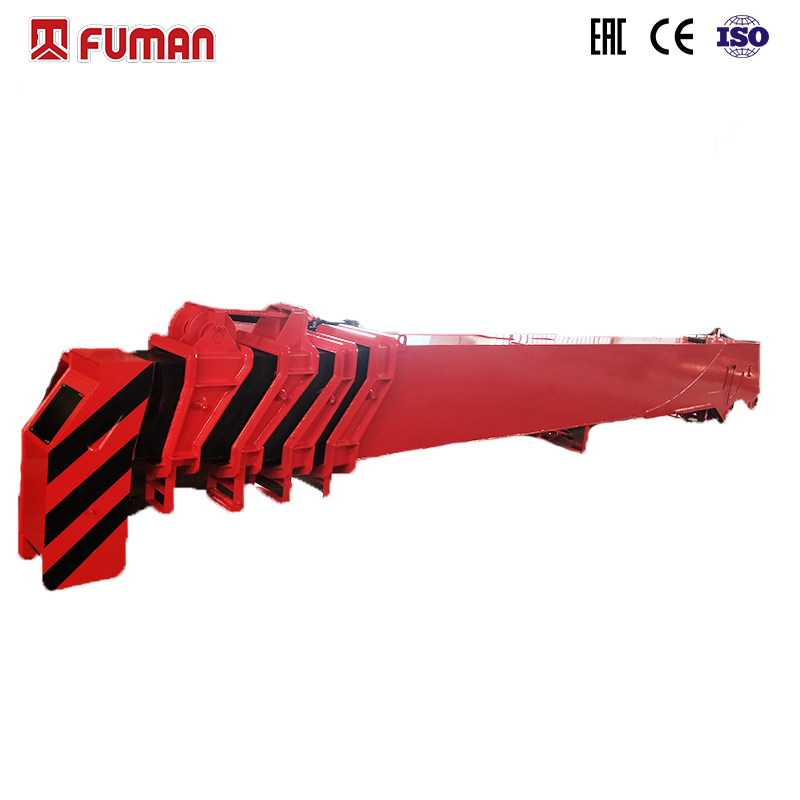

1. Five-section telescopic boom design with a 20m maximum operating radius and 360° continuous rotation, offering exceptional long-reach lifting capabilities.

2. Lightweight construction (6,500 kg) combined with a wide outrigger span helps manage chassis load while ensuring stability during lifting.

3. Supports a wide range of attachments and optional safety components to meet specific site requirements and regulations.

Tips

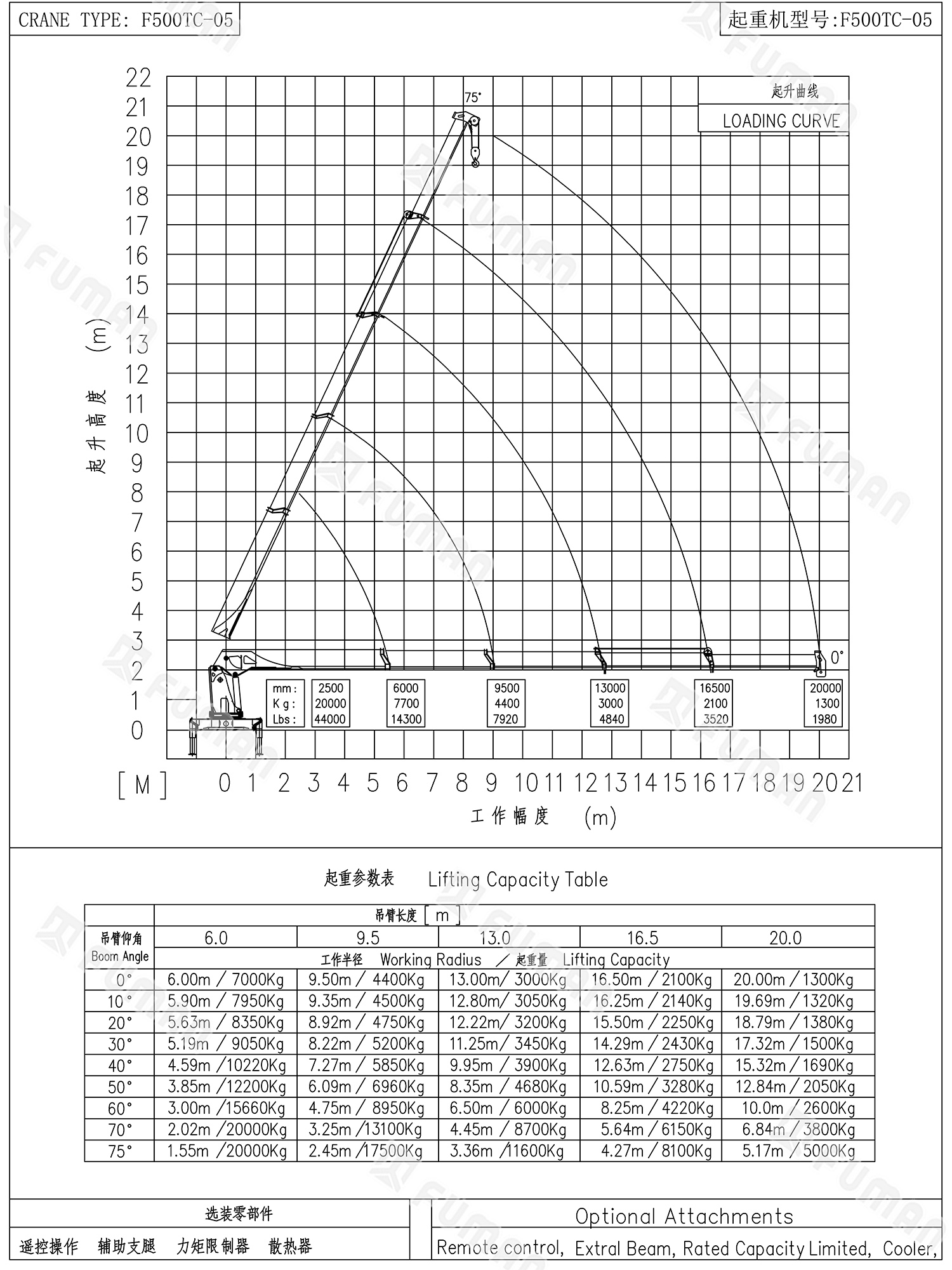

1. Before operation, always verify the load and radius against the load chart; the rated tonnage is a baseline parameter—never exceed these limits.

2. Outriggers must be fully extended. If the ground bearing capacity is insufficient, use load-distribution pads (dunnage) to prevent the risk of tipping over.

FAQ

Q: What are the key maintenance requirements for the hydraulic system of this telescopic boom crane?

A: Regularly inspect pipe connections for leaks, and replace the hydraulic oil and filter elements according to the prescribed schedule. In high-temperature environments, the use of a cooling kit is recommended to slow down component wear.

Q: What kind of after-sales support is provided, and what is the lead time for spare parts?

A: The entire unit comes with a standard warranty. Core hydraulic components are kept in stock, and online technical support is available.

Q: Can the grapple be modified to perform tasks similar to those of a dedicated grab machine or a forestry crane (log loader)?

A: Attachment modifications are supported. Hydraulic output parameters must be confirmed in advance, after which we will provide a tailored solution.

Q: How do the application scenarios for this model compare to those of a knuckle boom crane?

A: This model excels in long-reach lifting operations, whereas a knuckle boom crane is better suited for multi-positional tasks in confined spaces.

Q: Can ship-mounted telescopic boom cranes or marine knuckle boom cranes be used directly on land?

A: Marine models are specially treated to resist salt-spray corrosion and are structurally designed for shipboard installation; therefore, they are not recommended as direct replacements for land-based truck-mounted cranes.
